200 Stück / 200 pieces Golden DRAGON® Plus
4000K OSRAM LED
4000K OSRAM LED
NEUTRAL WHITE | CRI 80 | >1.2W | LCW W5AM
- OSRAM Golden DRAGON Plus
- 4000K Neutral White | LCW W5AM
- CRI: typ. 80
- white SMT package with clear silicone lens, chip level conversion
- Forward voltage: 2.70 - 3.70 V
- Luminous Flux: 97 lm - 112 lm
- Forward current: 20 ... 1000 mA
- Viewing angle at 50 % Iv: 170°
- Luminous efficacy: typ. 76 lm/W @ 3000 K
- Operating temperature range: - 40 ... 125°C
For the Type LCW W5AM in addition to the datasheet we offer a better selection by Group :
Gruppenbezeichnung auf Etikett: Golden DRAGON Plus | LCW W5AM | KZ - 7N -0
Gruppenbezeichnung auf Etikett: Golden DRAGON Plus | LCW W5AM | KZ - 7N -0
- Luminous Flux = KZ : 97 lm - 112 lm
- Chromaticity Coordinate = 7N : 4000K
- Forward voltage = 0: 2.70 - 3.70 V
Anm.: In einer Verpackungseinheit / Gurt ist immer nur eine Gruppe für jede Selektion enthalten.
Dieses Mitglied der Golden-DRAGON®-Familie ermöglicht die Entwicklung kleiner und dennoch heller Lichtquellen - unter höchsten Ansprüchen an deren Lebenserwartung.
Anwendungen:
Anwendungen:
- Raumbeleuchtung: Deckenbeleuchtung, Nischenbeleuchtung, Kronleuchter, Hängeleuchten, Wandleuchter
- Flutlichter und Wandfluter
- Akzent- und Effektbeleuchtung
- Spezialanwendungen (Blitzlichter, Fahrradfrontleuchten, Notlichter)
- Leselampen
- Straßen und Tunnel
- Kühlschränke und -truhen
Die LED enthält ein ESD-Bauteil, das parallel zum Chip geschaltet ist. ESD Festigkeitup to 8kV
This Golden DRAGON® family member allows the design of small size high brightness light sources, while meeting highest lifetime requirements.
In contrast to the standard Golden DRAGON®, the silicone encapsulant of the DRAGON® Plus is formed into a lens. The Golden DRAGON® Plus silicone lens serves as a cost efficient device to optimize efficiency, by allowing most of the generated light to directly leave the LED.
Applications:
In contrast to the standard Golden DRAGON®, the silicone encapsulant of the DRAGON® Plus is formed into a lens. The Golden DRAGON® Plus silicone lens serves as a cost efficient device to optimize efficiency, by allowing most of the generated light to directly leave the LED.
Applications:
- Room lighting: ceiling light, cove lighting, chandeliers, pendants, sconces
- Flood light and wall washers
- Accent and effect lighting
- Specialty lighting (flashlights, bicycle headlamps, security lights)
- Reading lamps
- Street and tunnel lighting
- Freezer cases and fridges
LED is protected by ESD device which is connected in parallel to LED-Chip. ESD withstand voltage up to 8kV

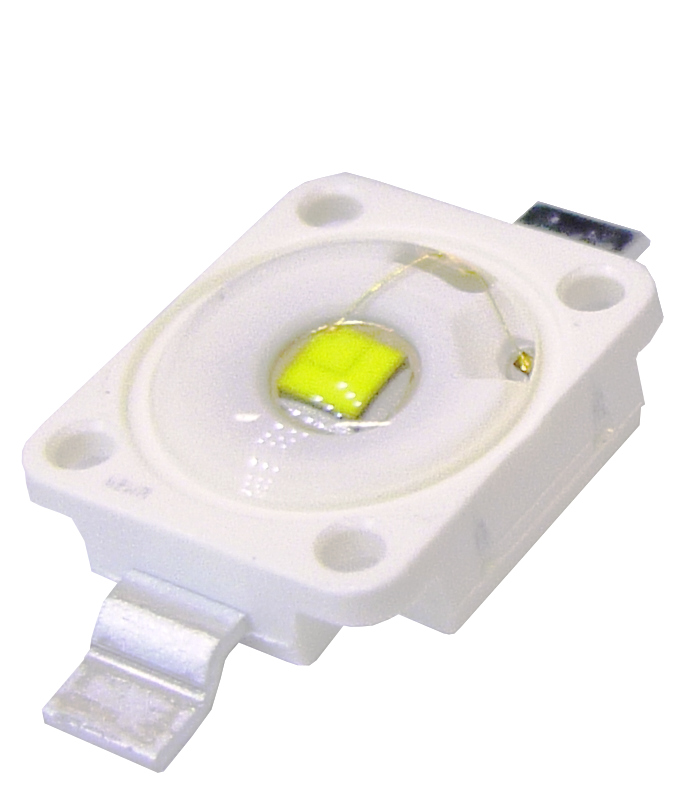

What you see on the photos, is what you get. Taken out from the original OSRAM box.
We received these original OSRAM parts of an OEM-stock (Industrial/Germany)
and for each type it exist a datasheet (see Internet) with specified parameters.
We received these original OSRAM parts of an OEM-stock (Industrial/Germany)
and for each type it exist a datasheet (see Internet) with specified parameters.
Bitte fragen sie uns an, falls sie größere
Stückzahlen benötigen oder geben Sie uns hierzu Ihren Preisvorschlag.
