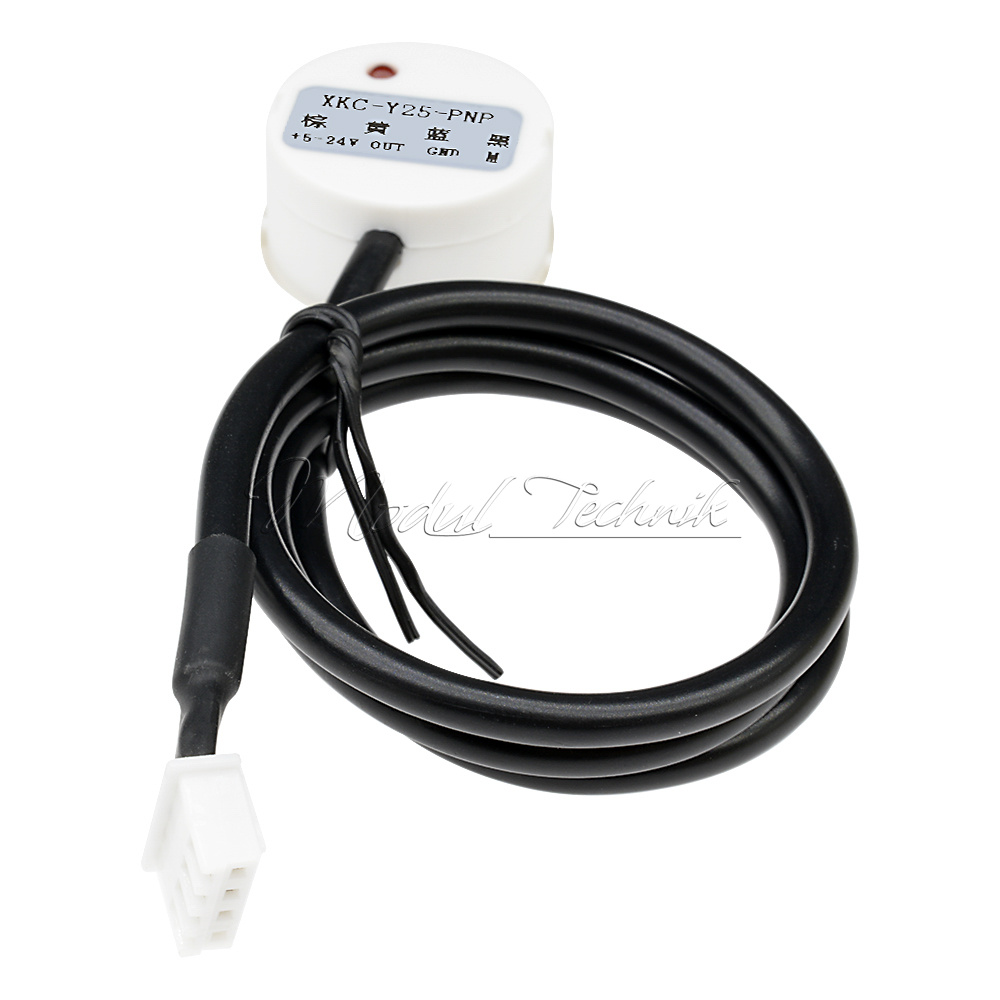

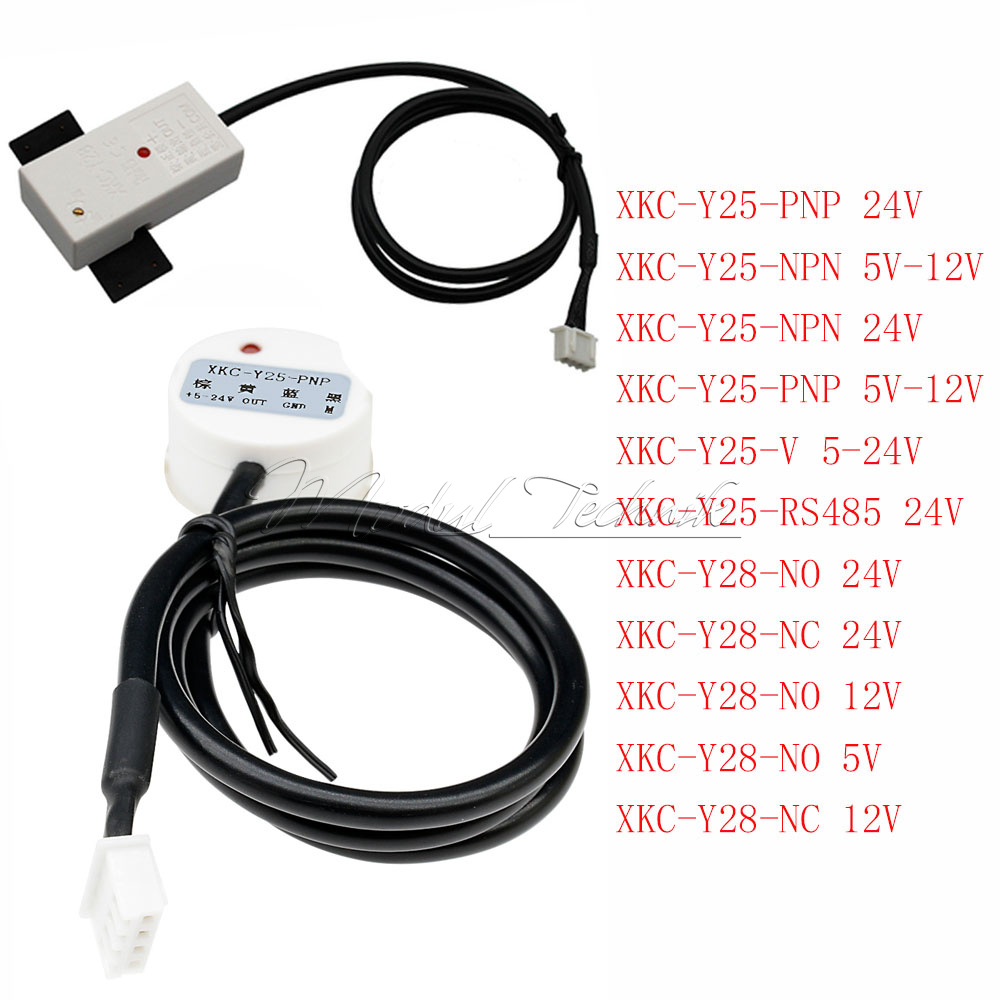

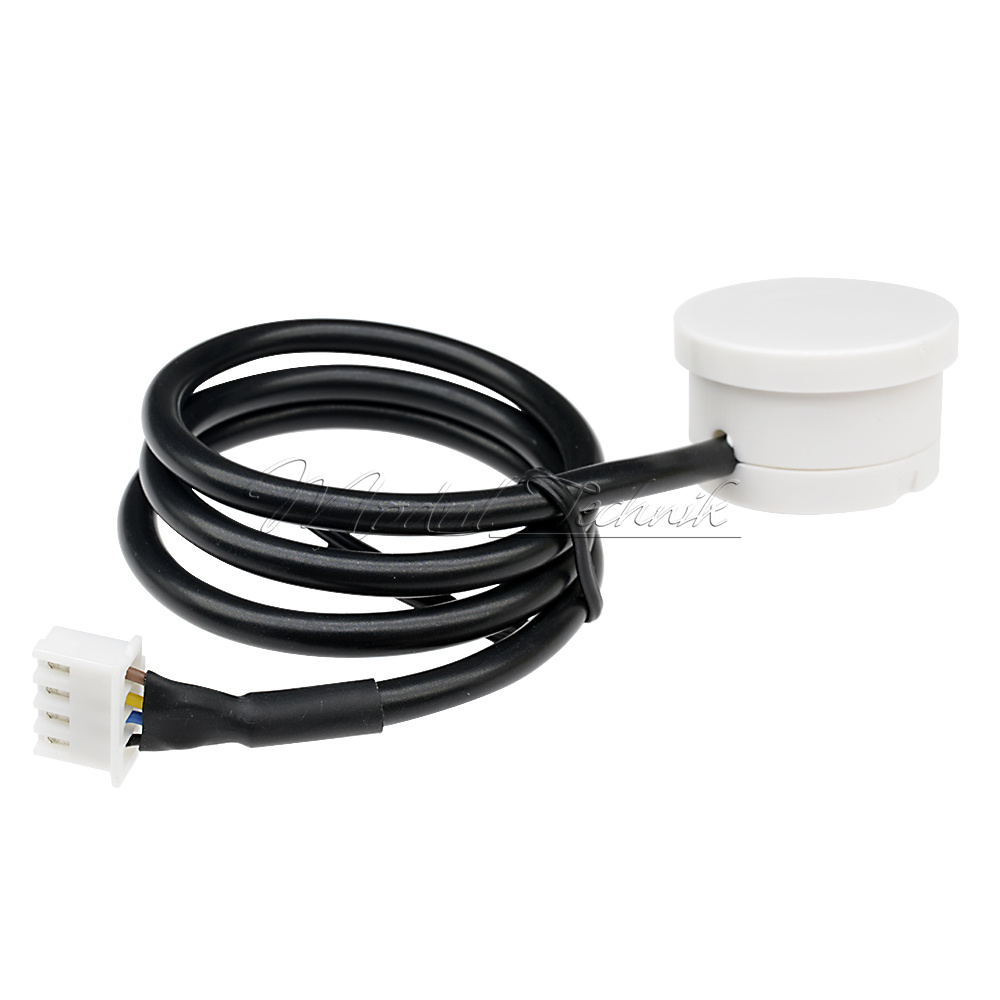

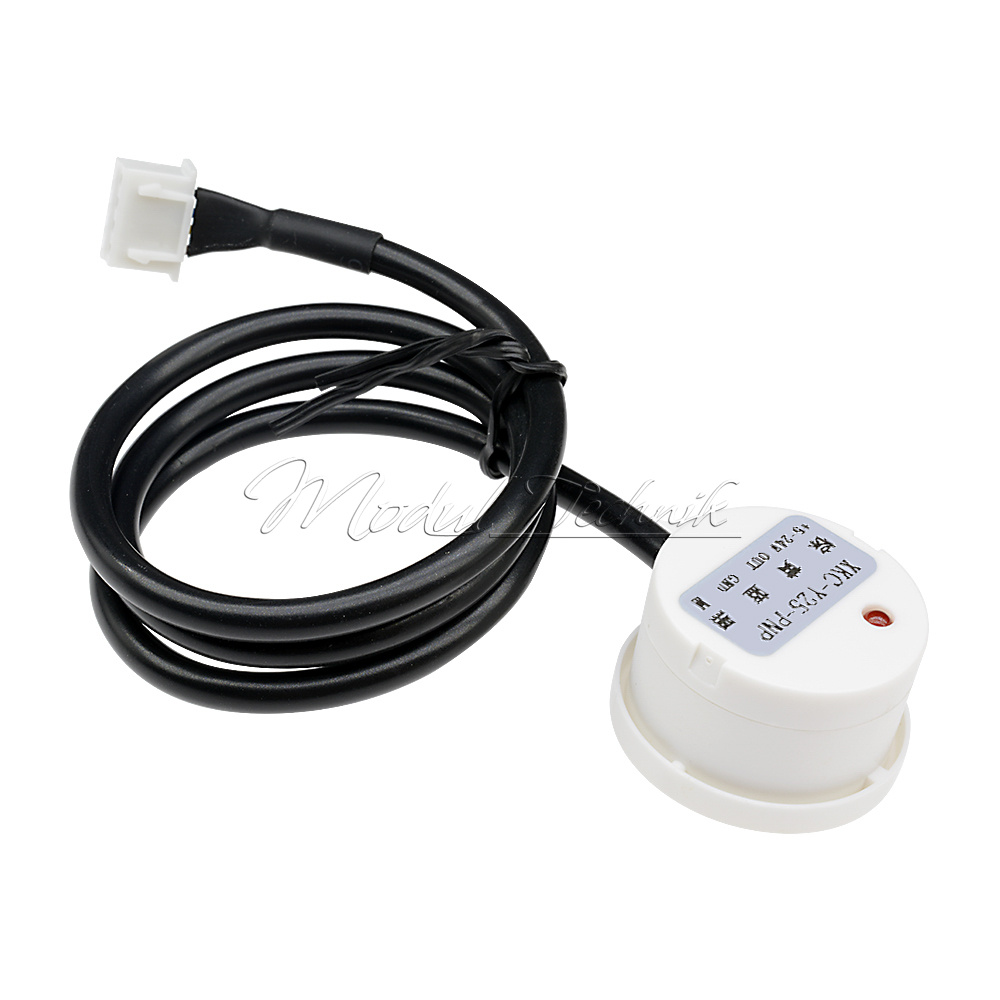

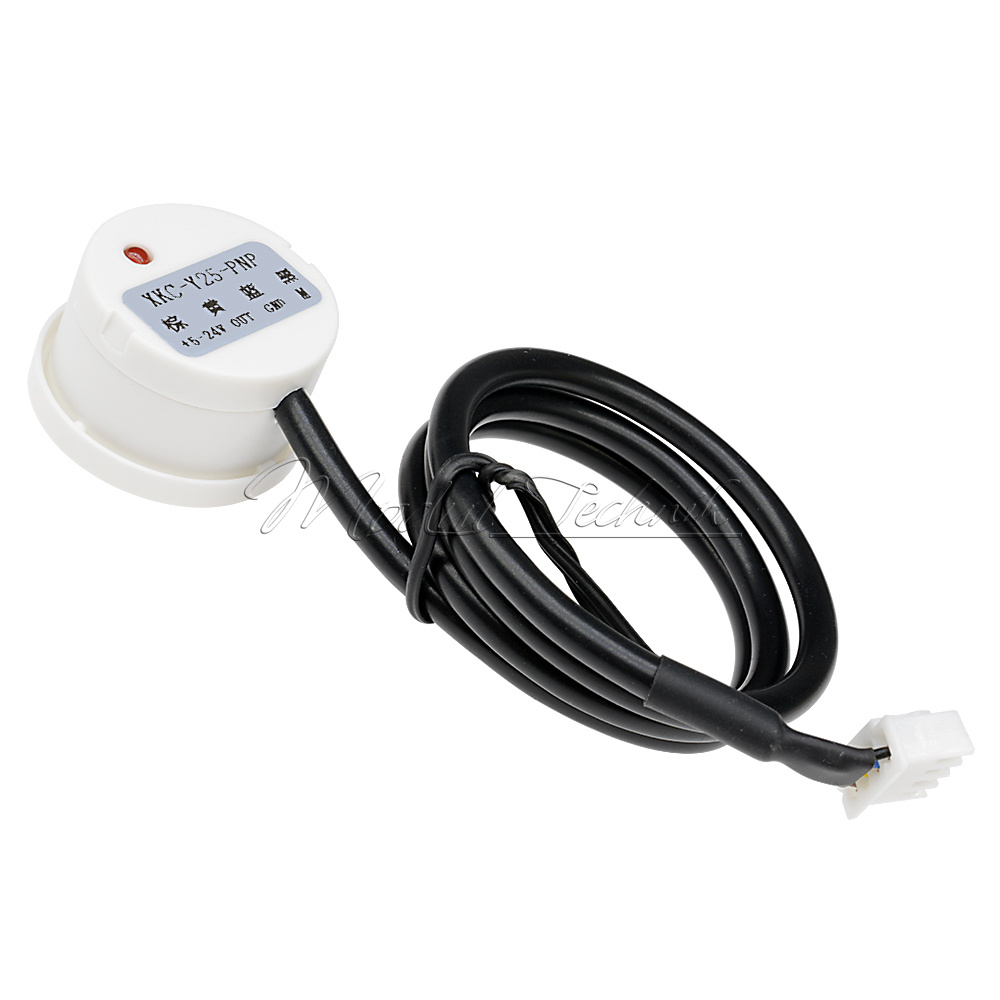

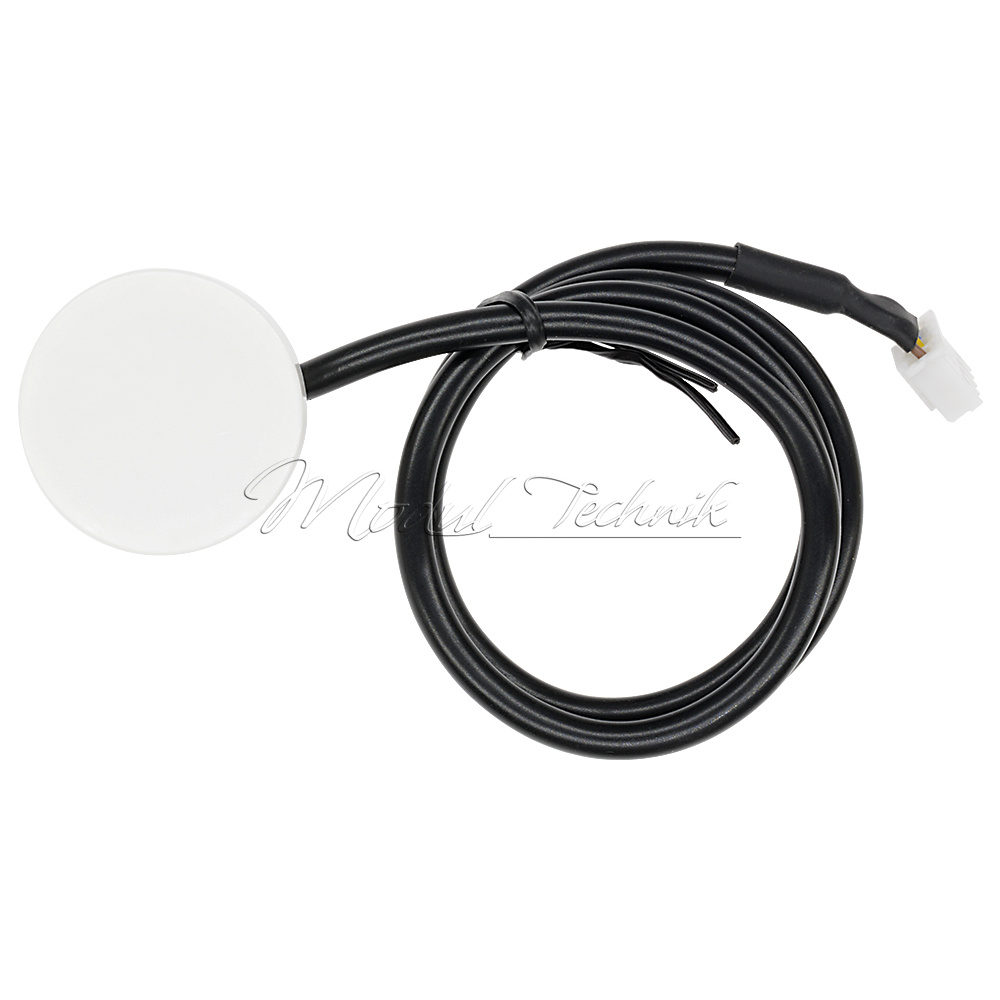

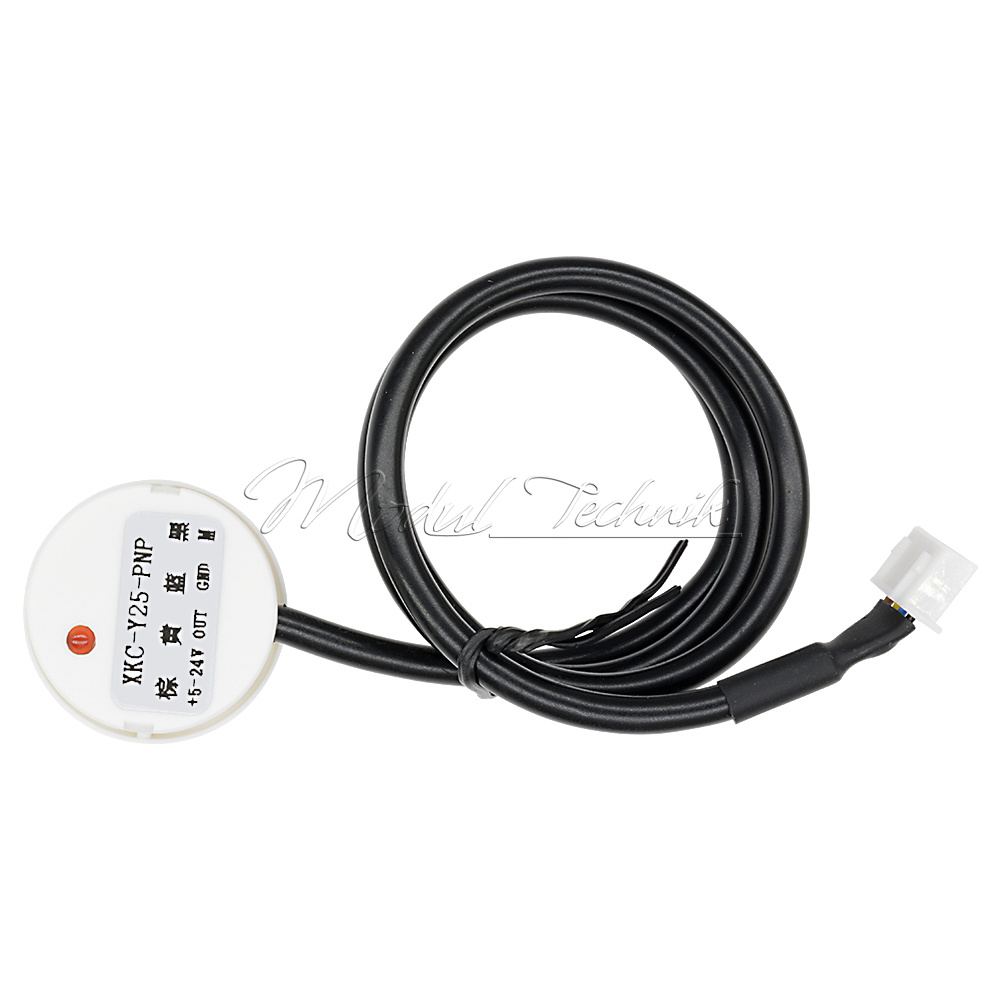

XKC-Y25-PNP XKC-Y28-NC 12V 24V Liquid Level Detector Sensor Control Non-contact
XKC-Y25-PNP 24V
XKC-Y25-NPN 5V-12V
XKC-Y25-NPN 24V
XKC-Y25-PNP 5V-12V
XKC-Y25-V 5-24V
XKC-Y25-RS485 24V
XKC-Y25-NPN 5V-12V
XKC-Y25-NPN 24V
XKC-Y25-PNP 5V-12V
XKC-Y25-V 5-24V
XKC-Y25-RS485 24V
Product Description:
Intelligent non-contact liquid level sensor (hereinafter referred to as liquid level sensor) adopts advanced signal processing technology and high-speed signal processing chip,
The influence of the wall thickness of the container is broken, and the real non-contact detection of the liquid level in the closed container is realized. The liquid level sensor (probe) is installed on the tested
Above and below the outer wall of the container (the high and low levels of the liquid level), the non-metallic container does not need to be opened, and the installation is simple and does not affect production. Can achieve high pressure
The liquid level of various toxic substances, strong acids, strong alkalis and various liquids in the airtight container is detected. The liquid level sensor has no special requirements for the material of the liquid medium and the container
It can be widely used.
The intelligent non-contact liquid level sensor is divided into four signal output interfaces, which are high and low level output interfaces, NPN output interfaces,
PNP output interface and RS485 communication interface; corresponding to four models respectively:
High and low level output interface-model: XKC-Y25-V
NPN/MC output interface-model: XKC-Y25-NPN (5-12V), XKC-Y25-NPN (24V)
XKC-Y25-MC (6-24V) (open collector output: active low)
PNP switch output interface-model: XKCY25-PNP (5-12V), XKC-Y25-PNP (24V)
RS485 communication output interface-model: XKC-Y25-RS485 (24V)
Product Features
Non-contact liquid level sensor, suitable for the outer wall of non-metallic container without direct contact with the liquid, and will not be corroded by strong acids and alkalis
The corrosion of sexual liquid is not affected by scale or other debris.
Intelligent liquid level reference adjustment and liquid level memory function, liquid level status display mode, can realize multi-point series connection; can support high and low
Level output, NPN, MC (define load applications such as relays, buzzers, electronic valves, etc.),
PNP signal output and RS485 communication interface output (please explain to the manufacturer when selecting the model).
The detection is accurate and stable, and the boiling water level can be detected.
Pure electronic circuit structure, non-mechanical working mode, stable performance and durability.
High stability, high sensitivity, strong interference ability, free from external electromagnetic interference, special treatment for power frequency interference and common mode interference,
It is compatible with all 5~24V power adapters on the market.
Strong compatibility, penetrating various non-metallic containers, such as plastic, glass, ceramic and other containers, sensing distance (container wall thickness)
Up to 20mm; liquid, powder, and particulate matter can be detected.
Open collector output mode, wide voltage range (5-12V) and 24V, suitable for connecting various circuits and product applications.
Intelligent non-contact liquid level sensor (hereinafter referred to as liquid level sensor) adopts advanced signal processing technology and high-speed signal processing chip,
The influence of the wall thickness of the container is broken, and the real non-contact detection of the liquid level in the closed container is realized. The liquid level sensor (probe) is installed on the tested
Above and below the outer wall of the container (the high and low levels of the liquid level), the non-metallic container does not need to be opened, and the installation is simple and does not affect production. Can achieve high pressure
The liquid level of various toxic substances, strong acids, strong alkalis and various liquids in the airtight container is detected. The liquid level sensor has no special requirements for the material of the liquid medium and the container
It can be widely used.
The intelligent non-contact liquid level sensor is divided into four signal output interfaces, which are high and low level output interfaces, NPN output interfaces,
PNP output interface and RS485 communication interface; corresponding to four models respectively:
High and low level output interface-model: XKC-Y25-V
NPN/MC output interface-model: XKC-Y25-NPN (5-12V), XKC-Y25-NPN (24V)
XKC-Y25-MC (6-24V) (open collector output: active low)
PNP switch output interface-model: XKCY25-PNP (5-12V), XKC-Y25-PNP (24V)
RS485 communication output interface-model: XKC-Y25-RS485 (24V)
Product Features
Non-contact liquid level sensor, suitable for the outer wall of non-metallic container without direct contact with the liquid, and will not be corroded by strong acids and alkalis
The corrosion of sexual liquid is not affected by scale or other debris.
Intelligent liquid level reference adjustment and liquid level memory function, liquid level status display mode, can realize multi-point series connection; can support high and low
Level output, NPN, MC (define load applications such as relays, buzzers, electronic valves, etc.),
PNP signal output and RS485 communication interface output (please explain to the manufacturer when selecting the model).
The detection is accurate and stable, and the boiling water level can be detected.
Pure electronic circuit structure, non-mechanical working mode, stable performance and durability.
High stability, high sensitivity, strong interference ability, free from external electromagnetic interference, special treatment for power frequency interference and common mode interference,
It is compatible with all 5~24V power adapters on the market.
Strong compatibility, penetrating various non-metallic containers, such as plastic, glass, ceramic and other containers, sensing distance (container wall thickness)
Up to 20mm; liquid, powder, and particulate matter can be detected.
Open collector output mode, wide voltage range (5-12V) and 24V, suitable for connecting various circuits and product applications.
----------------------------------------------------------------------------------------
XKC-Y28-NO 24V
XKC-Y28-NC 24V
XKC-Y28-NO 12V
XKC-Y28-NO 5V
XKC-Y28-NC 12V
XKC-Y28-NC 24V
XKC-Y28-NO 12V
XKC-Y28-NO 5V
XKC-Y28-NC 12V
Product overview:
The intelligent non-contact liquid level sensor (hereinafter referred to as the liquid level sensor) adopts advanced signal processing technology and high-speed signal processing chip, breaking through
The influence of the wall thickness of the vessel realizes the real non-contact detection of the liquid level in the closed container. The liquid level sensor (probe) is installed above and below the outer wall of the container under test
(The high and low levels of the liquid level), the non-metallic container does not need to be holed, it is easy to install and does not affect production. It can achieve various toxic substances in high-pressure airtight containers
Quality, strong acid, strong alkali and liquid level of various liquids are detected. The liquid level sensor has no special requirements for the material of the liquid medium and container, and can be widely used.
XKC-Y28-NO/NC products are specially developed for non-metallic pipes (pipe outer diameter D≥11MM) or flat container liquid level detection. This series of liquid level sensor
The device has two signal output interfaces, which are relay normally open output and relay normally closed output;
Normally open output interface-model: XKC-Y28-NO (5V), (12V), (24V)
Normally closed output interface-model: XKC-Y28-NC (5V), (12V), (24V)
Product features:
XCK-Y26-NO/NC sensor, suitable for non-metallic pipes (pipe outer diameter D≥11MM) or flat containers without direct contact with liquids and will not be
Corrosion by strong acids and alkalis and other corrosive liquids will not be affected by scale or other debris.
Intelligent liquid level reference adjustment and liquid level memory function, liquid level status display mode, can realize multi-point series connection.
The detection is accurate and stable, and the boiling water level can be detected.
Pure electronic circuit structure, non-mechanical working mode, stable performance and durability.
High stability, high sensitivity, strong anti-interference ability, free from external electromagnetic interference, special treatment for power frequency interference and common mode interference, to be compatible with the market
All 5V, 12V, 24V power adapters are available.
Strong compatibility, penetrating various non-metallic container pipes, such as plastic, glass, ceramic and other containers, the thickness of the sensing pipe wall can reach 20mm; suitable for
Liquid level detection of various curved, arc, cylindrical containers or pipelines.
Voltage can be selected (5V, 12V, 24V), suitable for connecting various circuits and product applications.
Three, working principle
The intelligent non-contact liquid level sensor uses the inductive capacitance of water to detect whether there is liquid. When there is no liquid close to the sensor, the sensor
Due to the distributed capacitance, the sensor has a certain static capacitance to the ground. When the liquid level slowly rises and approaches the sensor, the parasitic capacitance of the liquid will be coupled to
This static capacitance increases the capacitance value of the sensor. The changed capacitance signal is then input to the control IC for signal conversion, and the changed capacitance is converted into
The amount of change of a certain electrical signal is detected and judged by a certain algorithm. When the amount of change exceeds a certain threshold, the liquid level is considered
Reach the induction point.
The intelligent non-contact liquid level sensor (hereinafter referred to as the liquid level sensor) adopts advanced signal processing technology and high-speed signal processing chip, breaking through
The influence of the wall thickness of the vessel realizes the real non-contact detection of the liquid level in the closed container. The liquid level sensor (probe) is installed above and below the outer wall of the container under test
(The high and low levels of the liquid level), the non-metallic container does not need to be holed, it is easy to install and does not affect production. It can achieve various toxic substances in high-pressure airtight containers
Quality, strong acid, strong alkali and liquid level of various liquids are detected. The liquid level sensor has no special requirements for the material of the liquid medium and container, and can be widely used.
XKC-Y28-NO/NC products are specially developed for non-metallic pipes (pipe outer diameter D≥11MM) or flat container liquid level detection. This series of liquid level sensor
The device has two signal output interfaces, which are relay normally open output and relay normally closed output;
Normally open output interface-model: XKC-Y28-NO (5V), (12V), (24V)
Normally closed output interface-model: XKC-Y28-NC (5V), (12V), (24V)
Product features:
XCK-Y26-NO/NC sensor, suitable for non-metallic pipes (pipe outer diameter D≥11MM) or flat containers without direct contact with liquids and will not be
Corrosion by strong acids and alkalis and other corrosive liquids will not be affected by scale or other debris.
Intelligent liquid level reference adjustment and liquid level memory function, liquid level status display mode, can realize multi-point series connection.
The detection is accurate and stable, and the boiling water level can be detected.
Pure electronic circuit structure, non-mechanical working mode, stable performance and durability.
High stability, high sensitivity, strong anti-interference ability, free from external electromagnetic interference, special treatment for power frequency interference and common mode interference, to be compatible with the market
All 5V, 12V, 24V power adapters are available.
Strong compatibility, penetrating various non-metallic container pipes, such as plastic, glass, ceramic and other containers, the thickness of the sensing pipe wall can reach 20mm; suitable for
Liquid level detection of various curved, arc, cylindrical containers or pipelines.
Voltage can be selected (5V, 12V, 24V), suitable for connecting various circuits and product applications.
Three, working principle
The intelligent non-contact liquid level sensor uses the inductive capacitance of water to detect whether there is liquid. When there is no liquid close to the sensor, the sensor
Due to the distributed capacitance, the sensor has a certain static capacitance to the ground. When the liquid level slowly rises and approaches the sensor, the parasitic capacitance of the liquid will be coupled to
This static capacitance increases the capacitance value of the sensor. The changed capacitance signal is then input to the control IC for signal conversion, and the changed capacitance is converted into
The amount of change of a certain electrical signal is detected and judged by a certain algorithm. When the amount of change exceeds a certain threshold, the liquid level is considered
Reach the induction point.
---------------------------------------------------------------------------------------
XKC-Y26-V:
Voltage: DC5V-24V
Output mode: high and low level
XKC-Y26-PNP:
Voltage: DC5V-12V and DC24V
Output mode: switch value (active high)
XKC-Y26-NPN:
Voltage: DC5V-12V and DC24V
Output mode: switch value (active low)
Output voltage (high level): Vin
Output voltage (low level): 0V
Current consumption: 5mA
Output current: ≤100mA
Material: PC-V0 fireproof material
Waterproof performance: IP65
Response time: 500mS
Liquid Accuracy: ±1.5mm
Humidity: 5%~100%
Working temperature: -20℃~80℃
Output voltage (low level): 0V
Current consumption: 5mA
Output current: ≤100mA
Material: PC-V0 fireproof material
Waterproof performance: IP65
Response time: 500mS
Liquid Accuracy: ±1.5mm
Humidity: 5%~100%
Working temperature: -20℃~80℃
Remark
NPN output: there is an induction output low level, no induction is disconnected
PNP output: there is an induction output high level, no induction is disconnected
V high and low level output: high level output with induction, low level without induction
NPN output: there is an induction output low level, no induction is disconnected
PNP output: there is an induction output high level, no induction is disconnected
V high and low level output: high level output with induction, low level without induction
Package list:
Liquid sensor*1
Liquid sensor*1
