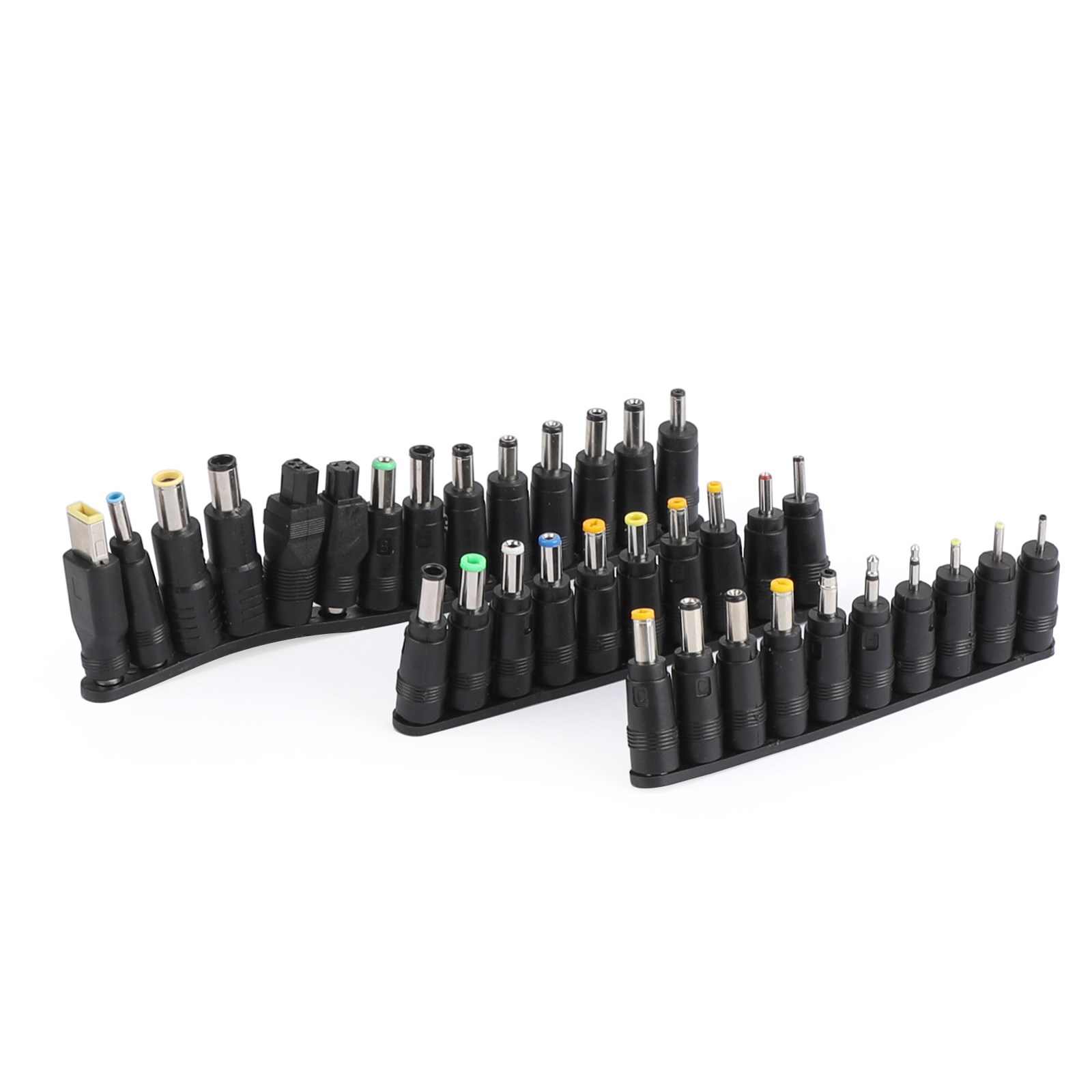

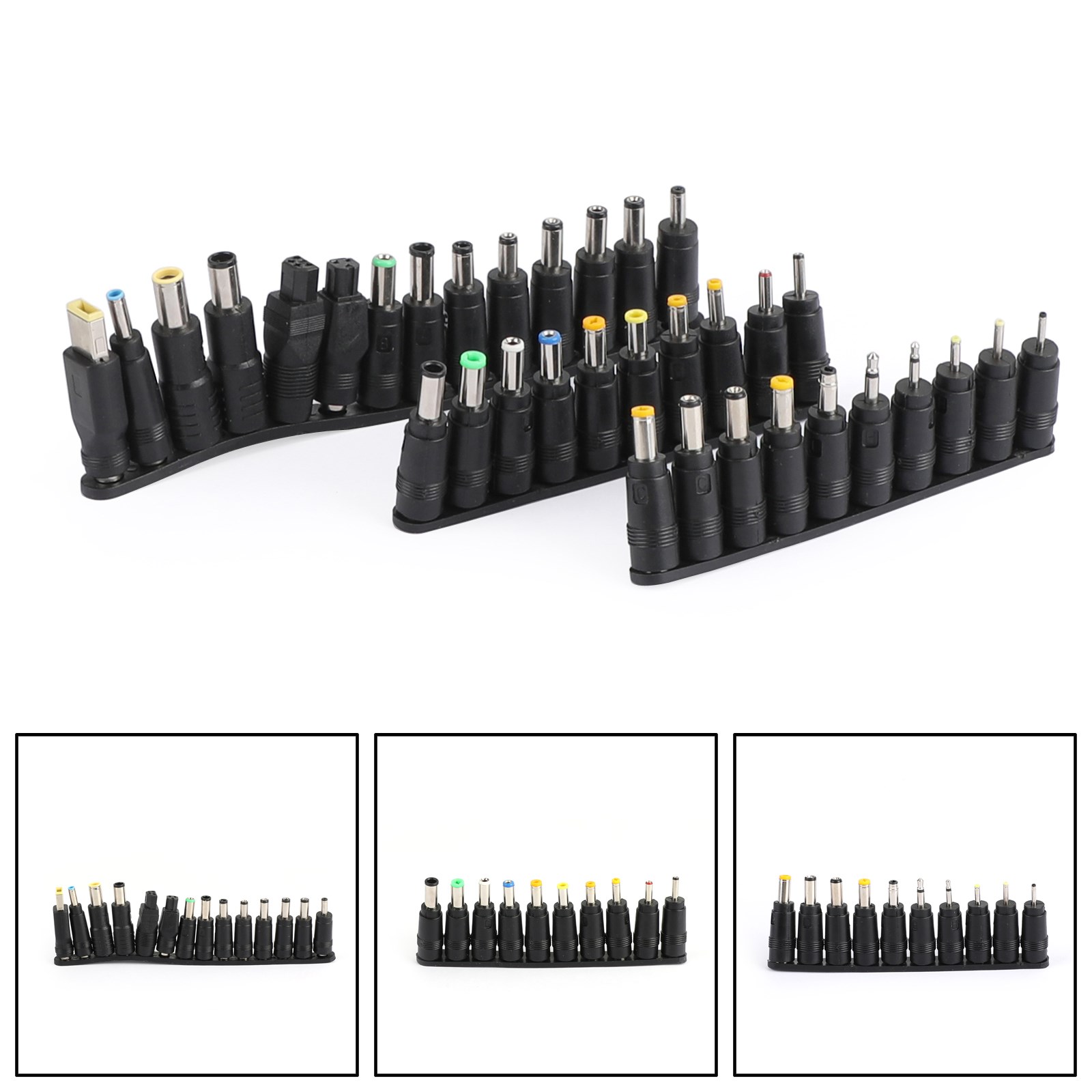

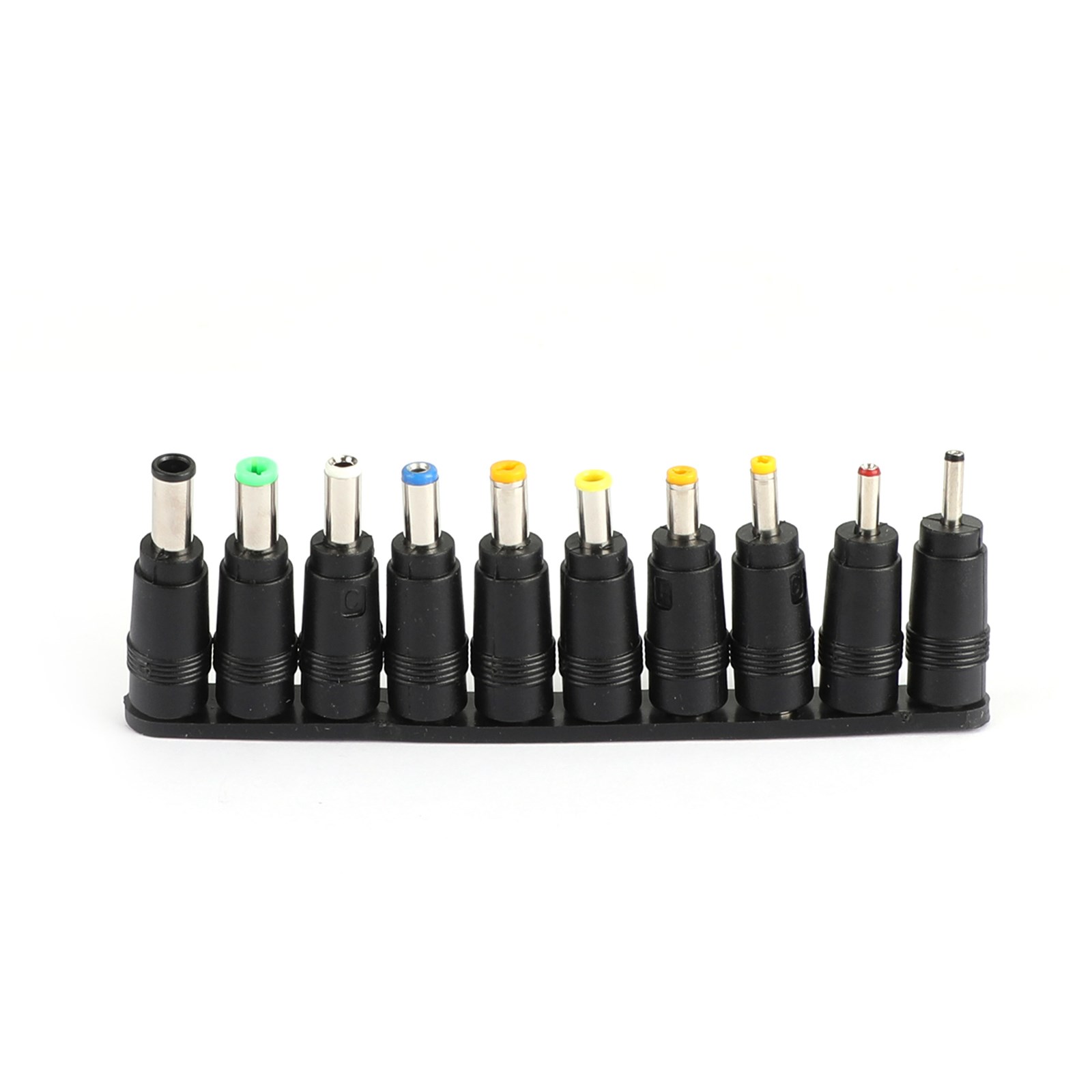

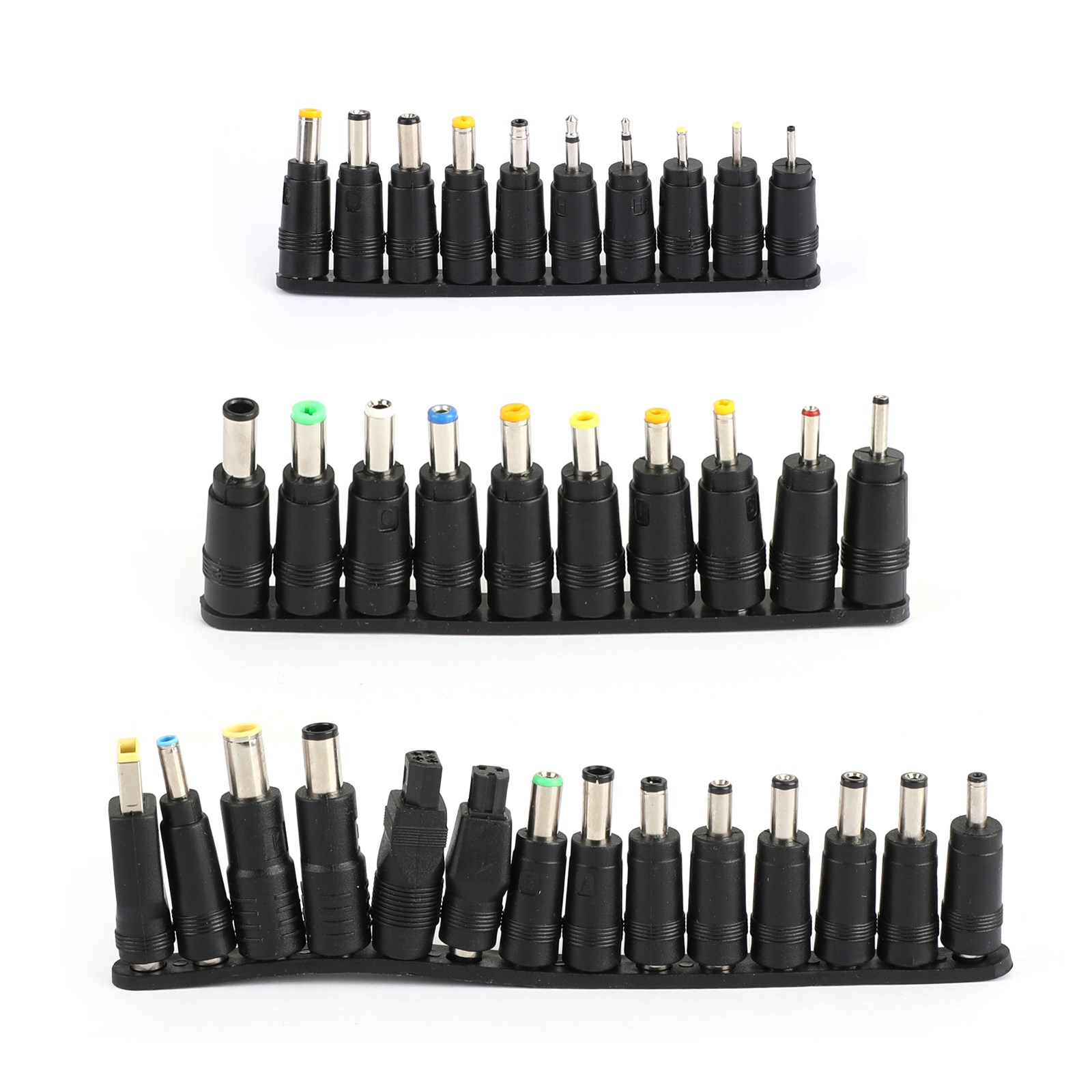

34 Tips Universal Charger Power Supply Adapter Plug Jack Kit For Laptop Notebook
Features
1. Latest 34pcs Universal DC Plugs Power Converter: Match with external laptop DC power battery or laptop universal AC power adapter to charge for your PC. DC plugs power converter, used for external power source and on-board transformer.

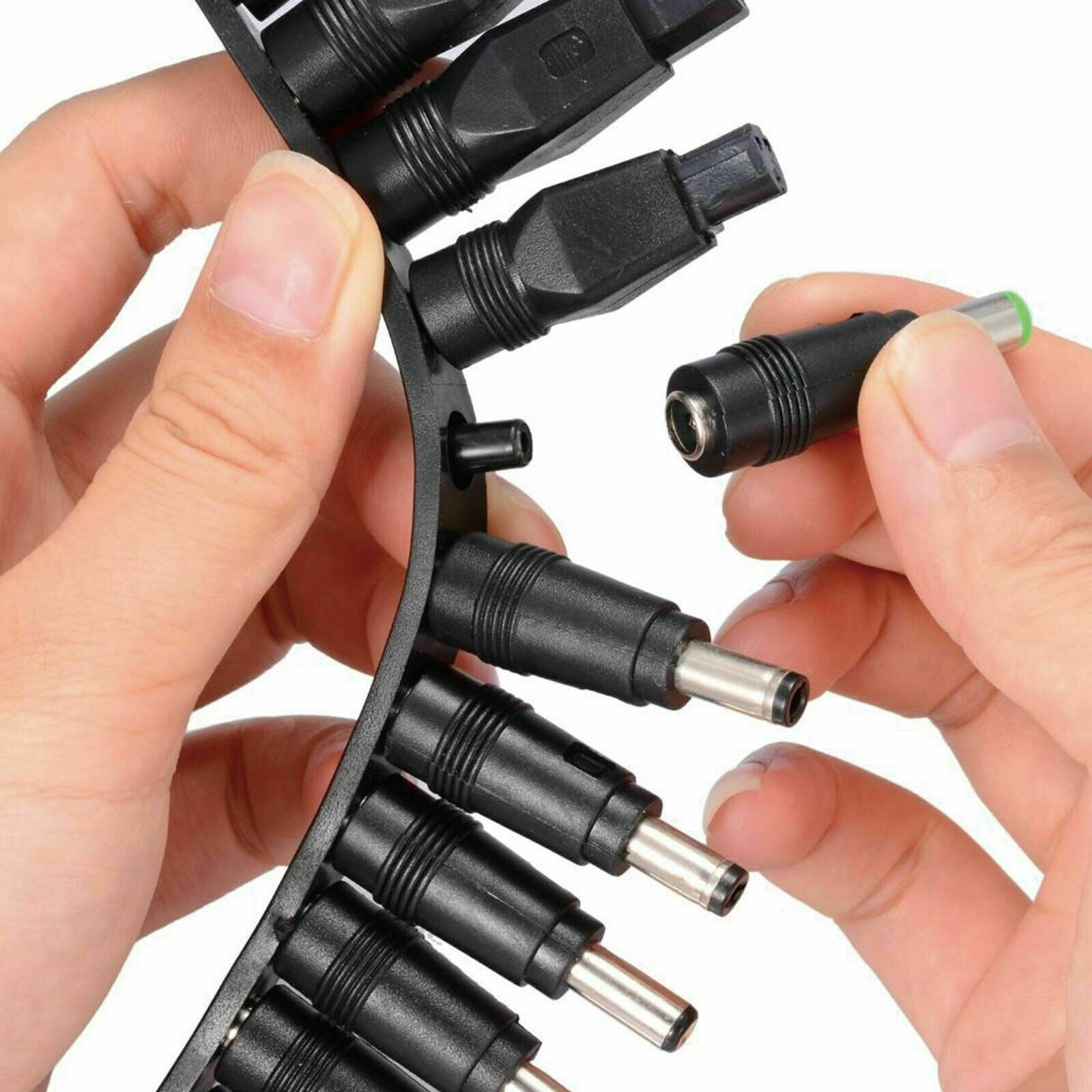

2. 5.5*2.1mm Female Base: Each connector tip can plug to a 5.5x2.1mm male connector, such as 5.5*2.1mm laptop power bank, 5.5*2.1mm AC adapter.
3. Compatibility: Fit for Lenovo, ThinkPad, Dell, compatibility with HP, Asus, Acer, Toshiba, Sony, NEC, MSI, and other laptops, notebooks.
Portable: Portable and compact to put in your travelling usage, convenient for external power source and on-board transformer.
Note1:
Not Compatible with mini dell 1018, not Compatible with Dell inspiron 5558, not Compatible with 2017 ASUS Q504UA, not Compatible with Macbook, not Compatible with Xiaomi other special size laptop.
Note2:
The female head of the 34 plug set is 5.5*2.1mm. (The interface of the power adapter DC power cord you use needs to be a 5.5*2.1mm male connector, or use a 5.5*2.1mm power cord to use with this set)
Note3:
The power adapter and cord are not included.

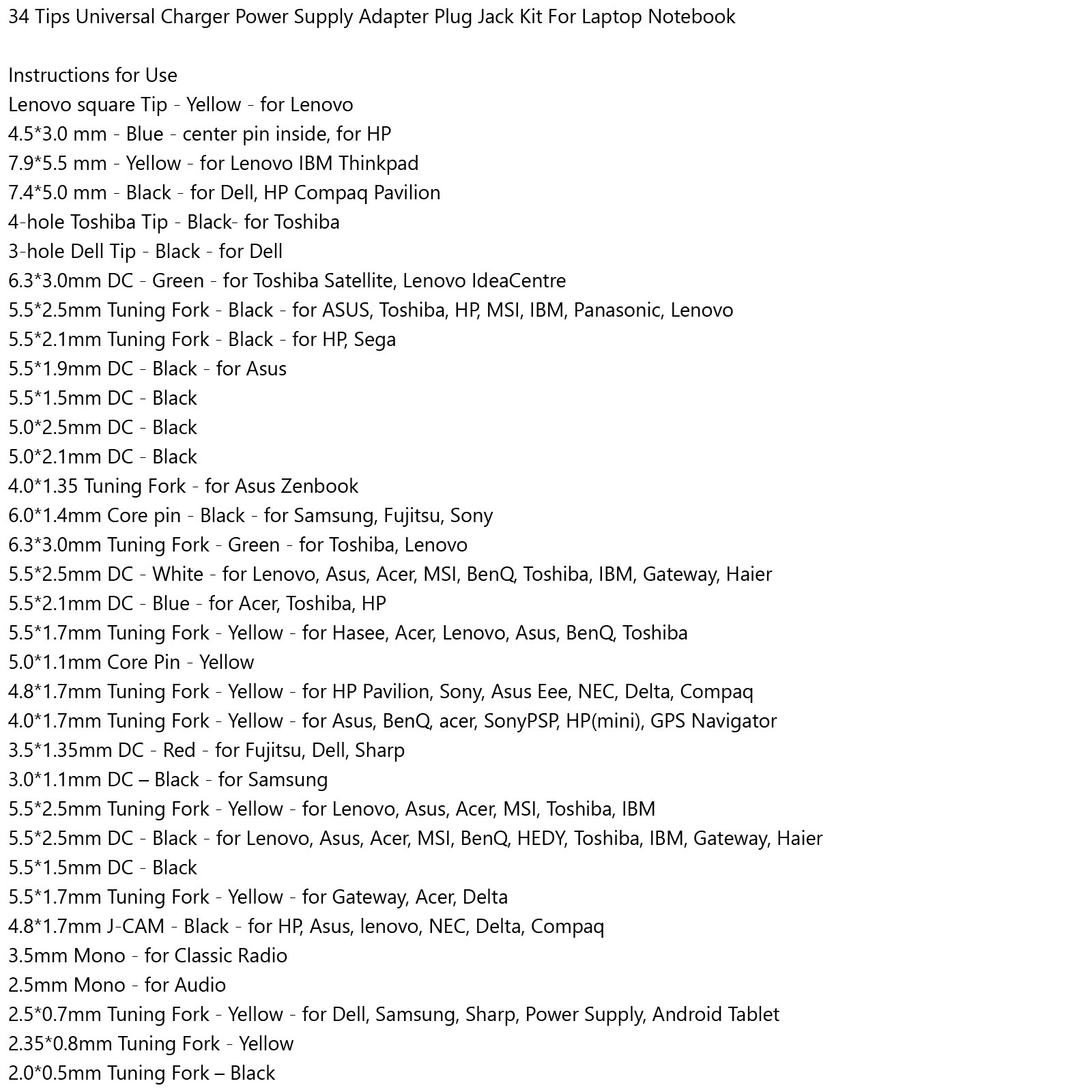

Instructions for Use
Lenovo square Tip - Yellow - for Lenovo
4.5*3.0 mm - Blue - center pin inside, for HP
7.9*5.5 mm - Yellow - for Lenovo IBM Thinkpad
7.4*5.0 mm - Black - for Dell, HP Compaq Pavilion
4-hole Toshiba Tip - Black- for Toshiba
3-hole Dell Tip - Black - for Dell
6.3*3.0mm DC - Green - for Toshiba Satellite, Lenovo IdeaCentre
5.5*2.5mm Tuning Fork - Black - for ASUS, Toshiba, HP, MSI, IBM, Panasonic, Lenovo
5.5*2.1mm Tuning Fork - Black - for HP, Sega
5.5*1.9mm DC - Black - for Asus
5.5*1.5mm DC - Black
5.0*2.5mm DC - Black
5.0*2.1mm DC - Black
4.0*1.35 Tuning Fork - for Asus Zenbook
6.0*1.4mm Core pin - Black - for Samsung, Fujitsu, Sony
6.3*3.0mm Tuning Fork - Green - for Toshiba, Lenovo
5.5*2.5mm DC - White - for Lenovo, Asus, Acer, MSI, BenQ, Toshiba, IBM, Gateway, Haier
5.5*2.1mm DC - Blue - for Acer, Toshiba, HP
5.5*1.7mm Tuning Fork - Yellow - for Hasee, Acer, Lenovo, Asus, BenQ, Toshiba
5.0*1.1mm Core Pin - Yellow
4.8*1.7mm Tuning Fork - Yellow - for HP Pavilion, Sony, Asus Eee, NEC, Delta, Compaq
4.0*1.7mm Tuning Fork - Yellow - for Asus, BenQ, acer, SonyPSP, HP(mini), GPS Navigator
3.5*1.35mm DC - Red - for Fujitsu, Dell, Sharp
3.0*1.1mm DC – Black - for Samsung
5.5*2.5mm Tuning Fork - Yellow - for Lenovo, Asus, Acer, MSI, Toshiba, IBM
5.5*2.5mm DC - Black - for Lenovo, Asus, Acer, MSI, BenQ, HEDY, Toshiba, IBM, Gateway, Haier
5.5*1.5mm DC - Black
5.5*1.7mm Tuning Fork - Yellow - for Gateway, Acer, Delta
4.8*1.7mm J-CAM - Black - for HP, Asus, lenovo, NEC, Delta, Compaq
3.5mm Mono - for Classic Radio
2.5mm Mono - for Audio
2.5*0.7mm Tuning Fork - Yellow - for Dell, Samsung, Sharp, Power Supply, Android Tablet
2.35*0.8mm Tuning Fork - Yellow
2.0*0.5mm Tuning Fork – Black
Specification
Type: Laptop Power Plug
Color: Black
Quantity: 34pcs/Set
Feature: Wide compatibility, Portable, DC Plug
Package Included
1 x Laptop Power DC 34 Plug Kits
