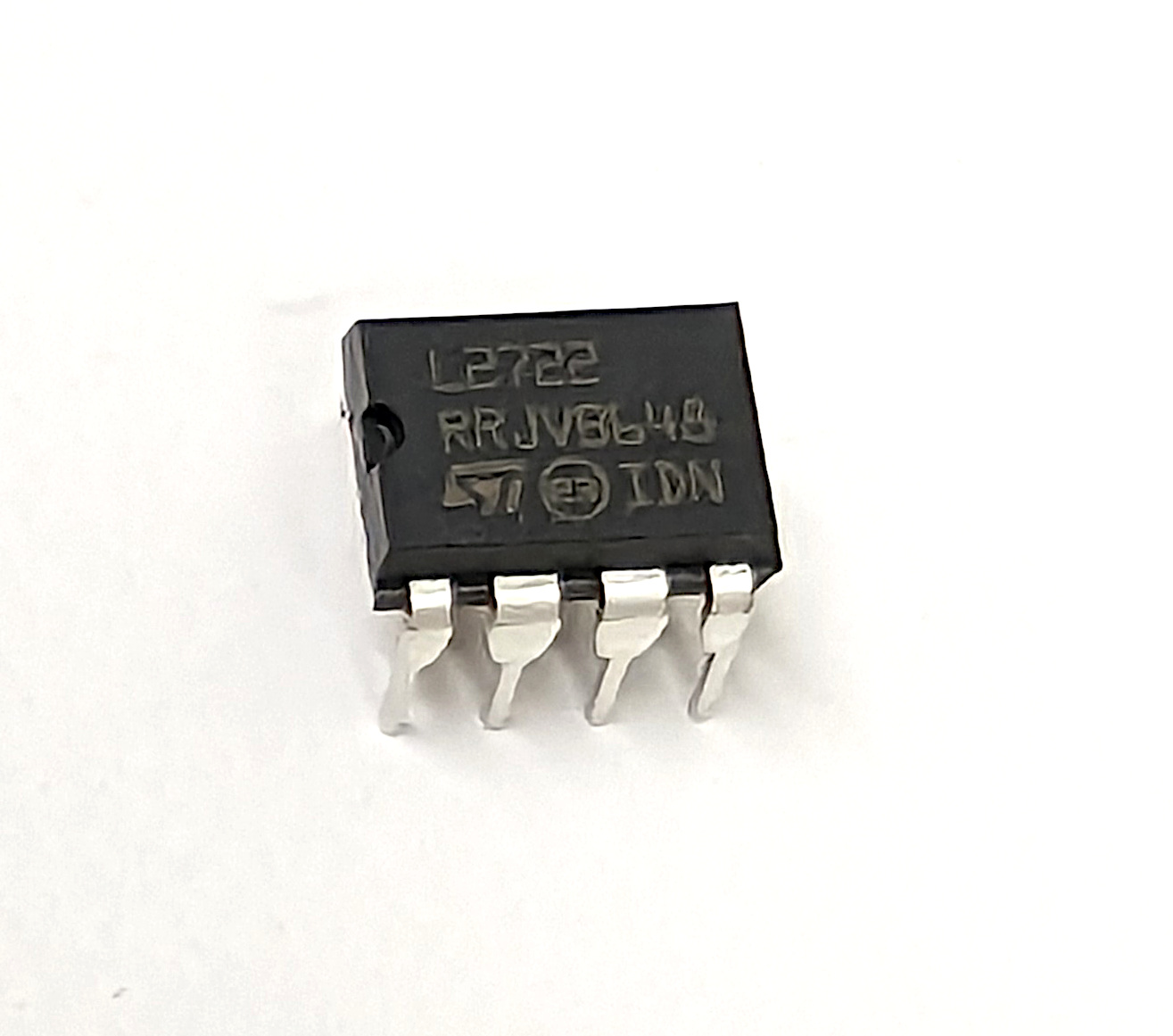

LOW DROP DUAL POWER OPERATIONAL AMPLIFIER
OUTPUT CURRENT TO 1 A | 1.2 MHz | 2V - 14V | DIP8 package
- Manufacturer: STMicroelectronics
- Package: DIP8
- Product Family: DUAL POWER OPERATIONAL AMPLIFIER
- SINGLE OR SPLIT SUPPLY
- LARGE COMMON-MODE AND DIFFERENTIAL MODE RANGE

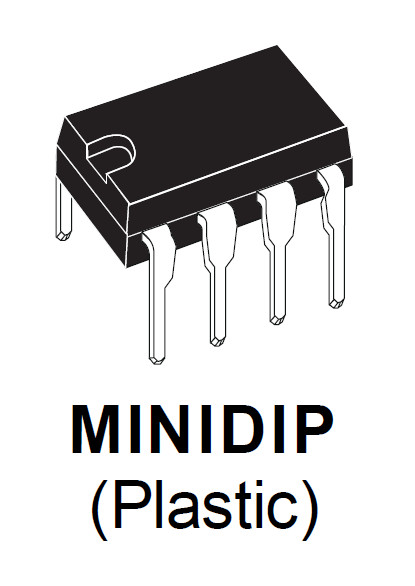

The L2722 are monolithic integrated
circuits in minidip packages,
intended for use as power operational amplifiers
in a wide range of applications including servo
amplifiers and power supplies.
They are particularly indicated for driving, inductive loads, as motor and finds applications in compactdisc VCR automotive, etc.
The high gain and high output power capability provide superior performance whatever an operational amplifier/power booster combination is required.
They are particularly indicated for driving, inductive loads, as motor and finds applications in compactdisc VCR automotive, etc.
The high gain and high output power capability provide superior performance whatever an operational amplifier/power booster combination is required.
- Operating supply voltage from 8 to 52 V
- 2.8 A output peak current (1.4 A DC)
- RDS(on) 0.73 Ω typ. value @ TJ = 25 °C
- Operating frequency up to 100 kHz
- Programmable high side overcurrent detection and protection
- Diagnostic output
- Paralleled operation
- Cross conduction protection
- Thermal shutdown
- Undervoltage lockout
- Integrated fast free wheeling diodes
NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED
- NOT RE-MARKED - NOT FAKED EXCLUSIVELY NEW OLD STOCK (NOS)
AUSSCHLIESSLICH NUR ALTE NEUE WARE (NOS) aus
Altlagerbestand - entnommen aus der original Verpackung (siehe Foto).
Bitte fragen sie uns an, falls
sie größere Stückzahlen benötigen oder geben Sie uns hierzu Ihren
Preisvorschlag.
