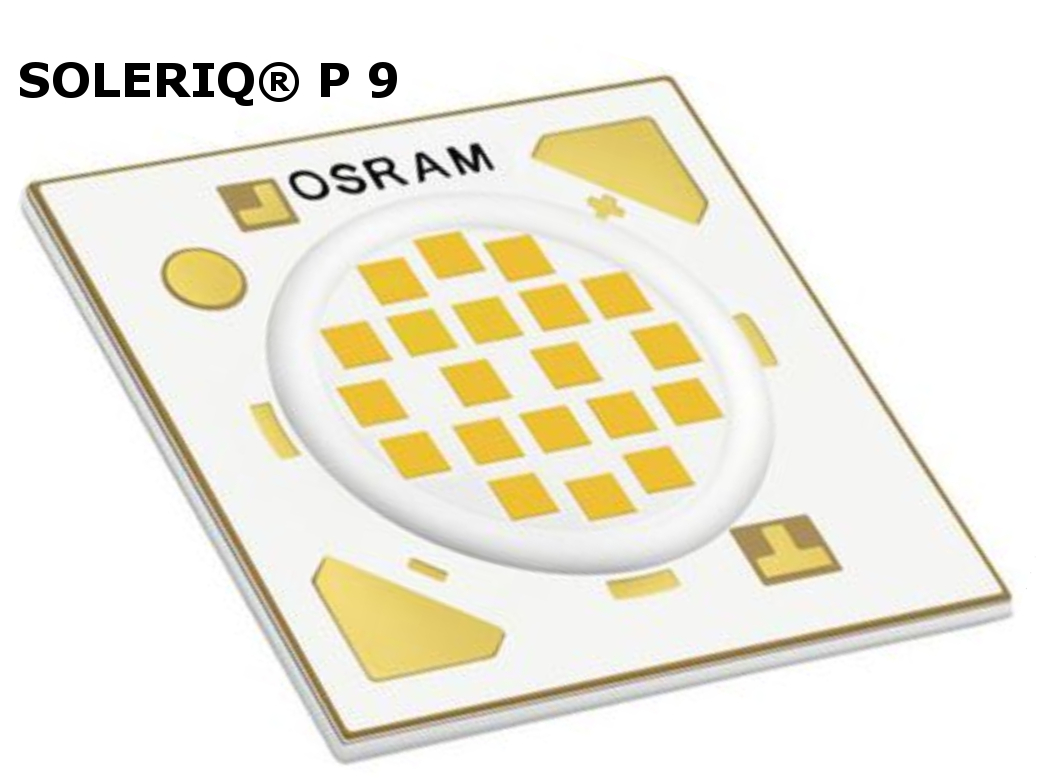

1 Stück / 1 piece SOLERIQ® P9
OSRAM LED 3000K
OSRAM LED 3000K
WARM WHITE | CRI 95 | GW MAFJB1.CM | COB
- OSRAM SOLERIQ P9
- 3000K Warm White | GW MAFJB1.CM
- CRI: min. 90 ( typ. 95 )
- Chip-on-Board COB
- Forward voltage: 26 V - 31 V
- Luminous Flux: 1640 lm - 2290 lm
- Forward current: 200 - 1400 mA
- Viewing angle at 50 % Iv: 120°
- Luminous efficacy: typ. 85 lm/W @ 3000 K
- Operating temperature range: - 40 ... 85°C
For the Type GW MAFJB1.CM in addition to the datasheet we offer a better selection by Group :
Gruppenbezeichnung auf Etikett: SOLERIQ P9 | GW MAFJB1.CM | RTSQ - 30S3 - 1
Gruppenbezeichnung auf Etikett: SOLERIQ P9 | GW MAFJB1.CM | RTSQ - 30S3 - 1
- Luminous Flux = RTSQ : 1640 lm - 2290 lm
- Chromaticity Coordinate = 30S3 : 3000K
- Forward voltage = 1: 26 V - 31 V
Anm.: In einer Verpackungseinheit / Gurt ist immer nur eine Gruppe für jede Selektion enthalten.
Um die Systementwicklung leicht zu machen, hat die SOLERIQ® P 9 LED nur eine Lichtstrom- und Farbortgruppe und ist bei 85°C, einer typischen Anwendungstemperatur, spezifiziert. Die kleine Licht emittierenden Fläche von nur 9 mm Durchmesser ermöglicht Systemdesigns mit sehr kleinen Optiken und weltklasse Lichtstärke (cd) Werten. Dadurch kann auch unter Beibehaltung eines kompakten Formfaktors eine traditionelle 35 W HID Lampe von nur einer SOLERIQ® P 9 ersetzt werden.
- Spot-Leuchten
- Ladenbeleuchtung
- Museumsbeleuchtung
To make system designs easy, the SOLERIQ® P 9 has only a single flux and color bin and is specified at 85°C to mimic the temperatures typically found in directional applications. The small light emitting surface of only 9 mm diameter enables system designs with very small optics and world class center beam candlepower (CBCP). Hence only one SOLERIQ® P 9 can replace a traditional 35 W HID lamp while maintaining a compact form factor.
SOLERIQ P 9 complements OSRAM Opto Semiconductors’ innovative SOLERIQ product family. The new LEDs are easy to use with the Chip-on-Board design and are optimized for cd/W driven applications, and do not require SMT assembly. A very small light emitting surface (LES) enables easy optics design, sharp shadows and a sparkling appearance.
To make system designs easy, the SOLERIQ P 9 has only a single flux and color bin and is specified at 85°C to mimic the temperatures typically found in directional applications. The small light emitting surface of only 9 mm diameter enables system designs with very small optics and world class center beam candlepower (CBCP).
SOLERIQ P 9 complements OSRAM Opto Semiconductors’ innovative SOLERIQ product family. The new LEDs are easy to use with the Chip-on-Board design and are optimized for cd/W driven applications, and do not require SMT assembly. A very small light emitting surface (LES) enables easy optics design, sharp shadows and a sparkling appearance.
To make system designs easy, the SOLERIQ P 9 has only a single flux and color bin and is specified at 85°C to mimic the temperatures typically found in directional applications. The small light emitting surface of only 9 mm diameter enables system designs with very small optics and world class center beam candlepower (CBCP).
- Spot lights
- Shop lighting
- Museum lightin
What you see on the photos, is what you get. Taken out from the original OSRAM box.
We received these original OSRAM parts of an OEM-stock (Industrial/Germany)
and for each type it exist a datasheet (see Internet) with specified parameters.
We received these original OSRAM parts of an OEM-stock (Industrial/Germany)
and for each type it exist a datasheet (see Internet) with specified parameters.
Bitte fragen sie uns an, falls sie größere
Stückzahlen benötigen oder geben Sie uns hierzu Ihren Preisvorschlag.
