20FT -8AN AN8 PTFE Stainless Steel Braided Fuel Gas Oil Line Hose

【Application】：Used as transmission cooler lines, turbo cooler line, fuel return line, fuel supply line, coolant fluid hose, fuel gauges line, vacuum line, oil feed line.

【Material】: Made of durable PTFE synthetic rubber tube bonded and secured by Nylon and 308 Stainless Steel outer braid & Inner hose Material: Stainless Steel PTFE Fuel Line

Features:
1. PTFE fuel lines are ideal for high temperature and high pressure applications,such as fuel, petrol, diesel, E85

2. Durable and highly temperature resistant, high safety, not easy to break, has good flame retardancy and excellent corrosion resistance，has less surface friction than rubber

3.The hose and the joint can fit perfectly without leakage

4.Easy to install and operate, easy to use

specifications:
Inner hose Material: PTFE Synthetic material hose
Outside Material: 2 layer high quality stainless steel wires

Material:Stainless steel
Working Temperature: -73°C to + 260°C
Working Pressure: 1000 PSI
Burst pressure: 5000 PSI
Inner diameter: 10 mm (5/16")
Outside diameter: 13.2 mm (7/16")
Fitting Type: Straight, 45°,  90° ,180°
Fitment: Universal
Color:Black

Condition: 100% Brand New


Installation Steps:

1. Taking the socket into the braided hose
2. Restore the hose a round shape, and Use a separator tool to separate the inner PTFE hose
3. Putting the ferrule between the braid hose and the PTFE hose, close to the inner PTFE hose
4. Apply a bit of lube, insert the nipple into the inner PTFE hose
5. Screwing it to with an adjustable wrench

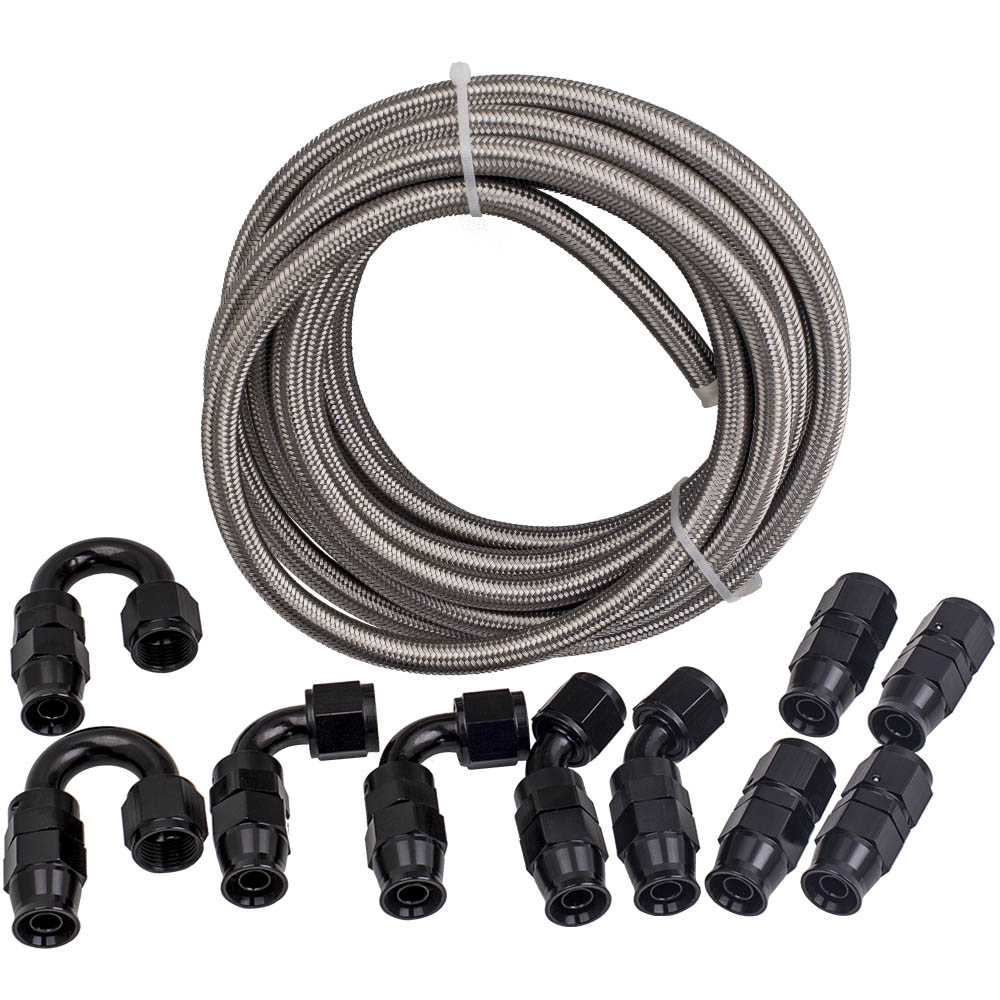

Packge Iincludes：
1x    AN8 Stainless steel PTFE Fuel Hose 20Feet/6M/600cm
4x   AN8 Straight PTFE Fitting

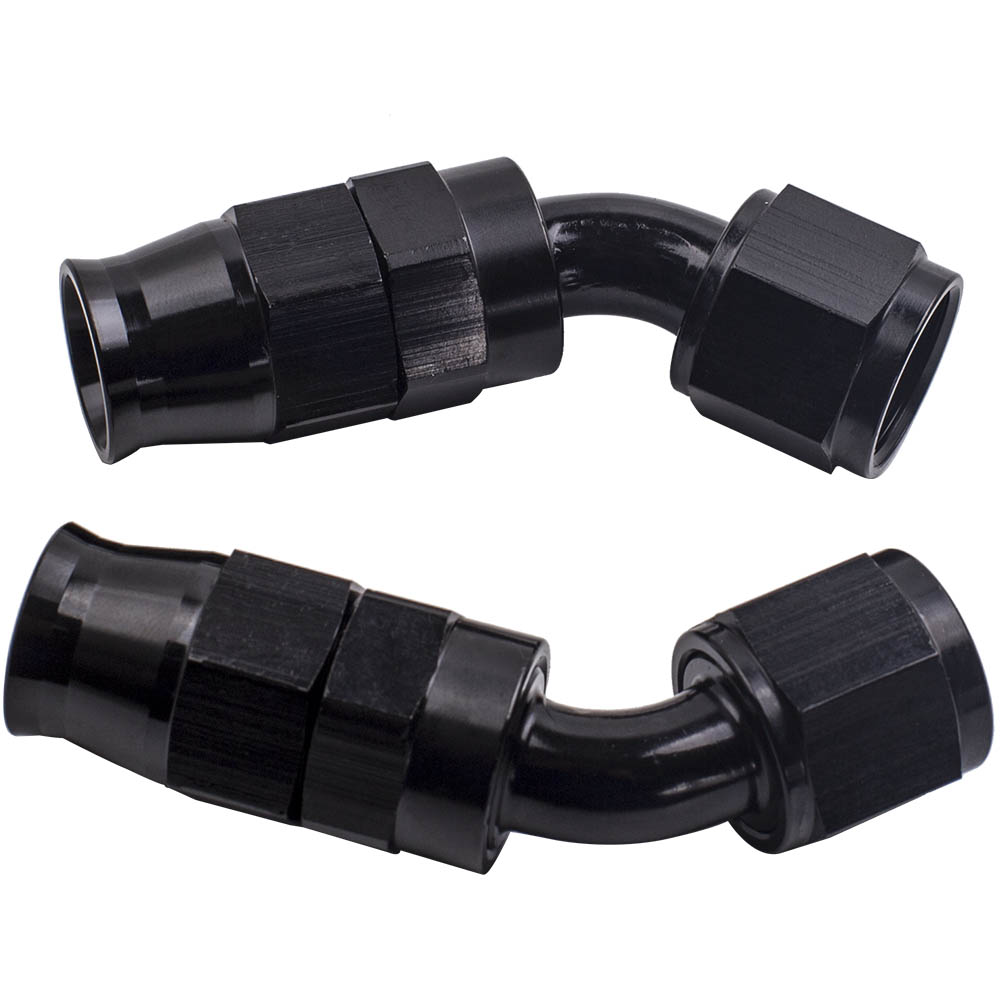

2x   AN8 45° PTFE Fitting
2x   AN8 90° PTFE Fitting

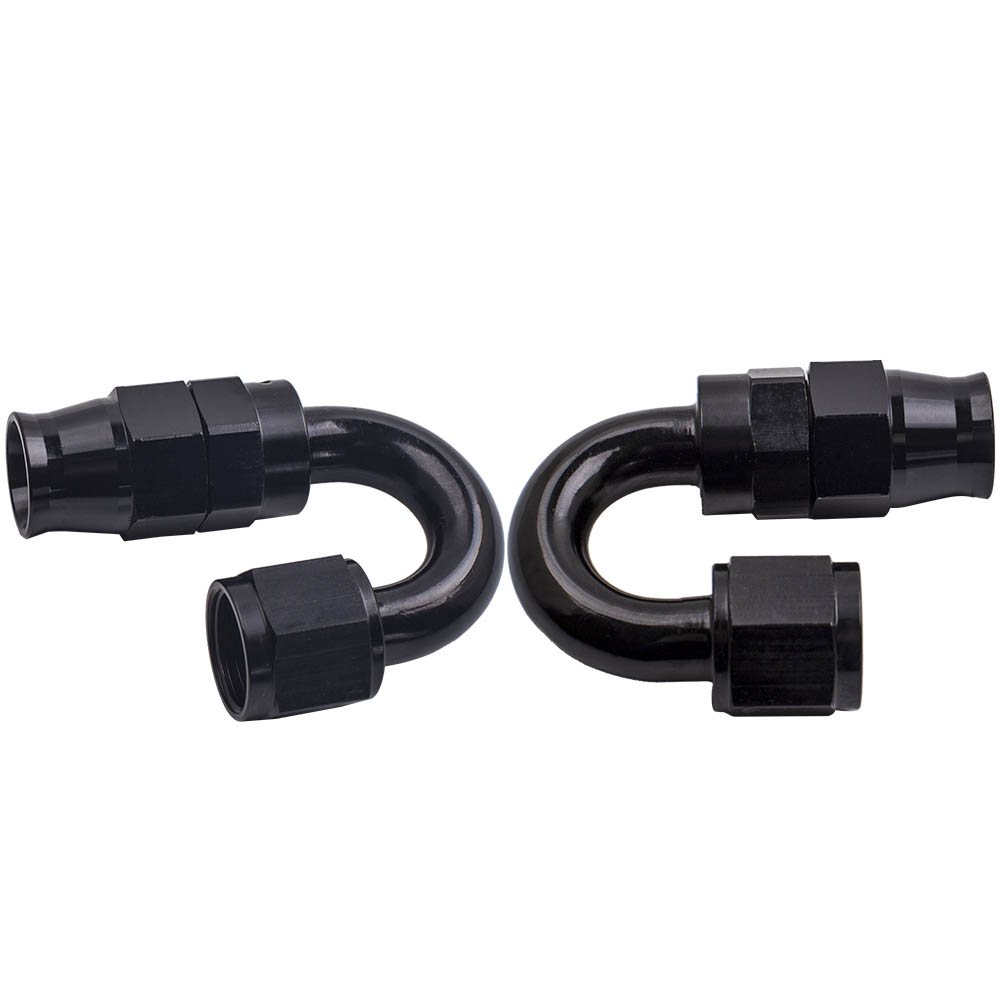

2x   AN8 180° PTFE Fitting
( You will get exactly the same as picture shows )

Note:

1.Professional Installation is Highly Recommended

2.Installation Instruction is NOT Included
