036103B: Full suspension bush kit
KIT ID: 036103B
Name: Full suspension bush kit
- Fit:
- BMW 3 E30 (82-94)
- Include:
- 2 x 031195B Front wishbone bush
or - 2 x 031369A Front lower arm bushes M3 eccentric SPORT*
- 2 x 031318B Front anti roll bar bush
- Diameters:
- 18mm
- 19mm
- 20mm
- 21mm
- 22mm
- 23mm
- 24mm
- 2 x 031525B Front anti roll bar link bush *
- 2 x 031336B Rear beam mounting bush
4 x 031314B Rear trailing arm bush
or- 4 x 031860A Rear trailing arm bush - eccentric SPORT
- 2 x 031313B Rear anti roll bar bush
- Diameters:
- 12mm
- 13mm
- 14mm
- 15mm
- 16mm
- 17mm
- 18mm
- 19mm
- 2 x 031789B Rear anti roll bar link to anti roll bar bush
- 2 x 031790B Rear anti roll bar link to arm bush
- 1 x 031342B Rear diff mounting bush
Pcs/prod: 17/19
Required/car: 1
- Diagrams:

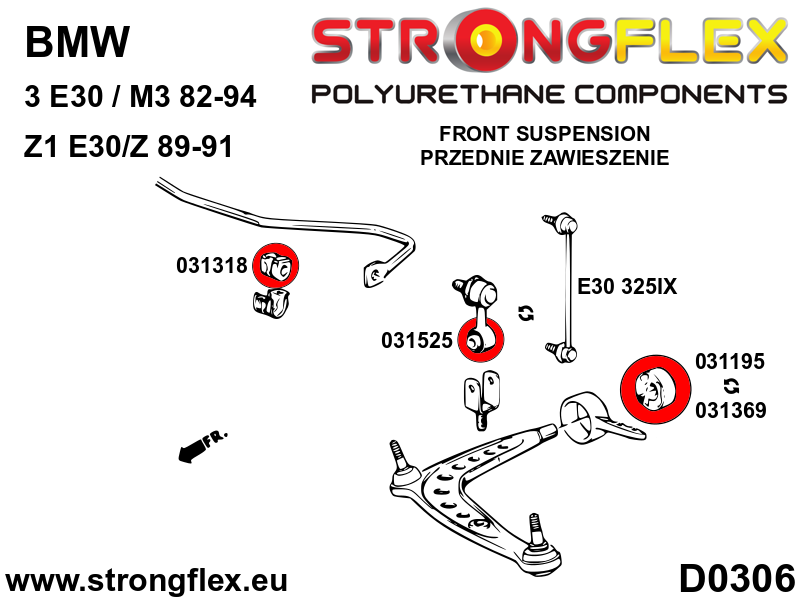

- D0306

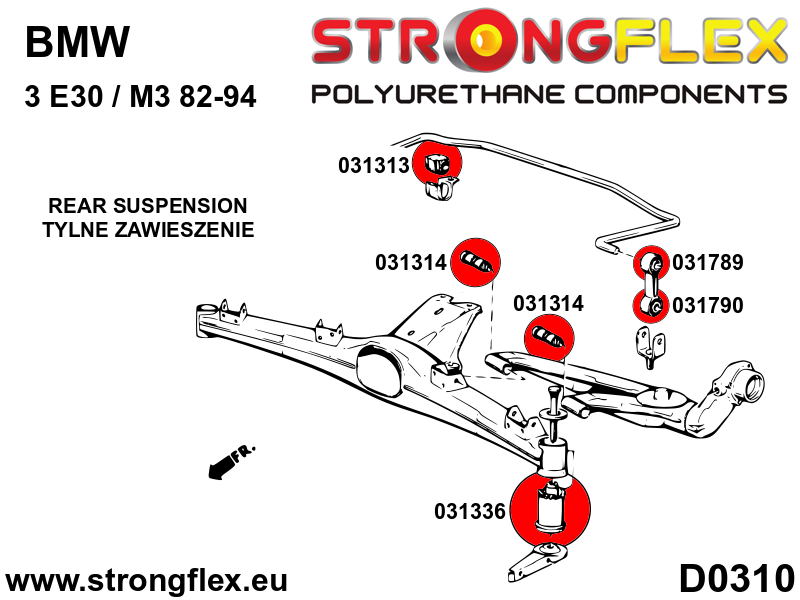

- D0310

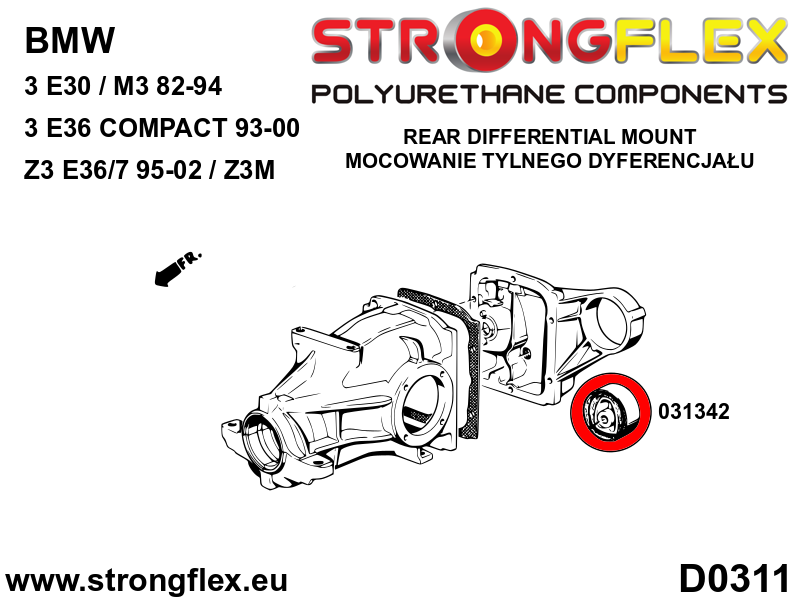

- D0311
- S0321
- S0343
NOTE! *
Bush 031369 is only present in SPORT version 90ShA
Bush 031525 works only with anti roll bar link mount to lower arm, not the shock absorber.
Not fit the E36 M3 and Z3M models.
NOTE!
Measure Anti Roll Bar diameter before placing order.
NOTE! RELATED MAINLY WITH drift, motorsport ect.
Front Wishbone Bushes (031195 or 031369) can be prepared to fit the arm from the E46 model.
E46 Control Arm is longer and larger negative (wheel angle) can be achieved in comparison to the mass and E30/E36 geometry.
Place a note in the order if you are interested in such bushings.
Equivalent of "centric" bush is No. 031,737, and "eccentric" 031738.
These bushes can also be purchased separately.
Hardness: 80ShA
Material: POLYURETHANE (PUR/PU)
To every product we add grease!
Information about our products:
Our STRONGFLEX series products are made of polyurethane
- better than traditional rubber parts. Polyurethane has the added benefits of increased safety,
better durability and sustainability of the suspension, and lot more of kilometers (miles)
traveled without repairs.
Polyurethane elastomer used in our products is the cutting-edge of polymer systems,
which thanks to its features and technical parameters replace the widely used rubber.
The high strength / resilience of elastomers against temperature repeatedly exceeds the quality of the traditional rubber.
Key benefits of polyurethane:
- Extend the life of tires,
- Stability of the suspension,
- Increased driving comfort,
- Increased safety,
- Lower operating costs.
RED or Yellow?
RED - hardness of about 80 ShA* - suspension components have a hardness similar to the original metal-rubber bushes.
However, strength of the polyurethane is many times greater, and the unique properties ensure long lasting comfort.
Our RED products we recommend for all the "normal" car users who want improve stability and better driving.
YELLOW - hardness of about 90 ShA* - recommended for racing-sports vehicles, tuned.. etc.
The suspension is much stiffer, as at higher speeds is important.
Durability ensures stability of polyurethane suspension for many years.
