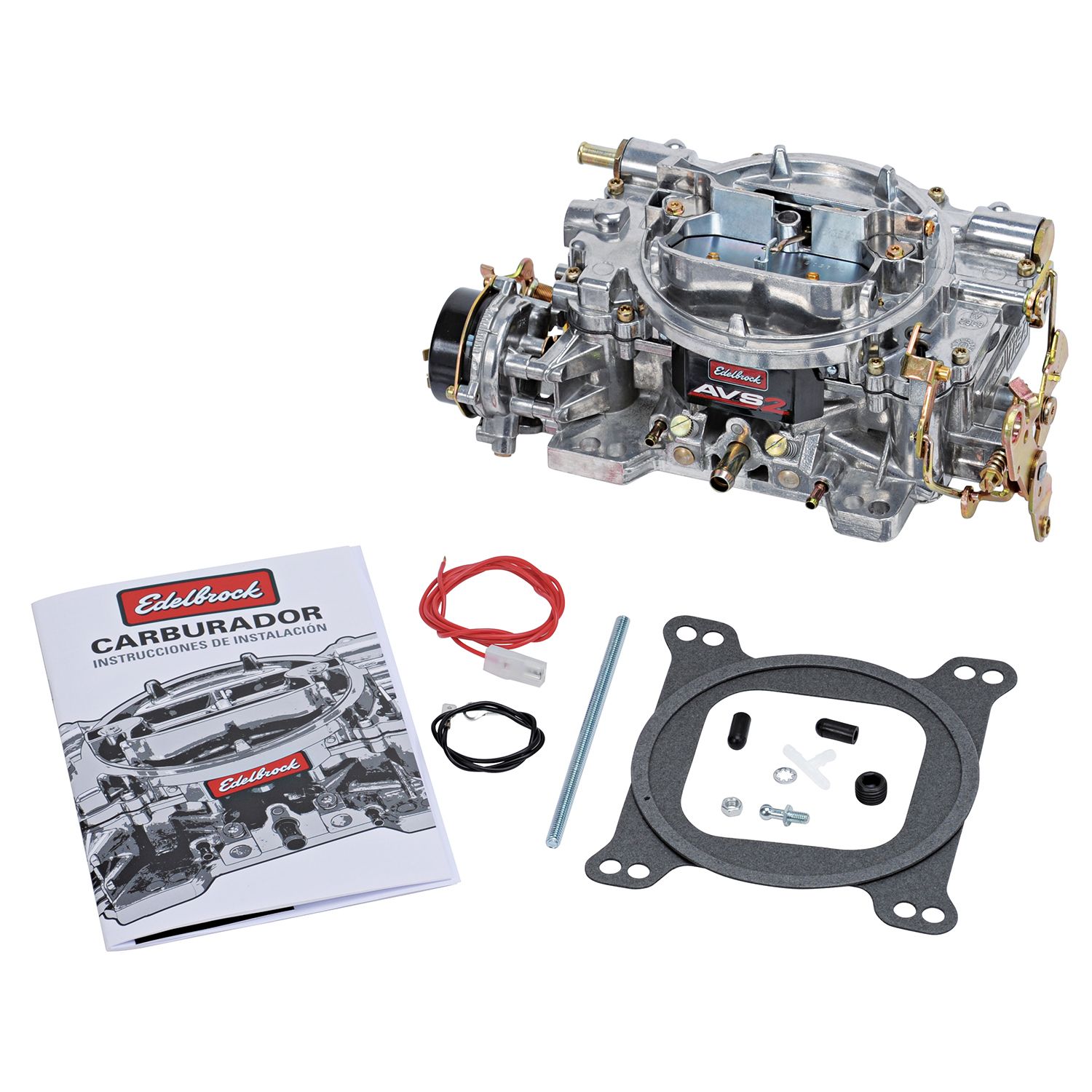

Edelbrock AVS2 500 CFM Carburetor w/Electric Choke Satin Finish (Non-EGR) 1901

Description

BRAND NEW IN BOX

DETAILS:

The Edelbrock #1901 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. #1901 is calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.

SPECS:

Availability

Available

Application

Universal

UPC

00085347019014

Recommended Use

For Single Carb Applications

Series

AVS2

Condition

New

Metering Rod Size

.070 x .052 in

Gasket Or Seal Included

Yes

Barrel Quantity

4 Barrel

Flange Type

Square

Secondary Jet Diameter

0.095

Main Venturi Diameter

1.19

Body Height

3.25

Bore Diameter

Primary Bore 1.44; Secondary Bore 1.6875

Spring Force

5" Hg (Orange)

Availability Note

Available

Warranty

12 Months

Emissions Code

 Pre-Pollution Controlled Vehicles

Hazardous Materials Warning

WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm.

Installation Notes
  • Thunder Series AVS2 Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000; Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty.; The use of a new fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer's warranty of the carburetor; You must use Edelbrock Adapter #2732 when installing a Performer Series carburetor on certain Edelbrock intake manifolds

Choke Type

Electric

Finish

Satin

Material

Aluminum

CFM Rating

500 cfm

Primary Jet Diameter

0.095

ABOUT THE MANUFACTURER :

Founded in 1938, Torrance-based Edelbrock, LLC is recognized as one of the nation's premier designers, manufacturers and distributor of performance replacement parts for the automotive aftermarket. Edelbrock produces their core products in the United States of America using state-of-the-art equipment in their world class manufacturing facilities. Edelbrock, LLC encompasses five locations in Southern California and one location in North Carolina totaling more than 500,000 square feet.

Edelbrock Corporation has six locations: Three in Torrance California, two in San Jacinto, California, and one in Sanford North Carolina totaling over 500,000 square feet. Torrance Headquarters include: R&D; manufacturing; state-of-the-art testing facilities, advertising and tech support. Less than a mile away is Russell Plumbing and our Distribution Center.

Our Aluminum Foundries are located close by in San Jacinto. In 2008 we added a new Permanent Mold and Heat Treat facility next to our existing sand cast foundry, which has been called "the most state-of-the-art sand cast foundry west of the Mississippi." This investment in American facilities is part of our commitment to "Made in USA" products and performance.
