Duet 2 Ethernet

Duet 2 Ethernet

This is the latest PCB revision of the Duet 2 Ethernet, v1.04.

The Duet 2 Ethernet is an advanced 32 bit electronics board for the control of 3D printers and other CNC machines.

Features

It has the same features as the Duet 2 Wifi ( with external or without external antenna ), other than providing ethernet connectivity rather than Wifi.

See the documentation links below for a full feature set; in summary:

- Powerful 32 Bit Processor

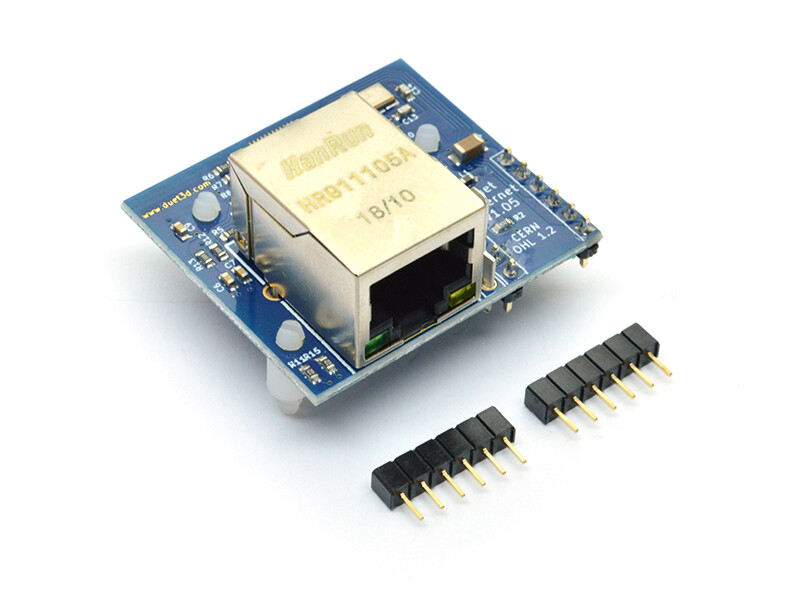

- Dedicated ethernet module.

- Super quiet TMC2660 stepper drivers, up to 256 microstepping.

- High speed SD card and support for a second external SD card if required.

- Dual extruders on the main board, up to 5 more extruders on the expansion board .

- High Power rating: Each stepper driver is capable of 2.8A motor current, currently limited in software to 2.4A.

; The bed heater channel is specifically designed for high current (18A).

- Connect via PC, tablet or smartphone on the same network to the on board web interface .

- Set up your printer and update the firmware through the web interface .

- All common 3D printer geometries are supported.

- Expandable up to 7 extruders with Firmware support for mixing nozzles and remapping axes to use high power external drivers.

- Support for the PanelDue: a full colour graphic touch screen.

- Support for DC42's IR Z probe .

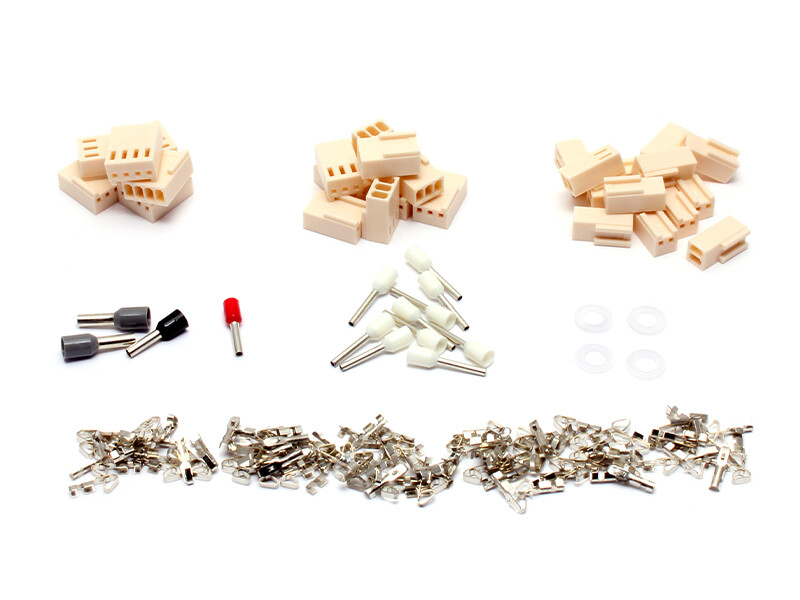

- Provided with Molex compatible plugs and crimps as well as ferrules for power and heater terminals.

The Duet 2 Ethernet can have Thermistors connected directly, alternatively we have two different temperature sensing daughterboards available:

- PT100 Temperature daughterboard

- Thermocouple temperature daughterboard

Documentation

- Duet 2 WiFi/Ethernet Hardware Overview
