ORDERING INFORMATION
Model | Description |

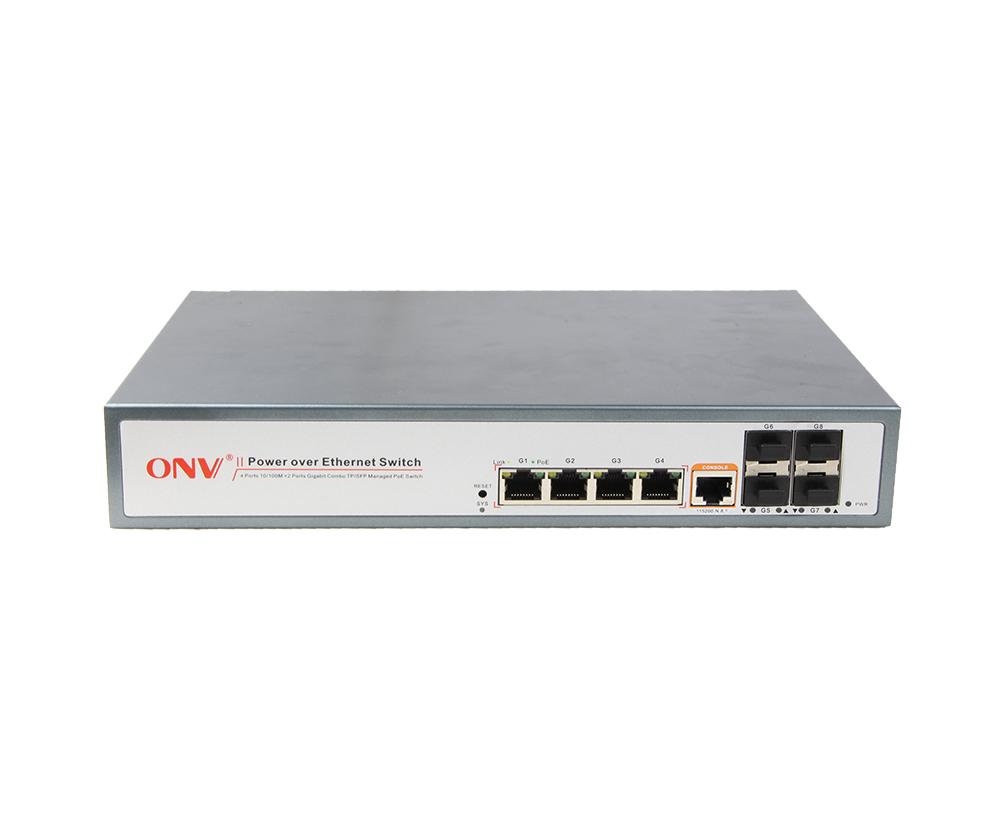

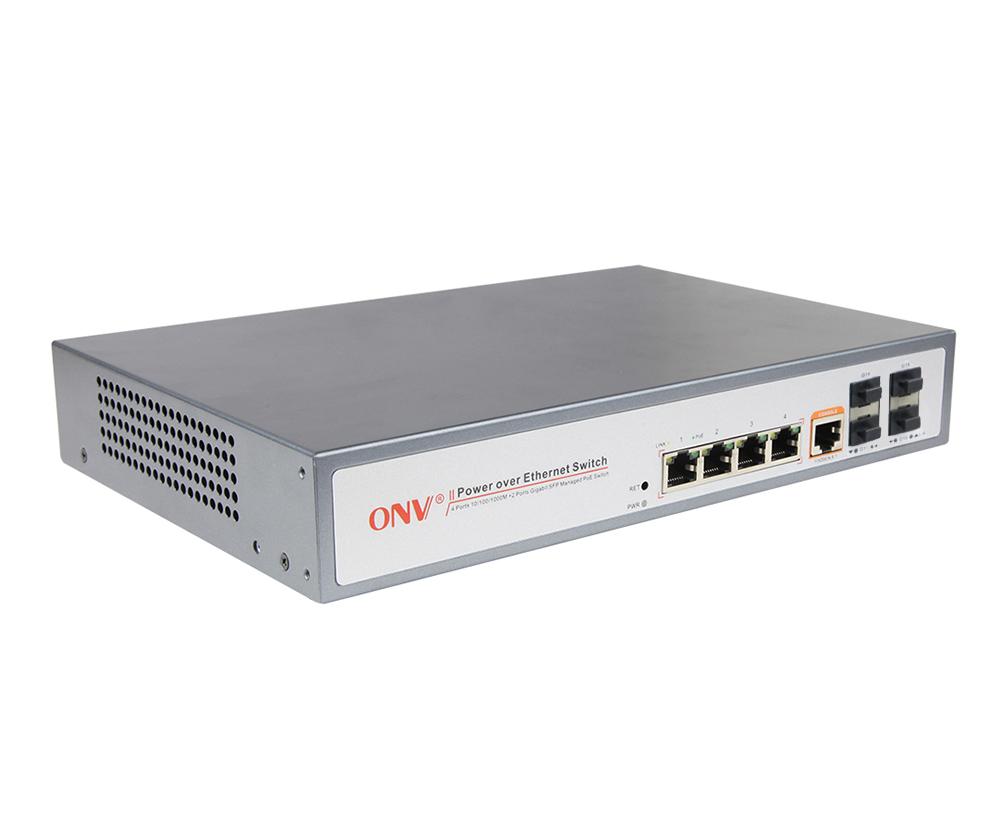

ONV-POE33084PFM | L2+ managed PoE fiber switch with 4* 10/100/1000M RJ45 ports and 4*100/1000M SFP fiber slot ports , Port 1-4 can support IEEE 802.3af/at PoE standard, Built-in 65W power supply. Support 1U/19 inch rack installation. |
ONV-POE33084PFM-at | L2+ managed PoE fiber switch with 4* 10/100/1000M RJ45 ports and 4*100/1000M SFP fiber slot ports , Port 1-4 can support IEEE 802.3af/at PoE standard, Built-in 130W power supply. Support 1U/19 inch rack installation. |
Note: PoE switch does not match SFP module by default. | |
PACKING LIST
PACKING LIST | CONTENT | QTY | UNIT |
8-port full gigabit managed PoE switch | 1 | SET | |
AC Power Cable | 1 | PC | |
RJ45-DB9 Line | 1 | PC | |
Mounting Kits(Hanging Ear ) | 1 | SET | |
User Guide | 1 | PC | |
Warranty Card | 1 | PC |
TECHNICAL SPECIFICATION
Model | ONV-POE33084PFM | ONV-POE33084PFM-at |
Interface Characteristics | ||
Fixed Port | 4*10/100/1000Base-T POE ports (Data /Power) 4*100/1000Base-X SFP ports (Data) 1*Console RS232 port | |
Ethernet Port | Port1-4 can support 10/100/1000Base-T(X) auto-sensing,Full/half duplex MDI/MDI-X self-adaption | |
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) | |
SFP Slot Port | Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) | |
Optical Cable | Multi mode: 850nm 0 ~ 500M, Single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM. | |
Chip Parameter | ||
Network Management Type | L2+ | |
Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE802.3x | |
Forwarding Mode | Store and Forward(Full Wire Speed) | |
Switching Capacity | 128Gbps (Non-blocking) | |
Forwarding Rate@64byte | 11.90Mpps | |
MAC | 8K | |
Buffer Memory | 4M | |
Jumbo Frame | 9.6K | |
LED Indicator | Power:PWR (green), system : SYS ( green), network : Link (yellow), fiber port: L/A (green), PoE : PoE (green) | |
Reset Switch | Yes, One-button factory reset | |
PoE & Power | ||
PoE Port | Port 1 to 4 IEEE802.3af/at @ POE | |

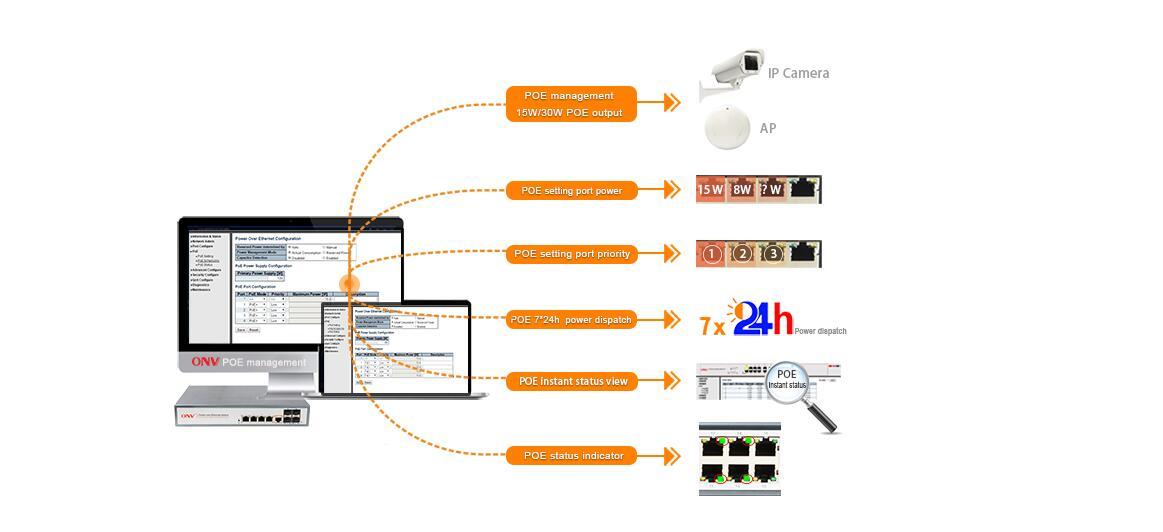

PoE Management | PoE working status Delay start of power supply Total power limit of PoE power supply PoE output power allocation, off& af &at PoE output priority configuration Scheduling of PoE operation and time | |
Power Supply Pin | Defaul 1/2 (+), 3/6 (-) | |
Max Power Per Port | 30W; IEEE802.3af/at | |
Total PWR / Input Voltage | 65W/ (AC100-240V) | 130W /(AC100-240V) |
Power Consumption | Standby<9W, Full Load<60W | Standby<12W, Full Load<120W |

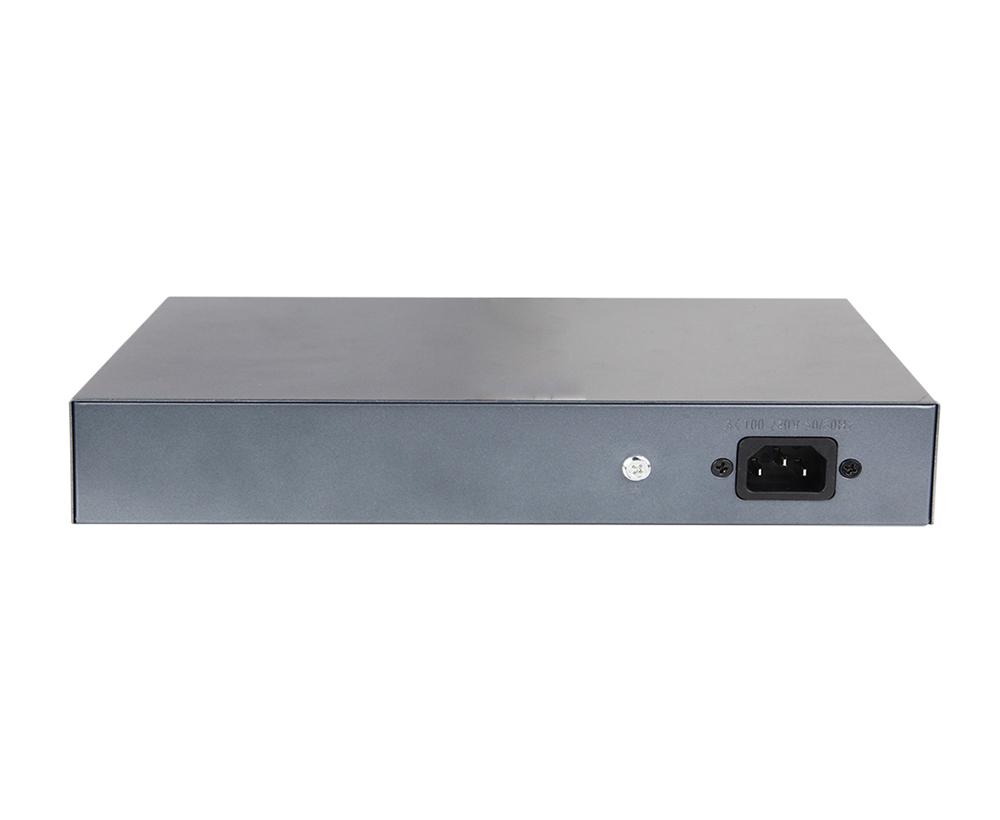

Power Supply | Built in power supply, AC100~240V 50-60Hz 1A | Built in power supply, AC100~240V 50-60Hz 2.3A |
Physical Parameter | ||
Operation TEMP / Humidity | -20~+55°C;5%~90% RH Non condensing | |
Storage TEMP / Humidity | -40~+75°C;5%~95% RH Non condensing | |

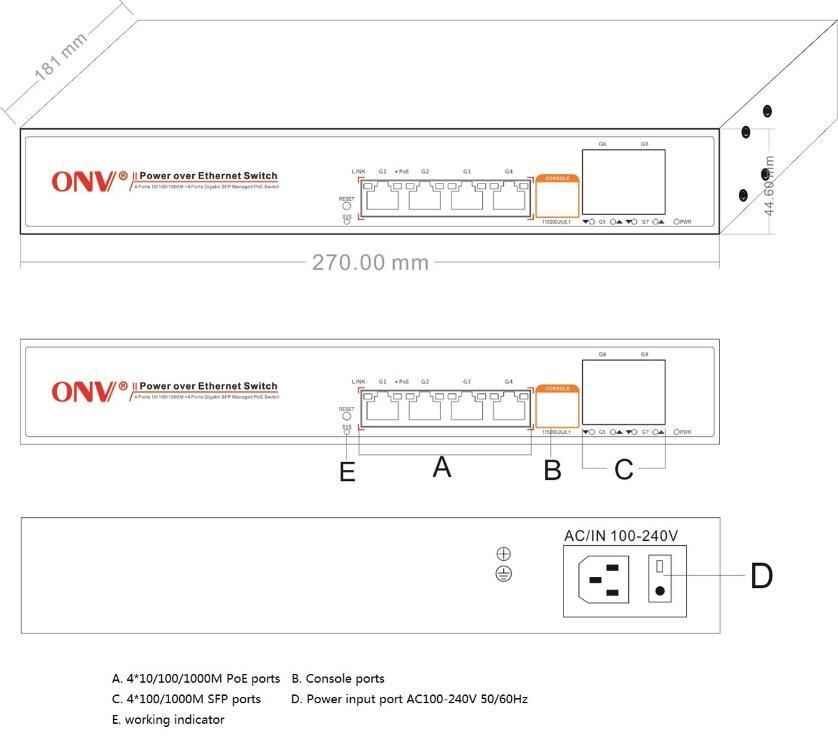

Dimension (L*W*H) | 270*181*44.5mm | |
Net /Gross Weight | <1.5kg / <2.0kg | |
Installation | desktop type ,wall mounted , 19 inch 1U cabinet installation | |
Certification & Warranty | ||
Lightning protection / protection level | Lightning protection: 4KV 8/20us; Protection level: IP30 | |
Certification | CCC;CE mark, commercial; CE/LVD EN60950; Part 15 Class B; RoHS; | |
Warranty | 3 years , lifelong maintenance. | |

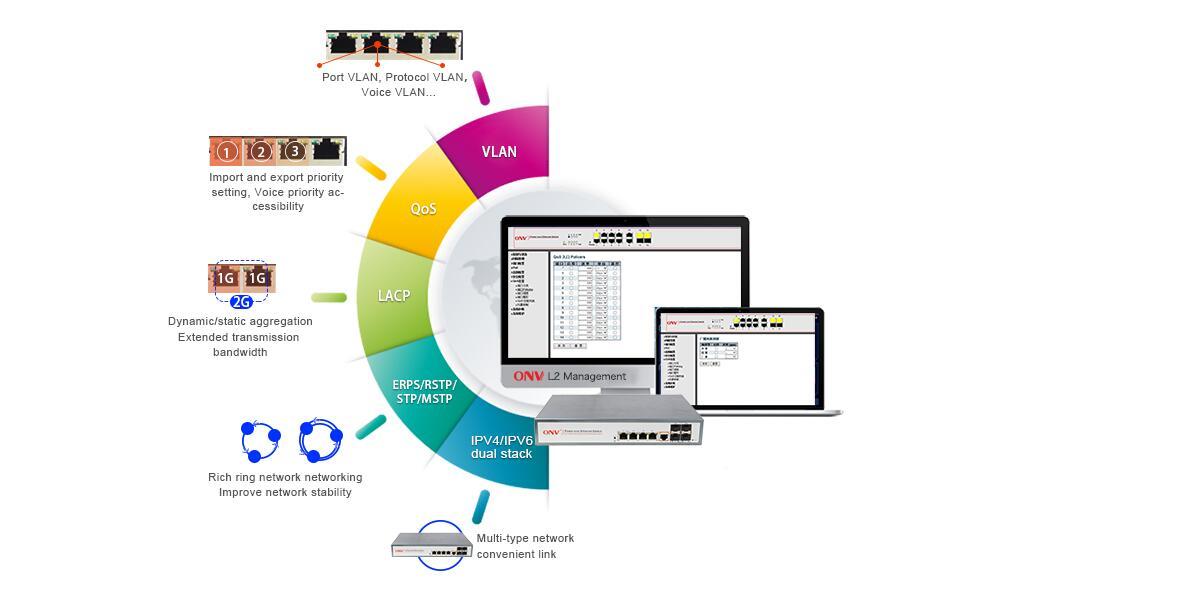

Network Management Features | ||
Interface | IEEE802.3X (Full-duplex) Port temperature protection setting Port green Ethernet Energy-saving setting Broadcast storm control based on port speed The speed limit of the message flow in the access port. The minimum particle size is 64Kbps. | |
Layer 3 Features | L2+ network management ,IPV4/IPV6 management L3 soft routing forwarding, Static route, Default route @ 128 pcs, APR @ 1024 pcs | |
VLAN | 4K VLAN based on port, IEEE802.1q VLAN based on the protocol VLAN based on MAC Voice VLAN, QinQ configuration Port configuration of Access, Trunk, Hybrid | |
Port Aggregation | LACP, Static aggregation Max 4 aggregation groups and 8 ports per group. | |
Spanning Tree | STP (IEEE802.1d),RSTP (IEEE802.1w),MSTP (IEEE802.1s) | |
Industrial Ring Network Protocol | G.8032 (ERPS),Recovery time less than 20ms 250 Ring at most, Max 254devices per ring. | |
Multicast | MLD Snooping v1/v2,Multicast VLAN IGMP Snooping v1/v2, Max 250 multicast groups, Fast log out | |
Port Mirroring | Bidirectional data mirroring based on port | |
QoS | Flow-based Rate Limiting Flow-based Packet Filtering 8*Output queues of each port 802.1p/DSCP priority mapping Diff-Serv QoS,Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR) | |
ACL | Port-based Issuing ACL,ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. | |
Security | IP-MAC-VLAN-Port binding ARP inspection,Anti-DoS attack AAA & RADIUS,MAC learning limit Mac black holes,IP source protection IEEE802.1X & MAC address authentication Broadcast storm control,Backup for host datum SSH 2.0,SSL,Port isolation,ARP message speed limit User hierarchical management and password protection | |
DHCP | DHCP Client,DHCP Snooping, DHCP Server,DHCP Relay | |
Management | One-key recovery Cable Diagnose,LLDP Web Management (HTTPS) NTP,System work log,Ping Test CPU instant utilization status view Console/AUX Modem/Telnet/SSH2.0 CLI Download & Management on FTP, TFTP, Xmodem, SFTP,SNMP V1/V2C/V3 | |
