production introduce

  Product Introduce

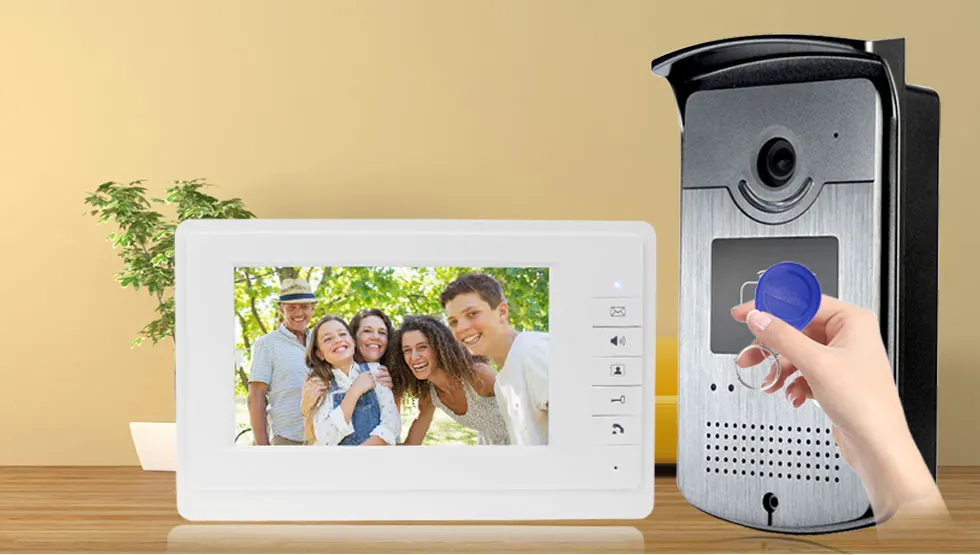

    This is a 700 TVL video doorbell intercome kit. It supports to connect up to 6 pieces indoor monitor. It built-in led lights enhance the night view, the rainproof cover provide a good protection for it.

V70-+-ID_05V70-+-ID_07

specifications

  Product Specifications



Outdoor Camera
Camera Resolution
700TVL
Night VisionUp to 2 meters
Working Temperature-35 °C ~ +55 °C
View angle85 to 92°
WaterproofCome with a weaterproof cover
Dimension130mm(L) x 93mm(W) x 30mm(H)
InstallationSurface mounted
MaterialABS Plastic, Aluminum wire drawing
Wire System4 Wire system
ModelXSL-ID
Indoor Monitor
Screen7" colour TFT-LCD
Effective Pixels800 x 480

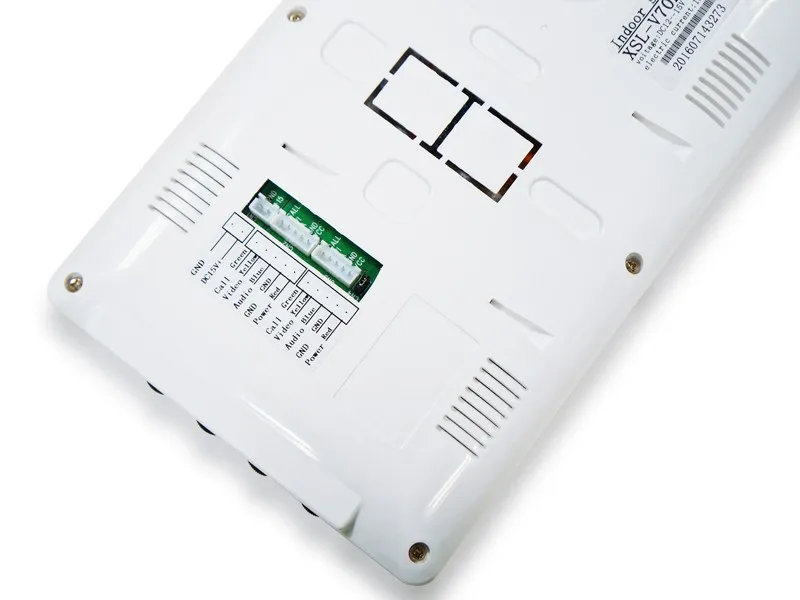

Wiring4-wire pin end
Room to Room intercomYes
Adapter InputAC100 - 240V 50-60HZ
Adapter OutputDC 15V 1500mA
CaseABS Plastic
Working Temperature-35 °C ~ 55 °C
InstallationWall mounted
Dimension240mm(L) x 150mm(W) x 26mm(H)

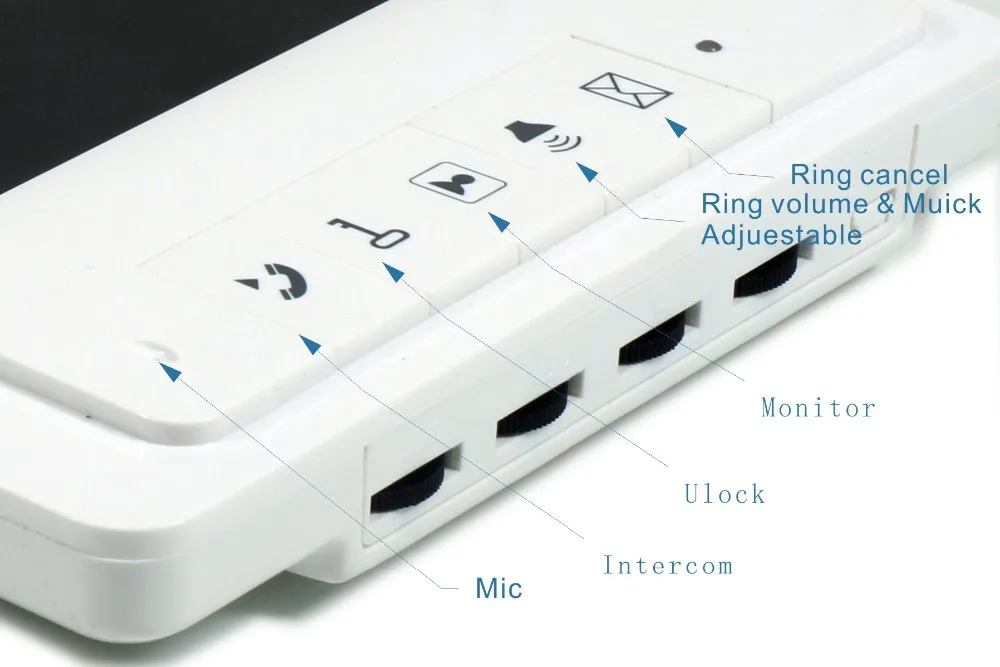

FunctionIntercom, monitor, unlock the door, 25 ringtones
ModelXSL-V70F



features

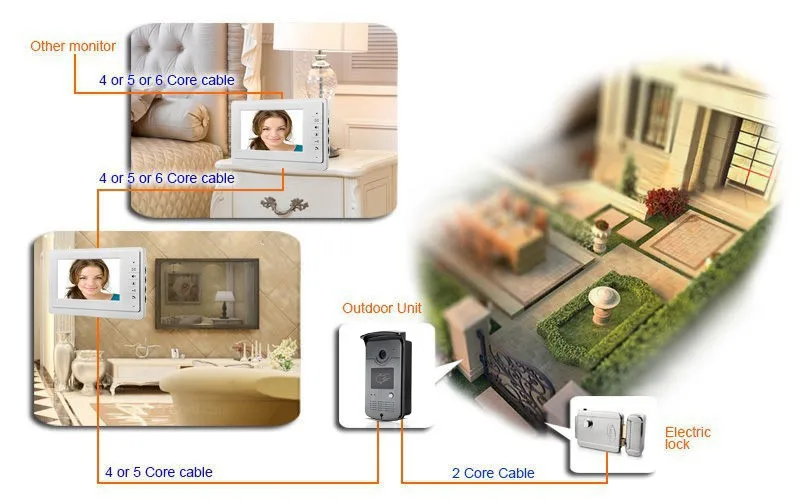

  1. With 4 wires system connection.

Using 4-cores cable to connect the camera and monitor.
( We will send 5 meters cable to you to test, for the longer cable, need to buy by yourself when installing)



The max distance between indoor monitor and outdoor unit is up to 100 meters. Different distance, use different diameter cable, please check the following from to choose corresponding cable.

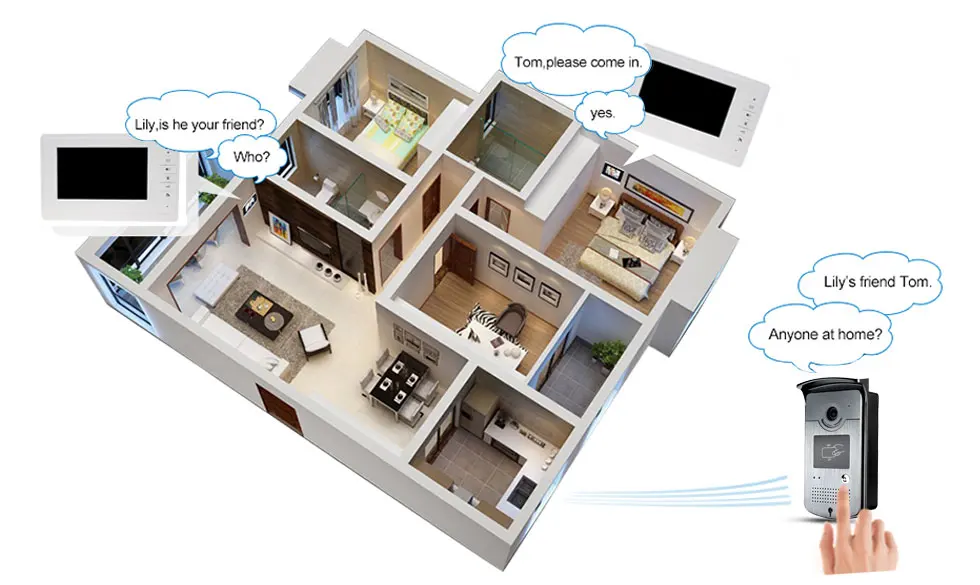

  2. Support Two-way Audio.

One camera can working with 6 indoor monitors. One monitor can working with 2 cameras. The camera can talk with the monitor. And the monitor can talk with each other too.

V70-+-ID_13



  3. Waterproof & Rainproof

This outdoor camera equipped with a waterproof & Rainproof cover, can be used even in very bad weather.  You can install it at outside.

V70-+-ID_16

  4. With white LED night vision

The outdoor camera build-in 4 white LED light. With this function, you can see outside no matter day or night. Keep your home more safer.





details




aeProduct.getSubject()  aeProduct.getSubject()  aeProduct.getSubject()
aeProduct.getSubject()

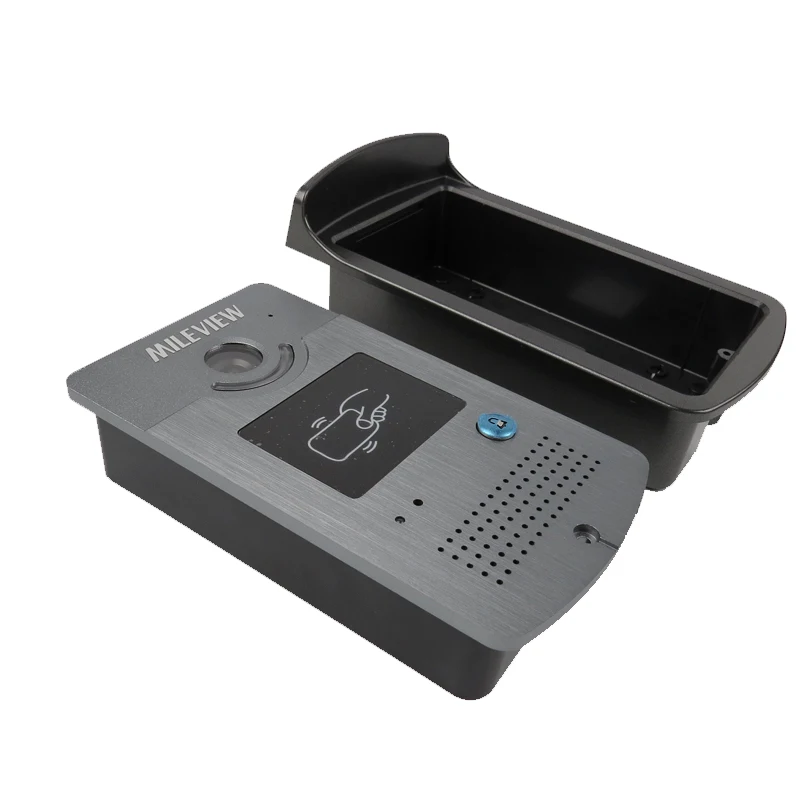

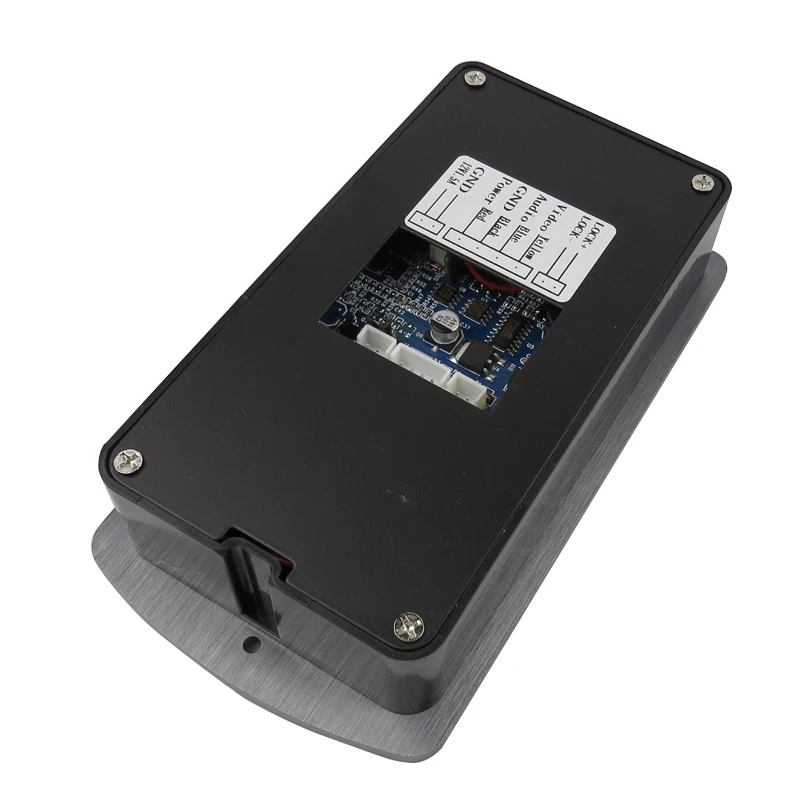

    ID-2  ID-4  ID-size

aeProduct.getSubject()



Remote Control





aeProduct.getSubject()

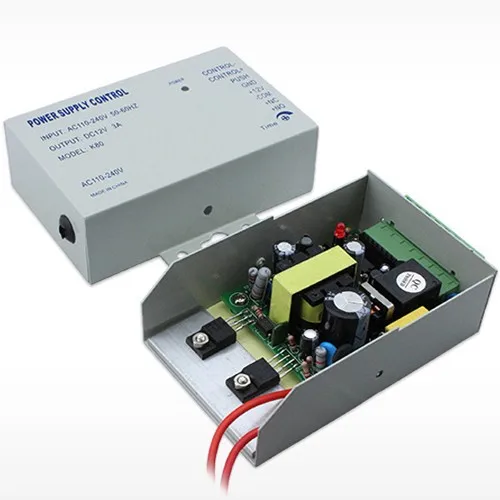

Power supply



This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.



  • It controls electric lock directly.

  • Can reduce the load of access controller, save wiring to reduce the hidden trouble

  • Based delay control circuit, lock time can be in 0-15 seconds

  • Automatic protection function, unexpected situations such as when the power supply
  • short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off

  • Operative device: E/M Lock, Access Controller, Exit Push Button.
aeProduct.getSubject()

Electric Magentic lock



It is a High-performance   180kg Holding Force electric magnetic lock which suit for many access control system. This electric lock can meet your need perfectly!







  • Voltage: 12V DC
  • Mode: NC (locked whilst power supply is operating), fail safe mode
  • Application: wood, iron doors
  • Main body dimensions: 171 x 39.2 x 22mm
  • Pack includes: electric magnetic lock, installation diagrams
  • Construction: stainless steel.
  • Performance Testing: 1000000 times aging test
  • Safety function: Built-in voltage spike suppressor
  • Anti-Residual Magnesium Designed
  • Weight: 1.3kg

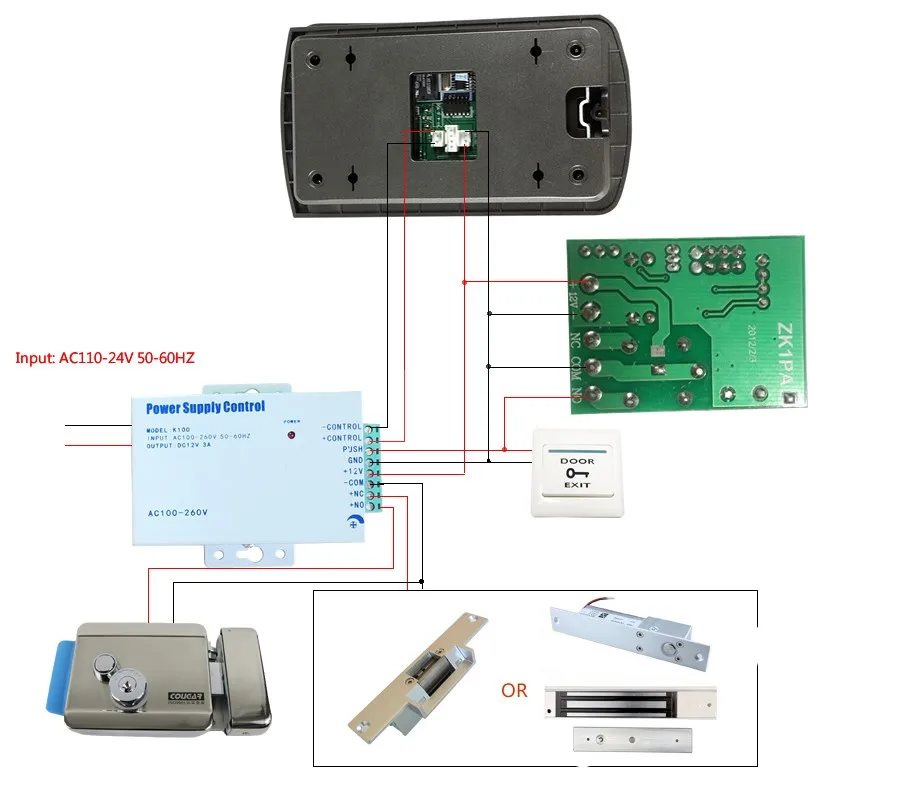

5.  Wiring Diagram

aeProduct.getSubject()



NOTE: We have the user manual in English , French, Spanish and Russian language.

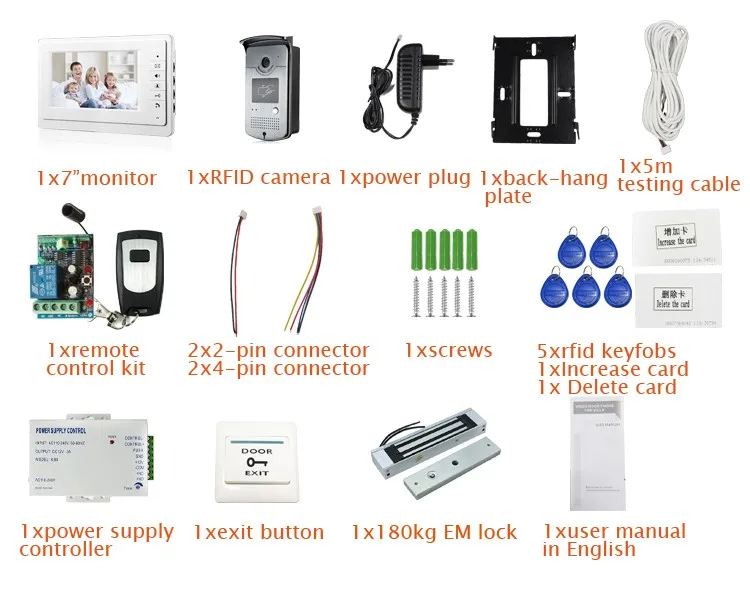

6.  Package
