John Deere J1939 protocol System

-Vee-CAN320

The VeeCAN 320 is the next generation of compact, highly flexible, rugged CANbus displays from Veethree. The full sunlight viewable 3.5” color display provides seamless monitoring of your engine’s key functions.

• 3.5” color display – fully sunlight viewable

• 7 analog inputs, 3 digital inputs, 4 switched outputs, (2) CAN 2.0B connections, and 1 USB 2.0 port.

• The unit comes loaded to monitor key engine parameters including J1939 and TIER 4 information.

• The unit is fully sealed to IP 66 (front) and IP 67 (back) using two 12 way Deutsch connectors and one USB 2.0 port.

• Software programmers and engineers can configure the unit to fit their application using our SDK (Software Development Kit).

J1939 Protocol Gauges 280 Degree:

• RPM 4K with Digital Hourmeter
• Engine temperature Gauge 120-240 F
• Engine Oil Pressure Gauge 0-125 PSI
• Fuel Level Gauge
• 12v Voltmeter 10-16V

Kit Includes:

1. Fully Wired Instrument Panel with 5 Marine Grade Gauges and CANbus displays from Veethree
2. Cole Hersee Sealed Ignition Key Switch

Features and Benefits of Cole Hersee Sealed Ignition Key Switch:

1. Engineering thermoplastic construction
2. Fully sealed contact area using O-rings and ultrasonic welding
3. Integrated Sealed Deutsch Connector Interface
4. Anti-restart and spring return options available
5. Tested to SAE J259 for ignition switches
6. Supplied with two matching keys, with or without boot
7. Custom logo can be molded on the boot
8. Multiple key codes or keyed alike available
9. Key is removable only at the ‘Off’ position

An extensive series of ignition switches can also be used as rotary switches. Suitable for a broad range of voltages: 10A at 12V, 5A at 24V, 3A at 36V, and 2A at 48V DC. Made of rugged engineering grade plastic, these switches stand up to mechanical shock and vibration, and will not corrode or rust. This switch has an integrated Deutsch-type socket to make electrical connections quick and easy and to exclude moisture and dust. UL-tested and recognized to SAE J259 for ignition switches. Contacts are sealed front and back to IP67 (with connector installed). Many options available with regard to position, spring return, key boot style and marking, actuator interface and length, and anti-restart features.

Marine Grade Wire & Features:

• USCG / NMEA specification Copper tinned wire
• flexible cable water and oil resistant
• 10″ to 12″ Pigtail Harness connected to 12 position terminal strip

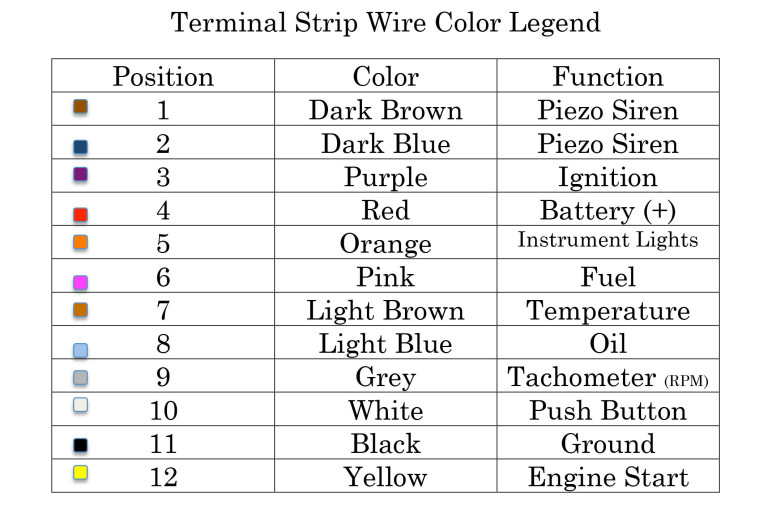

12 Circuit 30 Amp Terminal Strip Features:

• Closed-back design completely insulates power from the mounting surface
• Each screw pair is one isolated circuit
• Jumpers allow the creation of common circuits

Additional Features:

• Marine-grade push button switch (Engine Stop, or Pre-heat, or both if need it)
• 3 LED warning lights
• Senders and Accessories not Included
• Engraved with Engine Name (optional your boat Name)

Note Always you can choose between

1. Black and White Panel.
2. Black and White Gauges.
3. 24V System Available (optional)
4. Also, you can Custom your panel size, gauges, design, and switches, just contact us (extra charge applicable)

 Please specify your requirement

 If you have any technical questions please feel free to call or email us.

All panels are made in the USA by AC DC Marine Inc. Torrance, California
