  Compaq 10/100/1000 Gigabit Nic PCI-X Network card with RJ-45,
(PCI-64, PCI-32 compatible), i.e. also for the workstations,
HP/ Compaq Part NC7770
 (expanded on the new HP/Compaq server and is of course with
work every other server)

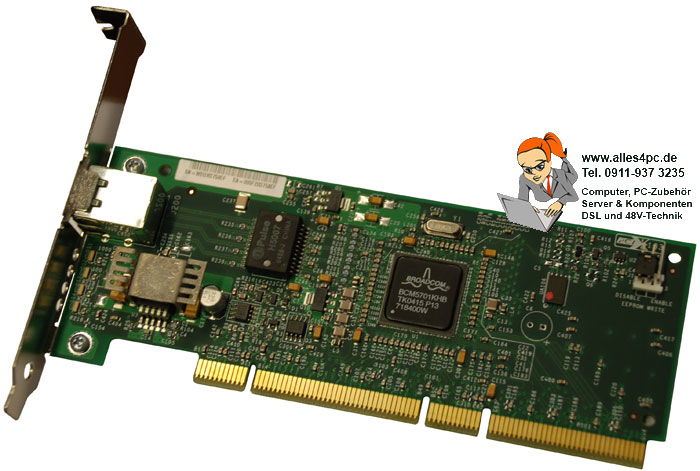

Compaq NC7770 PCI-X Gigabit Server Adapter 244948-B21
The Compaq NC7770 PCI-X Gigabit Server Adapter is the first in a new generation of Networking Solutions to Combine Gigabit Ethernet Speed ​​With PCI-X Bus Technology. The NC7770 is a single port Copper Gigabit Server Adapter that Runs Over Category 5 (or Better) Twisted-Pair Cabling. Along with all the Advanced features that proliant Customers have come to expect, the nc7770 including support for jumbo frames, wake on lan (wol), dual address cycles (DAC), and pre-boat execution environment (pxe).








Gigabit Ethernet through to 1000MBPS Ethernet Transfer Rate Delivers Outsanding Network Performance that Improves Response Time and Removes Bottleneck's Across The Entire Network.


PCI-X Data Path Compaq was an early champion of PCI-X Bus Technology and Has Played a Key Role in the Development and Industry Adoption of the PCI-X Specification. The NC7770 is Compaq 'S First Server Adapter to Feature A PCI-X 64-Bit/133MHz Data Path, which Yields Faster Transmissions With Lower CPU Utilization.


Load Balancing Transmit Load Balancing (TLB) and Switch-Assisted Load Balancing (SLB) Are Two Advanced Features Used to Build a Bigger Pipe for Improved Networking Bandwidth. Thesis Port Bonding Techniques Enable Users To Install Up to Eight NC7770 Adapters in A Proliant Server and Agregate Their Throughput Up to A Maximum of 16gigabits via Second Full Duplex Transmissions.


Tri-Speed ​​Support Because the NC7770 Supports Both 10MBPS Ethernet and 100MBPS Fast Ethernet in Addition to Gigabit Ethernet, Users are Guaranteed End-to-End Protocol Support Across Their Enterprise. Like All Compaq Server Adapters, The NC7770 adheres to open industry standards, Insuring that it will work Seamlessly With Any Network Devices that So Support Ieee Standards.


PCI-X Support for Traditional PCI Slots PCI-X Technology Insures Hardware Investment Protection by Retaining Backward Compatibility With the Standard PCI Bus Architecture at the Device and Driver Level. When the NC7770 is used in A 64/100, 64/66, 64/33, OR 32/33 io slot, the performance is limited to the maximum of the conventional bus architectures.




 Our cards are needed, are in very good condition





* * *
