Test Clamp Clip For Logic Analyzer
Description:

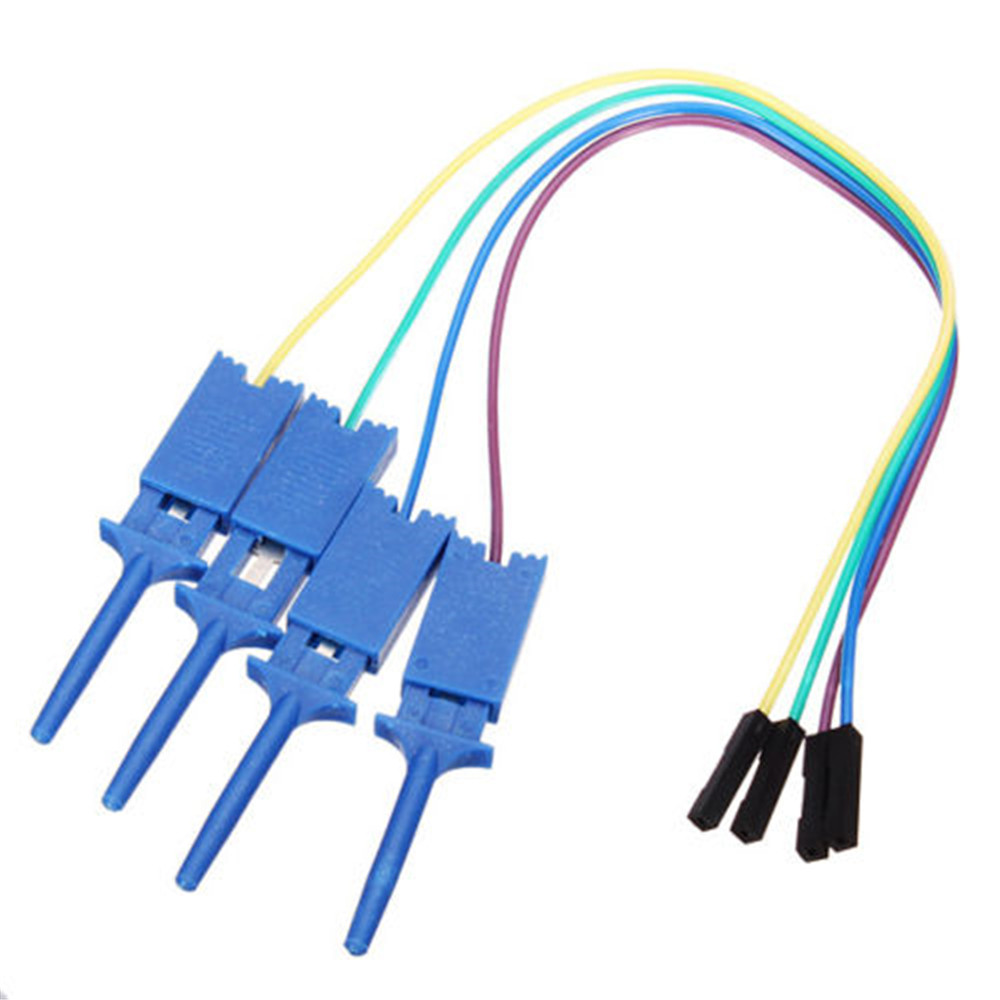

This is test clamp/clip for logic analyzer. The clip are soldered with DuPont line. Easy for using.
Specification:
Length: about 23cm
Color: Random
Net Weight: 5g
Package included:4 x Test Clamp Clip
Logic Analyzer 24MHz
Descriptions:
Sampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;
The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions;
8-channel;
Voltage range:
Input voltage range: -0.5V to 5.25V
Input Low Voltage: -0.5V to 0.8V
Input High Voltage: 2.0V to 5.25V
Works with 5V, 3.3V, 2.5V, 2.0V systems. May work with 1.8V but not recommended.
Input Impedance: 1Mohm || 10pF (typical, approximate)
Crystal: +/-20ppm, 24MHz
Error/Accuracy: pulse-width measurement: +/- 42ns (at 24MHz).
Package included：
Analyser Device
USB Cable
Dupont Line
Sampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;
The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions;
8-channel;
Voltage range:
Input voltage range: -0.5V to 5.25V
Input Low Voltage: -0.5V to 0.8V
Input High Voltage: 2.0V to 5.25V
Works with 5V, 3.3V, 2.5V, 2.0V systems. May work with 1.8V but not recommended.
Input Impedance: 1Mohm || 10pF (typical, approximate)
Crystal: +/-20ppm, 24MHz
Error/Accuracy: pulse-width measurement: +/- 42ns (at 24MHz).
Package included：
Analyser Device
USB Cable
Dupont Line
LHT00SU1 Logic Analyzer
Function:
Dual input oscilloscope (single, 16Msps, 3MHz bandwidth)
8-channel logic analyzer
Data Logger
Dual channel voltmeter
Mixed signal oscilloscopes and logic analyzer
Frequency meter
Remote controller
PWM controller
Frequency generator
I2C controller
Pulse / edge counter
8 digital channel + 1 analog channel logic analyzer, support for multiple protocols
Analog parameters:
Number of input channels: 2 channel
Sampling channel: 1 channel
The maximum sampling frequency: 16MHz
The maximum analog bandwidth: 3MHz
Input voltage range: -10V to + 10V
Sensitivity: 78mV
Maximum vertical resolution: 256 level
Digital parameters:
Number of channels: 8
Input voltage: 0V-5.3V
Input Low level: <0.8V
Input high level: >1.4V
Supported protocols: SPI, IIC, UART, SMBus, I2S, CAN, Parallel, Custom, Search, Async, 1-Wite, PS / 2
The communication interface parameters:
USB parameters: USB2.0 high-speed 480Mbps
System requirements:
Supported operating systems Win2000 / XP / Vista / WIN7 (32bit)
Celeron 4 2.0G or Pentium 4 1.8G higher processor
Need USB2.0 high speed interface, does not support full speed USB2.0 or USB1.1
Memory Requirements 128M or more
Need 2G or more hard disk
You need to install Framework 3.5 SP1
Note: If your system is WINDOWS XP, please check whether your computer has ".NET 3.5 SP1" this component, if not, go to the Microsoft website to download and install.
Dual input oscilloscope (single, 16Msps, 3MHz bandwidth)
8-channel logic analyzer
Data Logger
Dual channel voltmeter
Mixed signal oscilloscopes and logic analyzer
Frequency meter
Remote controller
PWM controller
Frequency generator
I2C controller
Pulse / edge counter
8 digital channel + 1 analog channel logic analyzer, support for multiple protocols
Analog parameters:
Number of input channels: 2 channel
Sampling channel: 1 channel
The maximum sampling frequency: 16MHz
The maximum analog bandwidth: 3MHz
Input voltage range: -10V to + 10V
Sensitivity: 78mV
Maximum vertical resolution: 256 level
Digital parameters:
Number of channels: 8
Input voltage: 0V-5.3V
Input Low level: <0.8V
Input high level: >1.4V
Supported protocols: SPI, IIC, UART, SMBus, I2S, CAN, Parallel, Custom, Search, Async, 1-Wite, PS / 2
The communication interface parameters:
USB parameters: USB2.0 high-speed 480Mbps
System requirements:
Supported operating systems Win2000 / XP / Vista / WIN7 (32bit)
Celeron 4 2.0G or Pentium 4 1.8G higher processor
Need USB2.0 high speed interface, does not support full speed USB2.0 or USB1.1
Memory Requirements 128M or more
Need 2G or more hard disk
You need to install Framework 3.5 SP1
Note: If your system is WINDOWS XP, please check whether your computer has ".NET 3.5 SP1" this component, if not, go to the Microsoft website to download and install.
Package included:
1 x Machine
1 x Testing clamp line (with 10 test clip)
1 x USB connection line
1 x Machine
1 x Testing clamp line (with 10 test clip)
1 x USB connection line
