FULL ELECTRONIC CAPACITOR / ELECTRONIC SERVICE KIT for STUDER B67 Mk1 and Mk2 PROFESSIONAL RECORDER
FULL Capacitor and Electronic Service Kit for Studer A67 and B67 mk 1 & 2
Includes PSU, Tape Transport & Control and Suppression Capacitor and mains filter overhaul kit and all audio cards including sync but not time code (very rare).
Don’t waste your time replacing just one or two capacitors on machines that are now 25 - 40 years old, replace ALL the troublesome electrolytics, tantalums and suppression capacitors. Usually the old high voltage capacitors associated with the motors and tape drive will also be shot electrically and often even visually. Some capacitors may test ok on a low voltage modern tester, however capacitors usually need to be tested after they have operated for at least 10 hours (after being discharged and stored for many years) at working voltage and then tested under actual working voltage conditions. Modern testers cant do this. For such relatively low cost components its prudent to just replace the lot. PLEASE NOTE: If you have a 30"/sec machine, please tell me at time of purchase as the capstan motor takes a different capacitor to the more common standard 15"/sec machine.
This kit contains parts for all boards and is highly recommended
- Replacement capacitors for all the electrolytics including large PSU can type caps
- Replacement for all tantalum capacitors
- Brand new specially manufactured non polarised motor capacitors
- All troublesome paper capacitors on drive control, switching and mains suppression
- Fully enclosed cermet type preset potentiometers
- New mains filter module
- All audio boards and meter panel included
This kit caters for the following circuit boards:
- Power Supply
- Stabiliser card
- Tape Drive Control using TCA561 IC's as well as the later version using discrete IC's - indeed ANY tape transport card fitted!
- Tape Tension Sensor Boards - both sides.
- Mains Filter module - we have a new ones made specially for us to the same specification
- Capstan Speed Control using TCA561 IC's as well as the later version using discrete IC's - indeed ANY capstan card fitted!
- Motor Control boards for each motor - three boards catered for
- Digital counter (for counter system)
- All motor chassis mounted motor capacitors - 5
- Record including various improved replacement resistors and capacitors associated with the erase / record circuitry that overheat and give problems
- Playback
- Oscillator
- Overload detector
- Meter panel and monitor - includes multi-turn trimmers update
- Mono stereo switch
- A comprehensive set of Nagravox service sheets / manual is provided to assist you with your overhaul.
- Factory updates
TOTALS:
- Capacitors = 201
- Preset trimmers = 11 (3x multiturn precision for meter panel adjust)
- Misc modules and mounting hardware = 9
- Small “upgrade” blank labels are provided to mark your upgraded boards
The kit contains specially sourced, new, freshly manufactured components from reliable manufacturers whom we have been dealing with for many years. (my capacitor manufacturer going on 10 years now!). DEFINITELY NO NOS (new old stock) or 2nd hand items!! The motor capacitors are specially manufactured for us for Revox and Studer tape deck motors - not generic white washing machine capacitors as some vendors try to palm off. The audio signal path capacitors are specially selected low noise, low leakage / high stability types and far better that the original electrolytics and tantalums. Suppression capacitors are all X2 270 VAC rated and UL certified - far superior to what was originally installed. The preset pots are cermet and fully enclosed guaranteeing decades of trouble free operation and adjustment.
Service sheet instructions, hints and suggestions for each board are made available to you which include many "monkey see monkey do" pictures detailing exactly which components go where, component replacement lists and a host of useful tips, checks, amendments and basic calibration.
What about the audio cards? See our other listings (coming soon or ask) as we have kits specifically for groups or individual cards. We do this because the B67 could be configured in different ways - mono / stereo, metering / no metering, sync, pilot tone etc.
NAGRAVOX specialises in Revox, Studer & Nagra tape recorder overhaul and upgrade kits and parts. Electronic parts, kits, mechanical components, tools / test gear.
NAGRAVOX KITS and SERVICES – Important Information.

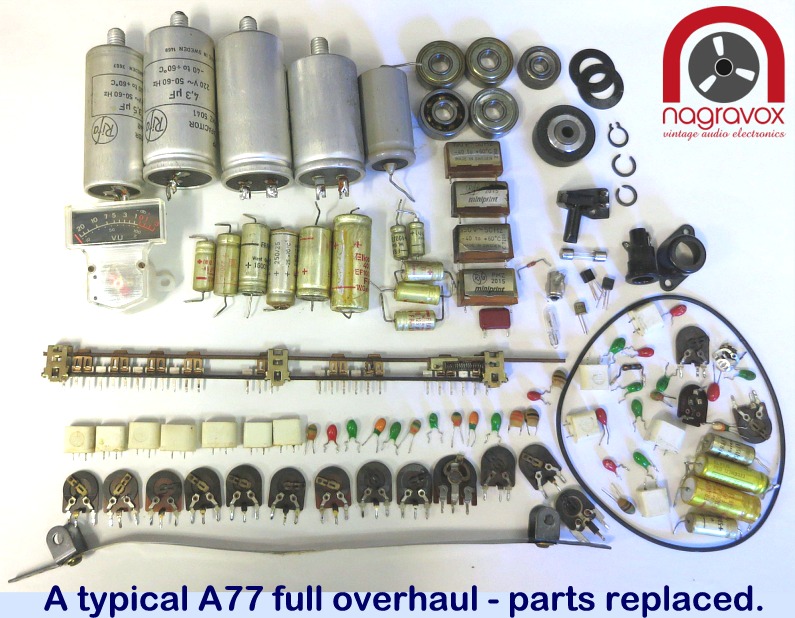

Some pictures to give you an idea of whats involved This is for an A77.
