5 pieces LF90ABPT
1.0A LDO VERY LOW DROP POSITIVE VOLTAGE REGULATORS WITH INHIBIT IC
1.0A LDO VERY LOW DROP POSITIVE VOLTAGE REGULATORS WITH INHIBIT IC
with 9.0V, Vcc 16V in PPAK package
- Manufacturer: STMicroelectronics
- Package: PPAK
- Product: OPERATIONAL AMPLIFIER
- PIN-compatible to many Quad Operatinal amplifiers from different manufactors like LM224, LM324, LM349, LM149, LM348, LM148, LF347 etc
The LF00 series are very Low Drop regulators
available in PENTAWATT, TO-220, TO-220FP,
DPAK and PPAK package and in a wide range of
output voltages.
The very Low Drop voltage (0.45V) and the very low quiescent current make them particularly suitable for Low Noise, Low Power applications and specially in battery powered systems.

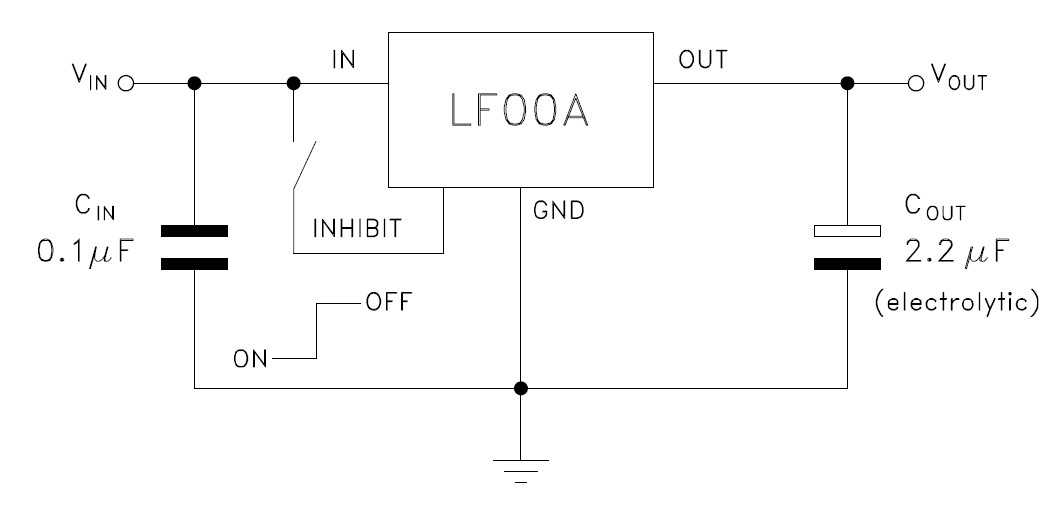

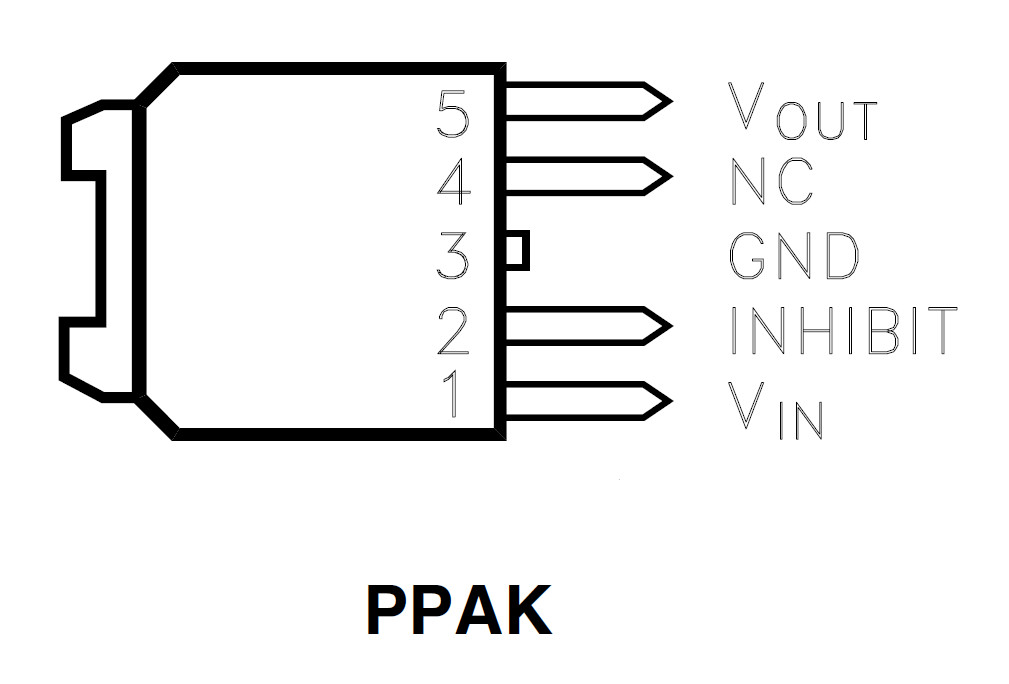

In the 5 pins configuration (PENTAWATT and PPAK) a Shutdown Logic Control function is available (pin 2, TTL compatible). This means that when the device is used as a local regulator, it is possible to put a part of the board in standby, decreasing the total power consumption. In the three terminal configuration the device has the same electrical performance, but is fixed in the ON state. It requires only a 2.2 μF capacitor for stability allowing space and cost saving.
The very Low Drop voltage (0.45V) and the very low quiescent current make them particularly suitable for Low Noise, Low Power applications and specially in battery powered systems.
In the 5 pins configuration (PENTAWATT and PPAK) a Shutdown Logic Control function is available (pin 2, TTL compatible). This means that when the device is used as a local regulator, it is possible to put a part of the board in standby, decreasing the total power consumption. In the three terminal configuration the device has the same electrical performance, but is fixed in the ON state. It requires only a 2.2 μF capacitor for stability allowing space and cost saving.

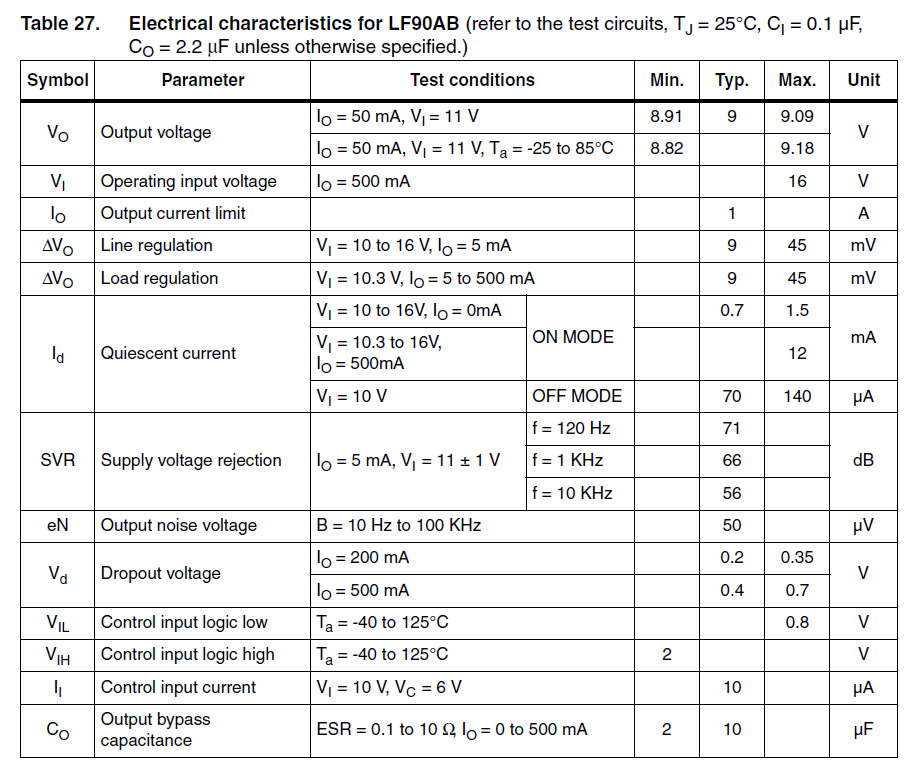

- Very low dropout voltage (0.45V)
- Very low quiescent current (TYP. 50 μA in OFF mode, 500 μA in ON mode)
- Output current up to 500 mA
- Logic-controlled electronic shutdown
- Output voltages of 1.5; 1.8; 2.5; 2.7; 3; 3.3; 3.5; 4; 5; 6; 8; 8.5; 9; 12V
- Internal current and thermal limit
- Only 2.2 μF for stability
- Available in ± 1% (AB) or ± 2% (C) selection at 25°C
- Supply voltage rejection: 80db (typ.)
- Temperature range: -40 to 125°C
NEW OLD STOCK (NOS)
NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED - NOT RE-MARKED - NOT FAKED EXCLUSIVELY
NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED - NOT RE-MARKED - NOT FAKED EXCLUSIVELY
The devices are from old stock (OEM industrial , mainly
from Germany), but they are NEW and UNUSED (NOS devices)
Taken out from the original packaging ( see photo).
What you see on the photo, is what you get .
Taken out from the original packaging ( see photo).
What you see on the photo, is what you get .
If you need a higher quantity, please ask
for a special offer or give us for the higher quantity your best offer.
