2 pieces L6221A
QUAD DARLINGTON SWITCH IC = UDN2540B
QUAD DARLINGTON SWITCH IC = UDN2540B
OUTPUT CURRENT UP TO 1.8 A | Vcc 50V | DIP16 package
- Manufacturer: STMicroelectronics

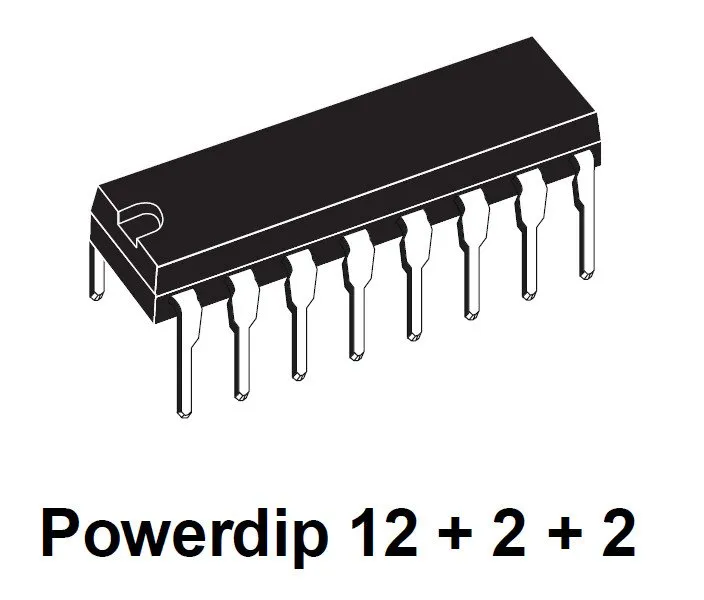

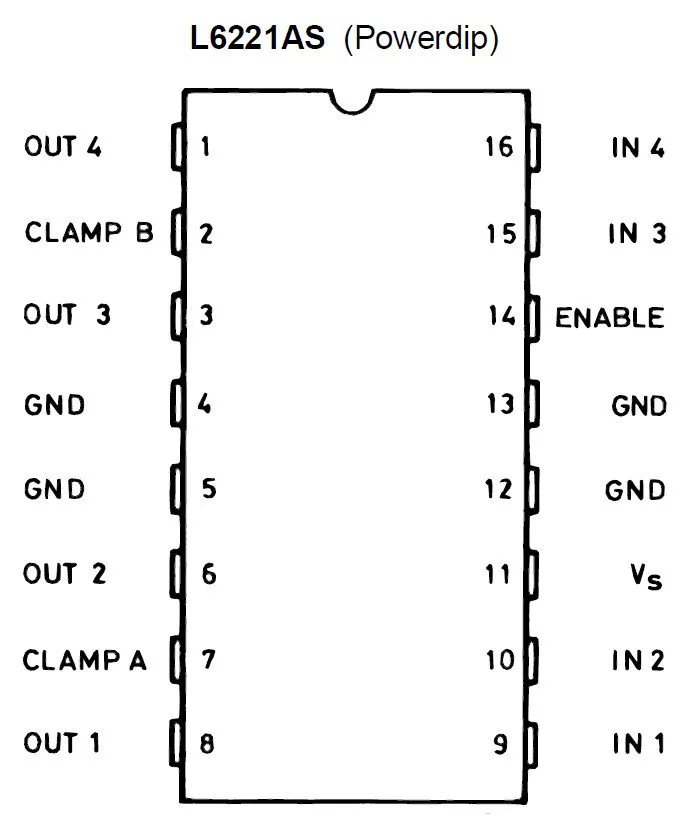

- Package: DIP16
- Product Family: QUAD DARLINGTON SWITCH IC
- OUTPUT VOLTAGE UP TO 50 V
- The L6221A is full compatible (REPLACEMENT) to UDN2540B (Allegro)
The L6221A monolithic quad darlington switch is designed
for high current, high voltage switching applications. Each of the four switches
is controlled by a logic input and all four are controlled by a common enable
input. All inputs are TTL-compatible for direct connection to logic circuits.

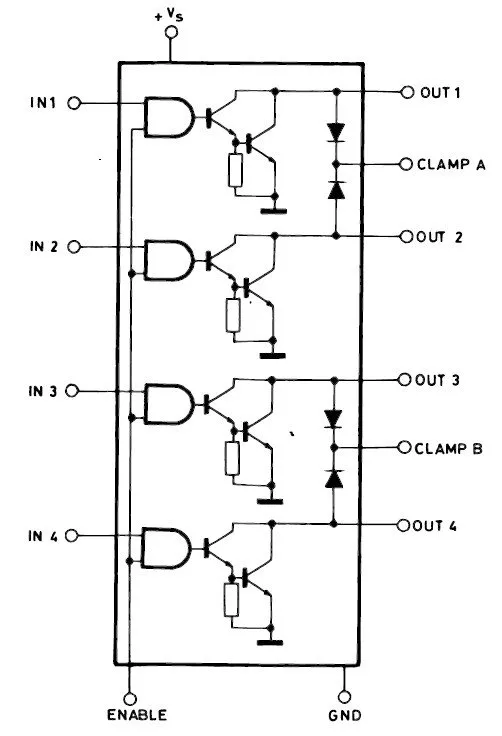

Each switch consists of an open-collector darlington transistor plus a fast
diode for switching applications with inductive device loads. The emitters of
the four switches are commoned. Any number of inputs and outputs of the same
device may be paralleled.
- FOUR NON INVERTING INPUTS WITH ENABLE
- OUTPUT VOLTAGE UP TO 50 V
- OUTPUT CURRENT UP TO 1.8 A
- VERY LOW SATURATION VOLTAGE
- TTL COMPATIBLE INPUTS INTEGRAL FAST RECIRCULATION DIODES
- INTEGRAL FAST RECIRCULATION DIODES
NEW OLD STOCK (NOS)
NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED - NOT RE-MARKED - NOT FAKED EXCLUSIVELY
NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED - NOT RE-MARKED - NOT FAKED EXCLUSIVELY
The devices are from old stock (OEM industrial , mainly
from Germany), but they are NEW and UNUSED (NOS devices)
Taken out from the original packaging ( see photo).
What you see on the photo, is what you get .
Taken out from the original packaging ( see photo).
What you see on the photo, is what you get .
If you need a higher quantity, please ask
for a special offer or give us for the higher quantity your best offer.
