MULTI–FUNCTION PERIPHERAL (MFP)
with 5MHz in Ceramic DIP48 package
- Manufacturer: STMicroelectronics

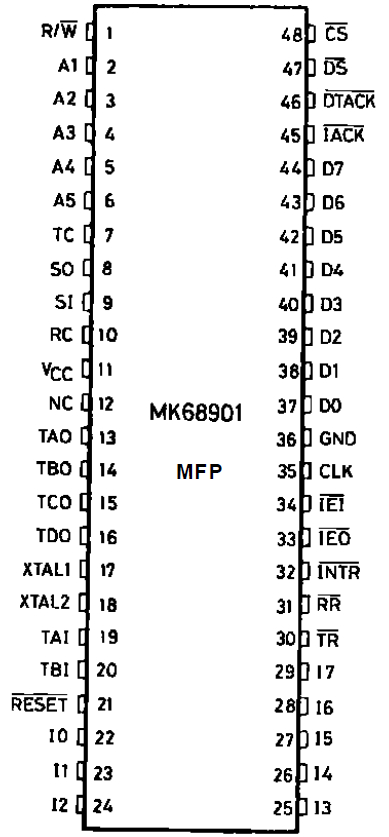

- Package: DIP48
- Product Family: 68000 Family
- Full compatible to MC68HC901 and many other producers (Hitachi,Toshiba etc.)
The MK68901 MFP (Multi-Function Peripheral) is a combination of many of the necessary peripheral functions in a microprocessor system.
Included are :
- Eight parallel I/O lines
- Interrrupt controller for 16 sources
- Four timers
- Single channel full duplex USART
The use of the MFP in a system can significantly reduce chip count, thereby reducing system cost. The MFP is completely 68000 bus compatible, and 24 directly addressable internal registers provide the necessary control and status interface to the programmer.
Included are :
- Eight parallel I/O lines
- Interrrupt controller for 16 sources
- Four timers
- Single channel full duplex USART
The use of the MFP in a system can significantly reduce chip count, thereby reducing system cost. The MFP is completely 68000 bus compatible, and 24 directly addressable internal registers provide the necessary control and status interface to the programmer.
-
8 INPUT/OUTPUT PINS
- Individually programmable direction
-Individual interrupt source capability - Programmable edge selection -
16 SOURCE INTERRUPT CONTROLLER
- 8 Internal sources
- 8 External sources
- Individual source enable
- Individual source masking
- Programmable interrupt service modes
- Polling
- Vector generation
- Optional In-service status
- Daisy chaining capability -
FOUR TIMERS WITH INDIVIDUALLY PROGRAMMABLE PRESCALING
- Two multimode timers
- Delay mode
- Pulse width measurement mode
- Event counter mode
- Two delay mode timers
- Independent clock input
- Time out output option -
SINGLE CHANNEL USART
- Full Duplex
- Asynchronous to 65 kbps
- Byte synchronous to 1 Mbps
- Internal/External baud rate generation
- DMA handshake signals
- Modem control
- Loop back mode - 68000 BUS COMPATIBLE 52 PIN PLCC
NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED
- NOT RE-MARKED - NOT FAKED EXCLUSIVELY NEW OLD STOCK (NOS)
The devices are from old stock (OEM industrial , mainly
from Germany), but they are NEW and UNUSED (NOS devices)

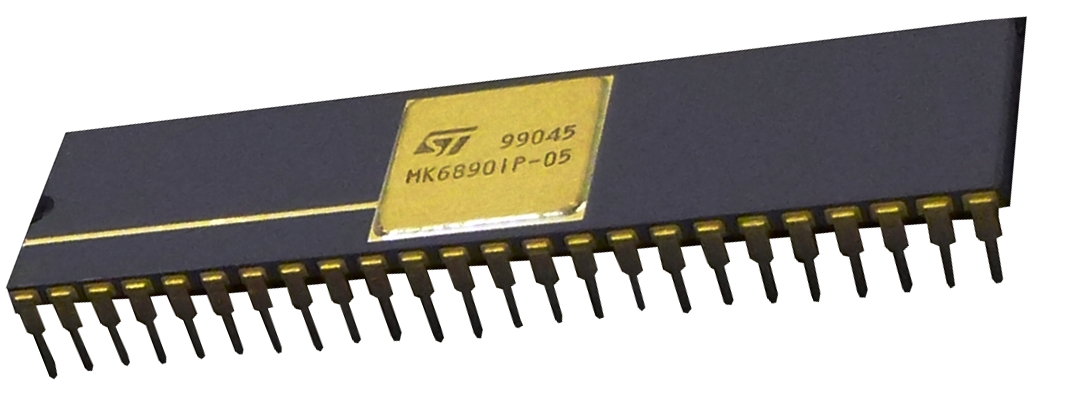

Taken out from the original packaging ( see photo).
