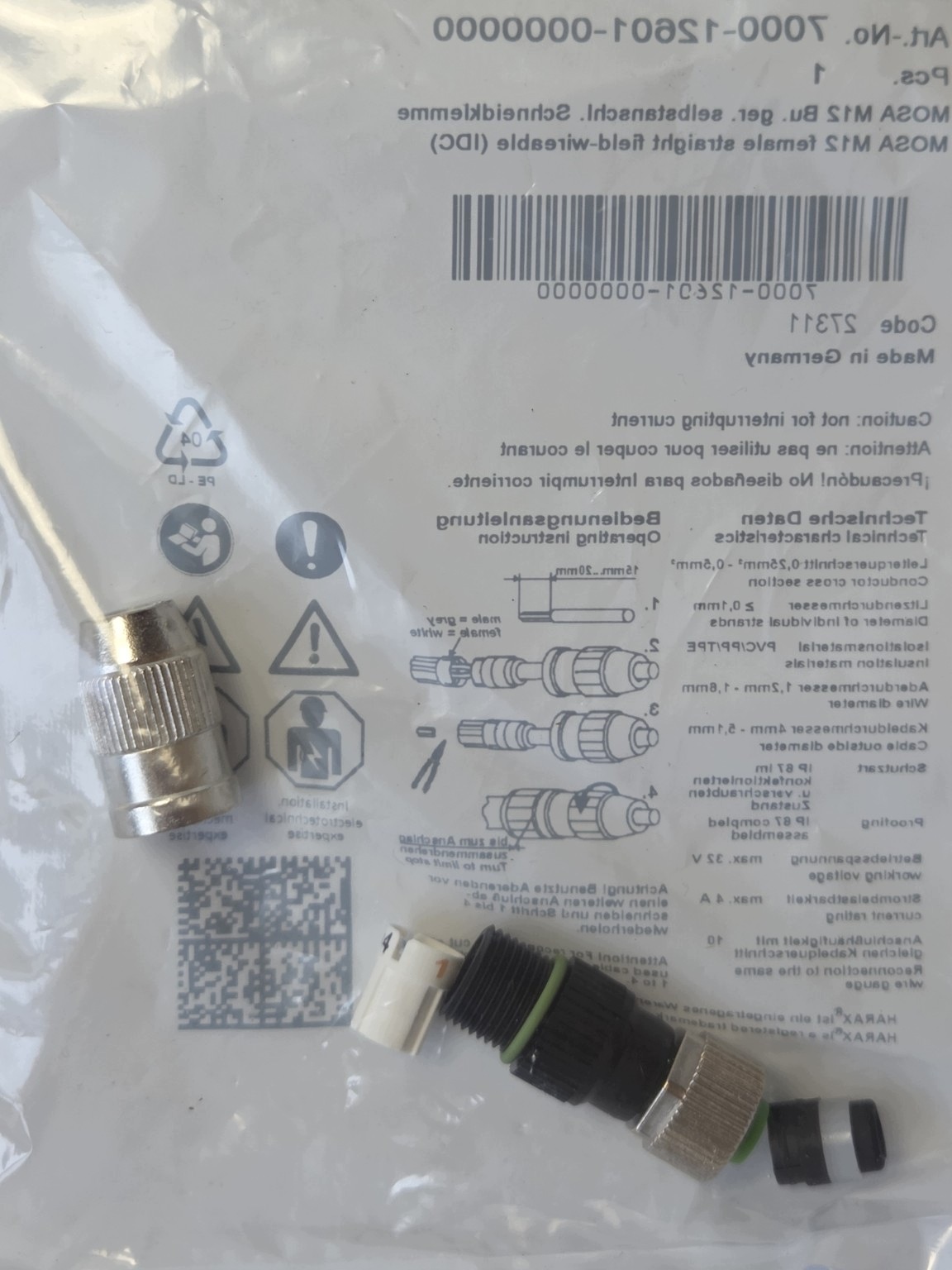

Murrelektronik 7000-12601-0000000 M12 Female 4-Pin IDC Connector

M12 female straight connector for self-assembly on a cable. A-coded, 4-pin IDC connection for compatible sensor, actuator, and industrial automation connections. One connector included; cable not included.

Features:

• M12 female connector, straight 0° design
• A-coded
• 4 contacts
• IDC knife terminals for cable mounting
• Suitable for cable conductors with cross-section of 0.25–0.5 mm²
• Suitable for cable outer diameter of 4–5.1 mm
• Core diameter including insulation: 1.2–1.6 mm
• Maximum operating voltage: 32 V AC / 32 V DC
• Maximum current per contact: 4 A
• IP67 protection when correctly connected and tightened
• Operating temperature range: −25 to +85°C
• Dimensions (H × W × D): 51 × 15 × 15 mm
• Offer includes 1 connector for self-assembly; cable not included
• Country of manufacture: Germany
• Series/designation: MOSA / MSBL0-AC-T-IDC
• Packaging condition: original

Technical Specifications:

• Brand/manufacturer: Murrelektronik GmbH
• Manufacturer part number (MPN): 7000-12601-0000000
• Product symbol: MSBL0-AC-T-IDC
• EAN: 4048879201759
• Connector type: M12 female, straight
• Number of contacts: 4
• Connection method: IDC
• Cable conductor cross-section: 0.25–0.5 mm²
• Cable outer diameter: 4–5.1 mm
• Insulated core diameter: 1.2–1.6 mm
• Maximum operating voltage: 32 V AC / 32 V DC
• Maximum current per contact: 4 A
• Protection rating: IP67 when correctly connected and tightened
• Temperature range: −25 to +85°C
• Dimensions: 51 × 15 × 15 mm
• Condition: New

Key Benefits:

• Suitable for preparing compatible sensor, actuator, and industrial automation cable connections.
• IDC connection allows mounting directly onto a compatible cable.

Important Notes:

• VAT invoices available upon request.
• Returns accepted within 30 days; buyer pays return shipping.
