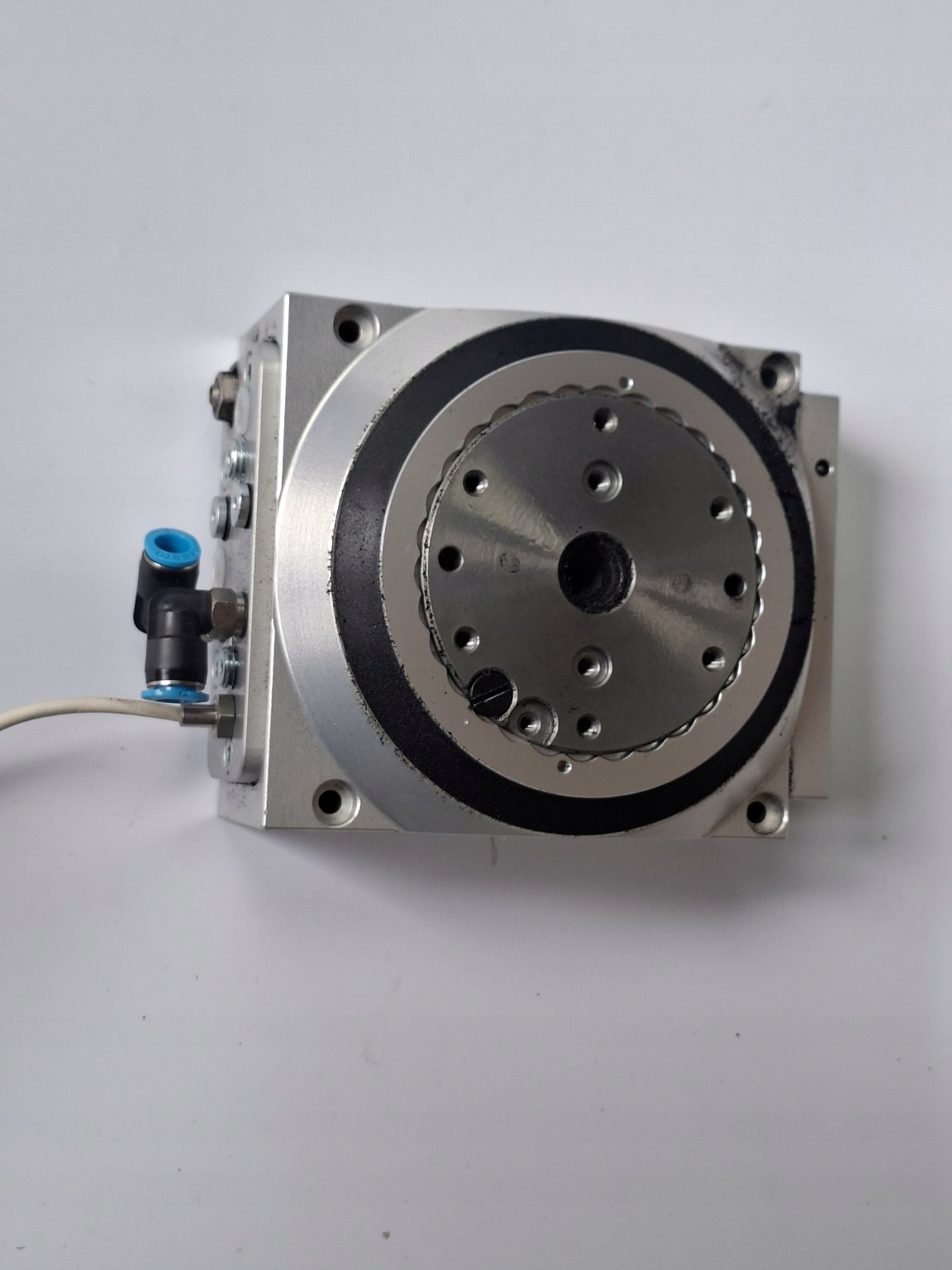

Festo DHTG-65-2-A 548076 Pneumatic Indexing Rotary Table

Used Festo DHTG-65-2-A pneumatic indexing rotary table for indexing and positioning components in industrial assembly stations. Pneumatic table rotation between fixed positions, with 2-position indexing configuration. Configuration should be checked before commissioning.

Features:

• Pneumatic, double-acting drive
• 2 indexing positions
• Suitable for integration with transport and part-handling systems
• Suitable for inductive sensors for position detection
• Any mounting position

Technical Specifications:

• Brand: Festo
• Model: DHTG-65-2-A
• Manufacturer part number (MPN): 548076
• Size: 65
• Maximum operating pressure: 8 bar
• Pneumatic connection: M5 female thread
• Operating medium: Compressed air according to ISO 8573-1:2010 [7:4:4]
• Rotational angle repeatability: ≤ 0.03°
• Theoretical torque at 6 bar: 2.1 Nm
• Maximum static axial force: 1000 N
• Maximum static radial force: 2000 N
• Damping: Adjustable hard-characteristic damper
• Ambient temperature: +5 to +60°C
• Catalog device weight: 1.9 kg
• Housing material: Aluminum alloy
• Seal materials: NBR, TPE-U (PU)
• EAN/GTIN: 4052568189648

Key Benefits:

• Supports indexing and positioning of components in industrial assembly stations.
• Provides pneumatic rotation between fixed positions.

Important Notes:

• VAT invoices available upon request.
• Returns accepted within 30 days; buyer pays return shipping.
