HEIDENHAIN TS 260 738082-02 3D CNC Probe HTL 10-30V

HEIDENHAIN TS 260 contact 3D measuring probe for CNC machine tools. Used for measuring workpieces, setting datum points, and checking workpiece position. Wired signal transmission; requires a compatible HTL connection and appropriate control configuration.

Features:

• Brand: Heidenhain
• Manufacturer ID: 738082-02
• Model: TS 260
• Mounting variant: V02 – threaded mounting set
• Supply voltage: 10–30 V DC
• Output signal: Rectangular, HTL level
• Signal transmission: Wired
• Electrical connector: M12, male, 8-pin
• Connector direction: Axial
• Probe repeatability: 2σ ≤ 1 µm
• Probe accuracy: ±5 µm when using standard T404 stylus
• Protection rating: IP68
• Stylus thread: M3
• Housing: Stainless steel 1.4104
• Axial deflection force: 8.0 N
• Indication: LEDs
• Suitable applications stated in source: CNC machine tools, machines with manual tool changing, lathes, and grinders
• Requires a compatible HTL connection and appropriate control configuration

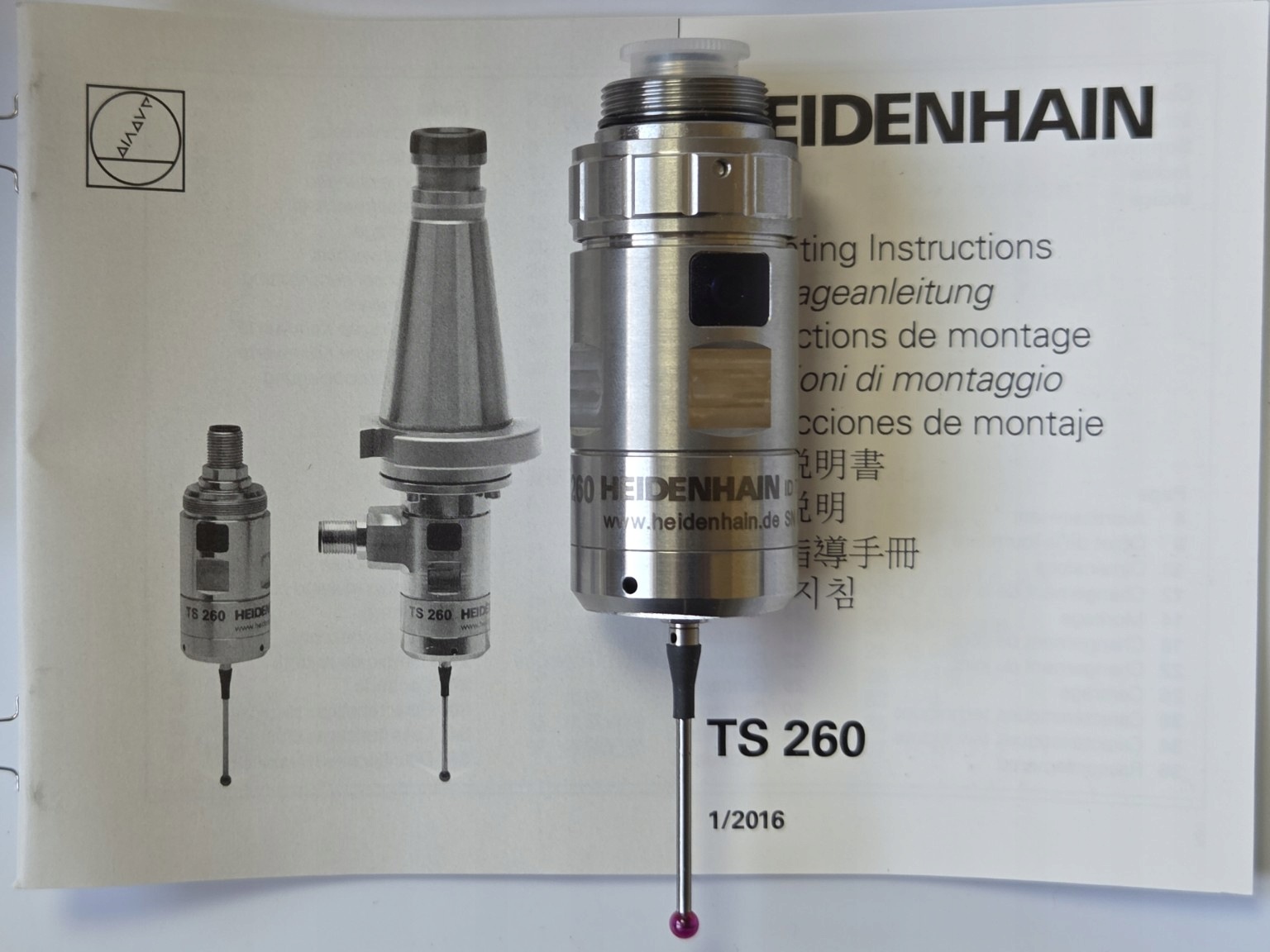

• Offer includes one probe with the mounted stylus, mounting key, and manual shown in the photos
• Version without connection cable and without tapered tool holder

Technical Specifications:

• Variant marking: TS 260 V02 3YS08 FA 0,00 .. TK06 0008 10-30 HTL
• Country of manufacture: Germany
• Condition: New
• Packaging condition: Original
