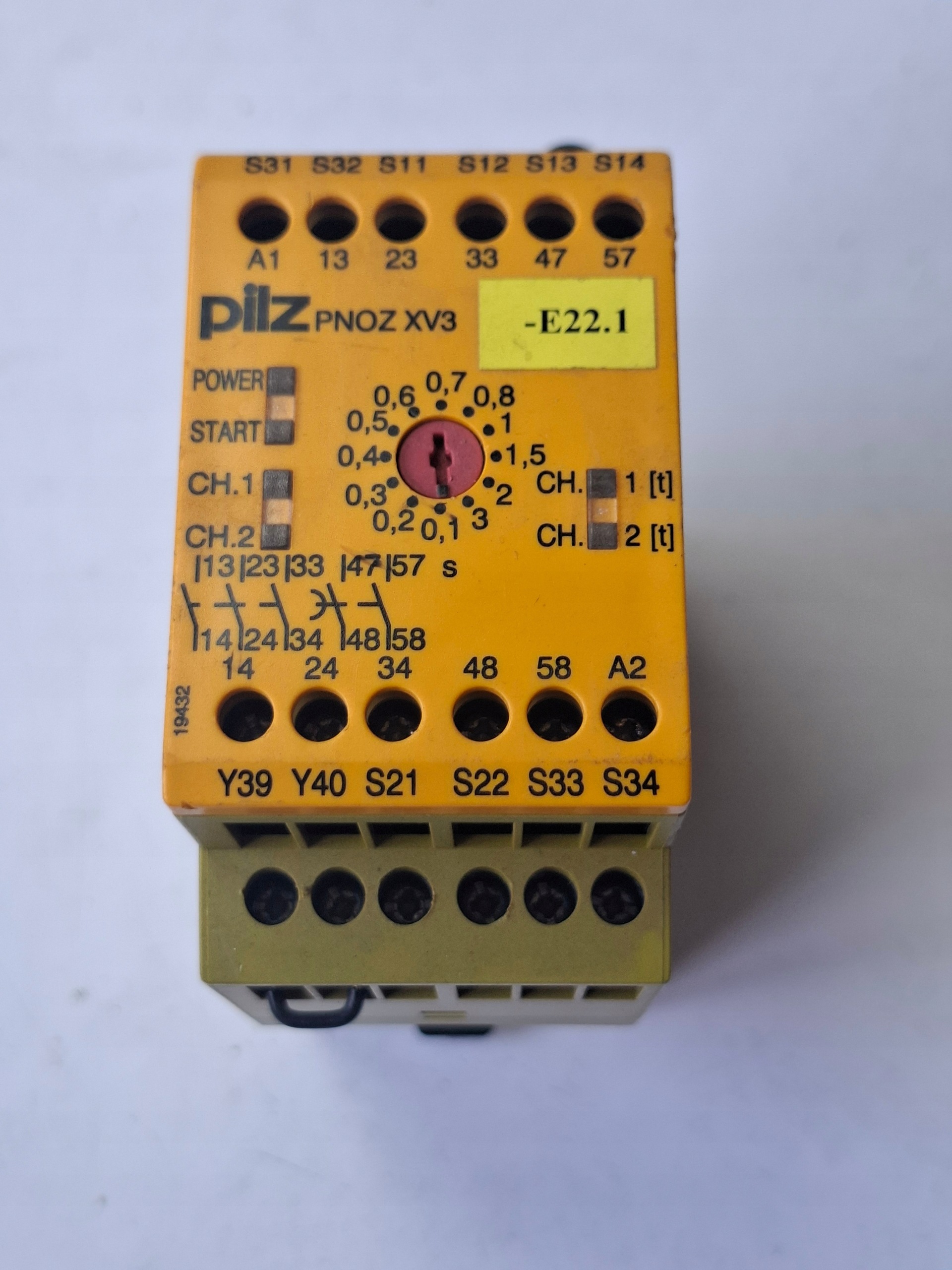

Pilz PNOZ XV3 Safety Relay 24VDC 774542 3s Delay

Used Pilz PNOZ XV3 safety relay for industrial automation systems. Designed for monitoring emergency-stop switches, protective gates, and safety door sensors. Features adjustable time delay and integrated LED status indicators.

Features:

• Used condition
• Manufacturer: Pilz
• Series: PNOZ X / PNOZ XV3
• Model: PNOZ XV3 3/24VDC 3n/o 2n/o t
• Supply voltage: 24 V DC
• Power consumption: 4.5 W
• 3 instantaneous normally open (N/O) contacts
• 2 delayed normally open (N/O t-d) contacts
• Adjustable delay range: 0.1–3.0 seconds with 12 time settings
• Supports one- or two-channel wiring, with or without inter-channel short-circuit detection
• LED indicators: POWER, START, CH.1, CH.2
• Integrated screw terminals
• DIN rail mounting, TH35 rail
• Customs tariff code: 90292038

Technical Specifications:

• Maximum contact current: 8 A (AC1 / DC1), 5 A (AC15), 7 A (DC13)
• Module width: 45.0 mm
• Time delay adjustment via front-mounted potentiometer

Key Benefits:

• LED indicators support quick diagnosis of the device operating status.

Important Notes:
