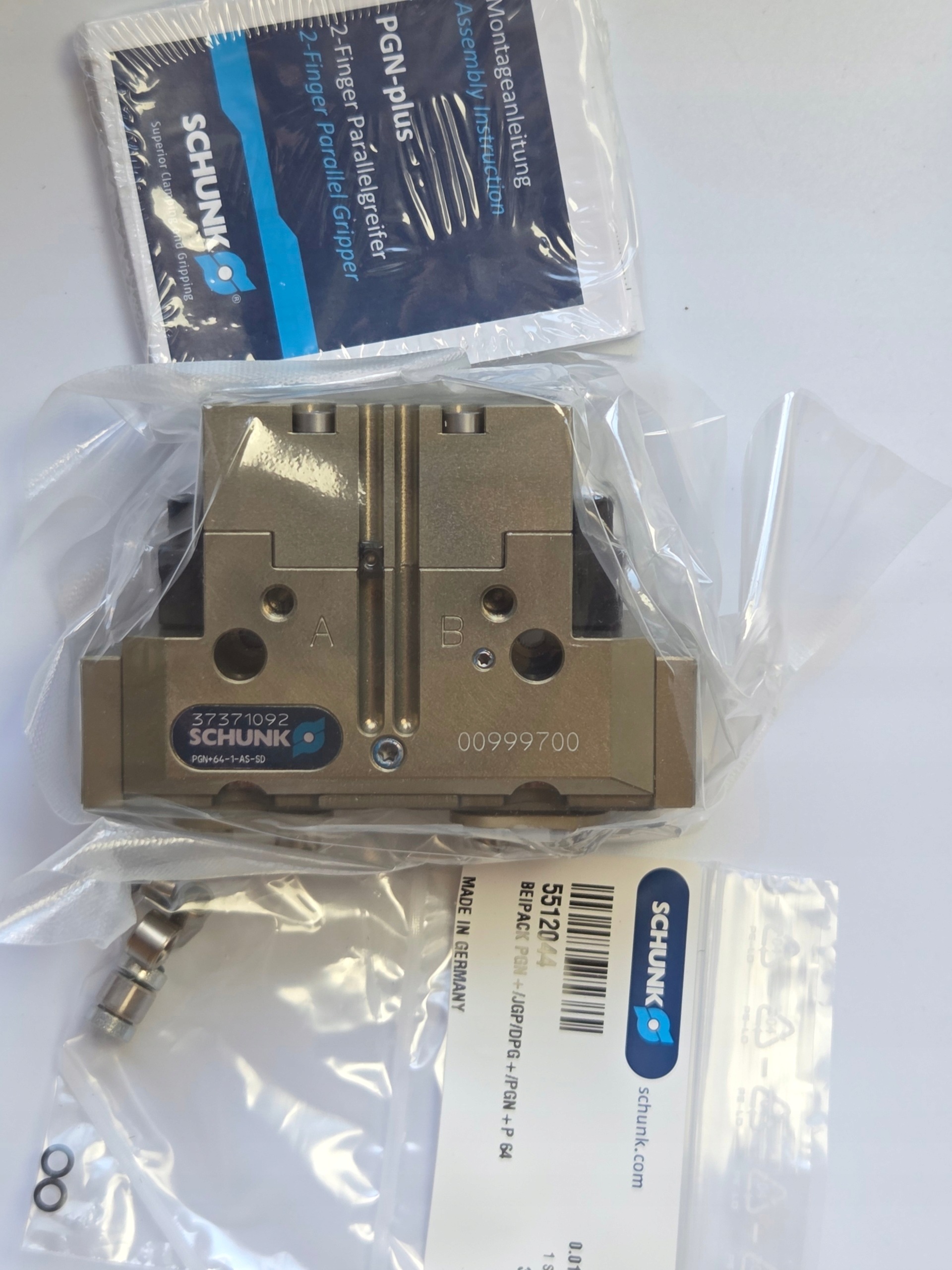

SCHUNK PGN-plus 64-1-AS-SD 37371092 Pneumatic Parallel Gripper

The SCHUNK PGN-plus 64-1-AS-SD is a two-finger pneumatic parallel gripper for automated handling and assembly. This size 64 model combines a 6 mm stroke per jaw with 340 N closing force. The AS version features spring-assisted gripping force maintenance, while the SD dustproof design provides IP64 protection for demanding industrial applications.

Features:

• Brand: SCHUNK
• Model: PGN-plus 64-1-AS-SD
• Manufacturer Part Number: 37371092
• Gripper Type: Pneumatic, two-finger parallel gripper
• Stroke: 6 mm per jaw
• Closing Force: 340 N; minimum spring force 90 N

Technical Specifications:

• Operating Parameters: Pressure 4-6.5 bar; nominal pressure 6 bar; repeat accuracy 0.01 mm; ambient temperature +5 to +90°C
• Dimensions and Weight: 88 x 36 x 62.5 mm; net weight 0.44 kg; recommended workpiece weight 1.25 kg

Key Benefits:

• Gripping Force Maintenance: AS spring assistance supports external gripping applications.
• Dust Protection: SD dustproof construction with IP64 protection helps protect the gripper in industrial environments.

Important Notes:

• VAT invoices available upon request.
• Returns accepted within 30 days; buyer pays return shipping.
