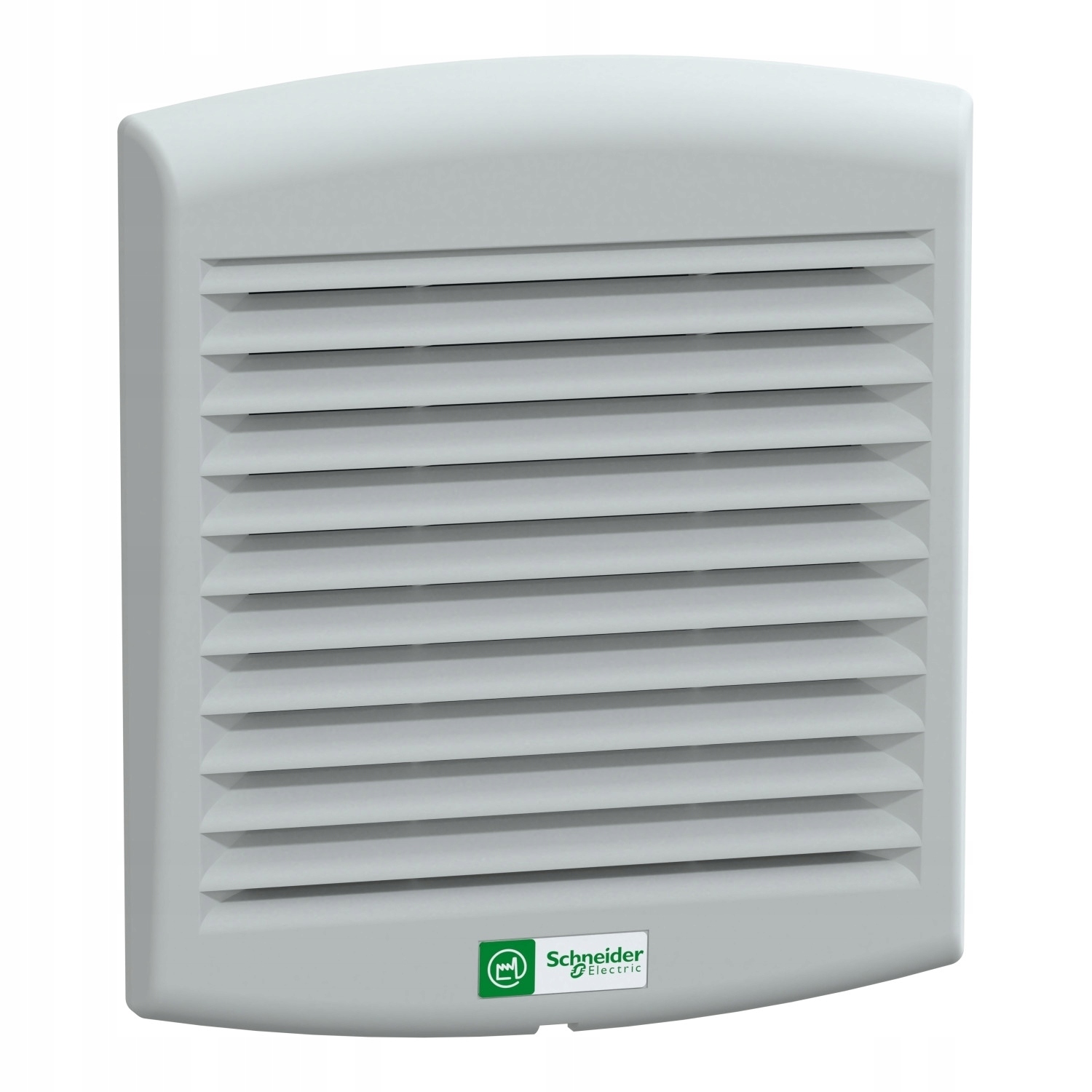

Schneider Electric ClimaSys CV Filter Fan – NSYCVF85M24DPF, 24V DC, 85 m³/h, IP54

The Schneider Electric ClimaSys CV NSYCVF85M24DPF is an industrial forced-ventilation filter fan unit designed for electrical switchboards, control cabinets, and automation enclosures. Operating on 24 V DC with a free flow rate of 85 m³/h, it effectively dissipates heat buildup while protecting sensitive internal electronics from airborne dust, debris, and splashing water with an IP54 protection rating.

Features:

• Manufacturer: Schneider Electric
• Range / Series: ClimaSys CV (Spacial)
• Model / Part Number: NSYCVF85M24DPF
• Input Voltage: 24 V DC
• Free Flow Airflow: 85 m³/h (approx. 50 CFM)
• Airflow with Filter: Approx. 61 m³/h
• Degree of Protection: IP54 (with standard G2/G3 synthetic filter mat)
• Housing Color: Light Grey (RAL 7035)
• Cut-Out Dimensions: 125 x 125 mm
• Country of Origin: France

Technical Specifications:

• Power Consumption: Approx. 5 W / 0.21 A
• Noise Level: Approx. 46 – 49 dB(A)
• Filter Mat Material: Synthetic fiber (flame-retardant according to UL 94 V-0)
• Grille & Housing Material: Injected thermoplastic (ABS/PC blend, self-extinguishing)
• Mounting System: Toolless, fast clip-on installation for sheet metal thickness up to 2.5 mm
• Operating Temperature Range: -20°C to +70°C
• Certifications: CE, UL, RoHS

Key Benefits:

• Efficient Thermal Management: Eliminates hotspot accumulation in electrical panels, extending the operational life of PLCs and drives.
• Tool-Free Clip-In Assembly: Quick installation via elastic snap-in side clips with no screws required on standard cabinet cutouts.
• Easy Maintenance: Front grille hinges open effortlessly, allowing quick filter mat replacement or cleaning without dismounting the unit.
• Reliable IP54 Protection: High-efficiency synthetic filter ensures that dust ingress and water splashing do not compromise cabinet integrity.
