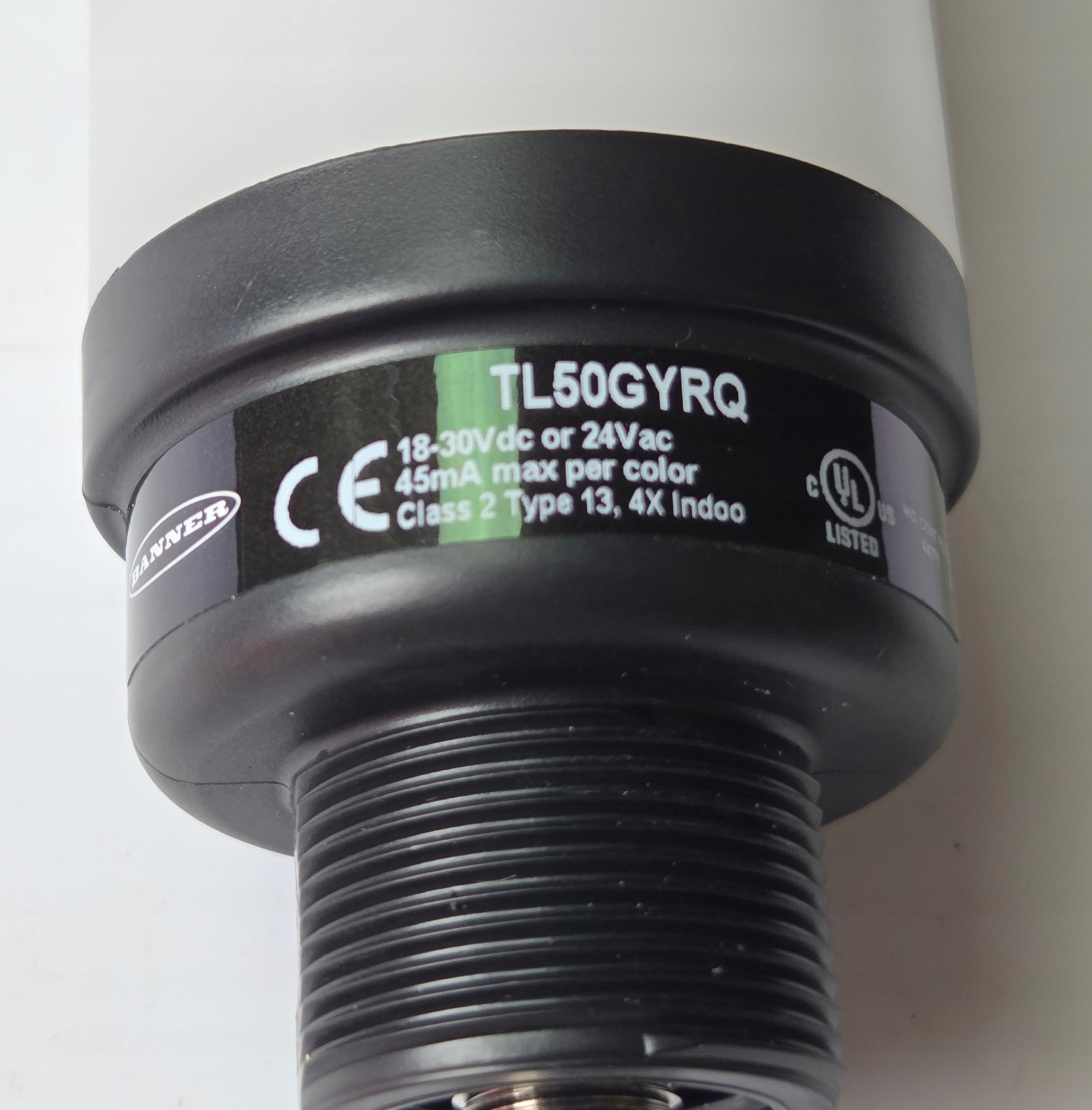

Banner TL50GYRQ EZ-LIGHT LED Tower Light – 24V DC, M12 QD, 3-Color (Green/Yellow/Red)

The Banner Engineering TL50GYRQ (EZ-LIGHT TL50 Series) is a pre-assembled 3-segment multi-color LED tower light designed for clear, highly visible equipment status indication and fault signaling in industrial environments. Featuring vibrant Green, Yellow, and Red illumination in an extremely rugged IP67-rated housing, this signal tower utilizes an integral M12 quick-disconnect connector for fast wiring and reliable operation.

Features:

• Manufacturer: Banner Engineering
• Series: EZ-LIGHT TL50 Tower Lights
• Model / Order Code: TL50GYRQ (Part No. 79450)
• Light Colors: 3 Colors – Green / Yellow / Red (GYR)
• Operating Voltage: 18 to 30 V DC (24 V DC nominal)
• Connection Type: Integral 5-pin M12 Euro-style Quick Disconnect (QD)
• Housing Diameter: 50 mm (compact tower profile)
• Degree of Protection: IP67 (dust-tight and water-resistant)
• Input Type: Bivalent PNP / NPN selectable control inputs
• Country of Origin: USA

Technical Specifications:

• Current Consumption: Max. 45 mA per active color segment
• Light Source: Long-life, high-luminance solid-state LEDs
• Housing Material: Rugged black polycarbonate base with UV-stabilized diffuse lenses
• Response Time: 10 ms max (indicator on / off)
• Mounting Interface: Base thread M30 x 1.5 (compatible with standard industrial brackets and standoffs)
• Operating Temperature Range: -40°C to +50°C (-40°F to +122°F)
• Certifications: CE, UL Listed, RoHS compliant

Key Benefits:

• 360° Uniform Illumination: Large diffuse light segments provide distinct, glare-free visibility from long distances and any angle.
• Rugged IP67 Protection: Fully sealed against heavy washdowns, oil mist, and dust, ideal for CNC machinery, packaging lines, and assembly cells.
• Quick M12 Connection: Pre-wired integral M12 connector allows instant plug-and-play installation without disassembling terminal blocks.
• Maintenance-Free Solid State: Eliminates incandescent bulb burnouts, drastically lowering ongoing maintenance costs.
