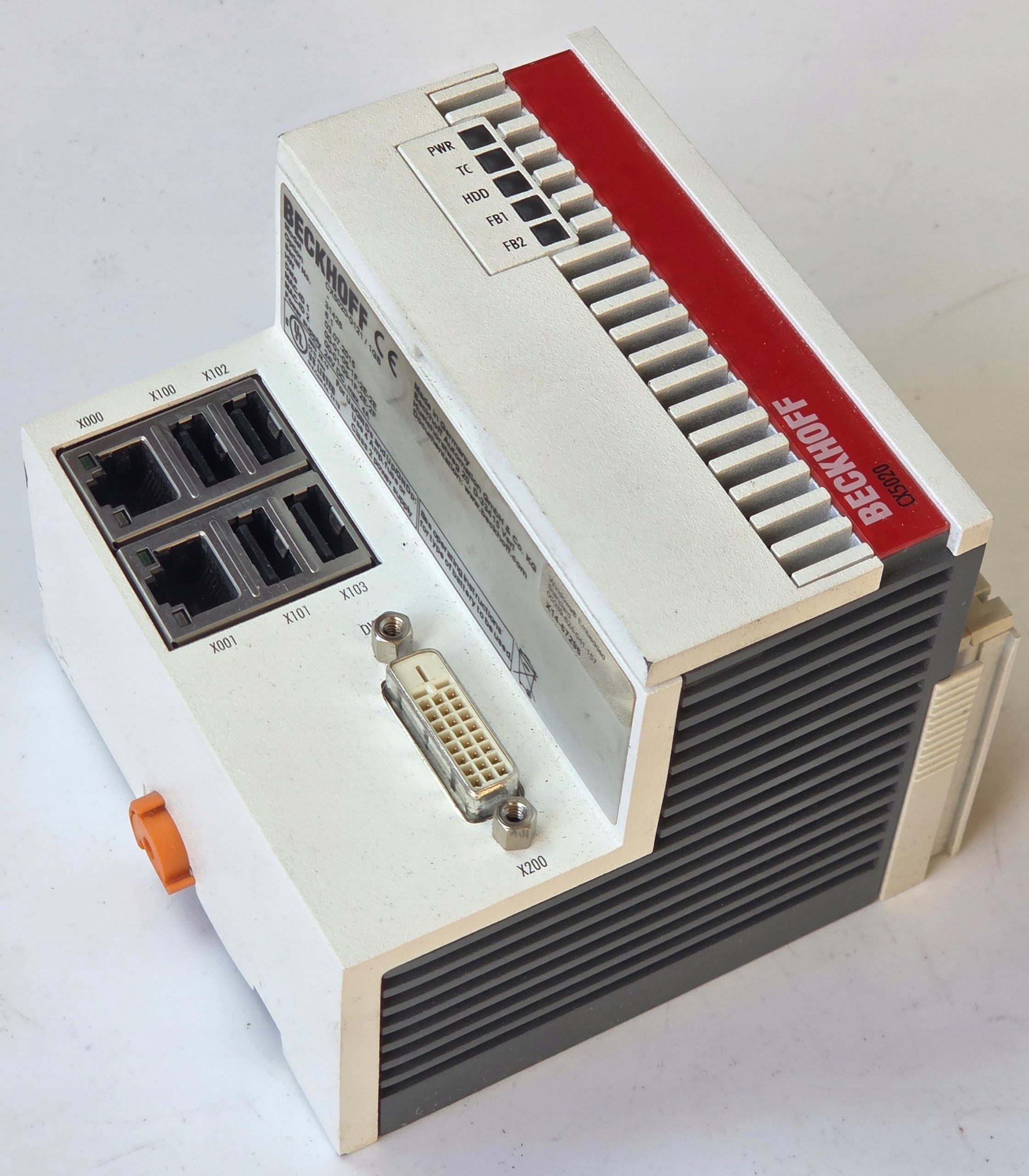

Beckhoff CX5020-0121 Embedded PC Controller – Intel Atom 1.6 GHz, 1 GB RAM, DVI-I

The Beckhoff CX5020-0121 is a compact, DIN rail-mountable industrial Embedded PC and PLC controller powered by an energy-efficient Intel Atom Z530 processor (1.6 GHz) and equipped with 1 GB DDR2 RAM. Designed for direct connection to Beckhoff Bus Terminals (K-bus) or EtherCAT Terminals (E-bus), this fanless industrial controller delivers high computing performance and deterministic real-time control for demanding automation, motion control, and visualization tasks.

Features:

• Manufacturer: Beckhoff Automation
• Model / Order Code: CX5020-0121 (CX5020 Series)
• Processor: Intel Atom Z530, 1.6 GHz clock frequency
• Main Memory: 1 GB DDR2 RAM (internal, not expandable)
• Graphics Output: DVI-I interface (supports digital DVI & analog VGA via adapter)
• Ethernet Interfaces: 2x RJ45 10/100/1000 Mbit/s (Gigabit Ethernet, independent ports)
• USB Ports: 4x USB 2.0 (high-speed interfaces)
• Storage Media: Compact Flash card slot (CF card accessible behind front flap)
• I/O Bus Connection: Auto-sensing bus interface for EtherCAT Terminals (E-bus) or standard Bus Terminals (K-bus)
• Country of Origin: Germany

Technical Specifications:

• Power Supply: 24 V DC (-15% / +20%) via power power terminal block
• Cooling: Fanless, passive convection cooling (no moving parts)
• Real-Time Clock: Internal battery-buffered clock for time and date (battery replaceable)
• Diagnostics / Display: LED indicators for Power, TwinCAT Status (TC), Flash Access, and Ethernet activity
• Operating Temperature Range: -25°C to +60°C
• Degree of Protection: IP20
• Mounting: Standard 35 mm DIN rail (EN 60715)
• Dimensions (W x H x D): Approx. 100 mm x 106 mm x 92 mm

Key Benefits:

• Fanless Solid-State Design: No rotating fans or hard drives ensures maximum operational reliability and resistance to industrial vibration.
• Unified I/O Direct Linking: Automatic recognition and seamless control of both EtherCAT high-speed terminals and classic K-bus I/O modules.
• Comprehensive Connectivity: Dual Gigabit Ethernet ports allow separate control-network and company-network topologies.
• High Processing Power: Intel Atom architecture handles TwinCAT PLC, NC motion control, and HMI visualization on a single embedded unit.

Important Notes:

• VAT invoices available upon request.
• Fast, professional worldwide shipping with tracking and secure antistatic packaging.
• Returns accepted within 30 days; buyer pays return shipping.
