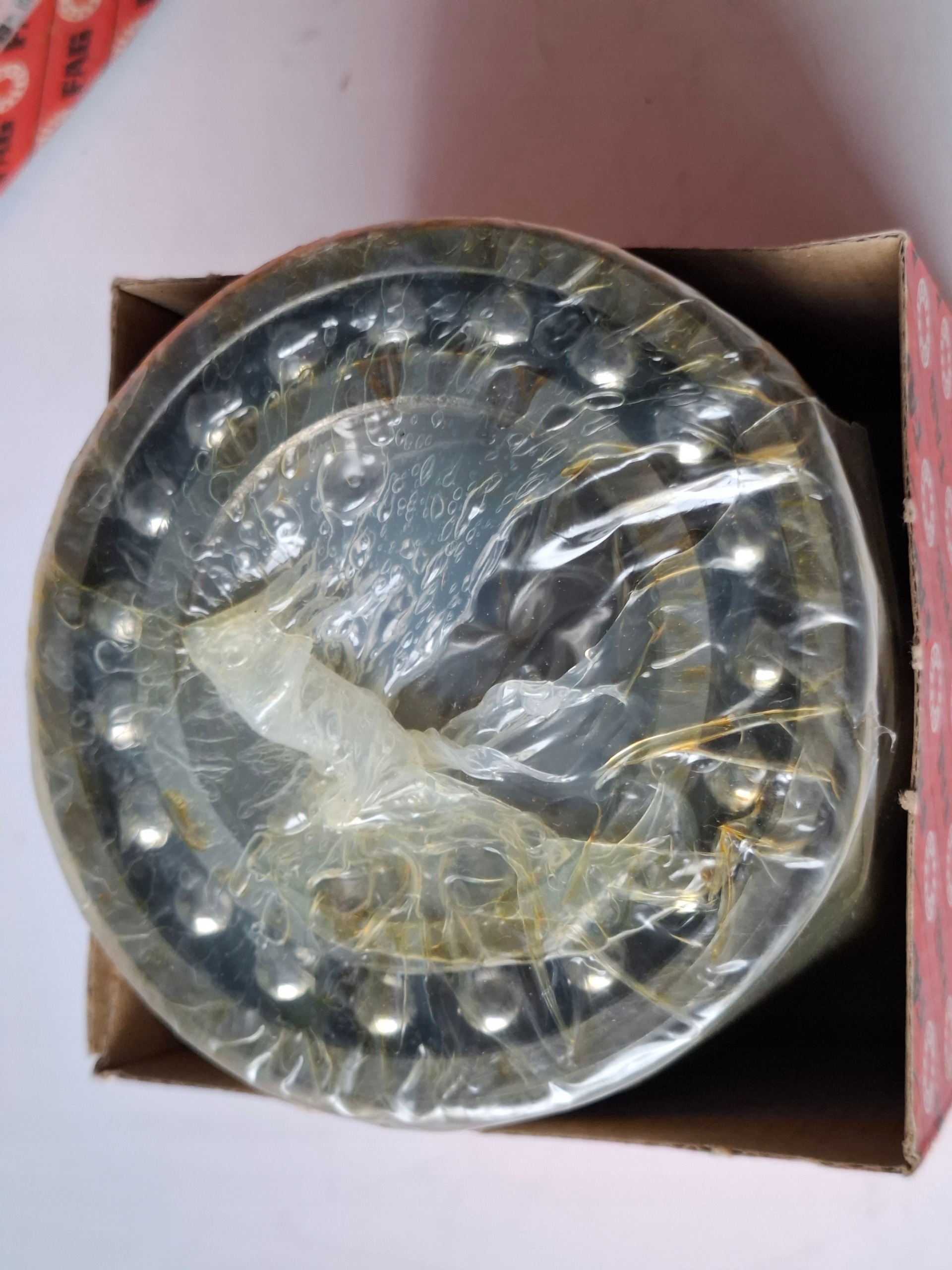

FAG 1211-TV-C3 Self-Aligning Double-Row Ball Bearing – 55x100x21 mm, C3 Clearance

The FAG 1211-TV-C3 (Schaeffler Group) is a premium double-row self-aligning ball bearing featuring a cylindrical bore, solid glass-fibre reinforced polyamide cage (TV), and increased internal radial clearance (C3). Designed with a spherical outer ring raceway, this bearing effortlessly accommodates angular misalignments, shaft deflections, and housing distortions without increasing friction or stress.

Features:

• Brand / Manufacturer: FAG (Schaeffler Group)
• Model / Designation: 1211-TV-C3 (1211-TVH-C3 / 1211 TV C3)
• Bearing Type: Self-aligning double-row ball bearing
• Bore Diameter (Inner d): 55 mm
• Outer Diameter (D): 100 mm
• Width (B): 21 mm
• Internal Radial Clearance: C3 (greater than normal internal clearance)
• Cage Type: TV / TVH (Glass fibre reinforced polyamide PA66 cage, ball-guided)
• Bore Type: Cylindrical (straight 1:1 bore)
• Design: Open type (unsealed)

Technical Specifications:

• Dynamic Load Rating (Cr): Approx. 26.5 kN – 27 kN
• Static Load Rating (C0r): Approx. 9.8 kN – 10.2 kN
• Limiting Speed: Up to 8,000 RPM
• Operating Temperature Range: -30°C to +120°C (continuous)
• Material: High-grade standard bearing steel (100Cr6)
• Mass / Weight: Approx. 0.69 kg

Key Benefits:

• Self-Aligning Capability: Accommodates static and dynamic angular misalignment caused by shaft deflection or mounting errors.
• Lightweight Polyamide Cage: The TV cage provides smooth rotation, reduced running noise, and excellent damping against vibration.
• Low Friction Operation: Generates minimal friction heat, enabling high-speed performance and extended service life.
• C3 Radial Clearance: Ideal for applications with high operating temperatures or tight press fits on shafts and housings.

Important Notes:

• VAT invoices available upon request.
• Fast and secure worldwide shipping with tracking and protective packaging.
• Returns accepted within 30 days; buyer pays return shipping.
