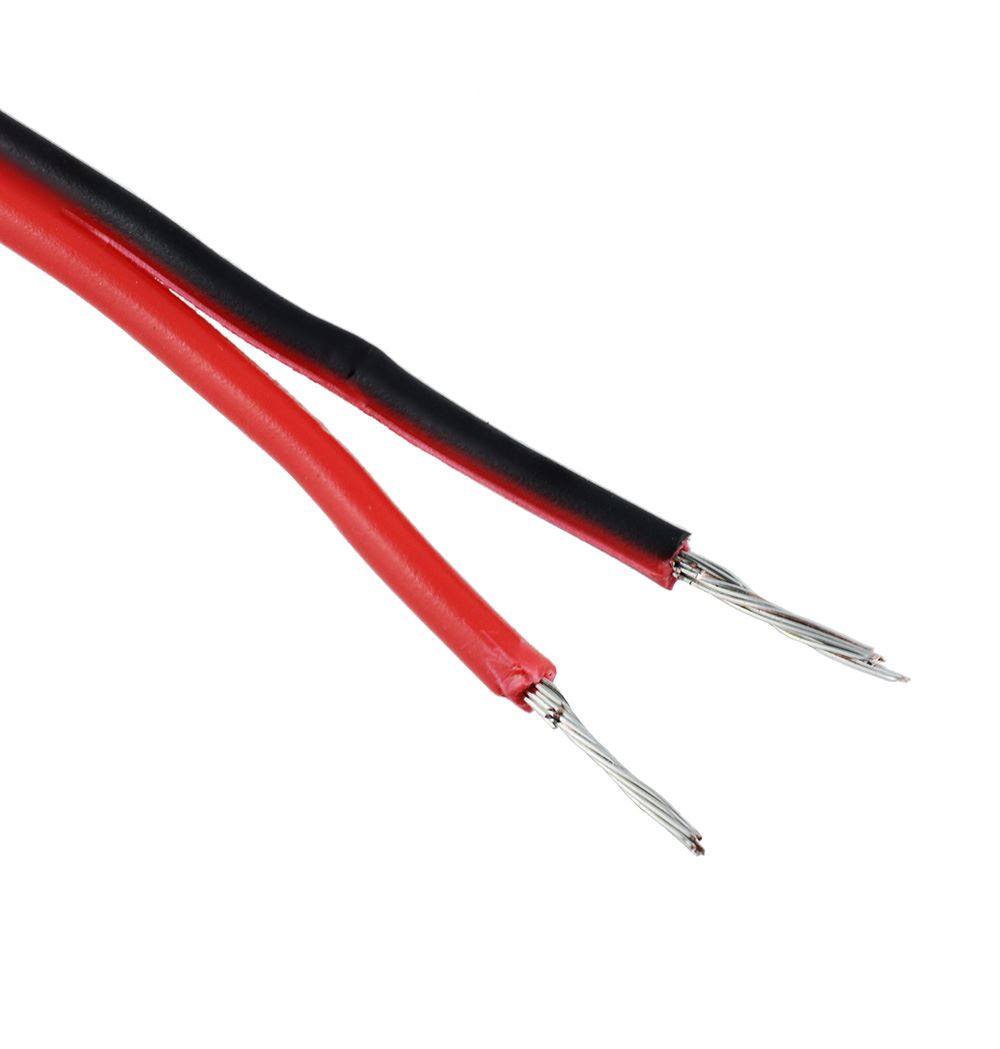

Red/Black 2-Pin 26AWG Copper Stranded Wire Cable 7/0.16mm LED Strips Lights

Red/Black 2-Pin 26AWG Copper Stranded Wire Cable 7/0.16mm LED Strips Lights

£
3.19 - 22.29

Ask a question

2-pin multi stranded copper wire with PVC insulation suitable for a wide range of applications including automotive, lighting, electronic applications. The PVC insulation provides excellent resistance to oil, petrol, diesel and high temperatures.

  • Wide temperature range
  • Tinned copper conductor
  • Rated voltage: 300V
  • 7/0.16mm copper stranding

    • Technical Information

    Size 26AWG
    Conductor Material Copper
    Conductor Stranding 7/0.16mm
    Pitch 1.5mm
    Insulator Thickness 0.41mm
    Overall Diameter 1.30 x 2.80mm
    Nominal Voltage 300V
    Test Voltage 1500V
    Temperature Range -30°C to +80°C
