Description:

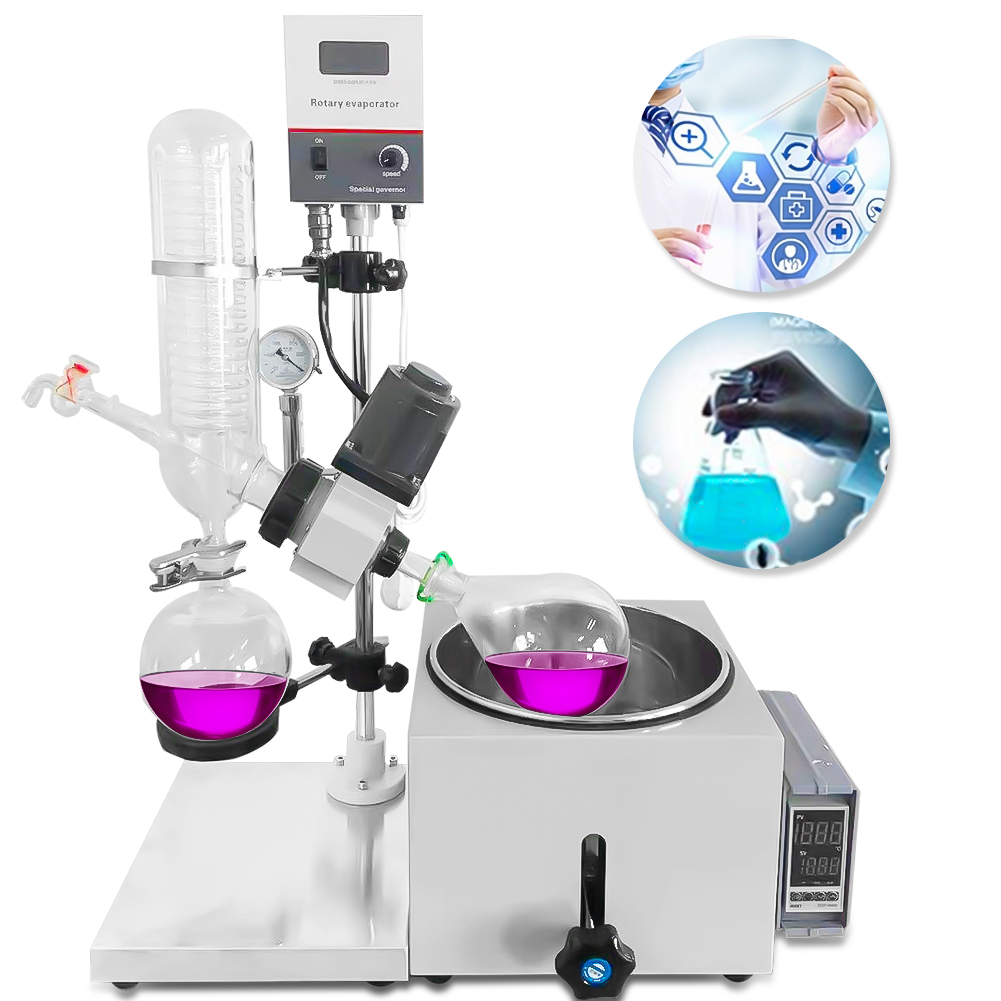

This rotary evaporator is mainly used for the concentration, crystallization, drying, separation and solvent recovery of the pharmaceutical, chemical and biological pharmaceutical industries. Apply premium stainless steel, imported electronic devices and high temperature resistant glass, durable and safe on use. It can recover solvents efficiently and fast.
Application:
Perfect for the concentration, crystallization, drying, separation and solvent recovery of the pharmaceutical, chemical and biological pharmaceutical industries.
Features:

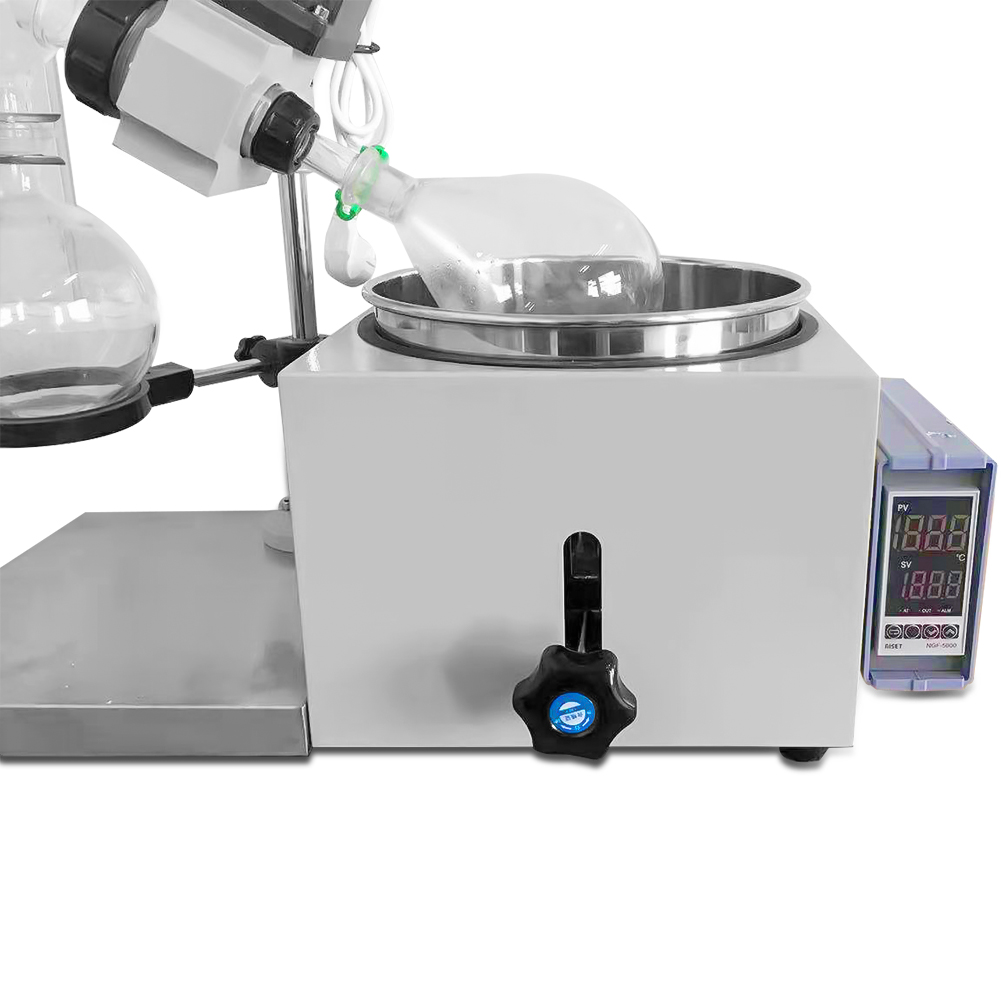

1. Superb Water Bath - High quality material made water bath, manual to lift it up and down on use, range: 0-15cm.
2. Premium Quality - The base, standing & height adjustable rod are made up of corrosion-resistant & anti-rust stainless steel.
3. Adjustable Speed - Bottle rotary speed: 0-120rpm, it is easy to adjust by buttons on control center. With LCD screen to clearly display the temperature.
4. Condenser - High temperature resistant glass, standard serpentine shaped condenser pipe, higher condensing efficiency.
5. LCD Display - Large LCD screen control panel, easy to adjust rotary speed and heating temperature.
6. Speed Motor - Adopt AC induction motor, stepless rotary speed adjustable, no flame. No brush change needed and be durable.
7. Detach Bottle - Rotary bottle features standard ISO029 ground, easy to take down with screws thread, for preventing bottle damage.
8. High Sealing - Ball-Milling connection of collecting bottle, bath temperature range: 0-99℃. Easy to detach and clean, better sealing quality.
9. Stable Evaporation - Use with 24 joint sized flask with different volume, larger evaporation space, more stable and no-flame control.
Specifications:
Input: 110V 60Hz
Screen: LCD
Bracket Material: Stainless Steel
Flask & Condenser: High Temperature Resistant Glass
Evaporation Flask Capacity: 1L
Collecting Bottle Capacity: 1L
Rotation Speed: 0-120rpm(Adjustable)
Motor Power: 40W
Heating Power: 1500W

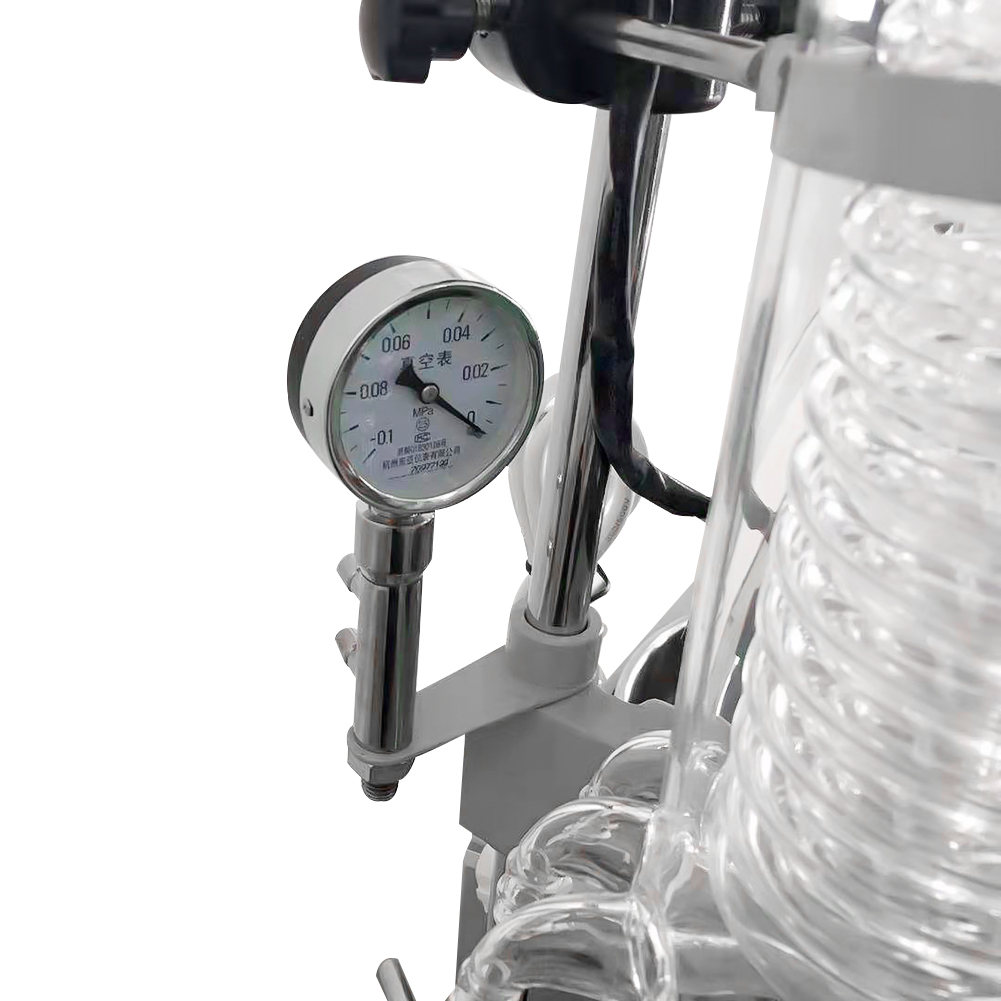

Vacuum Degree: -0.098mpa
Temperature Precision:±1℃
Temperature Range: Indoor 0-99℃
Water Bath Pan Lift Range: 0-15cm(0-5.9in)
Gross Weight: 29.2kg(64.37lbs)
Package Size: 67x55x42cm(26.38x21.65x16.54in)

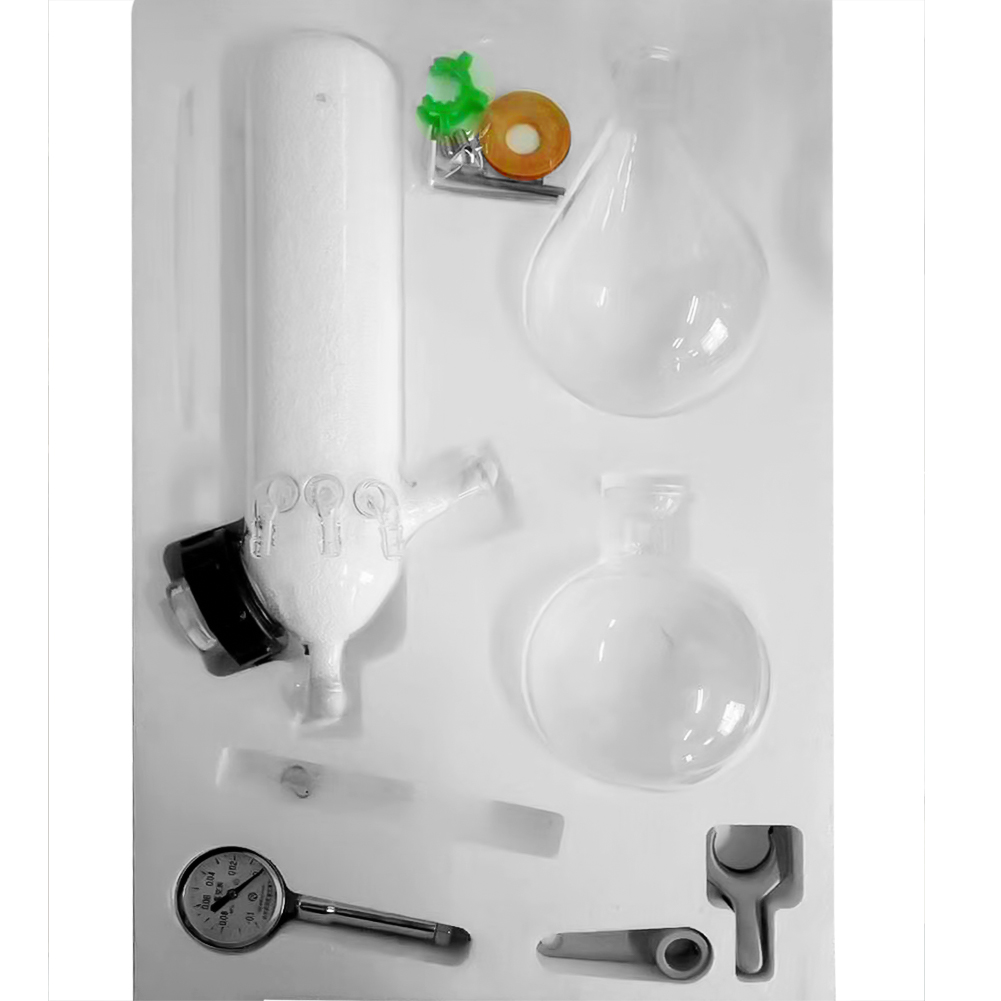

Package Includes:
1 x Water Bath
1 x 1L Rotary Bottle
1 x 1L Collecting Bottle
1 x Glass Rotary Shaft
1 x Glass Condenser
1 x Electronic Control Device
1 x Stainless Steel Clip
1 x Plastic Clip
1 x 1A Fuse Wire
1 x Wrench
1 x Install Kit
1 x User Manual
