MALOSSI RED FILTER E5 AIR FILTER D.38 PHVA PHBN BLACK 04 7593.C0

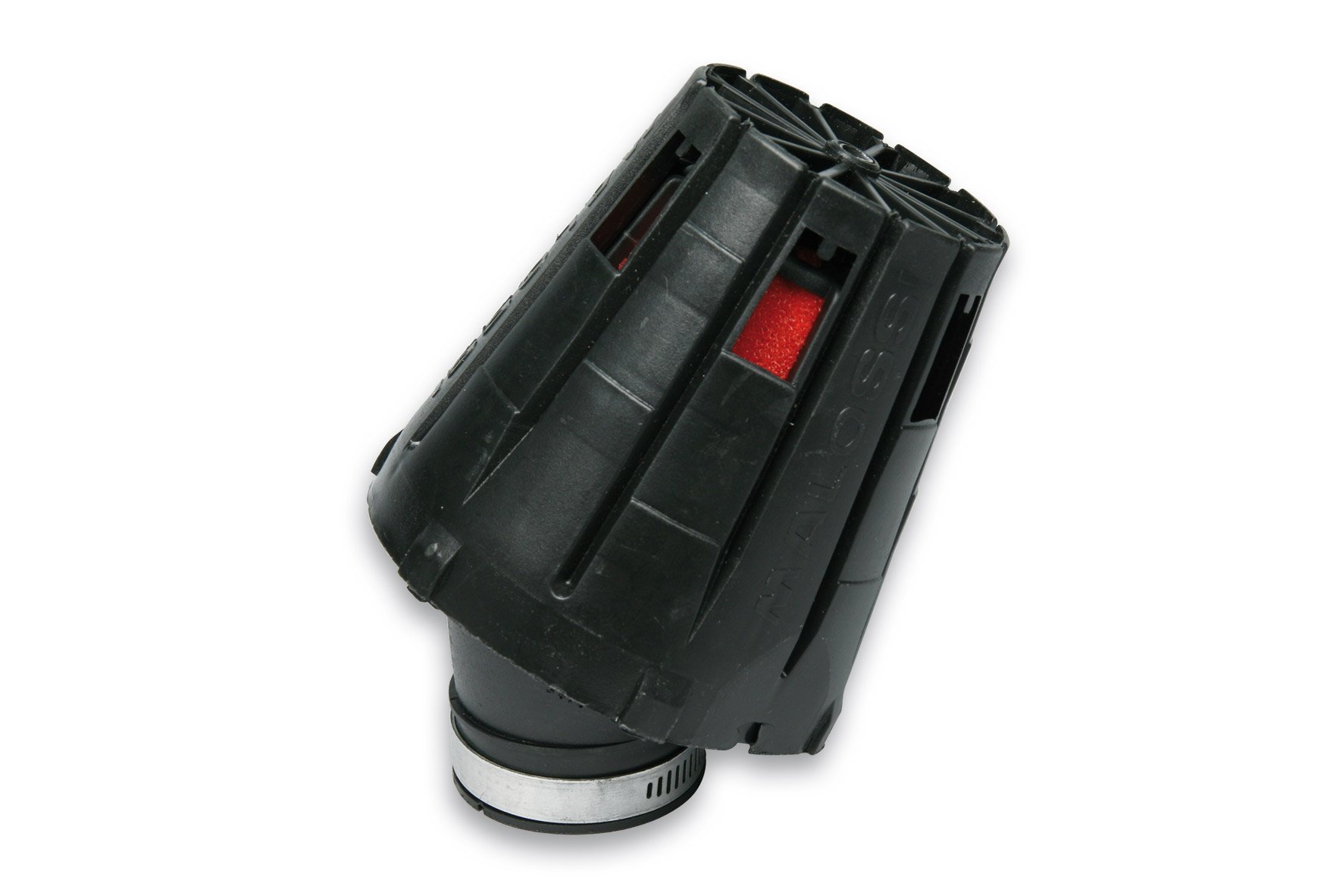

RED FILTER E5 air filter with Ø 38 for PHVA / PHBN 12-14-16-17.5 carburetors - MIKUNI with black cap
The technical information included in our eBay shop is obtained from the information published by the manufacturers of the goods included in our catalogue.
Racing horn with 38 mm mouthpiece - PHVA/PHBN 12÷17.5 and Mikuni compatible - Removable structure - Cod. 04 7593.C0
When working on a 50cc racing scooter and choosing a Dell'Orto PHVA or PHBN carburettor, the air filter is not a detail: it is the first link in the intake chain and directly affects the performance of the engine. The Red Filter E5 in code 04 7593.C0 is the version with black cap of the 38 mm Malossi horn, designed to adapt to PHVA and PHBN carburettors in sizes from 12 to 17.5 mm with 30° inclined mounting. The self-extinguishing expanded polyurethane filter element retains impurities without creating back pressure, while the lattice structure lightens the unit without sacrificing sturdiness.
Product reserved exclusively for competitions in places designated for them. Use on public roads is prohibited.
Technical characteristics
- Type: horn air filter (Red Filter E5)
- Sleeve inlet diameter: D.38 mm
- Tilt: 30°, centered mounting
- Total length: 128 mm — TO BE CHECKED [data from retailer source, not confirmed by primary source]
- Filtering element: open cell expanded polyurethane, self-extinguishing, red colour
- Supporting structure: ultra-light removable lattice
- Cap: black
- Fixing: strap/sleeve
- Washable and reusable
- Use: exclusively competitive
Compatible with carburetors:
- Dell'Orto PHVA 12 mm
- Dell'Orto PHVA 14 mm
- Dell'Orto PHVA 16 mm
- Dell'Orto PHVA 17.5 mm
- Dell'Orto PHBN 12 mm
- Dell'Orto PHBN 14 mm
- Dell'Orto PHBN 16 mm
- Dell'Orto PHBN 17.5 mm
- Mikuni (sizes compatible with D.38 mm connection)
