Pioneer Car Audio Amplifier 2 Channel 1000W Bridgeable 2x300w 4 Ohm GM A5702
Pioneer Car Audio Amplifier 2 Channel 1000W Bridgeable 2x300w 4 Ohm GM A5702
Price:
£129.99

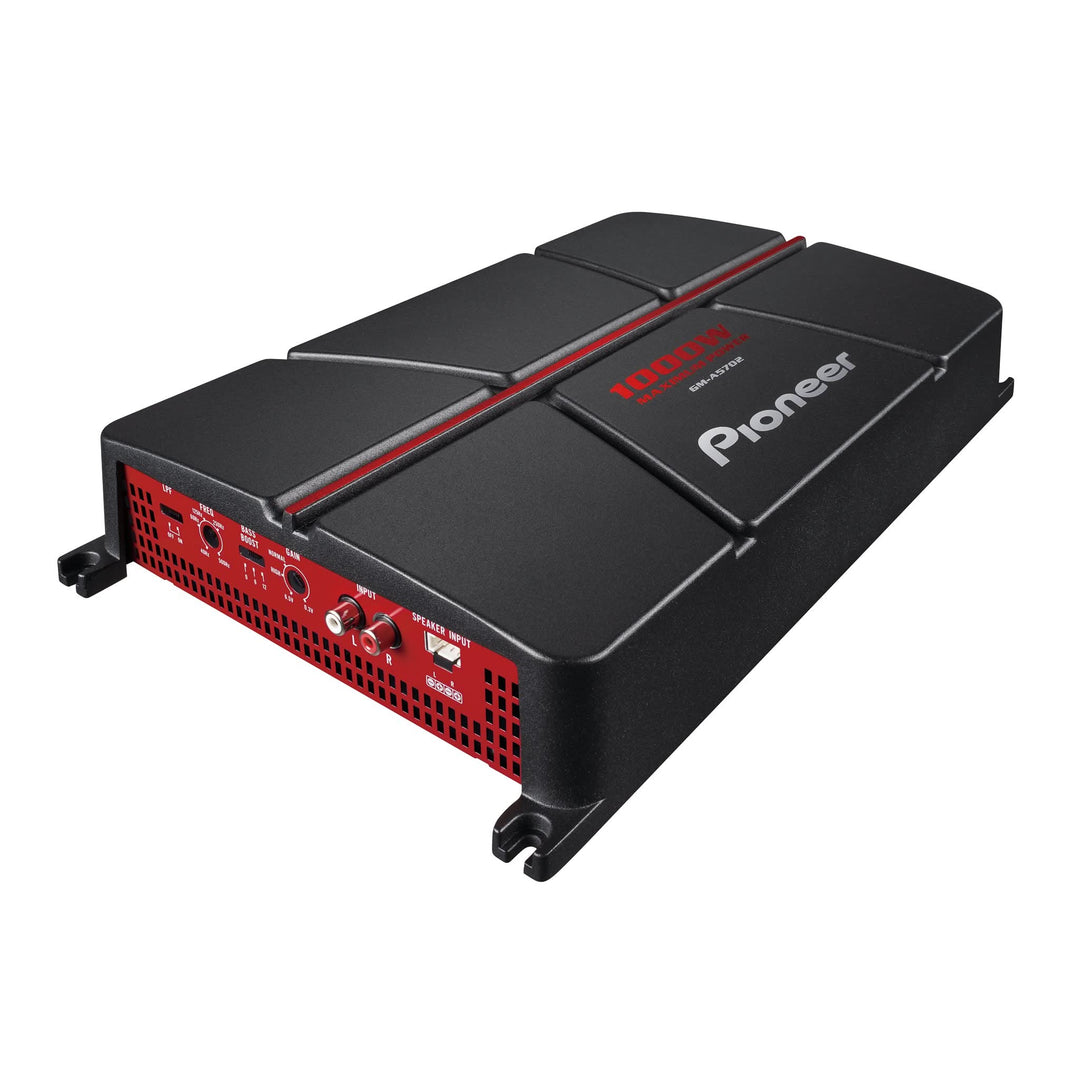

Pioneer GM-A5702 2 Channel Bridgeable 1000W Car Audio Amplifier
The Pioneer GM-A5702 is a powerful 2-channel car amplifier designed to significantly improve the sound quality in your vehicle. With high output power, flexible installation options and advanced tuning controls, this amplifier is ideal for powering speakers or driving a subwoofer in a bridged configuration. Its high-quality power supply and durable construction ensure stable performance, clean sound reproduction and powerful bass even at higher volume levels.
- 2-channel bridgeable car amplifier
- Maximum power output up to 1000W when bridged
- 150W RMS per channel for powerful speaker performance
- 480W RMS bridged output for subwoofer setups
- Variable low-pass filter for precise bass control
- Adjustable bass boost (0 / 6 / 12 dB)
- Automatic signal sensing turn-on function
- Speaker-level inputs for factory stereo integration
- Wide frequency response for detailed sound reproduction
- High signal-to-noise ratio with low distortion
Powerful 2-Channel Amplification
The GM-A5702 delivers strong and reliable output with up to 150W RMS per channel, allowing your speakers to reproduce clearer and more detailed sound even at higher volumes. When bridged, the amplifier can deliver up to 480W RMS to drive a subwoofer for deeper bass performance.Flexible System Configuration
This amplifier can be used in stereo mode to power two speakers or bridged to power a single subwoofer. This flexibility makes it suitable for many different audio system setups and upgrades.High-Quality Power Supply
Pioneer designed this amplifier with a stable and efficient power supply to maintain consistent power delivery. This improves audio dynamics, reduces noise and ensures strong bass performance even during demanding playback.Automatic Signal Sensing

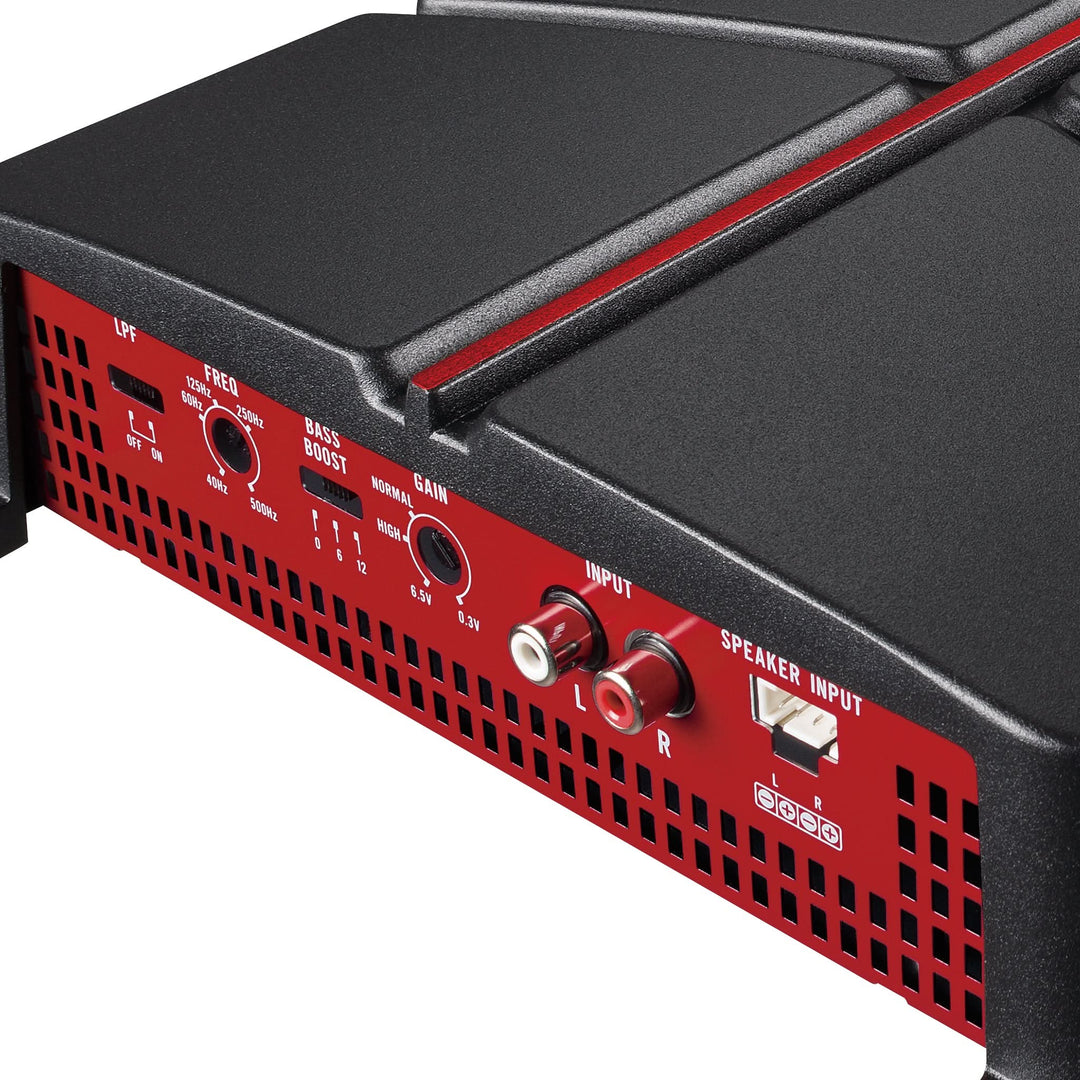

The amplifier can automatically switch on when it detects an audio signal through the speaker-level inputs. This feature allows simple integration with factory-installed head units that do not have RCA outputs.Adjustable Bass Boost

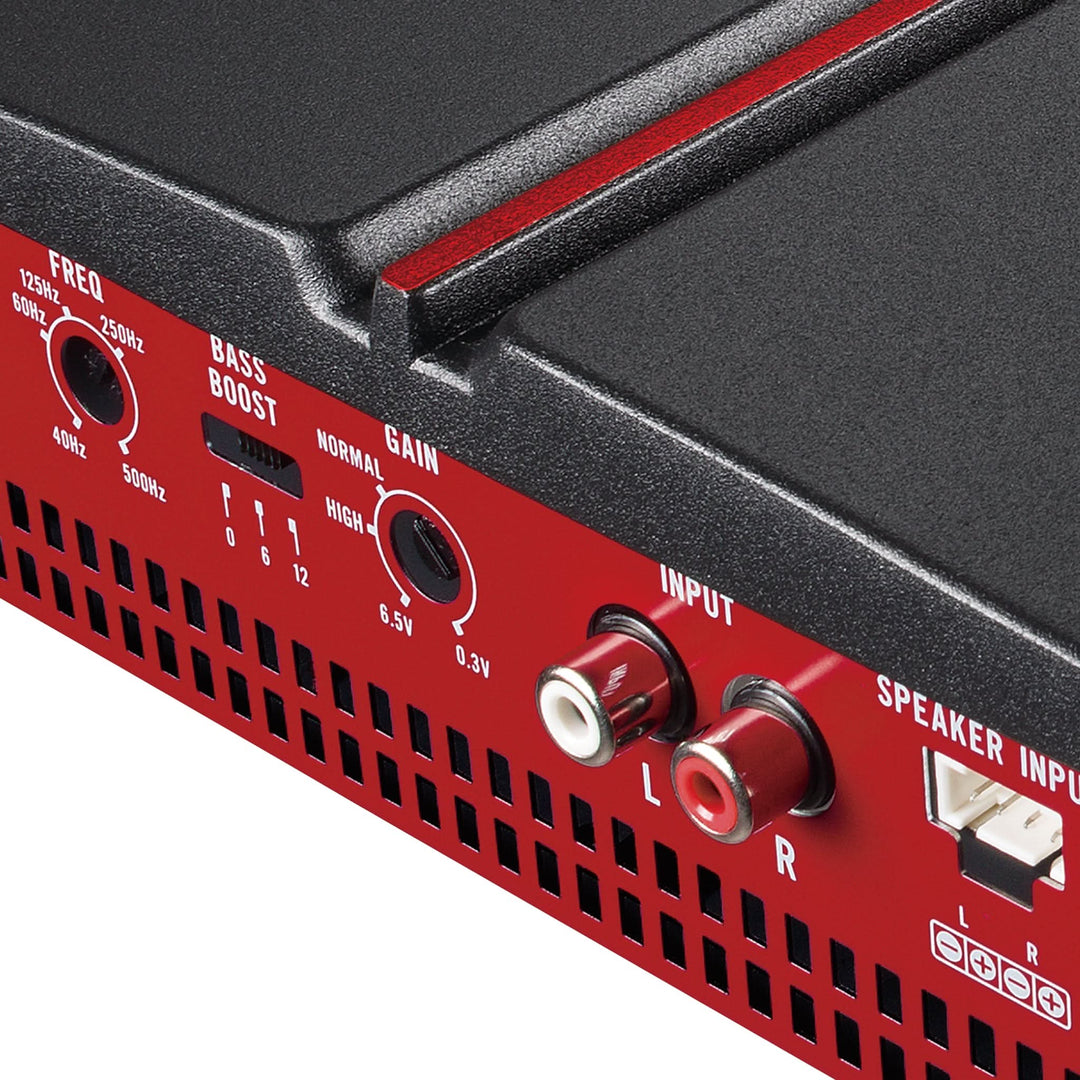

The integrated bass boost feature allows you to enhance low-frequency output with selectable levels of 0 dB, 6 dB or 12 dB at 50 Hz, giving you greater control over bass performance.Variable Low-Pass Filter

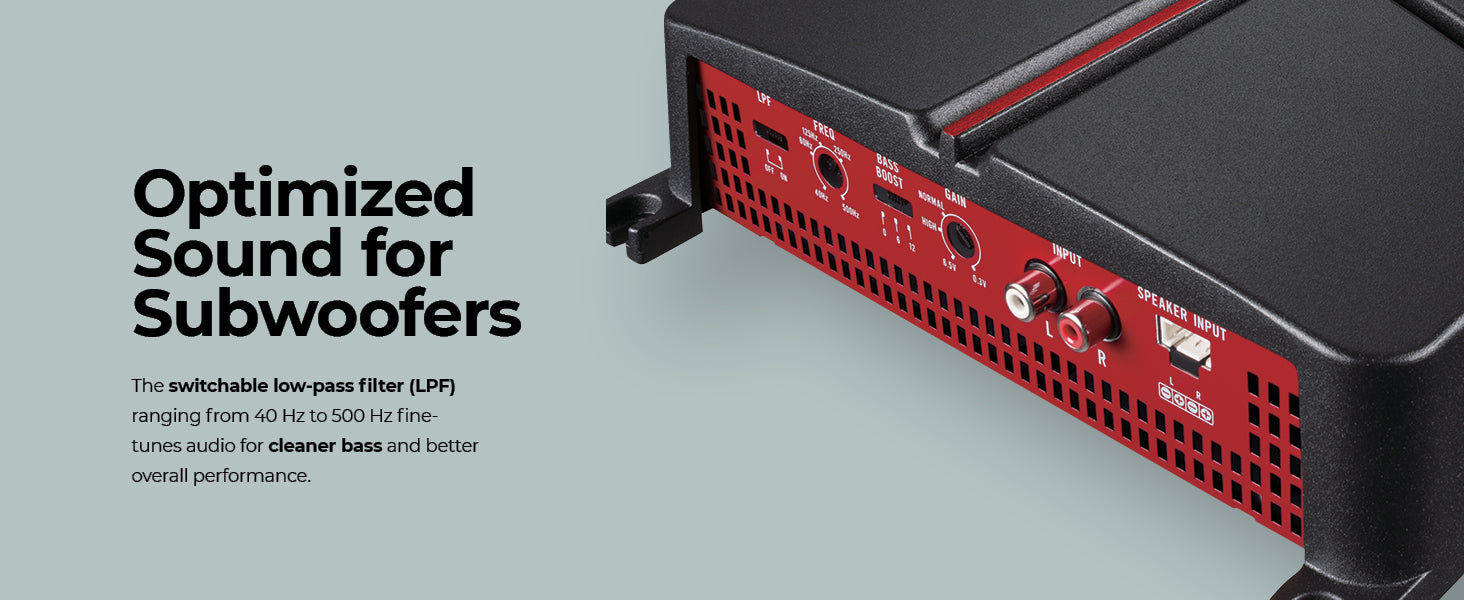

A built-in low-pass filter adjustable between 40 Hz and 500 Hz helps optimise the amplifier for subwoofer systems by directing only the appropriate frequencies to the speaker.Durable Amplifier Design

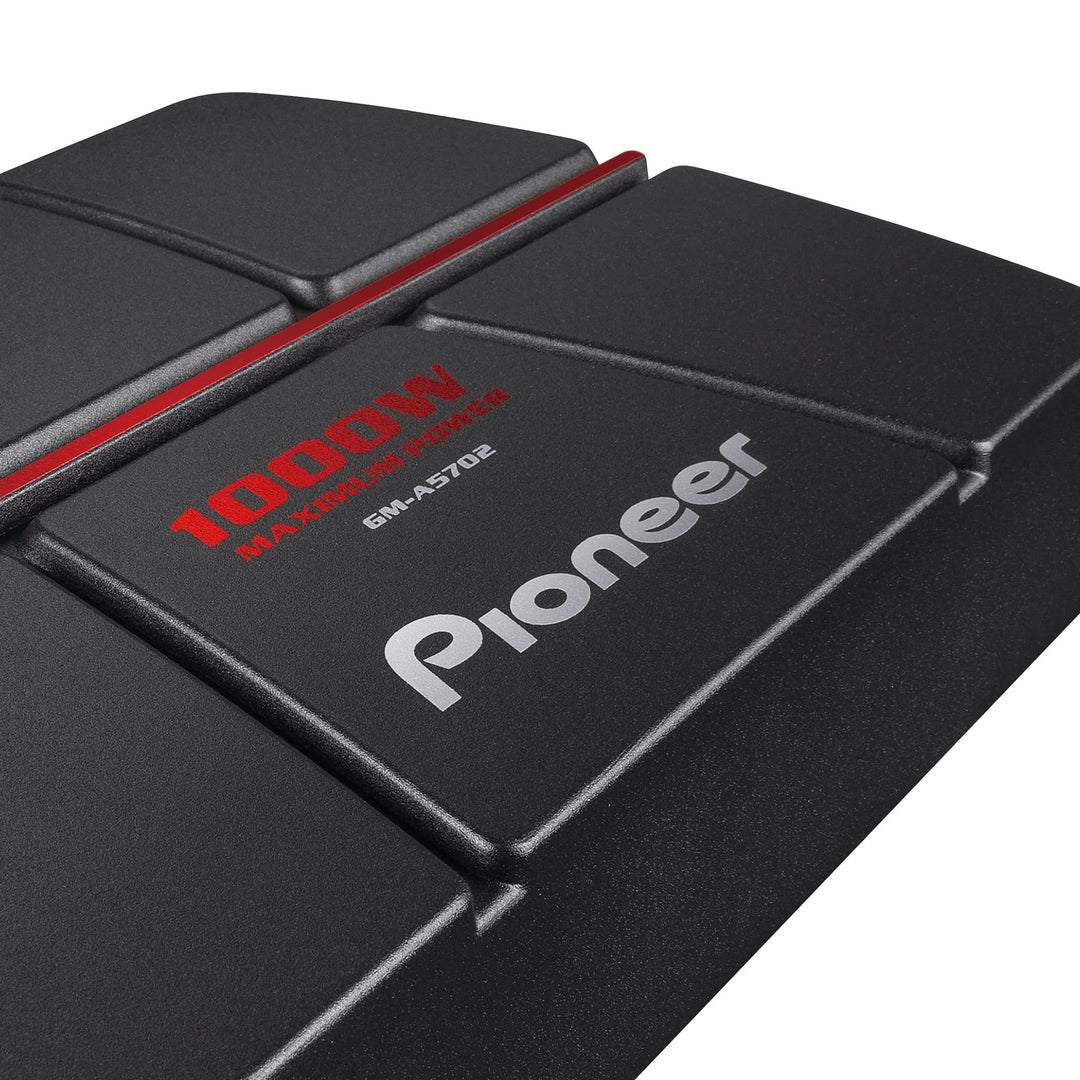

The robust chassis and efficient heat sink design help manage heat during extended use, ensuring reliable operation and long-term performance.Specifications
| Amplifier Type | 2 Channel Bridgeable Amplifier |
| Class | Class A/B |
| Maximum Power Output | 1000W Bridged / 300W x2 (4Ω) / 500W x2 (2Ω) |
| Continuous Power Output (RMS) | 150W x2 (4Ω) / 240W x2 (2Ω) / 480W x1 (4Ω Bridged) |
| CEA 2006 Power | 2 x 150W (4Ω) |
| Speaker Impedance | 2 – 8 Ohm (Stereo) |
| Frequency Response | 10Hz – 70kHz (+0dB / -3dB) |
| Total Harmonic Distortion | < 0.05% |
| Signal to Noise Ratio | > 96 dB |
| Bass Boost | 50 Hz (0 / 6 / 12 dB) |
| Low Pass Filter | 40 – 500 Hz (-12 dB/oct) |
| Speaker Terminals | Screw-Type |
| Input Sensitivity | 3 – 26 V |
| Power Source | 14.4V (10.8 – 15.1V allowable) |
| Fuse Rating | 30A x 2 |
| Dimensions | 356 x 60 x 215 mm (W x H x D) |
| Unit Weight | 2.2 kg |
| RCA Inputs | 2 Channel |
| Speaker Line Input Sensor | Yes |
| Manufacturer Part Number | GM A5702 |
| Brand | Pioneer |
| Channels | 2 Channel |
| Impedance | 2-8 Ohm |
| Fuse | 30 A x 2 |
| Bridged Power Output (4 Ohms) | 1000 W |
| Power RMS / Max.- @ 4 Ohms | 150 W x 2 / 300 W x 2 |
| Power RMS / Max.- @ 2 Ohms | 240 W x 2 / 500 W x 2 |
| Low-pass | 40 Hz to 500 Hz |
| Slope Subsonic / Low Pass | 40 Hz to 500 Hz |
| Ground Input Switch | Negative |
| Max. Power (Mono Mode) | 1000w |
| Power consumption | 9.5 A x 2-Channel - 4 Ohm, 15.5 A x 1-Channel - 4 Ohm |
| Bass Boost | 50 Hz - Frequency |
| Amplifier Class | Class AB |
| Terminal Type | Screw |
| RMS @ 4ohm | 150 W x 2 |
| Amplifier Type | 2-Channel |
| RMS @ 2ohm | 240 W x 2 |
| Frequency Response | 10Hz to 70kHz (+0dB,-3dB) |
| Colour | Black |
| Model | GM-A5702 |
| Country of Origin | Japan |
| Unit Type | Unit |
| Unit Quantity | 1 |
| Recommended Fuse | 30 A x 2 |
| Crossover Range | 40 Hz to 500 Hz |
