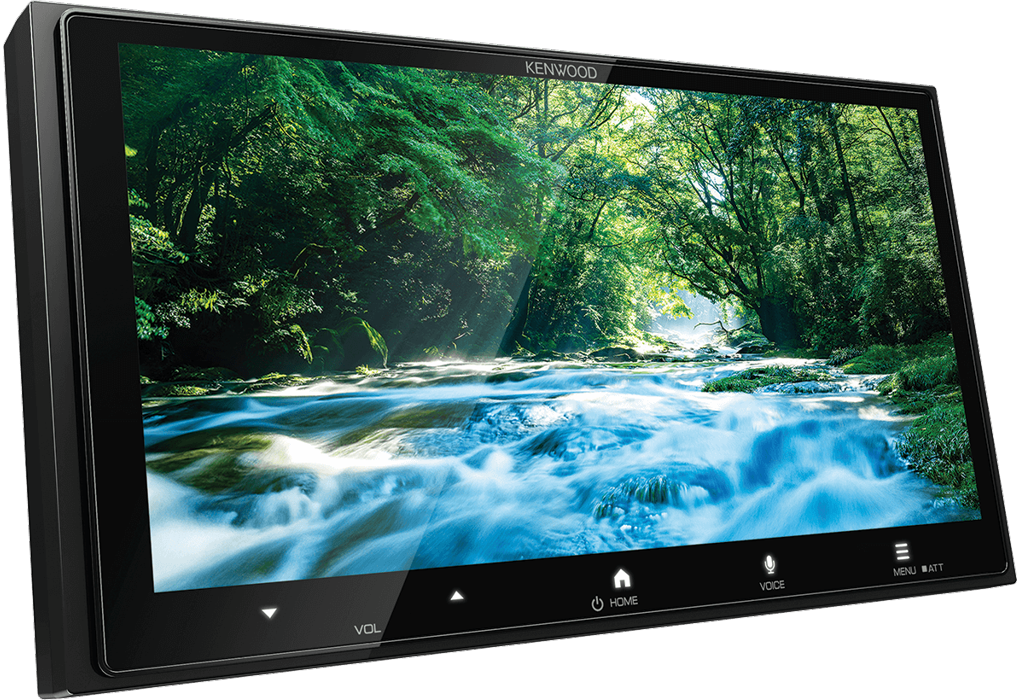

Kenwood DMX7525DABS 6.8" Car WiFi BT Stereo DAB+ Wireless CarPlay Android Auto
Kenwood DMX7525DABS 6.8" Car WiFi BT Stereo DAB+ Wireless CarPlay Android Auto
Price:
£399.99
Key Features
- 6.8" High Definition Display with LED backlight and wide viewing angles
- Wireless & Wired Apple CarPlay®
- Wireless & Wired Android Auto™
- Wired & Wireless Screen Mirroring (EasyConnection / CarbitLink)
- Built-in DAB+ Digital Radio
- Bluetooth® Hands-Free & Audio Streaming
- High Speed USB (2.1A)
- 13 Band EQ & Digital Time Alignment
- 3 x 3.0V Preouts
- Rear Camera Input with Parking Guidelines (HD Compatible)
- 2DIN Short Chassis Design

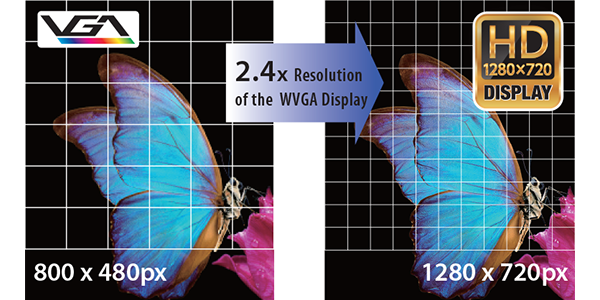

High Definition Display
6.92” capacitive touch screen with 1280 x 720 resolution. Sharper image, better colours, reduced jagged edges and improved clarity.
Smartphone Connectivity
Apple CarPlay® & Android Auto™ available wired or wirelessly.
Screen Mirroring supported for compatible iPhone and Android devices.
Availability of some features may vary by region and device.

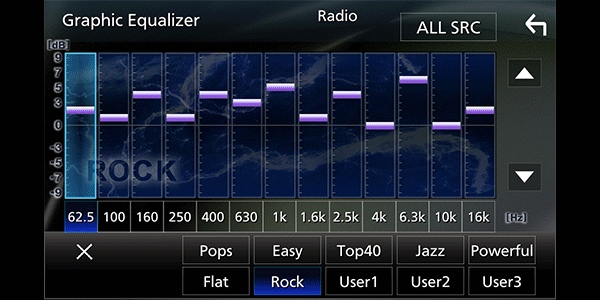

Advanced Audio Control
13-band graphic equalizer, digital time alignment, crossover settings, loudness control and 3 x 3.0V preouts for system expansion.
Technical Specifications
| General | |
| DIN Size | 2 DIN (Short Chassis) |
| Screen Size | 6.92" High Definition (1280 x 720) |
| Panel Type | Capacitive Touch, Anti-Fingerprint |
| Bluetooth | Built-in (Version 5.3) |
| DAB+ | Built-in Digital Radio |
| WiFi | Built-in (5 GHz) |
| Firmware | Upgradeable |
| Smartphone Integration | |
| Apple CarPlay | Wired & Wireless |
| Android Auto | Wired & Wireless |
| Screen Mirroring | Wired & Wireless (CarbitLink / EasyConnection) |
| iPhone Connection | USB / Bluetooth |
| Android Connection | USB / Bluetooth |
| Audio | |
| Maximum Power | 4 x 50W |
| RMS Power | 4 x 22W |
| Preouts | Front / Rear / Subwoofer (3V) |
| Equalizer | 13 Band Graphic EQ |
| Time Alignment | 0 – 610 cm |
| Radio & DAB | |
| FM Range | 87.5 – 108 MHz |
| AM Range | 531 – 1611 kHz |
| Presets | 15 FM / 5 AM |
| RDS / PTY / Traffic | Yes |
| DAB Band | Band III (174.928 – 239.2 MHz) |
| USB & Media | |
| USB Type | USB 2.0 High Speed (Type-A) |
| Max Output | 2.1A (2100mA) |
| File Systems | FAT16 / FAT32 / exFAT / NTFS |
| Audio Formats | MP3, WMA, AAC, WAV, FLAC |
| Video Formats | MPEG1/2/4, WMV, H.264, MKV |
| Connectivity | |
| Rear Camera Input | Dedicated RCA (HD Compatible) |
| Video Output | RCA x1 |
| AV Input | Mini-Jack (Audio & Video) |
| External Mic | 3.5mm Mini-Jack |
| GPS | GPS Antenna Included |
| Steering Control | OEM Ready (Interface Required) |
| Dimensions & Power | |
| Dimensions | 178 x 100 x 109 mm |
| Weight | 1140 g |
| Operating Voltage | 14.4V (8.5V – 16V allowable) |
| Max Current | 15A |
| Included Accessories | |
| In the Box | ISO Harness, GPS Antenna, Handsfree Microphone (3m), Mounting Screws, Ground Plane Mount, User Manual |
| Manufacturer Part Number | DMX7525DABS |
| Brand | Kenwood |
| Compatible Format | FLAC, MP3, MP4, WAV, WMA |
| Unit Size | 2 DIN |
| Port | USB |
| Features | Bluetooth, DAB+, Touchscreen, WiFi, Apple CarPlay, Android Auto |
| Compatible Vehicle Model | Universal |
| Compatible Vehicle Make | Universal |
| Operating System | Kenwood OS |
| Head Unit Functionality | Car Radio |
| Country of Origin | Japan |
| Number of Channels | 4-Channel |
| Screen/Monitor Type | 6.8" High Definition screen |
| RMS Power | 4x22w |
| Colour | Black |
| Model | DMX7525DABS |
| Screen Size | 6.92 in |
| Unit Quantity | 1 |
| Channels | 4 Channel |
