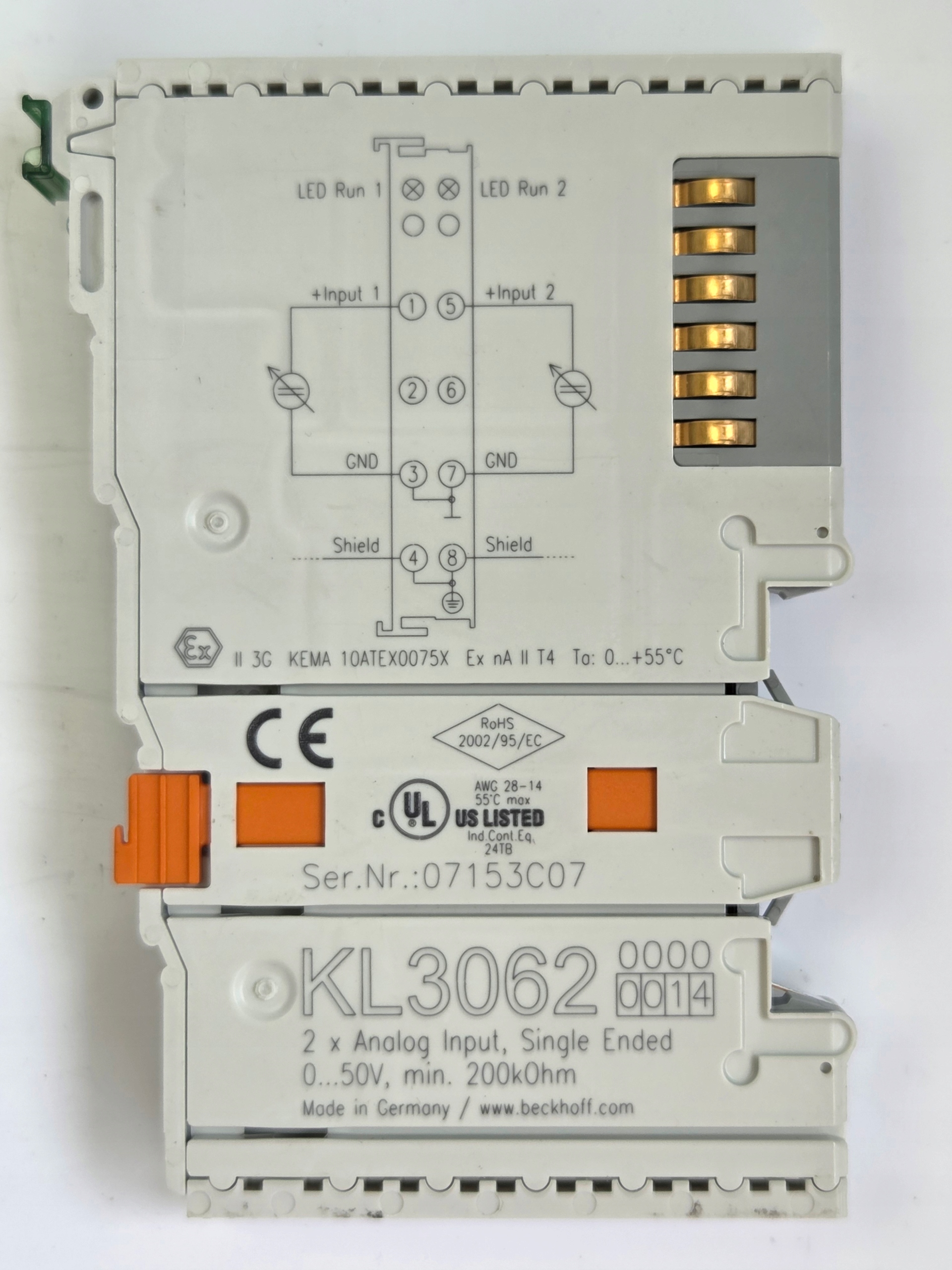

Beckhoff KL3062-0014 2-Channel Analog Input Terminal - 0-50V, Single-Ended, K-Bus

The Beckhoff KL3062-0014 is an industrial-grade 2-channel analog input Bus Terminal specifically engineered for handling higher voltage signals in the 0 to 50 V range. Operating within the standard Beckhoff K-bus architecture, this single-ended module provides a reliable interface for precise voltage monitoring in factory automation and process control systems. It features complete electrical isolation between the K-bus and the process level, accompanied by integrated status LEDs for real-time channel diagnostics.

Features:

• Brand: Beckhoff
• Model: KL3062-0014
• Number of Inputs: 2 (single-ended)
• Signal Voltage: 0...50 V DC
• Interface: K-bus (Bus Terminal System)

Technical Specifications:

• Resolution: 12 bit
• Measuring Error: < ± 0.3% (relative to full-scale value)
• Electrical Isolation: 500 V (K-bus / signal voltage)
• Current Consumption K-bus: typ. 55 mA
• Housing Width: 12 mm
• Mounting: 35 mm DIN rail (EN 60715)
• Protection Rating: IP20

Key Benefits:

• Extended Voltage Input: Configured as the specialized -0014 variant to safely measure DC voltages up to 50 V directly, eliminating the need for external step-down signal conditioning.
• Compact Footprint: Packs 2 high-performance, single-ended analog channels into a slim 12 mm wide module to save valuable space on the DIN rail tracking.
• Clear Status Tracking: Equipped with front-facing operational LEDs that deliver instant visual feedback for fast on-site verification and maintenance checks.

Important Notes:

• VAT invoices available upon request.
• Returns accepted within 30 days; buyer pays return shipping.
