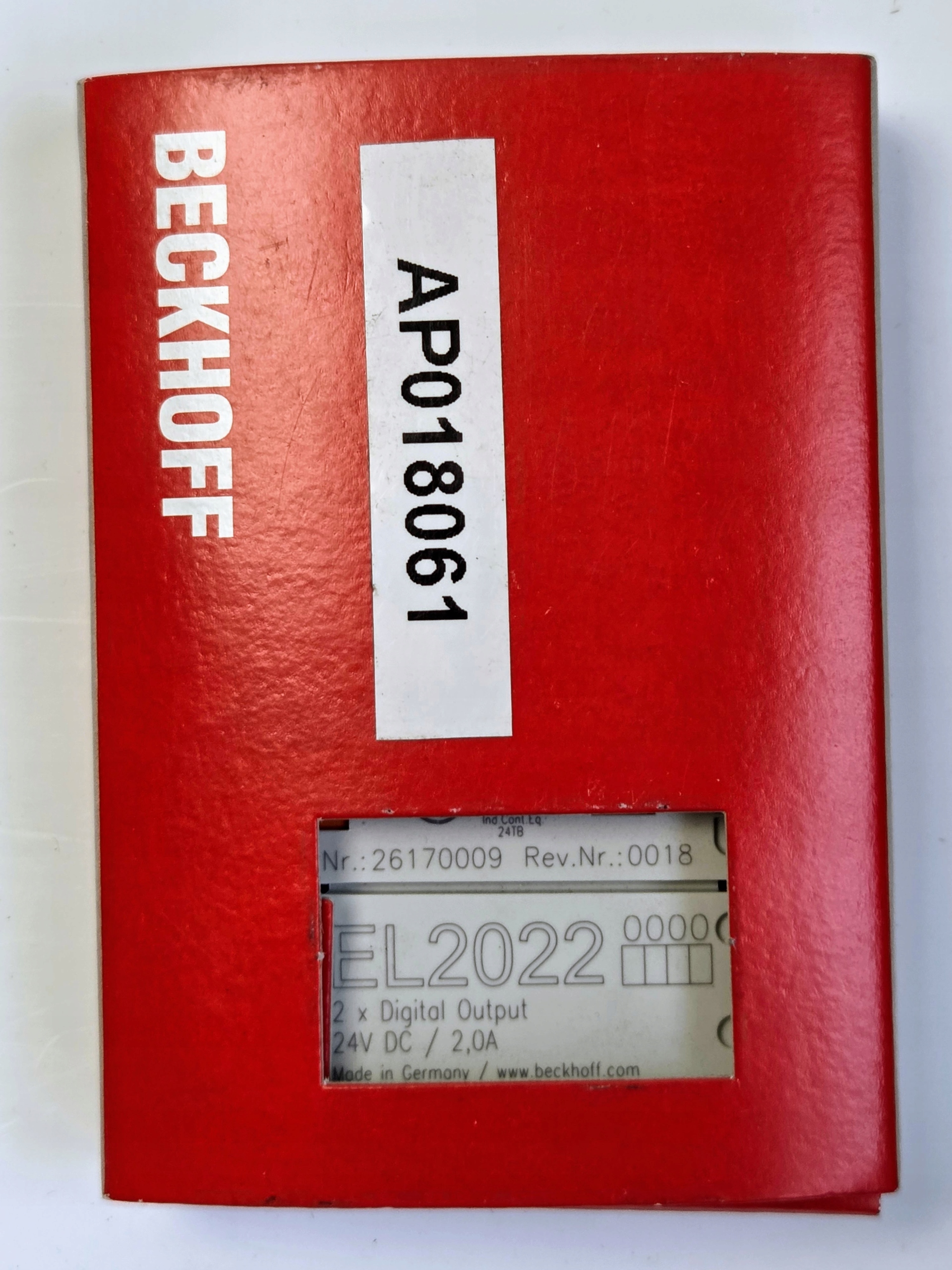

Beckhoff EL2022 2-Channel Digital Output Terminal - 24V DC, 2A, EtherCAT

The Beckhoff EL2022 is a high-performance digital output terminal engineered for EtherCAT industrial networks. It features 2 electrically isolated channels designed to switch digital control signals from the automation device to the process level. Delivering a substantial output current of up to 2 A per channel, this module is ideally suited for directly controlling larger inductive and resistive loads such as actuators, solenoid valves, contactors, and small motors.

Features:

• Brand: Beckhoff
• Model: EL2022
• Number of Outputs: 2
• Nominal Voltage: 24V DC (-15% / +20%)
• Max. Output Current: 2 A per channel
• Interface: EtherCAT (E-bus)

Technical Specifications:

• Load Type: Ohmic, inductive, lamp load
• Connection Method: 2-wire architecture
• Short-Circuit Proof: Yes
• Reverse Voltage Protection: Yes
• Electrical Isolation: 500 V (E-bus / signal voltage)
• Current Consumption E-bus: typ. 90 mA
• Mounting: 35 mm DIN rail (EN 60715)

Key Benefits:

• High-Current Capability: Capable of switching up to 2 A per channel, minimizing the need for intermediate coupling relays and optimizing cabinet space.
• Comprehensive Diagnostics: Equipped with independent channel status LEDs that provide clear, real-time visual feedback for fast on-site troubleshooting.
• Robust Safety Features: Built-in short-circuit and reverse polarity protection layers guarantee consistent operational security and protect upstream E-bus networks.

Important Notes:

• VAT invoices available upon request.
• Returns accepted within 30 days; buyer pays return shipping.
