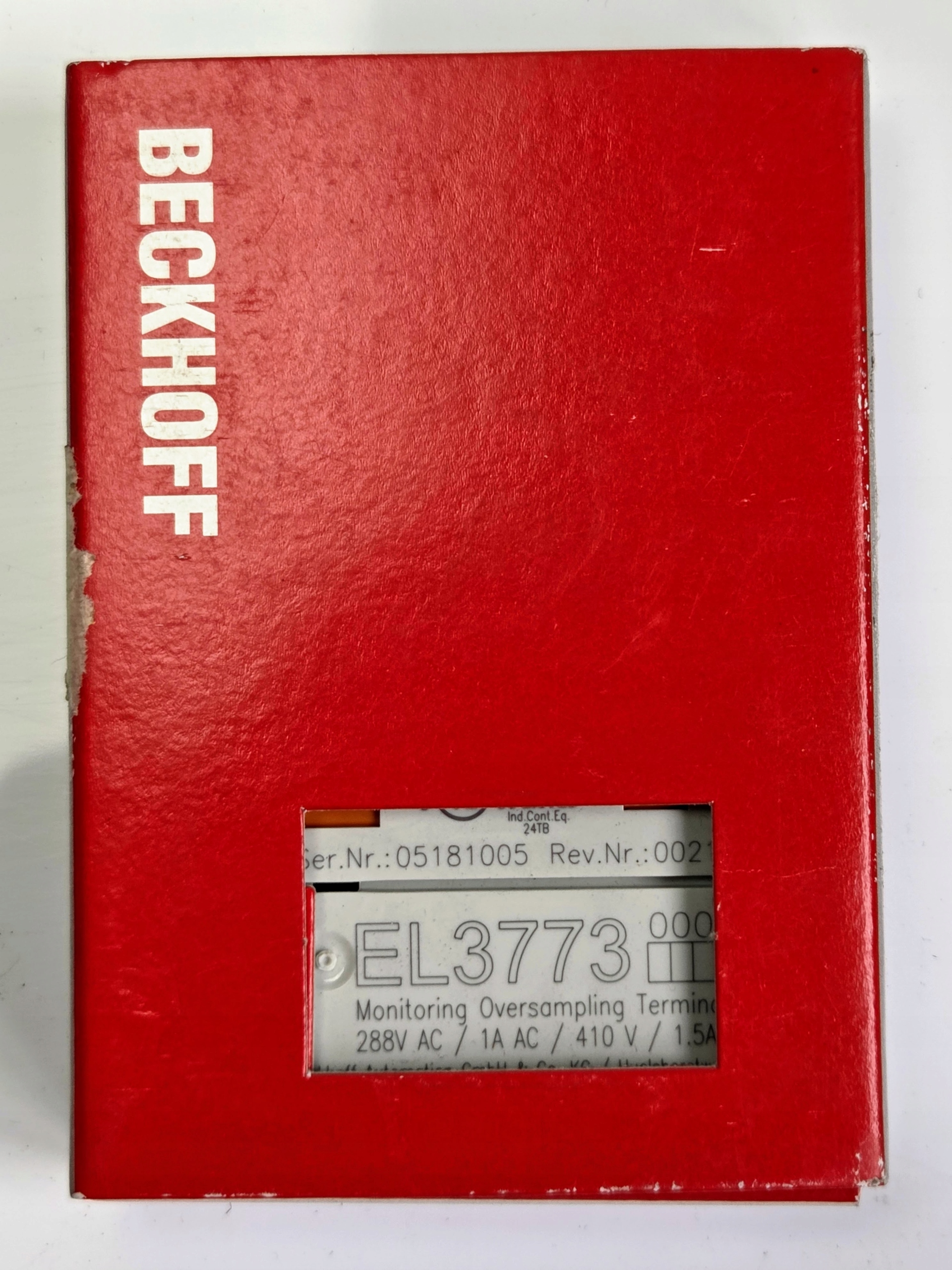

Beckhoff EL3773 EtherCAT Terminal - 3-Phase Power Measurement Module

The Beckhoff EL3773 is an advanced industrial EtherCAT Terminal designed for 3-phase power monitoring and network analysis. Featuring a 3-channel analog input with oversampling technology, it provides high-precision data acquisition for both alternating (AC) and direct (DC) voltages, making it an essential component for complex industrial automation and energy management systems.

Features:

• Brand: Beckhoff
• Model: EL3773
• Interface: EtherCAT
• Input Channels: 3 x current, 3 x voltage inputs
• Measuring Voltage: Max. 500 V AC / 410 V DC
• Measuring Current: Max. 1 A (AC) / 1.5 A (DC)
• Resolution: 16-bit with 10 ksps

Technical Specifications:

• Function: Power monitoring module / Network analyzer
• Electrical Isolation: 2500 V
• Mounting: On 35 mm DIN rail (conforming to EN 60715)
• Protection Rating: IP20

Key Benefits:

• Oversampling Precision: Delivers exceptional temporal resolution down to 100 µs for all channels simultaneously, ensuring highly accurate real-time data monitoring.
• Versatility: Fully equipped for AC/DC measurement, including adjustable hardware filters and support for optional single-phase operation to adapt to diverse industrial setups.

Important Notes:

• VAT invoices available upon request.
• Returns accepted within 30 days; buyer pays return shipping.
