OPEL 641078


INTAKE VALVE INDUCTION VALVE OPEL ADAM ( M13 ) 1.2 / 1.4 - OPEL AGILA ( H00 ) 1.0 / 1.0 12V / 1.2 16V - OPEL ASTRA G ( T98 ) 1.2 16V / 1.4 - OPEL ASTRA H ( A04 ) 1.2/ 1.4 - OPEL CORSA C ( X01 ) 1.0 / 1.2 / 1.4 - OPEL CORSA D ( S07 ) 1.2 / 1.4 - OPEL CORSA E (

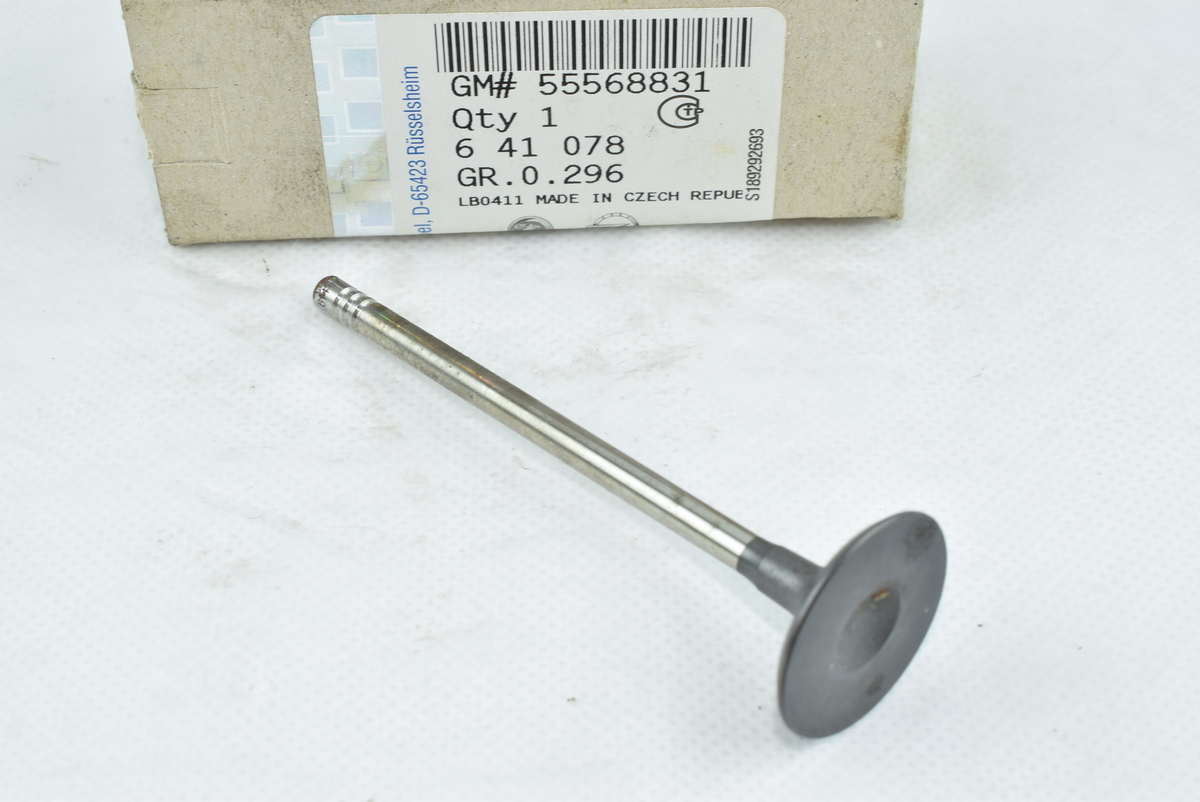

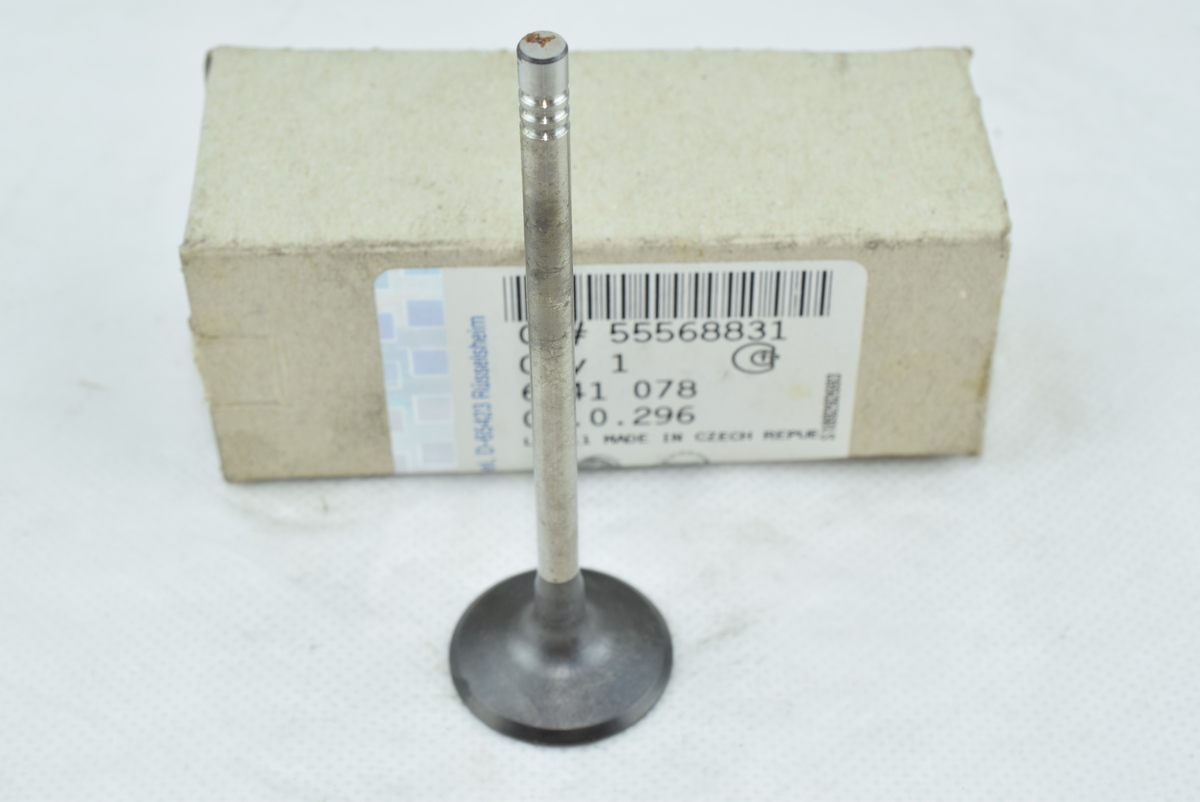

OPEL 641078 - GM 55568831

NEW IN ITS ORIGINAL OPEL PACKAGING


Technical info

VALVE HEAD DIAMETER 28 MM
VALVE STEM DIAMETER 5 MM
LENGTH 93.8 MM
VALVE SEAT ANGLE 45 DEGREES
SUPPLEMENTARY ARTICLE/SUPPLEMENTARY INFORMATION 2 CHROME VALVE STEM
MATERIAL CHROME-SILICON STEEL
ATTACK TYPE I
SUPPLEMENTARY ARTICLE/SUPPLEMENTARY INFORMATION 2 STELLITE VALVE SEAT
FUEL TYPE PETROL / GAS (BIFUEL)

The technical data are provided by the manufacturer or taken from specialized databases.
DR Ricambi does not assume responsibility for the direct or indirect consequences deriving from any errors.
The customer assumes responsibility for verifying the applicability of the product to the use for which it is intended.

Applications

Brand Codes
originals		 Model Version Motor Period of
production		 Displacement HP Kw
641078
641045
641051
641052
641094
 ASTRA G 2 volumes / Sloping tail (F48_, F08_) 1.2 16V X 12 XE 02/1998 - 09/2000 1199 cc 65 48
1.2 16V Z 12 XE 09/2000 - 01/2005 1199 cc 75 55
1.4 Z 14 XEP 09/2003 - 01/2005 1364 cc 90 66
ASTRA G Estate (F35_) 1.2 16V X 12 XE 02/1998 - 09/2000 1199 cc 65 48
1.2 16V Z 12 XE 09/2000 - 07/2004 1199 cc 75 55
1.4 Z 14 XEP 09/2003 - 07/2004 1364 cc 90 66
ASTRA G Three volumes (F69_) 1.2 16V X 12 XE 09/1998 - 09/2000 1199 cc 65 48
1.2 16V Z 12 XE 09/2000 - 01/2005 1199 cc 75 55
1.4 Z 14 XEP 09/2003 - 01/2005 1364 cc 90 66
ASTRA H 1.2 Z 12 XEP 08/2005 - In production. 1229 cc 80 59
1.4 Z 14 XEP 03/2004 - In production. 1364 cc 90 66
1.4 Z 14 XEL 04/2004 - 10/2004 1364 cc 75 55
1.4 LPG Z 14 XEP 08/2009 - In production. 1364 cc 90 66
ASTRA H GTC 1.2 Z 12 XEP 08/2005 - In production. 1229 cc 80 59
1.4 Z 14 XEL 03/2005 - In production. 1364 cc 75 55
1.4 Z 14 XEP 03/2005 - In production. 1364 cc 90 66
ASTRA H Station wagon 1.4 Z 14 XEP 08/2004 - In production. 1389 cc 90 66
1.4 Z 14 XEL 08/2004 - In production. 1364 cc 75 55
1.4 LPG Z 14 XEP 08/2009 - In production. 1364 cc 90 66
CORSA C Box (F08, W5L) 1.4 Z 14 XEP 08/2003 - In production. 1364 cc 90 66
1.2 Z 12 XEP 07/2005 - In production. 1229 cc 80 59
1.2 16V Z 12 XE 09/2000 - In production. 1199 cc 75 55
RACE D 1.0 Z 10 XEP 07/2006 - In production. 998 cc 60 44
1.2 Z 12 XEP 07/2006 - In production. 1229 cc 80 59
1.2 At 12 XER 06/2010 - In production. 1229 cc 86 63
1.2 ecoFLEX Z 12 XEP 09/2009 - In production. 1229 cc 78 57
1.2 LPG At 12 XER 06/2011 - In production. 1229 cc 83 61
1.2 LPG At 12 XER 08/2011 - In production. 1229 cc 86 63
1.4 Z 14 XEP 07/2006 - In production. 1364 cc 90 66
1.4 Z 14 XEP 07/2006 - In production. 1364 cc 90 66
1.4 At 14 XER 06/2010 - In production. 1398 cc 100 74
1.2 LPG Z 12 XEP 09/2009 - In production. 1229 cc 75 55
CORSA D Van 1.2 Z 12 XEP 07/2009 - In production. 1229 cc 80 59
1.2 At 12 XER 06/2010 - In production. 1229 cc 86 63
STROKE B (73_, 78_, 79_, F35_) 1.2 i 16V X 12 XE 03/1998 - 09/2000 1199 cc 65 48
AGILA (H00) 1.0 Z 10 XEP 08/2003 - 12/2007 998 cc 60 44
1.0 12V Z 10 XE 09/2000 - 12/2007 973 cc 58 43
1.2 16V Z 12 XE 09/2000 - 12/2007 1199 cc 75 55
1.2 16V Twinport Z 12 XEP 07/2004 - 12/2007 1229 cc 80 59
COMBO Body / Van / Mixed 1.4 16V Z 14 XEP 08/2005 - In production. 1364 cc 90 66
COMBO Tour 1.4 Z 14 XEP 10/2004 - In production. 1364 cc 90 66
STROKE C (F08, F68) 1.0 Z 10 XE 09/2000 - 12/2009 973 cc 58 43
1.0 Z 10 XEP 06/2003 - 12/2009 998 cc 60 44
1.2 Z 12 XE 09/2000 - 12/2009 1199 cc 75 55
1.2 Twinport Z 12 XEP 07/2004 - 12/2009 1229 cc 80 59
1.4 Twinport Z 14 XEP 06/2003 - 12/2009 1364 cc 90 66
IT WERE WORTH IT 1.4 16V Twinport Z 14 XEP 07/2004 - 05/2010 1364 cc 90 66
1.4 16V Twinport LPG Z 14 XEP 07/2004 - 05/2010 1364 cc 90 66
TIGRA TwinTop 1.4 Z 14 XEP 06/2004 - In production. 1364 cc 90 66
ASTRA GTC J 1.4 At 14 XER 10/2011 - In production. 1398 cc 101 74
1.4 At 14 NET
B 14 NET		 10/2011 - In production. 1364 cc 140 103
ASTRA J 1.4 ecoFLEX At 14 XER 12/2009 - In production. 1398 cc 100 74
1.4 LPG At 14 NET 01/2012 - In production. 1364 cc 140 103
1.4 Turbo At 14 NET 12/2009 - In production. 1364 cc 140 103
ASTRA J Three volumes 1.4 At 14 XER 06/2012 - In production. 1398 cc 101 74
1.4 LPG At 14 NET 07/2014 - In production. 1364 cc 140 103
1.4 Turbo At 14 NET
B 14 NET		 06/2012 - In production. 1364 cc 140 103
ASTRA SPORTS Tourer (J) 1.4 At 14 XER 10/2010 - In production. 1398 cc 101 74
1.4 LPG At 14 NET 01/2012 - In production. 1364 cc 140 103
1.4 Turbo At 14 NET
B 14 NET		 10/2010 - In production. 1364 cc 140 103
CASCADA (W13) 1.4 Turbo At 14 NET 03/2013 - In production. 1362 cc 140 103
INSIGNIA 1.4 At 14 NET
B 14 NET		 04/2011 - In production. 1364 cc 140 103
1.4 LPG At 14 NET 07/2012 - In production. 1364 cc 140 103
INSIGNIA Station wagon 1.4 At 14 NET 09/2011 - In production. 1364 cc 140 103
1.4 LPG At 14 NET 07/2012 - In production. 1364 cc 140 103
INSIGNIA Three volumes 1.4 At 14 NET
B 14 NET		 04/2011 - In production. 1364 cc 140 103
1.4 LPG At 14 NET 07/2012 - In production. 1364 cc 140 103
IT WERE WORTH IT 1.4 At 14 NET
B 14 NET		 06/2010 - In production. 1398 cc 140 103
1.4 At 14 XER
B 14 XER		 06/2010 - In production. 1398 cc 100 74
MOKKA 1.4 At 14 NET
B 14 NET		 04/2013 - In production. 1364 cc 140 103
1.4 4x4 At 14 NET
B 14 NET		 06/2012 - In production. 1364 cc 140 103
1.4 LPG At 14 NET 04/2013 - In production. 1364 cc 140 103
ZAFIRA (P12) 1.4 At 14 NET
B 14 NET		 10/2011 - In production. 1364 cc 140 103
1.4 LPG At 14 NET
B 14 NET		 10/2011 - In production. 1364 cc 140 103
ADAM 1.2 At 12 XEL
B 12 XEL		 10/2012 - In production. 1229 cc 69 51
1.4 At 14 XER
B 14 XER		 10/2012 - In production. 1398 cc 101 74
1.4 At 14 XEL
B 14 XEL		 10/2012 - In production. 1398 cc 87 64
1.4 LPG At 14 XEL
B 14 XEL		 07/2013 - In production. 1398 cc 87 64
CORSA E 1.2 B 12 XEL 09/2014 - In production. 1229 cc 69 51
1.4 B 14 XEL 09/2014 - In production. 1398 cc 90 66
1.4 B 14 XEJ 09/2014 - In production. 1398 cc 75 55
1.4 LPG B 14 XEL 03/2015 - In production. 1398 cc 90 66
CORSA E Van 1.2 B 12 XEL 01/2015 - In production. 1229 cc 69 51
1.4 B 14 XEJ 09/2014 - In production. 1398 cc 75 55
1.4 B 14 XEL 09/2014 - In production. 1398 cc 90 66
ASTRA CLASSIC (L48) 1.4 (L48) Z 14 XEP 01/2009 - In production. 1364 cc 90 66
ASTRA CLASSIC Station wagon 1.4 (L35) Z 14 XEP 01/2009 - In production. 1364 cc 90 66
CORSA Mk III 1.2 i 16V At 12 XER 11/2006 - 08/2014 1229 cc 86 63
1.4 At 14 XER 07/2010 - 08/2014 1398 cc 101 74
1.2 LPG Z 12 XEP 09/2009 - 08/2014 1229 cc 80 59
1.2 LPG At 12 XER 08/2011 - 08/2014 1229 cc 86 63
1.4 LPG Z 14 XEP 07/2006 - 08/2014 1364 cc 90 66
CORSAVAN MK II 1.4 Z 14 XEP 11/2003 - 06/2006 1364 cc 89 66
1.2 16V Z 12 XEP 07/2004 - 11/2006 1229 cc 80 59
1.2 16V Dualfuel (F08) Z 12 XEP 07/2004 - 12/2005 1229 cc 80 59
CORSA Mk II 1.2 Twinport Z 12 XEP 07/2004 - 10/2006 1229 cc 80 59
1.4 Twinport Z 14 XEP 06/2003 - 10/2006 1364 cc 90 66
ZAFIRA Mk III (P12) 1.4 At 14 NET
B 14 NET		 10/2011 - In production. 1364 cc 140 103
ASTRA MK V Sport Hatch 1.4 i 16V Z 14 XEP 03/2005 - 11/2010 1364 cc 90 66
CORSA Mk IV (E) 1.2 B 12 XEL 08/2014 - In production. 1229 cc 69 51
1.4 B 14 XEL 08/2014 - In production. 1364 cc 90 66
1.4 B 14 IN 08/2014 - In production. 1364 cc 101 74
1.4 B 14 NEH 07/2015 - In production. 1364 cc 150 110
1.4 B 14 XEJ
B 14 XER		 09/2014 - In production. 1398 cc 75 55
55568831
55570170
 AVEO 2 volumes / Sloping tail 1.4 Turbo LUJ
LUV		 08/2013 - In production. 1364 cc 140 103
CRUZE 2 volumes / Sloping tail 1.4 LUJ 06/2012 - In production. 1362 cc 140 103
CRUZE Station Wagon (J308) 1.4 LUJ 08/2012 - In production. 1362 cc 140 103
ORLANDO 1.4 LUJ 06/2012 - In production. 1362 cc 140 103
