3/4/6 Axis USB Mach3 Motion Control Card Breakout Board 2000KHz For CNC Machine
From CN via fast shipment within one days handling time send out for you
3/4/6 Axis USB Mach3 Motion Control Card Breakout Board 2000KHz For CNC Machine
Package include:
1 x 3/4 /6 Axis Mach3 USB Card
1 x wire Cable
1 x English Manual Will send by Email.
Package features:
Parameter Description | ||
Axis Output Control: | Drive Current | Isolated open collector output:5V.20mA |
Drive | Pulse+Dirction Output | |
Output Frequency | 2000KHz | |

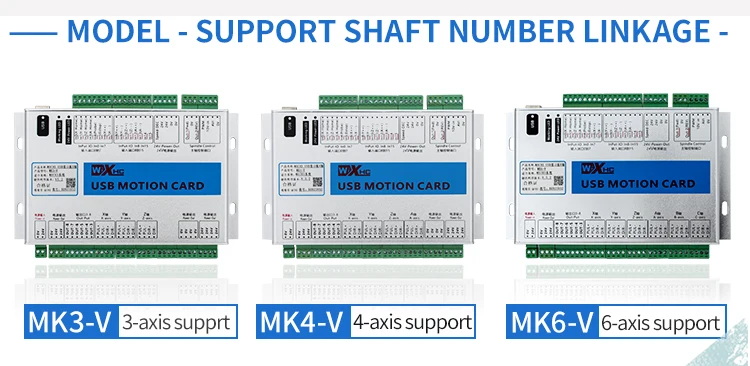

Axes | MK3-V(3 Axis);MK4-V(4 Axis);MK6-V(6 Axis) | |
Isolation Voltage | 3.5KV | |
Spindle Inverter Output: 3 Types of output modes | Analog Voltage Output | 0-10V |
PWM output | 5V.1KHz, Duty:0-100% | |
Pulse+Direction Output | 5V 15Hz to 4KHz | |
8 IO output | Drive Current | Isolation inputs, 5mA Maximum voltage 25v |
Isolation Voltage | 3.5KV | |
16 IO Input | Input Current | Isolated inputs, 5mA Maxinum Voltage 25V |
Isolation Voltage | 3.5KV | |
● Supporting Mach3 Hobby version .
● Support spindle speed feedback .
● Full support for USB hot-swappable, the card is Monitoring .
● USB connection status at any time.
● Supports Up 6-axis,support differential output Maximum step-pulse frequency is 2000KHz .
● Status indicator LED can be useful to show the USB .
● Connection, and working status by flashing. 16 general-purpose input .
● Has speed function, the spindle actual speed Mach4 .
interface in real-time display .
● All IO-port isolation , interference, stable performance.
NOTE: If the inverter is turned on, the control card is not working properly because of interference caused by the inverter; Replace inverter.

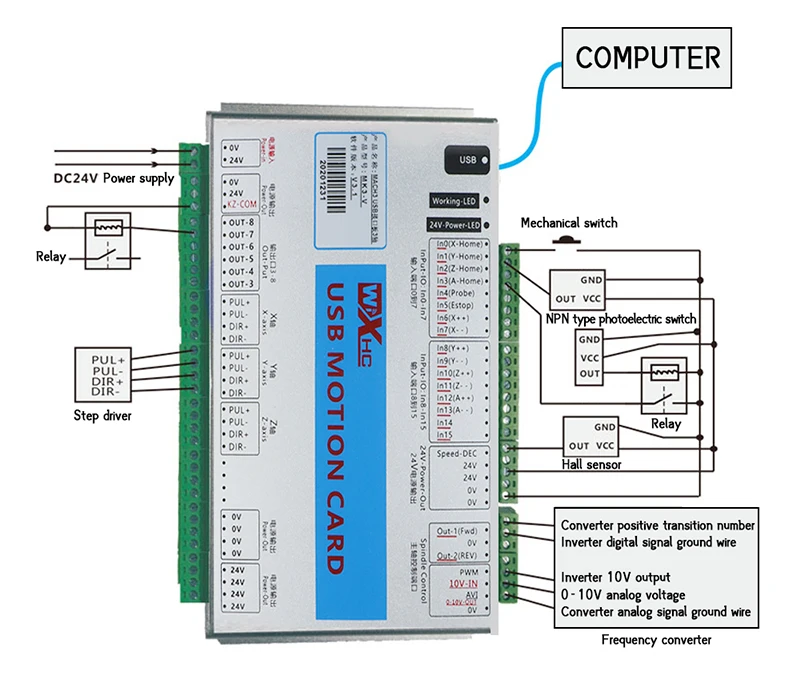

Input IO Connect Mechanical switch or NPN (PNP) Photoelectric switch Input signal must be active low.
