24 Level Adjustable Coilovers Lowering Suspension Kit For Honda Civic Si 17-21

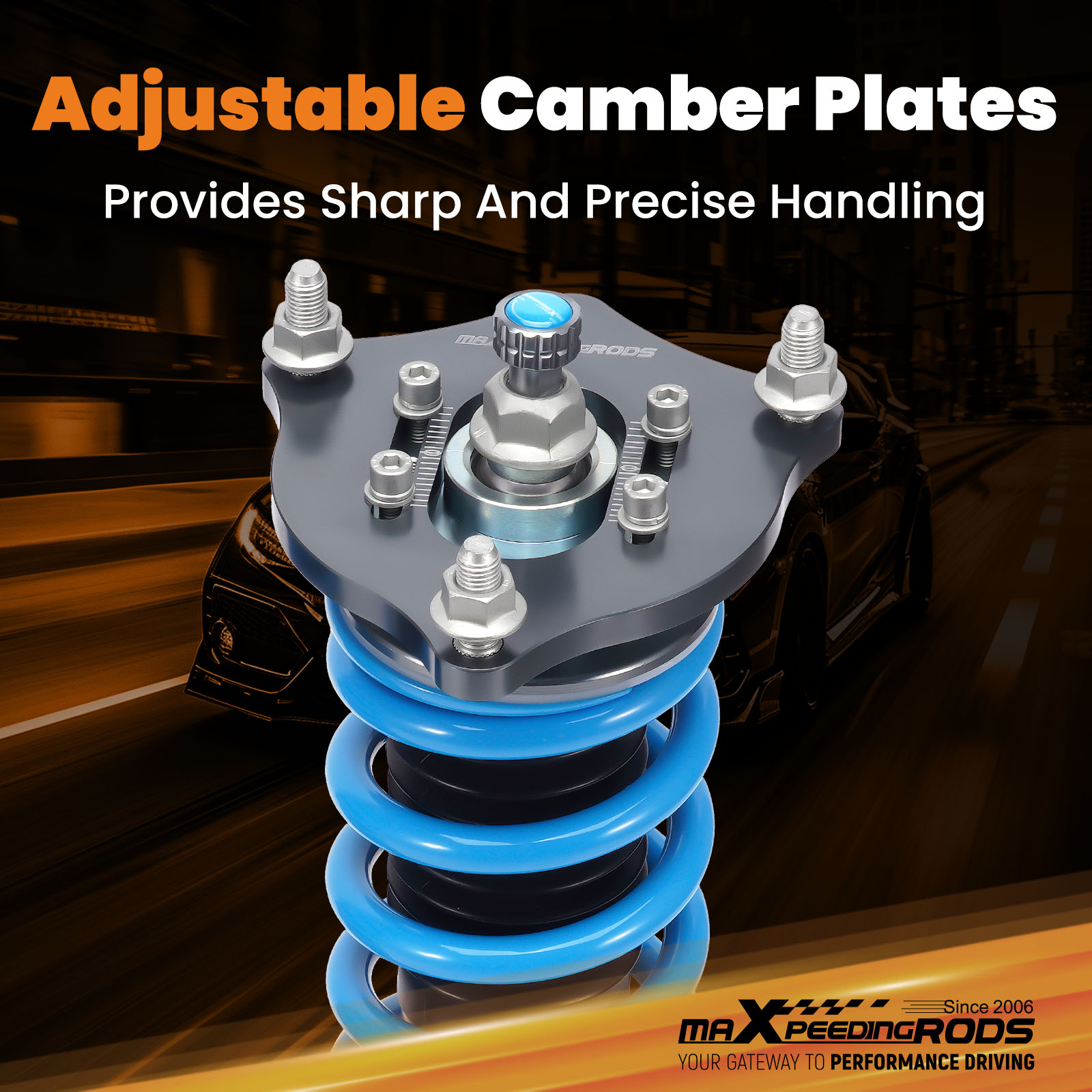

Adjustable Camber Plate with Pillow Ball Mount

Top Camber Plate with Pillow Ball Mount Provides More Precise Feel From Suspension And Steering.

Anodized Shock Body With Anti-Corrosion Coating

Manufactured From High Quality T-6061 Billet Aluminum With Anodized Finish For Superior Strength And Corrosion Protection.

Drops From 1 to 3 Inch From Factory Ride Height

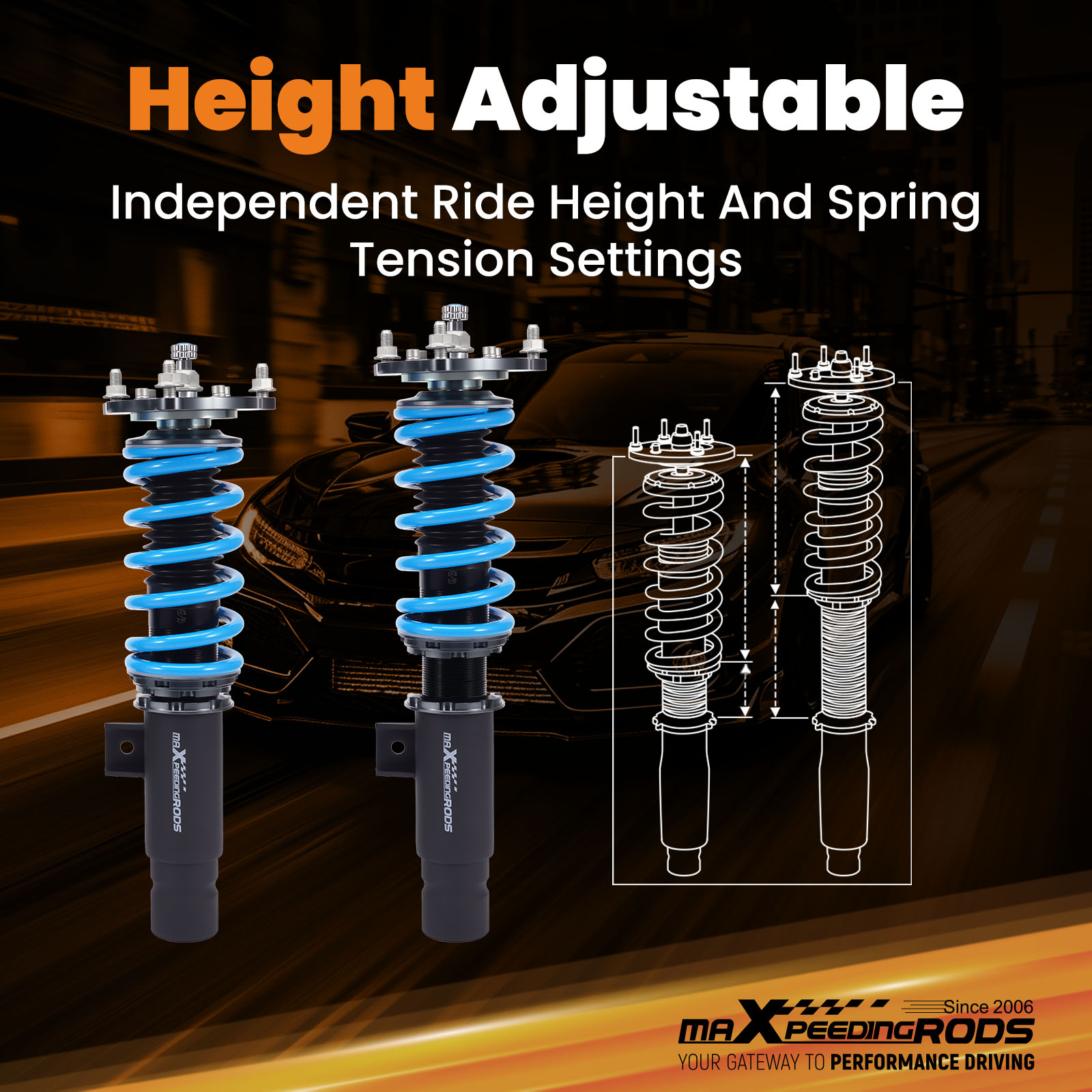

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

Durable Cold Wound Steel & Heat Treated Coils

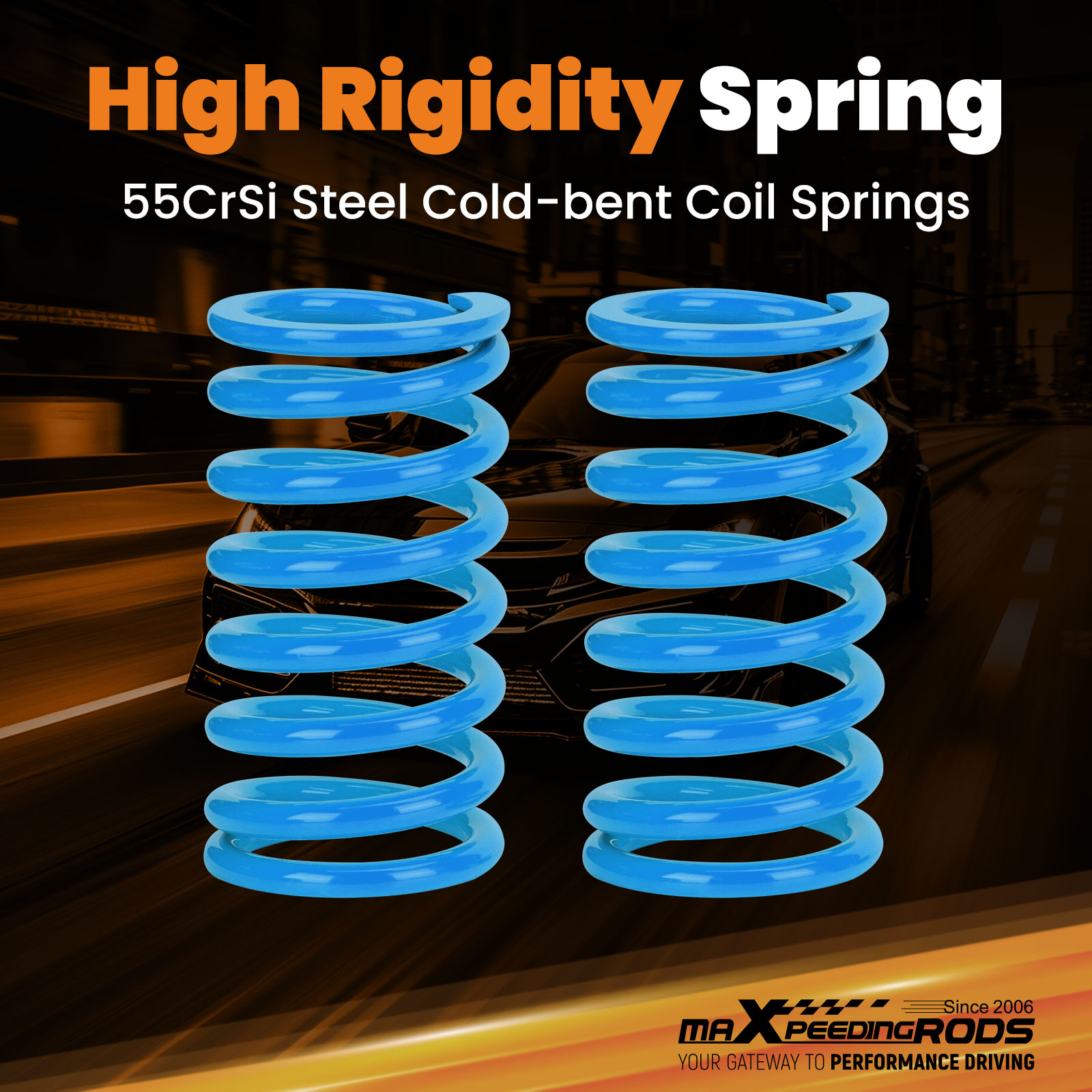

High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.

Specifications

Front Top mounts	Adjustable Camber Plate
Adjustable height	Yes, Lowering 1-3 inch
Front Spring length	180 mm
Rear Spring length	210 mm
Front spring length	6 kg/mm (336 lbs/in)
Rear spring length	6 kg/mm (336 lbs/in)
Package Including	2 Front + 2 Rear
Warranty	2 Years

Features

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
3. High Viscosity Index damper oil---make damping more stable and smooth in wide temperature range.
4. 24 Clicks of Rebound Adjustments -- This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
5. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight
6. High Rigidity 55CrSi Steel Cold-bent Coil Springs --- more than 600,000 times continuously test to assure it's high tensile strength.
7. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.
8. Top Camber Plate with Pillow Ball Mount Provides More Precise Feel From Suspension And Steering.
9. Advanced Twin-Tube Technology ---provides excellent handling & control characteristics for most driving conditions
10. Anodized Shock Body With Anti-Corrosion Coating- Anodized Aluminum And Powder Coated Carbon Steel Parts
11. Test for the best---Every parts were tested on our professional machine before assembled and tested by our professional racers on road.
12. Clean room assembled---maintain higher level of accuracy and reliability.

Application

For Honda Civic Si (FC1/FC3) 2017-2021

Fit 54mm front clamp diameter only

Specification

Front Top mounts: Pillow ball top mounts
Rear top mounts: OE top mounts reused
Damping adjustable: Available, 24 levels of rebound damping force
Camber adjustable: Not available
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Spring rate Front: 6 kg/mm (336 lbs/in)
Spring rate Rear: 6 kg/mm (336 lbs/in)
Front spring inner diameter: 62 mm
Rear spring inner diameter: 62 mm
Spring length Front: 180 mm
Spring length Rear: 210 mm
Spring Preload advised: 7-10 mm
Color: Black body with blue spring

Package included

2x Front coil-overs
2x Rear coil-overs
2x C spanners
2x Allen wrench
1x Sticker

★ 30-day Money Back & 24-Month Replacement Guarantee. Please feel free to contact us if there is any question.
