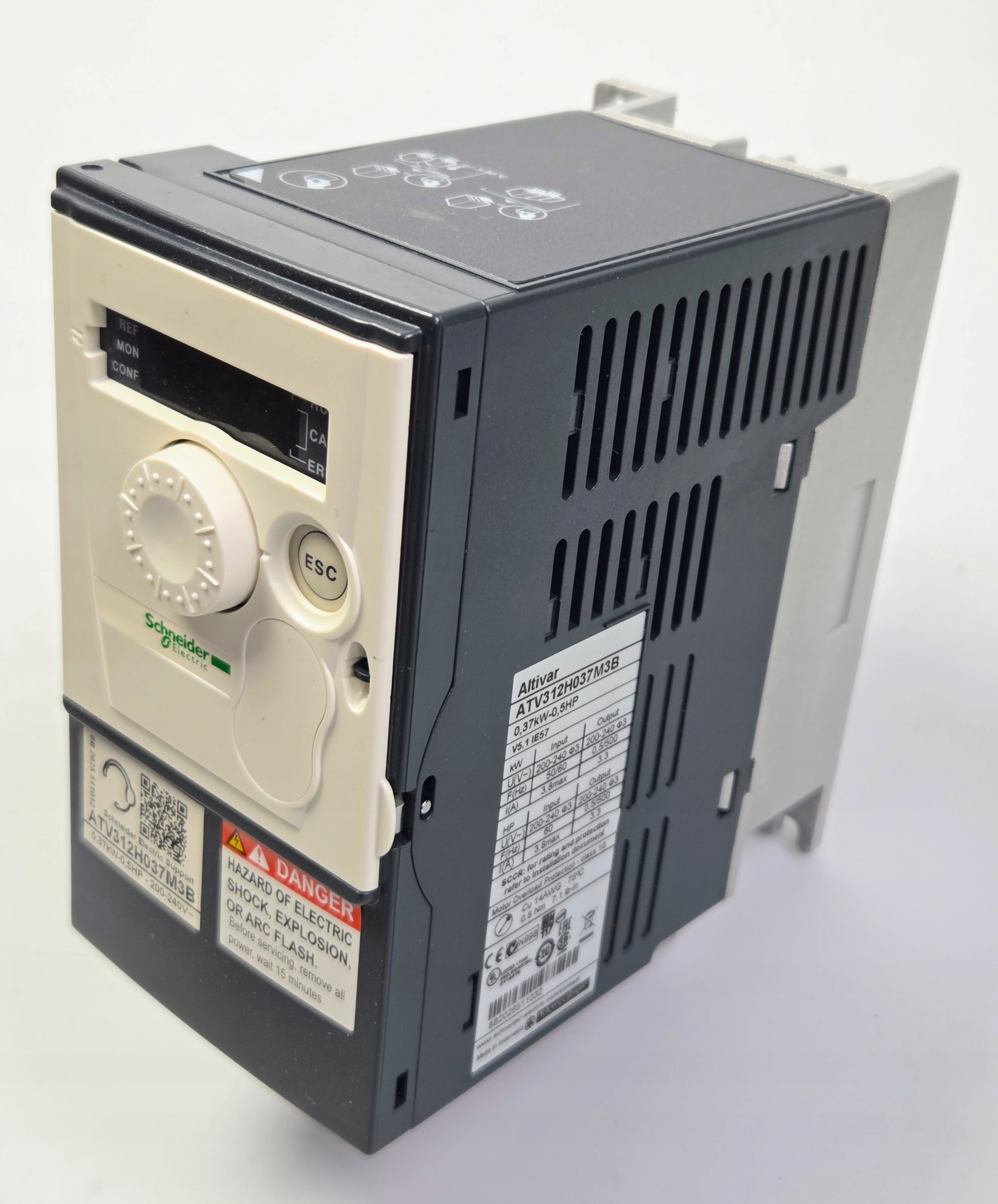

Schneider Electric Altivar 312 ATV312H037M3B - 0.37kW, 3x200-240V, CANopen/Modbus, NEW

The Schneider Electric Altivar 312 (ATV312H037M3B) is a compact variable frequency drive designed for controlling three-phase asynchronous motors up to 0.37 kW. Featuring integrated CANopen and Modbus communication protocols via a single RJ45 connector, this drive easily integrates into most automation and building management systems. Ideal for OEM machines, conveyors, packaging equipment, fans, pumps, and mixers. Coated PCBs ensure reliable operation in harsh environments up to 50°C. Brand new, unused, in original packaging.

Features:

• Brand: Schneider Electric
• Series: Altivar 312
• Model: ATV312H037M3B
• Condition: Brand New in Original Packaging
• Motor Type: Asynchronous (Induction) Motors
• Control Profile: Sensorless Flux Vector Control / Constant Torque
• Communication: CANopen + Modbus (integrated, RJ45 connector)
• EMC Filter: Without built-in EMC filter (B version)

Technical Specifications:

• Rated Power: 0.37 kW / 0.5 HP
• Input Voltage: 3x200-240 V AC
• Input Frequency: 50/60 Hz
• Output Current: 3.3 A (at 240V)
• Transient Overcurrent: 5 A for 60 seconds
• Apparent Power: 1.3 kVA
• Switching Frequency: 4 kHz
• Enclosure Rating: IP20
• Speed Range: 1:50
• Operating Temperature: 0 to 50°C (without derating)
• Digital Inputs: 6 (LI1–LI6)
• Analog Inputs: 3 (AI1, AI2, AI3)
• Relay Outputs: 2 (R1, R2)
• Analog Output: 1 (AOV/AOC)

Key Benefits:

• Integrated Communication: Built-in CANopen and Modbus protocols via RJ45 for seamless network integration without additional cards.
• Compact & Easy to Install: Side-by-side mounting capability saves panel space; intuitive interface with rotary navigation wheel.
• Harsh Environment Ready: Coated PCBs as standard (IEC 60721-3-3 classes 3C2 and 3S2) for dust and humidity protection.
• Flexible Configuration: SoMove PC software and Bluetooth mobile phone configuration support for quick commissioning.
• Comprehensive Protection: Overload, overcurrent, overvoltage, undervoltage, thermal motor protection via I²t calculation, and short-circuit detection.

Important Notes:

• VAT invoices available upon request.
• Returns accepted within 30 days; buyer pays return shipping.
