From CN via fast shipment within one days handling time delivery for you
Package include:
1 x 3D Precision Tool Setting MF60
Name：3D Light Edge Finder
Model：MF60
Color：gray-green, gray-red, gold-green, gold-redProbe
Material：Tungsten Steel
Body Material：Aluminum Alloy
Measuring accuracy：＜0.01mm
Repeatability：＜0.01mm
Probe direction：±X±Y +Z
Probe safety stroke：XY±15º, Z+5mm
Power supply：Built-in battery 1616 (3.6v)
Trigger life：5,000,000 times
Usage range：Metal

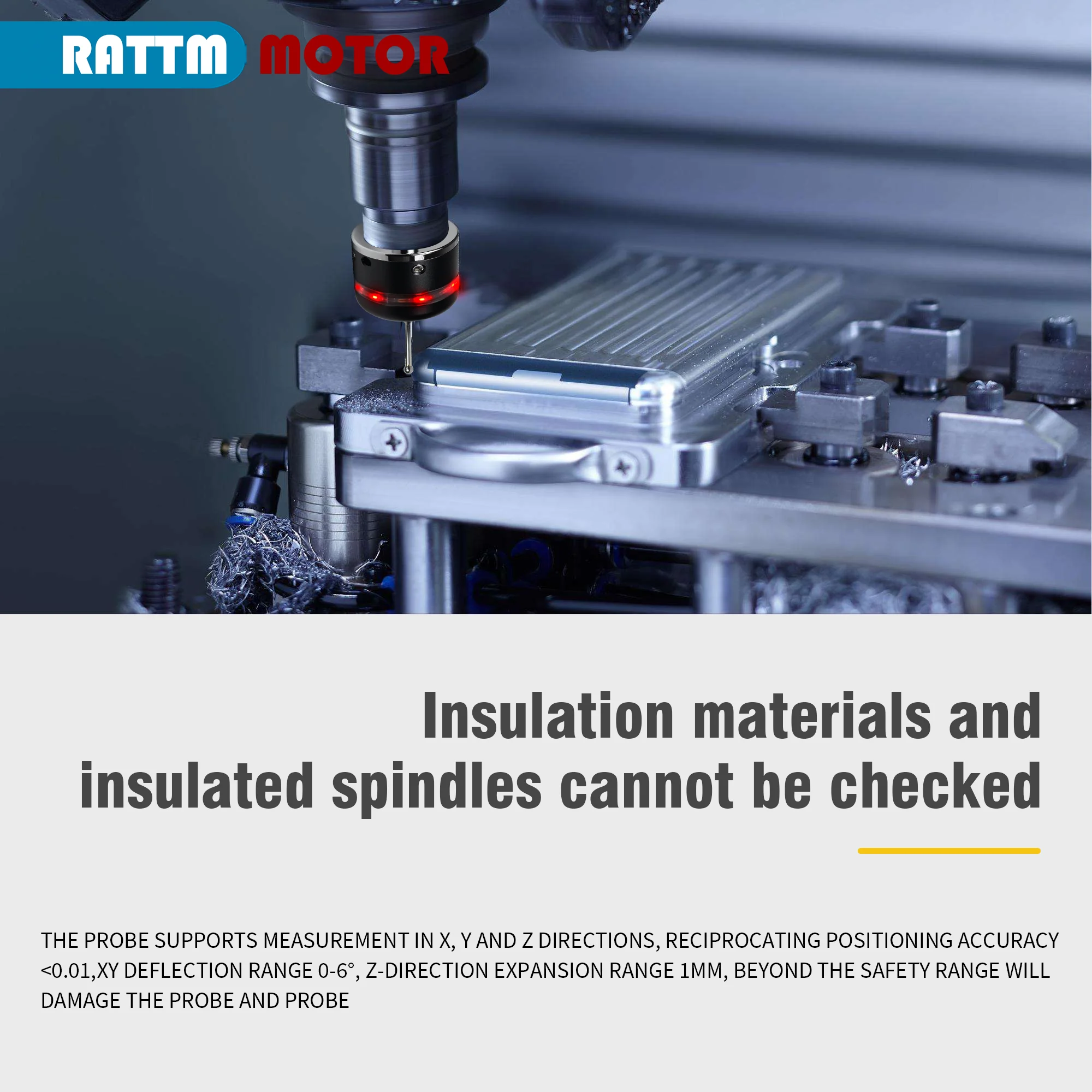

Pls Note: It does not support the detection of insulating materials and insulating spindle.
New 3D photoelectric edge finder, aluminum alloy shell, four colors are optional, two light colors are optional.
Fully polished tungsten steel probe, repetitive positioning 0.01mm, Z-direction travel 5mm, XY swing about 15 degrees.Ball diameter 4mm, length 42mm.
How to use
1.The probe is clamped to the machine spindle by means of a tool holder, slightly loosened. Two fastening screws opposite each other at the bottom adjust the four symmetrical adjustment tops on the sides.
The ball end of the wire adjustment probe coincides with the center of the spindle.
2.There is no need to rotate the spindle when measuring alignment, and the alignment measurement allows the probe to rotate 180° for more accurate measurement.
3.The probe supports X, Y, Z three-direction measurement, reciprocating positioning accuracy ≤ 0.01, XY deflection range 0-6 °, Z-direction telescoping range of 1mm, beyond the safety range will damage the probe and the probe.
4.Probe built-in two CR16163V lithium button batteries, insufficient to loosen the fastening screws to adjust the top line, remove the top cover to replace, replace the battery positive and negative, and readjust the probe center position setting after replacement.
5.The side head does not support the detection of insulating materials and insulating bed.
6.The probe head supports dust and a small amount of dripping and waterproof, long time without dripping and flushing.
