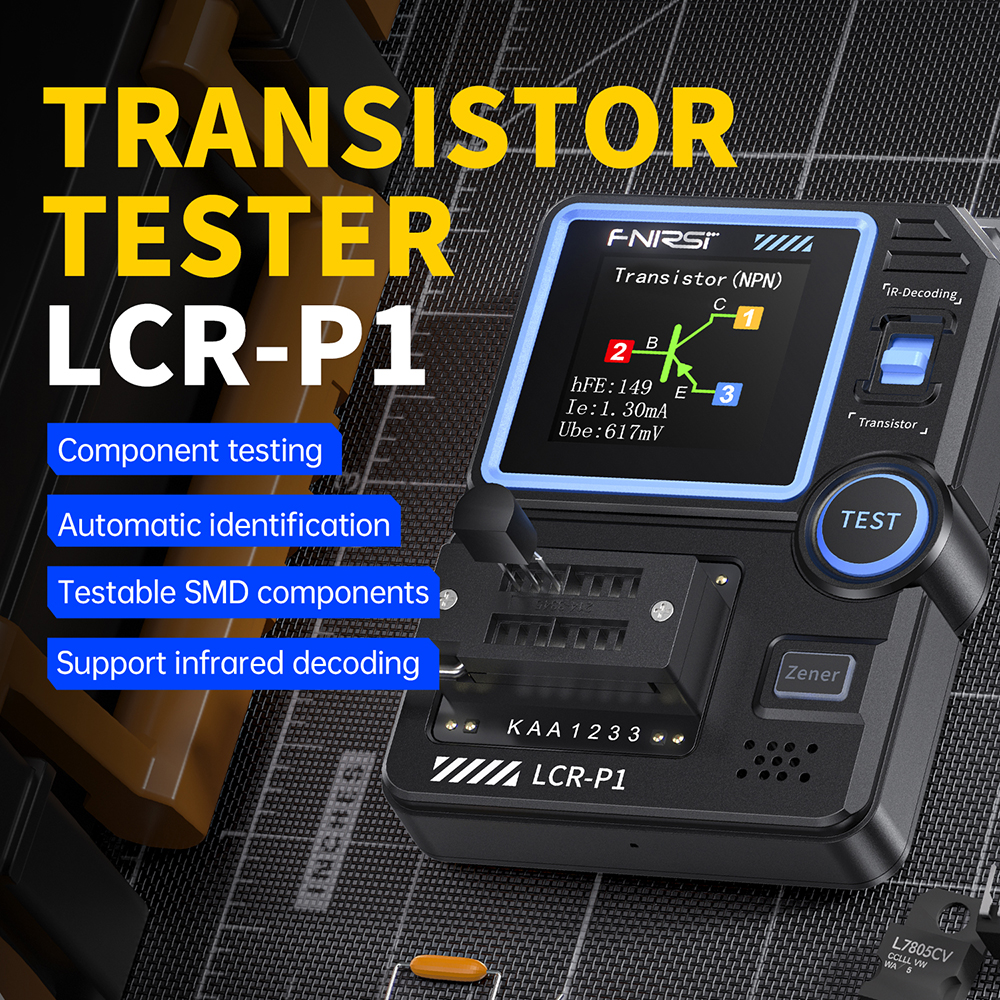

FNIRSI LCR-P1
Features
1. Accurate control: the use of independent measurement channel design, specifically tailored for the voltage regulator diode can be measured in the range of 0.01-32V, power supply before measurement, so that accurate measurement at your fingertips!
2. Anti-burn protection guards each measurement: undischarged capacitors in the insertion of the locking moment the machine will be discharged to the capacitor, humanized protection mechanism, anti-burn meter.
3. Replaceable patch holders for arbitrary measurement: incorporating the function of replaceable patch holders to easily cope with a variety of testing needs, enjoy the unprecedented ease and efficiency!
4. Accurate decoding: support NRC infrared signal decoding, easy to test the remote control.
5... Efficient detection and intelligent identification: gently plug a clip, a key to quickly identify the device parameters, saving time and effort.
6. Wide range of applications to meet different testing needs: product development, home appliance repair, educational institutions, scientific research experiments, etc.
2. Anti-burn protection guards each measurement: undischarged capacitors in the insertion of the locking moment the machine will be discharged to the capacitor, humanized protection mechanism, anti-burn meter.
3. Replaceable patch holders for arbitrary measurement: incorporating the function of replaceable patch holders to easily cope with a variety of testing needs, enjoy the unprecedented ease and efficiency!
4. Accurate decoding: support NRC infrared signal decoding, easy to test the remote control.
5... Efficient detection and intelligent identification: gently plug a clip, a key to quickly identify the device parameters, saving time and effort.
6. Wide range of applications to meet different testing needs: product development, home appliance repair, educational institutions, scientific research experiments, etc.
Specification
Product Model: LCR-P1
Display: 1.44 inch
Battery capacity: 300mAH lithium battery (built-in lithium battery)
Charging specifications: USBType-C, 5V/1A
Product Model: LCR-P1
Display: 1.44 inch
Battery capacity: 300mAH lithium battery (built-in lithium battery)
Charging specifications: USBType-C, 5V/1A
Technical parameters
Triode:
Range: 10<β<600
Description: amplification hfe,base-emitter voltage Ube,Ic/le,collector-emitter reverse cutoff current lceo,lces,protection diode forward voltage drop Uf
Triode:
Range: 10<β<600
Description: amplification hfe,base-emitter voltage Ube,Ic/le,collector-emitter reverse cutoff current lceo,lces,protection diode forward voltage drop Uf
diode:
Range: forward voltage drop <4.5V
Description: forward voltage drop,junction capacitance,reverse leakage current
Range: forward voltage drop <4.5V
Description: forward voltage drop,junction capacitance,reverse leakage current
Voltage regulator diode:
Range: 0.01-4.5V , 0.01-32V
Description: (1-2-3 test area) forward voltage drop, reverse breakdown voltage, (K-A-A test area) reverse breakdown voltage
Range: 0.01-4.5V , 0.01-32V
Description: (1-2-3 test area) forward voltage drop, reverse breakdown voltage, (K-A-A test area) reverse breakdown voltage
Field Effect Tube:
Range: JFET, IGBT, MIOSTET
Description：Gate Capacitance Cg,Drain Current ld under Vgs,Protection Diode Forward Voltage Drop Uf,Drain Current ld under Vgs,Protection Diode Forward Voltage Drop Uf,Turn-On Voltage Vt,Gate Capacitance Cg,Drain-Source Resistance Rds,Protection Diode Forward Voltage Drop Uf
Range: JFET, IGBT, MIOSTET
Description：Gate Capacitance Cg,Drain Current ld under Vgs,Protection Diode Forward Voltage Drop Uf,Drain Current ld under Vgs,Protection Diode Forward Voltage Drop Uf,Turn-On Voltage Vt,Gate Capacitance Cg,Drain-Source Resistance Rds,Protection Diode Forward Voltage Drop Uf
Unidirectional thyristor/bidirectional thyristor:
Range: turn-on voltage <5V (unidirectional SCR), gate trigger current <6mA (bi-directional SCR)
Description: Gate Voltage
Range: turn-on voltage <5V (unidirectional SCR), gate trigger current <6mA (bi-directional SCR)
Description: Gate Voltage
Capacitance:
Range: 25pF~100mF
Description: capacitance value, loss factor Vloss, internal resistance ESR
Range: 25pF~100mF
Description: capacitance value, loss factor Vloss, internal resistance ESR
Resistor:
Range: 0.01Ω~50MΩ
Description：Resistance value
Range: 0.01Ω~50MΩ
Description：Resistance value
Inductance:
Range: 10uH-1000uH
Description：Inductance,DC resistance
Range: 10uH-1000uH
Description：Inductance,DC resistance
Battery:
Range: 0.1-4.5V
Description：Voltage, Positive and negative polarity
Range: 0.1-4.5V
Description：Voltage, Positive and negative polarity
Infrared remote control decoding:
Range: NEC protocol infrared code
Description：Display user code and data code, and display the corresponding infrared waveforms
Range: NEC protocol infrared code
Description：Display user code and data code, and display the corresponding infrared waveforms

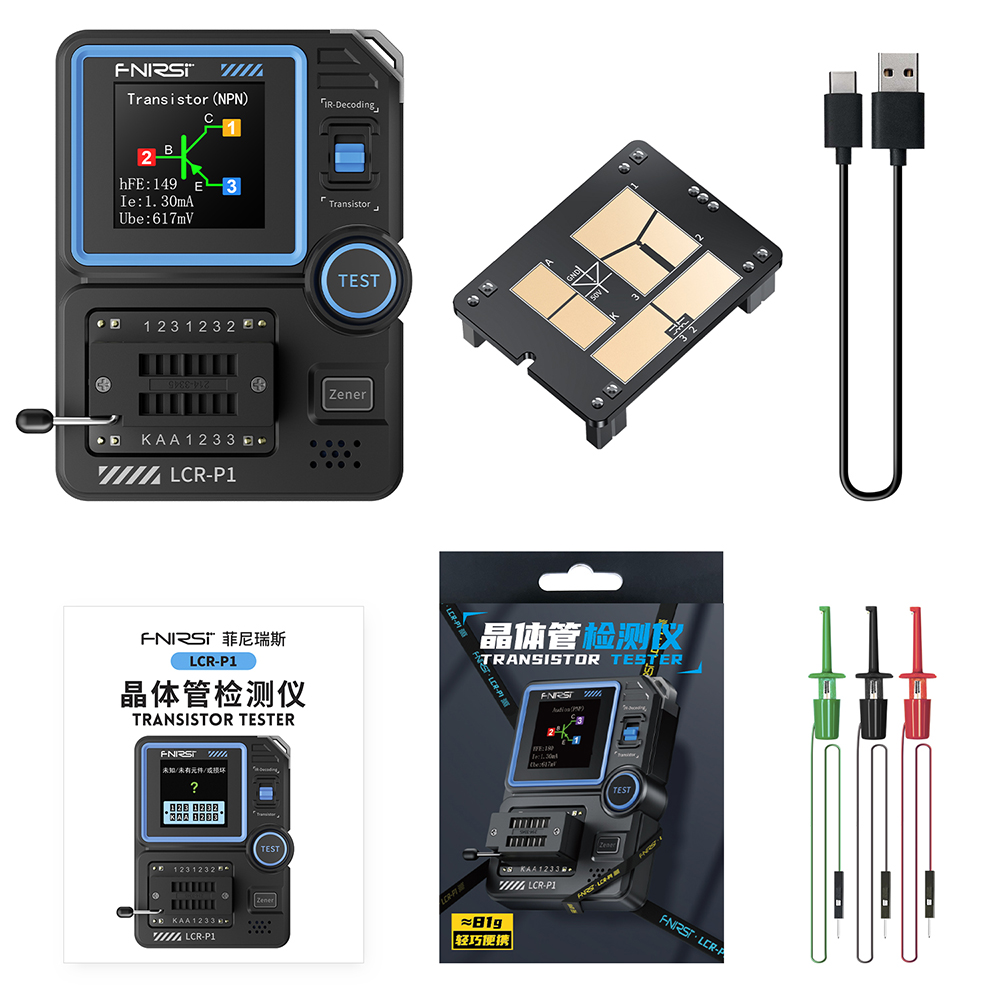

List
1 x Tester
1 x Instruction manual
1 x Type-C USB cable
1 x Featured Test Plate
3 x Test Hook
1 x Tester
1 x Instruction manual
1 x Type-C USB cable
1 x Featured Test Plate
3 x Test Hook

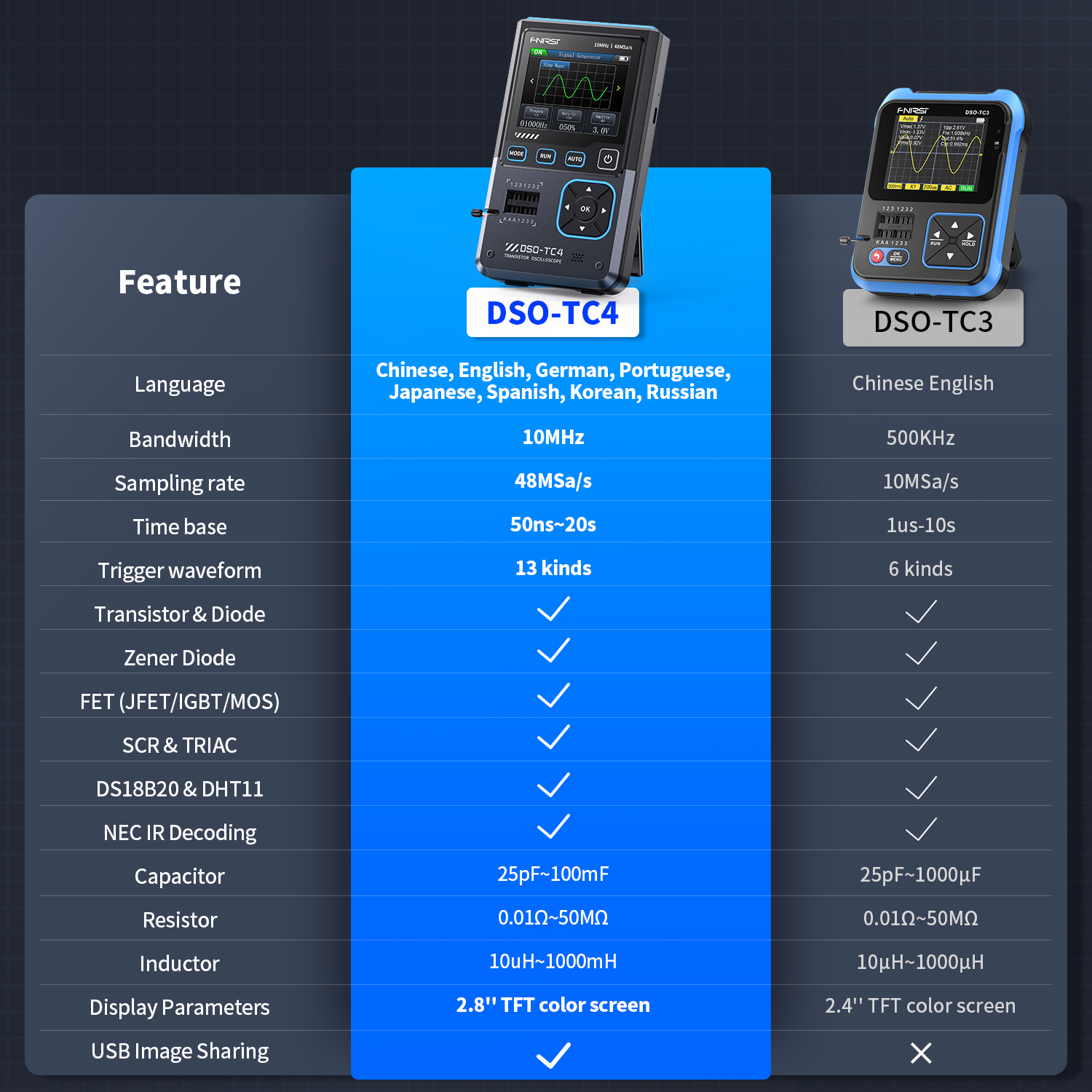

FNIRSI DSO-TC4
Features
1.USB computer data transfer: picture data transfer to the computer, data analysis more simple
2. High-performance digital oscilloscope: 10MHz bandwidth 48MSa/s sampling rate
3.Multi-functional 3-in-1: Oscilloscope + transistor detector + signal generator for multiple uses
4. Equipped with 2.8-inch TFT color screen, clear and intuitive picture
5.Efficient measurement: automatically identify the type and pin arrangement of the component under test, simplify the operation process and improve test efficiency.
1.USB computer data transfer: picture data transfer to the computer, data analysis more simple
2. High-performance digital oscilloscope: 10MHz bandwidth 48MSa/s sampling rate
3.Multi-functional 3-in-1: Oscilloscope + transistor detector + signal generator for multiple uses
4. Equipped with 2.8-inch TFT color screen, clear and intuitive picture
5.Efficient measurement: automatically identify the type and pin arrangement of the component under test, simplify the operation process and improve test efficiency.
Specification
Language: Chinese, English, German, Portuguese, Japanese, Spanish, Russian, Korean
Bandwidth: 10MHZ
Sampling rate: 48Msa/s
Time base: 50ns~20s
Trigger waveform: 13 kinds
Transistor & Diode: √
Voltage regulator diode: √
Field Effect Tube(JFET/IGBT/MOS):√
Unidirectional Thyristor& Bidirectional Thyristor：√

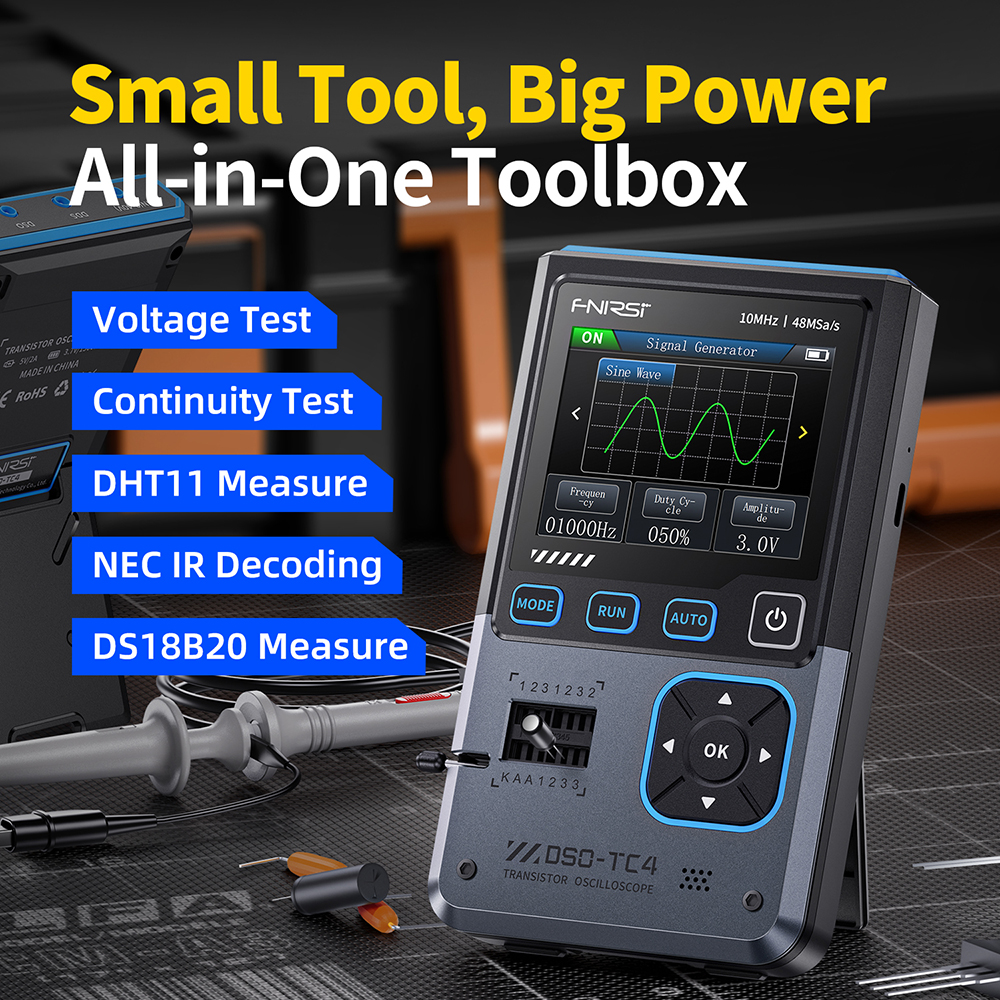

DS18B20& DHT11：√
Infrared decoding：√
Anti-burn-in: √
USB Sharing: √
Capacitance: 25pF~1000uF
Resistance: 0.01Ω~50MΩ
Inductance: 10uH~1000uH
Screen: 2.8-inch TFT color screen
Interface: Type C
Battery: 1500mAh lithium battery
Language: Chinese, English, German, Portuguese, Japanese, Spanish, Russian, Korean
Bandwidth: 10MHZ
Sampling rate: 48Msa/s
Time base: 50ns~20s
Trigger waveform: 13 kinds
Transistor & Diode: √
Voltage regulator diode: √
Field Effect Tube(JFET/IGBT/MOS):√
Unidirectional Thyristor& Bidirectional Thyristor：√
DS18B20& DHT11：√
Infrared decoding：√
Anti-burn-in: √
USB Sharing: √
Capacitance: 25pF~1000uF
Resistance: 0.01Ω~50MΩ
Inductance: 10uH~1000uH
Screen: 2.8-inch TFT color screen
Interface: Type C
Battery: 1500mAh lithium battery

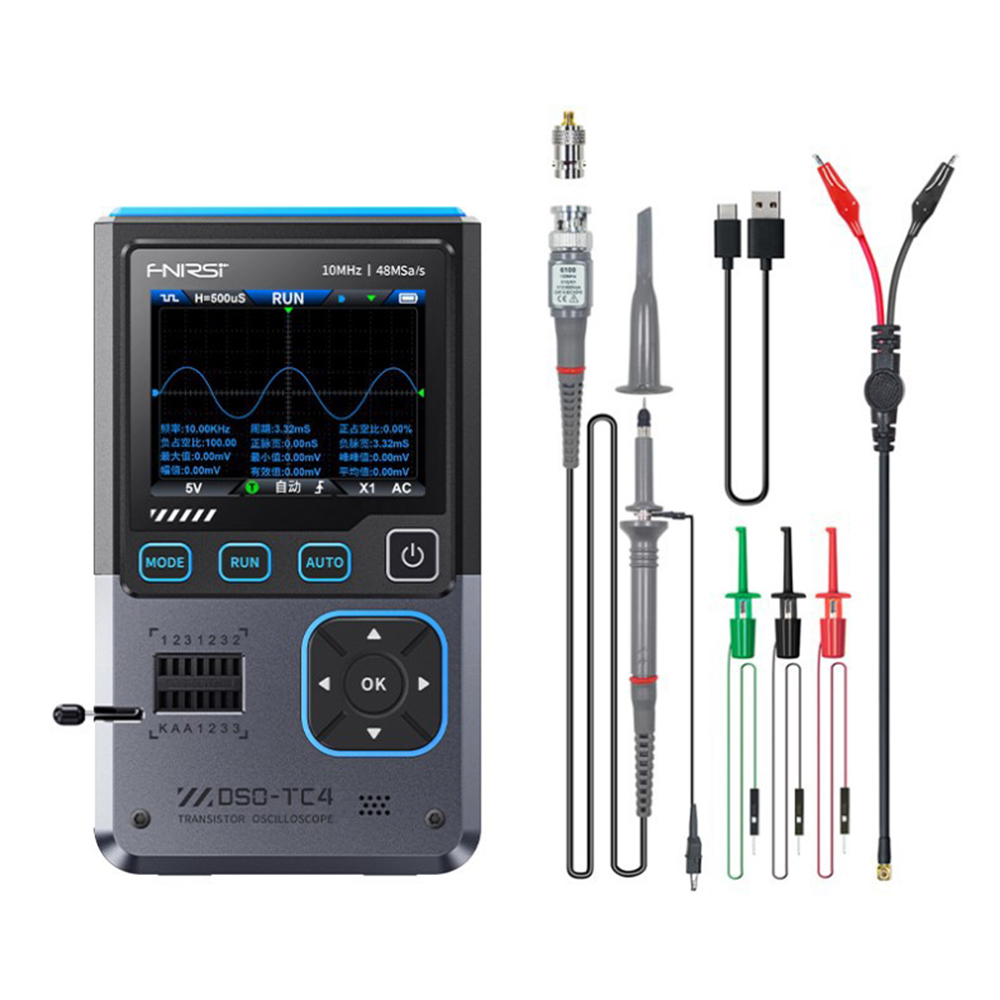

Package Includes
1 x Tester
1 x Instruction manual
1 x Adaptor
1 x P1600 Oscilloscope Probe
1 x USB-C Charging Cable
1 x Normal Probe
3 x Test Hook
1 x Tester
1 x Instruction manual
1 x Adaptor
1 x P1600 Oscilloscope Probe
1 x USB-C Charging Cable
1 x Normal Probe
3 x Test Hook

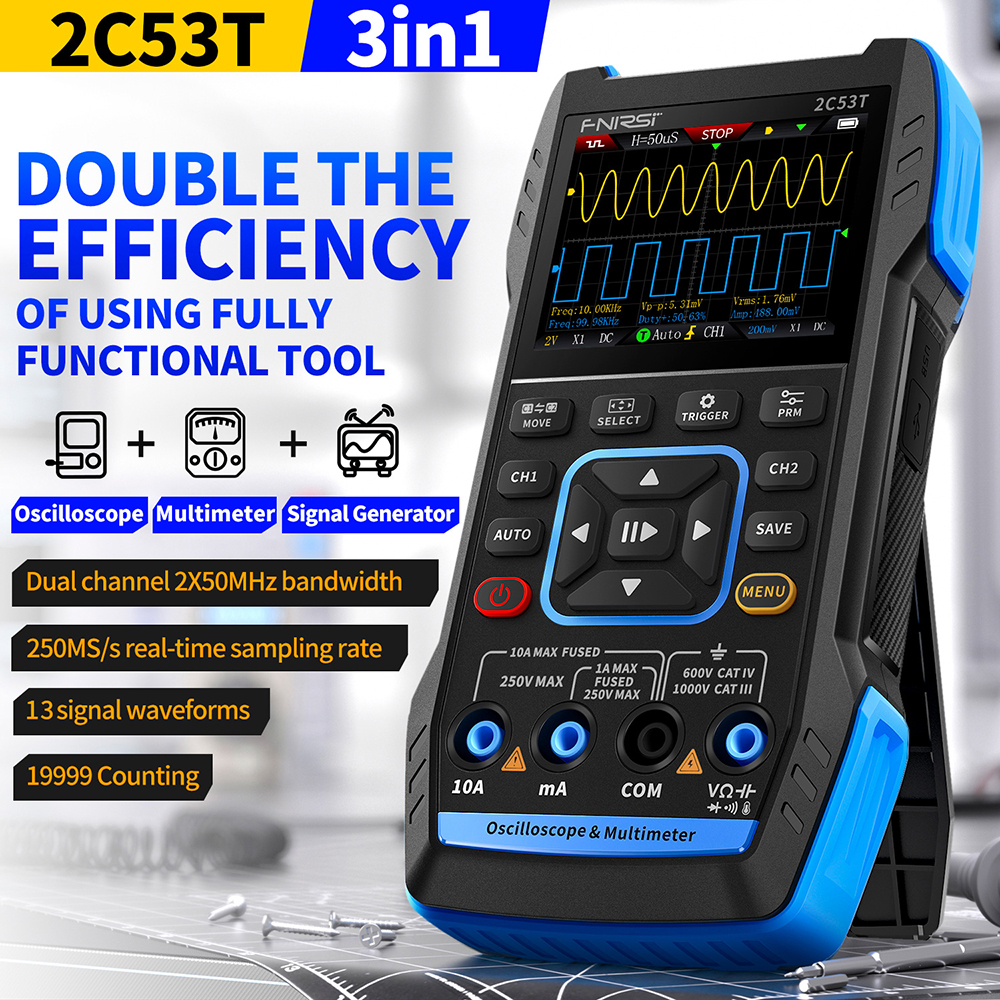

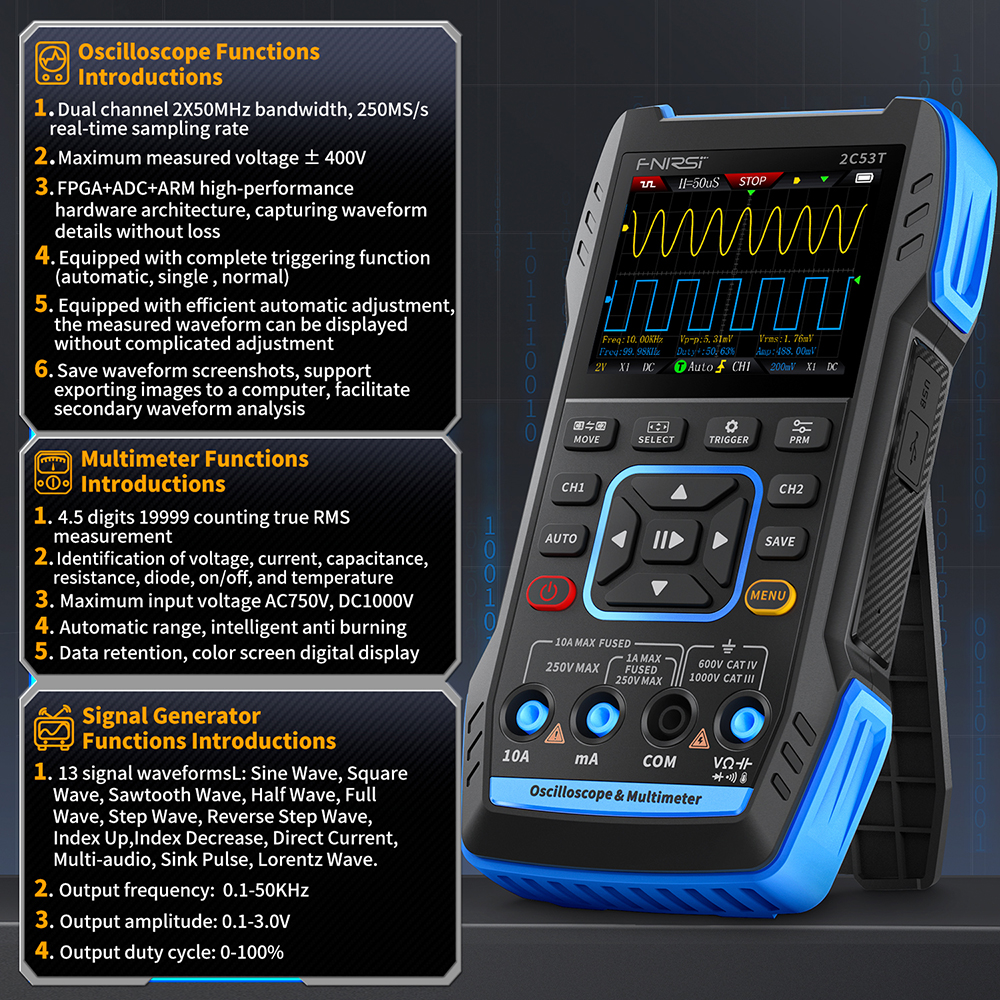

FNIRSI 2C53T
Features
1.4 half-true rms: 4 half-true rms voltage measurement, accurate measurement and fast response speed
2.Intelligent anti-burning wrong file without burning the table: intelligent anti-burning with overload protection internal resistance double fuse, anti-burning table is safer.
3. Function signal generator: can output sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive step wave, anti-step wave, exponential rise, exponential fall, DC signals, multi-audio, Sink pulse, Lorentz wave 13 kinds of signals, stable and reliable, high output accuracy.
4. Automatic shutdown, high efficiency and long battery life: built-in 3000mAh high-capacity rechargeable lithium battery with automatic shutdown time setting 6 hours of long battery life, accompanied by your work all day!
5. Wide range of accurate measurements: PWM pulse measurement, power supply ripple measurement, crystal measurement, utility measurement.
2.Intelligent anti-burning wrong file without burning the table: intelligent anti-burning with overload protection internal resistance double fuse, anti-burning table is safer.
3. Function signal generator: can output sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive step wave, anti-step wave, exponential rise, exponential fall, DC signals, multi-audio, Sink pulse, Lorentz wave 13 kinds of signals, stable and reliable, high output accuracy.
4. Automatic shutdown, high efficiency and long battery life: built-in 3000mAh high-capacity rechargeable lithium battery with automatic shutdown time setting 6 hours of long battery life, accompanied by your work all day!
5. Wide range of accurate measurements: PWM pulse measurement, power supply ripple measurement, crystal measurement, utility measurement.
Basic Parameters
Screen: 2.8 inch true color screen
Resolution: 320 * 240
Charging: Type-C (5V/1A)
Battery: 3000mAh lithium battery

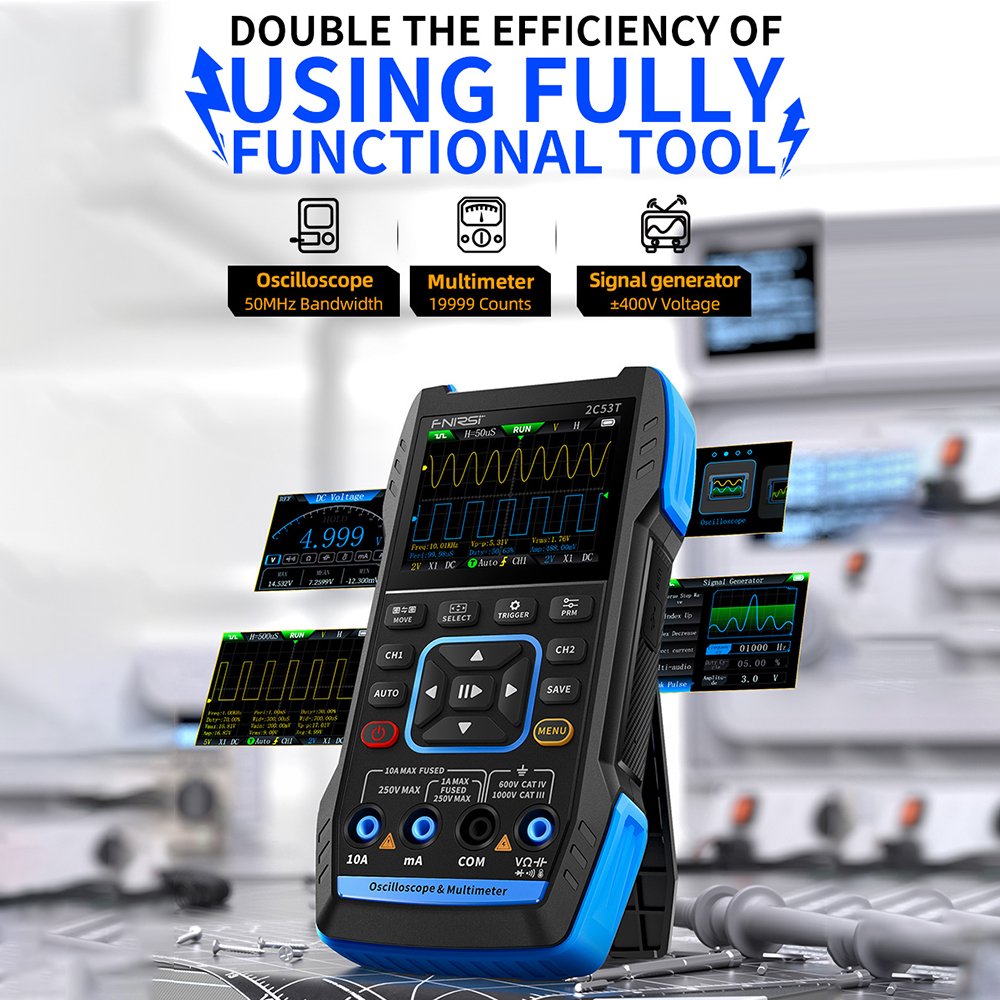

Support functions: oscilloscope, signal generator, digital multimeter (see function parameters)
Standby time: 6 hours (laboratory theory maximum)
Screen: 2.8 inch true color screen
Resolution: 320 * 240
Charging: Type-C (5V/1A)
Battery: 3000mAh lithium battery
Support functions: oscilloscope, signal generator, digital multimeter (see function parameters)
Standby time: 6 hours (laboratory theory maximum)

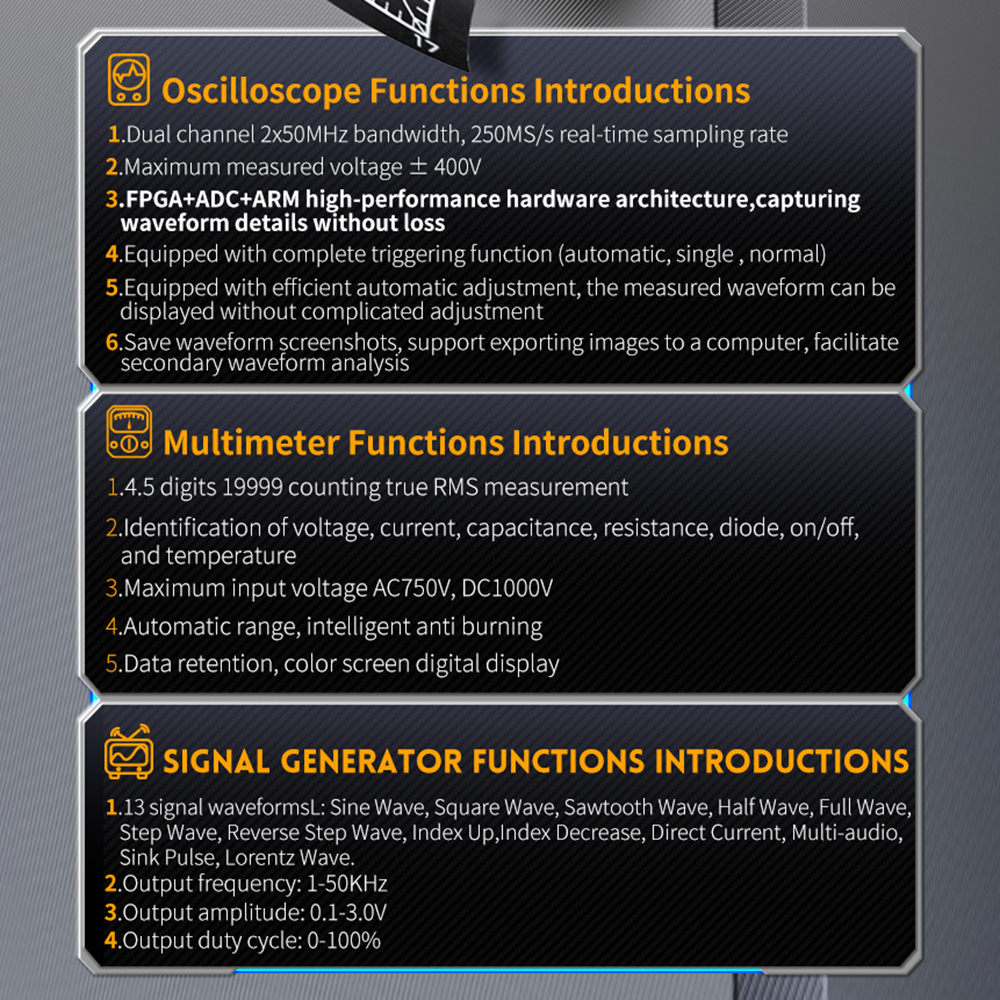

Oscilloscope Parameters

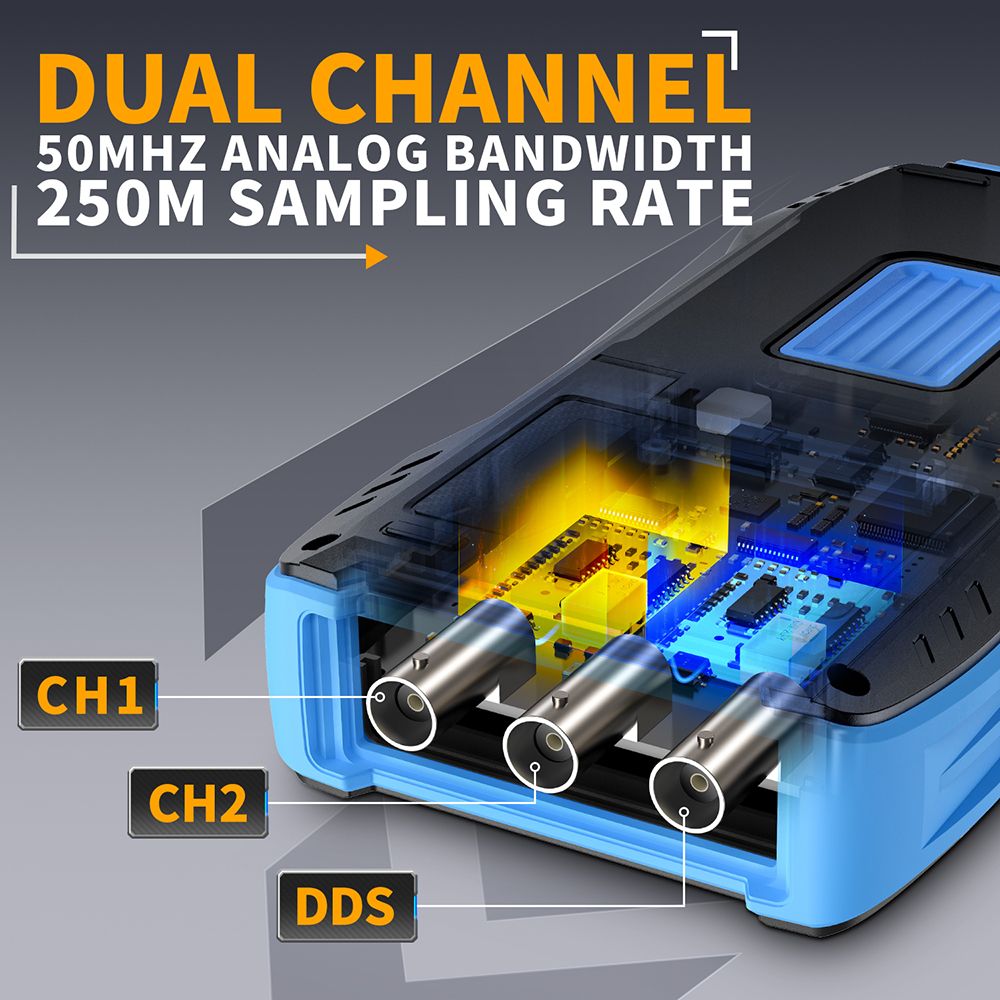

Channel: dual-channel
Sampling rate: 250MS / s
Analog bandwidth: 50M (dual-channel independent 50M)
Input impedance: 1MΩ
Time base range: 10ns-20s
Vertical sensitivity: 10mV/div-10V/div (X1 gear)
Maximum measurement voltage: ±400V
Trigger mode: automatic, normal, single
Trigger type: rising edge, falling edge

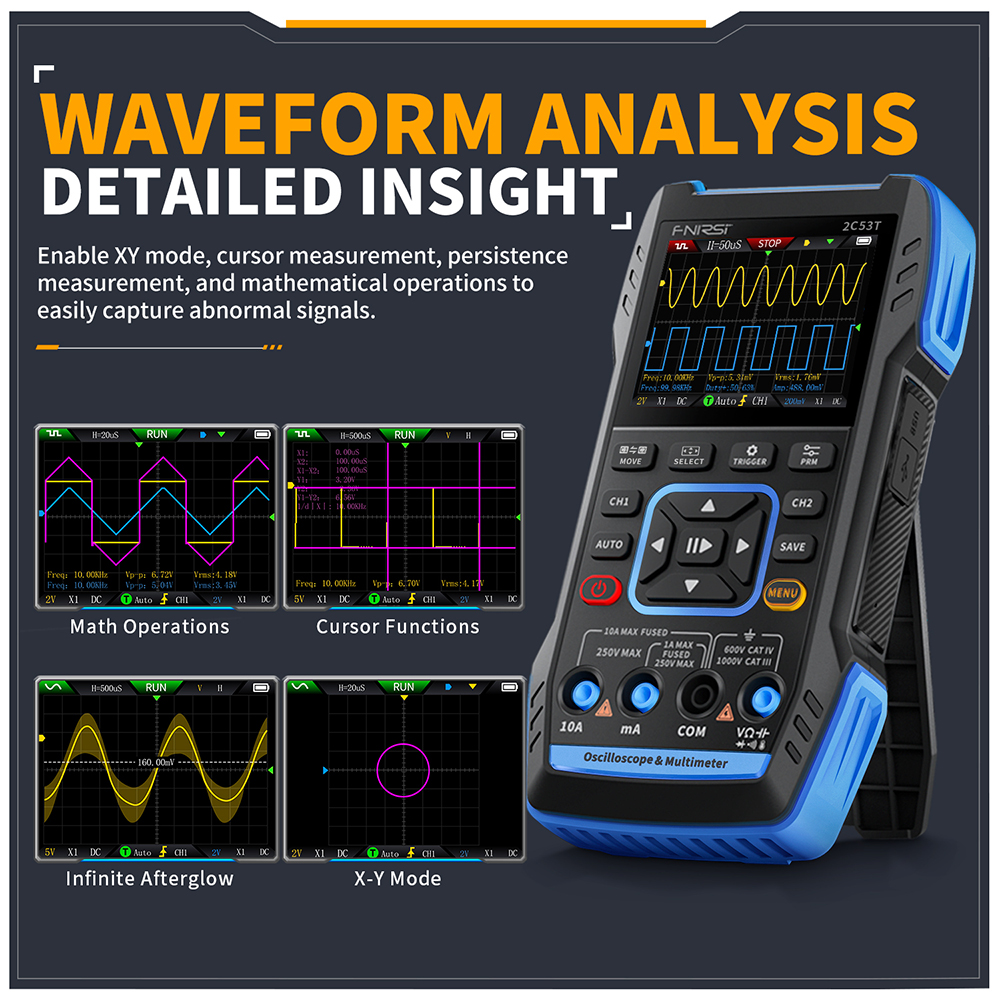

Display Mode: Y-T/Scroll/X-Y
Coupling: AC/DC
Afterglow: OFF, 500ms, 1s, ∞
Arithmetic: 8 kinds of basic arithmetic + FFT arithmetic
Waveform Screenshot Saving: √
Export waveform image: √
Cursor Measurement: √
Channel: dual-channel
Sampling rate: 250MS / s
Analog bandwidth: 50M (dual-channel independent 50M)
Input impedance: 1MΩ
Time base range: 10ns-20s
Vertical sensitivity: 10mV/div-10V/div (X1 gear)
Maximum measurement voltage: ±400V
Trigger mode: automatic, normal, single
Trigger type: rising edge, falling edge
Display Mode: Y-T/Scroll/X-Y
Coupling: AC/DC
Afterglow: OFF, 500ms, 1s, ∞
Arithmetic: 8 kinds of basic arithmetic + FFT arithmetic
Waveform Screenshot Saving: √
Export waveform image: √
Cursor Measurement: √
Function Signal Generator Parameters
Channel: single channel
Frequency: 1Hz-50KHz
Amplitude: 0.1-3V
Channel: single channel
Frequency: 1Hz-50KHz
Amplitude: 0.1-3V
Multimeter Parameters
DC voltage: range 1.9999V/19.999V/199.99V/1000V, accuracy ± (0.5%+3)
AC voltage: range 1.9999V/19.999V/199.99V/750.0V, accuracy ± (1% +3)
DC current: range 19.999mA/199.99mA/1.9999A/9.999A, accuracy ±(1.2%+3)
AC Current: Range 19.999mA/199.99mA/1.9999A/9.999A, Accuracy ±(1.5%+3)
Resistance: Range 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ, accuracy ±(0.5%+3)
Range 1.9999K2/199.990, accuracy ±(2.0%+3)
Capacitance: Range 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF, Accuracy ±(2.0%+5)
Range 9.999mF/99.99mF, accuracy ±(5.0%+20)
Temperature: Range (-55~1300℃)/(-67~2372℉), Accuracy ±(2.5%+5)
Diode: √
On-off: √
DC voltage: range 1.9999V/19.999V/199.99V/1000V, accuracy ± (0.5%+3)
AC voltage: range 1.9999V/19.999V/199.99V/750.0V, accuracy ± (1% +3)
DC current: range 19.999mA/199.99mA/1.9999A/9.999A, accuracy ±(1.2%+3)
AC Current: Range 19.999mA/199.99mA/1.9999A/9.999A, Accuracy ±(1.5%+3)
Resistance: Range 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ, accuracy ±(0.5%+3)
Range 1.9999K2/199.990, accuracy ±(2.0%+3)
Capacitance: Range 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF, Accuracy ±(2.0%+5)
Range 9.999mF/99.99mF, accuracy ±(5.0%+20)
Temperature: Range (-55~1300℃)/(-67~2372℉), Accuracy ±(2.5%+5)
Diode: √
On-off: √

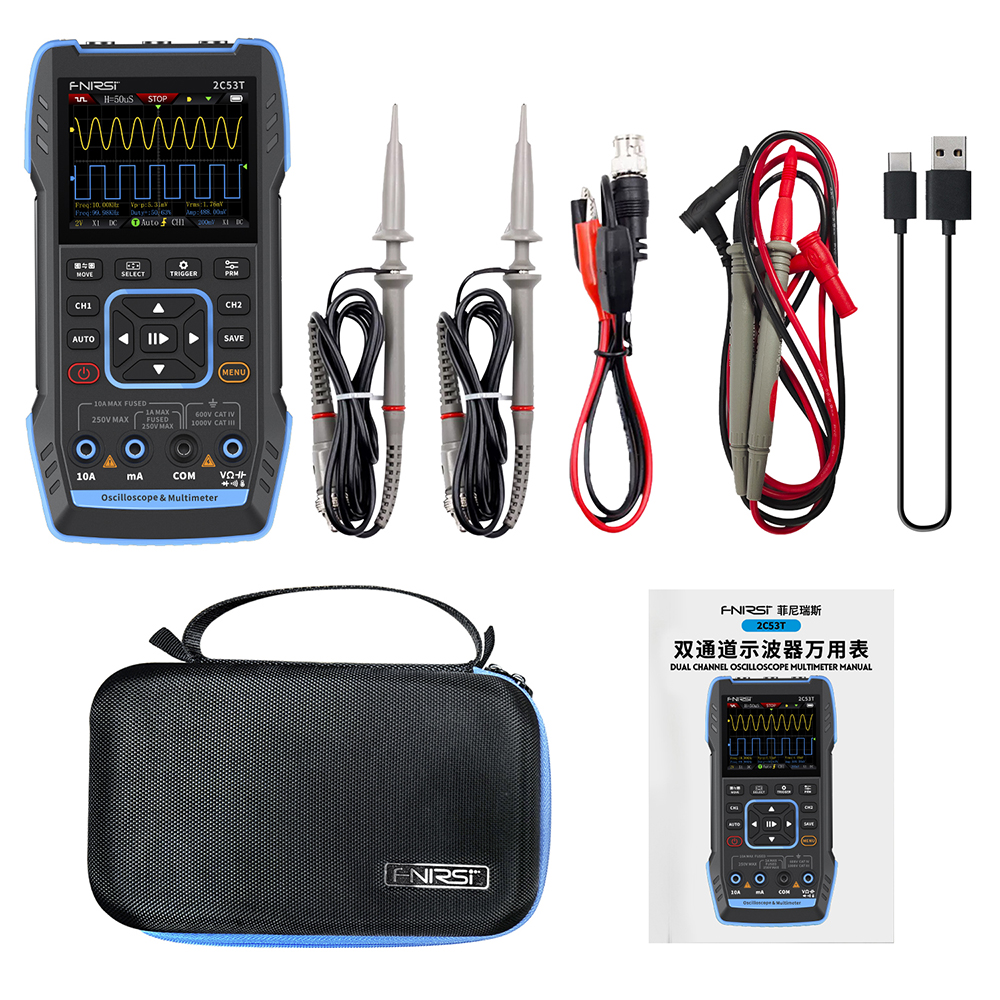

Package Includes
View images according to your choice.
View images according to your choice.

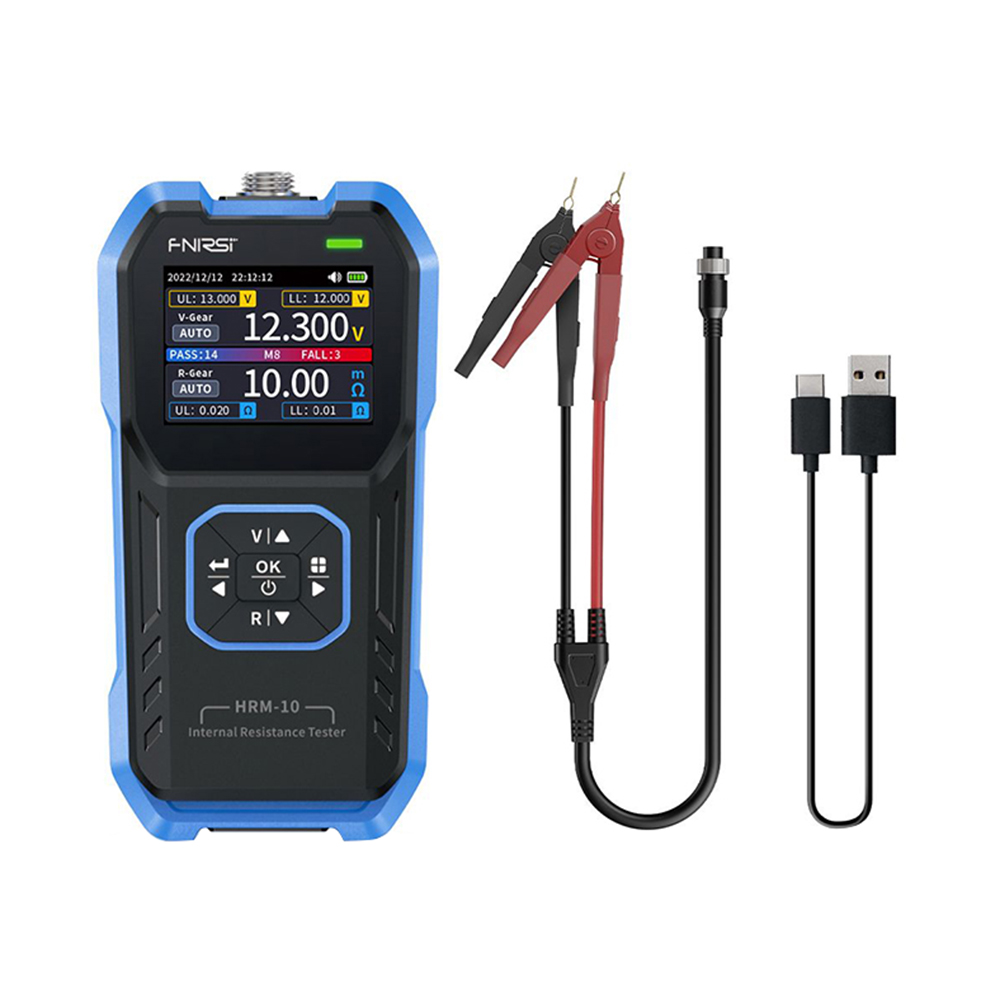

FNIRSI HRM-10 Internal Resistance Detector AC Lead Acid Li-ion Battery Tester
Features
1.HD color screen display: adopts TFT HD color screen, the function data is clear at a glance, the visual recognition efficiency is faster and smoother!
2. Sorting and comparison function: preset eight groups of voltage and resistance values, whether batch screening of high-quality batteries or accurate positioning of problematic batteries, can be completed in an instant, which greatly improves work efficiency.
3. Automatic retention and data transfer function: equipped with automatic retention of test records, so that the test results at a glance, goodbye to fuzzy memory. It can also be connected to a computer to export and analyze the test data!
4. Can be used for many types of battery testing, a light test can be an insight into all the internal battery.
5. Data retention function: a key to pause, measurement data persistent display, no need to worry about forgetting!
6.Widely used: 18650 lithium batteries, cell phone batteries, electric car batteries, car repair, etc.
2. Sorting and comparison function: preset eight groups of voltage and resistance values, whether batch screening of high-quality batteries or accurate positioning of problematic batteries, can be completed in an instant, which greatly improves work efficiency.
3. Automatic retention and data transfer function: equipped with automatic retention of test records, so that the test results at a glance, goodbye to fuzzy memory. It can also be connected to a computer to export and analyze the test data!
4. Can be used for many types of battery testing, a light test can be an insight into all the internal battery.
5. Data retention function: a key to pause, measurement data persistent display, no need to worry about forgetting!
6.Widely used: 18650 lithium batteries, cell phone batteries, electric car batteries, car repair, etc.
Specification
Range: Voltage: 0±100V (DC), Resistance: 0-200Ω
Accuracy: ±0.5%
Grades: Voltage: automatic, 1V, 10V, 100V, resistance: automatic, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω
Instrument test signal frequency: AC 1Khz
Charging: Type-C interface (5V/1A)
Built-in battery: 1000mAh lithium battery
User calibration: √
Sorting Mode: √
History Record: √
Recorded data export: √
Working environment：-10℃~+45℃,RH<80%
Storage environment: -20℃~+80℃, relative humidity <80
Range: Voltage: 0±100V (DC), Resistance: 0-200Ω
Accuracy: ±0.5%
Grades: Voltage: automatic, 1V, 10V, 100V, resistance: automatic, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω
Instrument test signal frequency: AC 1Khz
Charging: Type-C interface (5V/1A)
Built-in battery: 1000mAh lithium battery
User calibration: √
Sorting Mode: √
History Record: √
Recorded data export: √
Working environment：-10℃~+45℃,RH<80%
Storage environment: -20℃~+80℃, relative humidity <80
List
1 x Tester
1 x Instruction manual
1 x Test Cable
1 x Type-C charging cable
1 x Tester
1 x Instruction manual
1 x Test Cable
1 x Type-C charging cable
FNIRSI LCR-P1
Features
1. Accurate control: the use of independent measurement channel design, specifically tailored for the voltage regulator diode can be measured in the range of 0.01-32V, power supply before measurement, so that accurate measurement at your fingertips!
2. Anti-burn protection guards each measurement: undischarged capacitors in the insertion of the locking moment the machine will be discharged to the capacitor, humanized protection mechanism, anti-burn meter.
3. Replaceable patch holders for arbitrary measurement: incorporating the function of replaceable patch holders to easily cope with a variety of testing needs, enjoy the unprecedented ease and efficiency!
4. Accurate decoding: support NRC infrared signal decoding, easy to test the remote control.
5... Efficient detection and intelligent identification: gently plug a clip, a key to quickly identify the device parameters, saving time and effort.
6. Wide range of applications to meet different testing needs: product development, home appliance repair, educational institutions, scientific research experiments, etc.
2. Anti-burn protection guards each measurement: undischarged capacitors in the insertion of the locking moment the machine will be discharged to the capacitor, humanized protection mechanism, anti-burn meter.
3. Replaceable patch holders for arbitrary measurement: incorporating the function of replaceable patch holders to easily cope with a variety of testing needs, enjoy the unprecedented ease and efficiency!
4. Accurate decoding: support NRC infrared signal decoding, easy to test the remote control.
5... Efficient detection and intelligent identification: gently plug a clip, a key to quickly identify the device parameters, saving time and effort.
6. Wide range of applications to meet different testing needs: product development, home appliance repair, educational institutions, scientific research experiments, etc.
Specification
Product Model: LCR-P1
Display: 1.44 inch
Battery capacity: 300mAH lithium battery (built-in lithium battery)
Charging specifications: USBType-C, 5V/1A
Product Model: LCR-P1
Display: 1.44 inch
Battery capacity: 300mAH lithium battery (built-in lithium battery)
Charging specifications: USBType-C, 5V/1A
Technical parameters
Triode:
Range: 10<β<600
Description: amplification hfe,base-emitter voltage Ube,Ic/le,collector-emitter reverse cutoff current lceo,lces,protection diode forward voltage drop Uf
Triode:
Range: 10<β<600
Description: amplification hfe,base-emitter voltage Ube,Ic/le,collector-emitter reverse cutoff current lceo,lces,protection diode forward voltage drop Uf
diode:
Range: forward voltage drop <4.5V
Description: forward voltage drop,junction capacitance,reverse leakage current
Range: forward voltage drop <4.5V
Description: forward voltage drop,junction capacitance,reverse leakage current
Voltage regulator diode:
Range: 0.01-4.5V , 0.01-32V
Description: (1-2-3 test area) forward voltage drop, reverse breakdown voltage, (K-A-A test area) reverse breakdown voltage
Range: 0.01-4.5V , 0.01-32V
Description: (1-2-3 test area) forward voltage drop, reverse breakdown voltage, (K-A-A test area) reverse breakdown voltage
Field Effect Tube:
Range: JFET, IGBT, MIOSTET
Description：Gate Capacitance Cg,Drain Current ld under Vgs,Protection Diode Forward Voltage Drop Uf,Drain Current ld under Vgs,Protection Diode Forward Voltage Drop Uf,Turn-On Voltage Vt,Gate Capacitance Cg,Drain-Source Resistance Rds,Protection Diode Forward Voltage Drop Uf
Range: JFET, IGBT, MIOSTET
Description：Gate Capacitance Cg,Drain Current ld under Vgs,Protection Diode Forward Voltage Drop Uf,Drain Current ld under Vgs,Protection Diode Forward Voltage Drop Uf,Turn-On Voltage Vt,Gate Capacitance Cg,Drain-Source Resistance Rds,Protection Diode Forward Voltage Drop Uf
Unidirectional thyristor/bidirectional thyristor:
Range: turn-on voltage <5V (unidirectional SCR), gate trigger current <6mA (bi-directional SCR)
Description: Gate Voltage
Range: turn-on voltage <5V (unidirectional SCR), gate trigger current <6mA (bi-directional SCR)
Description: Gate Voltage
Capacitance:
Range: 25pF~100mF
Description: capacitance value, loss factor Vloss, internal resistance ESR
Range: 25pF~100mF
Description: capacitance value, loss factor Vloss, internal resistance ESR
Resistor:
Range: 0.01Ω~50MΩ
Description：Resistance value
Range: 0.01Ω~50MΩ
Description：Resistance value
Inductance:
Range: 10uH-1000uH
Description：Inductance,DC resistance
Range: 10uH-1000uH
Description：Inductance,DC resistance
Battery:
Range: 0.1-4.5V
Description：Voltage, Positive and negative polarity
Range: 0.1-4.5V
Description：Voltage, Positive and negative polarity
Infrared remote control decoding:
Range: NEC protocol infrared code
Description：Display user code and data code, and display the corresponding infrared waveforms
Range: NEC protocol infrared code
Description：Display user code and data code, and display the corresponding infrared waveforms
List
1 x Tester
1 x Instruction manual
1 x Type-C USB cable
1 x Featured Test Plate
3 x Test Hook
1 x Tester
1 x Instruction manual
1 x Type-C USB cable
1 x Featured Test Plate
3 x Test Hook
FNIRSI DSO-TC4
Features
1.USB computer data transfer: picture data transfer to the computer, data analysis more simple
2. High-performance digital oscilloscope: 10MHz bandwidth 48MSa/s sampling rate
3.Multi-functional 3-in-1: Oscilloscope + transistor detector + signal generator for multiple uses
4. Equipped with 2.8-inch TFT color screen, clear and intuitive picture
5.Efficient measurement: automatically identify the type and pin arrangement of the component under test, simplify the operation process and improve test efficiency.
1.USB computer data transfer: picture data transfer to the computer, data analysis more simple
2. High-performance digital oscilloscope: 10MHz bandwidth 48MSa/s sampling rate
3.Multi-functional 3-in-1: Oscilloscope + transistor detector + signal generator for multiple uses
4. Equipped with 2.8-inch TFT color screen, clear and intuitive picture
5.Efficient measurement: automatically identify the type and pin arrangement of the component under test, simplify the operation process and improve test efficiency.
Specification
Language: Chinese, English, German, Portuguese, Japanese, Spanish, Russian, Korean
Bandwidth: 10MHZ
Sampling rate: 48Msa/s
Time base: 50ns~20s
Trigger waveform: 13 kinds
Transistor & Diode: √
Voltage regulator diode: √
Field Effect Tube(JFET/IGBT/MOS):√
Unidirectional Thyristor& Bidirectional Thyristor：√
DS18B20& DHT11：√
Infrared decoding：√
Anti-burn-in: √
USB Sharing: √
Capacitance: 25pF~1000uF
Resistance: 0.01Ω~50MΩ
Inductance: 10uH~1000uH
Screen: 2.8-inch TFT color screen
Interface: Type C
Battery: 1500mAh lithium battery
Language: Chinese, English, German, Portuguese, Japanese, Spanish, Russian, Korean
Bandwidth: 10MHZ
Sampling rate: 48Msa/s
Time base: 50ns~20s
Trigger waveform: 13 kinds
Transistor & Diode: √
Voltage regulator diode: √
Field Effect Tube(JFET/IGBT/MOS):√
Unidirectional Thyristor& Bidirectional Thyristor：√
DS18B20& DHT11：√
Infrared decoding：√
Anti-burn-in: √
USB Sharing: √
Capacitance: 25pF~1000uF
Resistance: 0.01Ω~50MΩ
Inductance: 10uH~1000uH
Screen: 2.8-inch TFT color screen
Interface: Type C
Battery: 1500mAh lithium battery
Package Includes
1 x Tester
1 x Instruction manual
1 x Adaptor
1 x P1600 Oscilloscope Probe
1 x USB-C Charging Cable
1 x Normal Probe
3 x Test Hook
1 x Tester
1 x Instruction manual
1 x Adaptor
1 x P1600 Oscilloscope Probe
1 x USB-C Charging Cable
1 x Normal Probe
3 x Test Hook

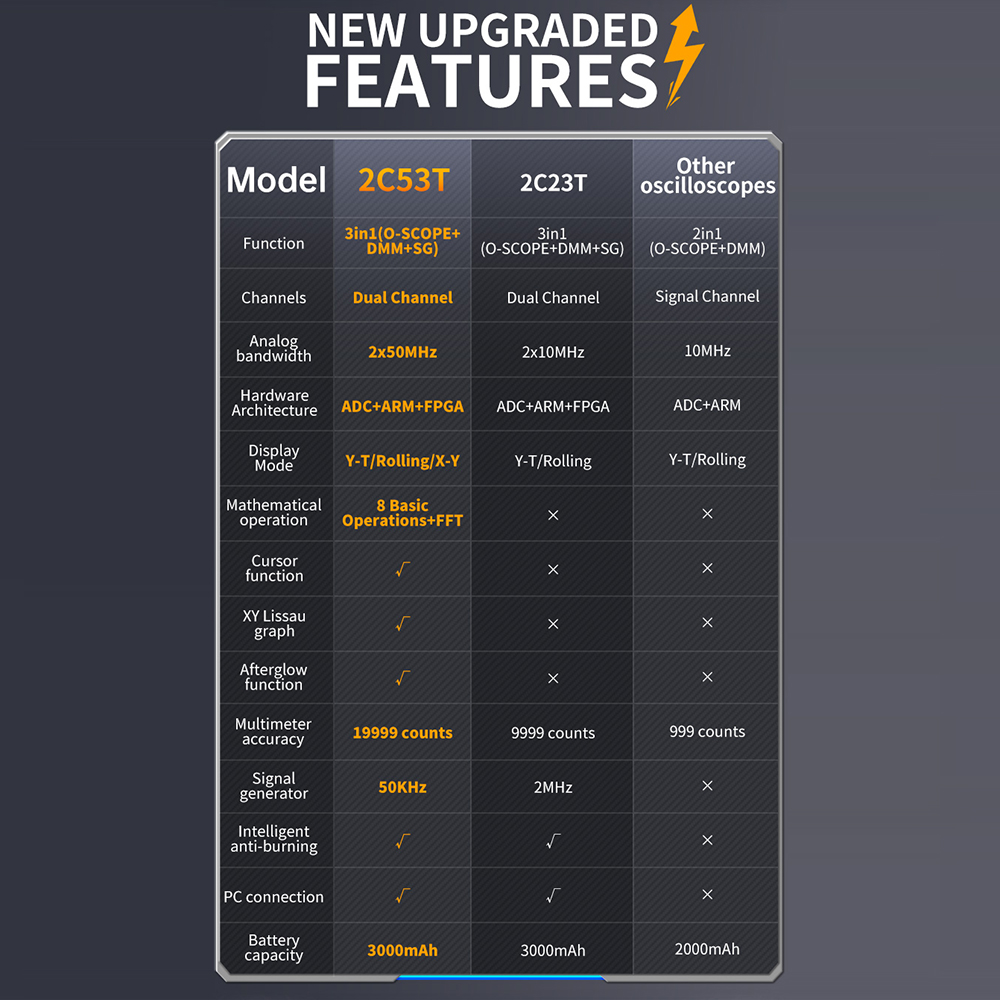

FNIRSI 2C53T
Features
1.4 half-true rms: 4 half-true rms voltage measurement, accurate measurement and fast response speed
2.Intelligent anti-burning wrong file without burning the table: intelligent anti-burning with overload protection internal resistance double fuse, anti-burning table is safer.
3. Function signal generator: can output sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive step wave, anti-step wave, exponential rise, exponential fall, DC signals, multi-audio, Sink pulse, Lorentz wave 13 kinds of signals, stable and reliable, high output accuracy.
4. Automatic shutdown, high efficiency and long battery life: built-in 3000mAh high-capacity rechargeable lithium battery with automatic shutdown time setting 6 hours of long battery life, accompanied by your work all day!
5. Wide range of accurate measurements: PWM pulse measurement, power supply ripple measurement, crystal measurement, utility measurement.
2.Intelligent anti-burning wrong file without burning the table: intelligent anti-burning with overload protection internal resistance double fuse, anti-burning table is safer.
3. Function signal generator: can output sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive step wave, anti-step wave, exponential rise, exponential fall, DC signals, multi-audio, Sink pulse, Lorentz wave 13 kinds of signals, stable and reliable, high output accuracy.
4. Automatic shutdown, high efficiency and long battery life: built-in 3000mAh high-capacity rechargeable lithium battery with automatic shutdown time setting 6 hours of long battery life, accompanied by your work all day!
5. Wide range of accurate measurements: PWM pulse measurement, power supply ripple measurement, crystal measurement, utility measurement.
Basic Parameters
Screen: 2.8 inch true color screen
Resolution: 320 * 240
Charging: Type-C (5V/1A)
Battery: 3000mAh lithium battery
Support functions: oscilloscope, signal generator, digital multimeter (see function parameters)
Standby time: 6 hours (laboratory theory maximum)
Screen: 2.8 inch true color screen
Resolution: 320 * 240
Charging: Type-C (5V/1A)
Battery: 3000mAh lithium battery
Support functions: oscilloscope, signal generator, digital multimeter (see function parameters)
Standby time: 6 hours (laboratory theory maximum)
Oscilloscope Parameters
Channel: dual-channel
Sampling rate: 250MS / s
Analog bandwidth: 50M (dual-channel independent 50M)
Input impedance: 1MΩ
Time base range: 10ns-20s
Vertical sensitivity: 10mV/div-10V/div (X1 gear)
Maximum measurement voltage: ±400V
Trigger mode: automatic, normal, single
Trigger type: rising edge, falling edge
Display Mode: Y-T/Scroll/X-Y
Coupling: AC/DC
Afterglow: OFF, 500ms, 1s, ∞
Arithmetic: 8 kinds of basic arithmetic + FFT arithmetic
Waveform Screenshot Saving: √
Export waveform image: √
Cursor Measurement: √
Channel: dual-channel
Sampling rate: 250MS / s
Analog bandwidth: 50M (dual-channel independent 50M)
Input impedance: 1MΩ
Time base range: 10ns-20s
Vertical sensitivity: 10mV/div-10V/div (X1 gear)
Maximum measurement voltage: ±400V
Trigger mode: automatic, normal, single
Trigger type: rising edge, falling edge
Display Mode: Y-T/Scroll/X-Y
Coupling: AC/DC
Afterglow: OFF, 500ms, 1s, ∞
Arithmetic: 8 kinds of basic arithmetic + FFT arithmetic
Waveform Screenshot Saving: √
Export waveform image: √
Cursor Measurement: √
Function Signal Generator Parameters
Channel: single channel
Frequency: 1Hz-50KHz
Amplitude: 0.1-3V
Channel: single channel
Frequency: 1Hz-50KHz
Amplitude: 0.1-3V
Multimeter Parameters
DC voltage: range 1.9999V/19.999V/199.99V/1000V, accuracy ± (0.5%+3)
AC voltage: range 1.9999V/19.999V/199.99V/750.0V, accuracy ± (1% +3)
DC current: range 19.999mA/199.99mA/1.9999A/9.999A, accuracy ±(1.2%+3)
AC Current: Range 19.999mA/199.99mA/1.9999A/9.999A, Accuracy ±(1.5%+3)
Resistance: Range 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ, accuracy ±(0.5%+3)
Range 1.9999K2/199.990, accuracy ±(2.0%+3)
Capacitance: Range 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF, Accuracy ±(2.0%+5)
Range 9.999mF/99.99mF, accuracy ±(5.0%+20)
Temperature: Range (-55~1300℃)/(-67~2372℉), Accuracy ±(2.5%+5)
Diode: √
On-off: √
DC voltage: range 1.9999V/19.999V/199.99V/1000V, accuracy ± (0.5%+3)
AC voltage: range 1.9999V/19.999V/199.99V/750.0V, accuracy ± (1% +3)
DC current: range 19.999mA/199.99mA/1.9999A/9.999A, accuracy ±(1.2%+3)
AC Current: Range 19.999mA/199.99mA/1.9999A/9.999A, Accuracy ±(1.5%+3)
Resistance: Range 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ, accuracy ±(0.5%+3)
Range 1.9999K2/199.990, accuracy ±(2.0%+3)
Capacitance: Range 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF, Accuracy ±(2.0%+5)
Range 9.999mF/99.99mF, accuracy ±(5.0%+20)
Temperature: Range (-55~1300℃)/(-67~2372℉), Accuracy ±(2.5%+5)
Diode: √
On-off: √
Package Includes
View images according to your choice.
View images according to your choice.
FNIRSI HRM-10 Internal Resistance Detector AC Lead Acid Li-ion Battery Tester
Features
1.HD color screen display: adopts TFT HD color screen, the function data is clear at a glance, the visual recognition efficiency is faster and smoother!
2. Sorting and comparison function: preset eight groups of voltage and resistance values, whether batch screening of high-quality batteries or accurate positioning of problematic batteries, can be completed in an instant, which greatly improves work efficiency.
3. Automatic retention and data transfer function: equipped with automatic retention of test records, so that the test results at a glance, goodbye to fuzzy memory. It can also be connected to a computer to export and analyze the test data!
4. Can be used for many types of battery testing, a light test can be an insight into all the internal battery.
5. Data retention function: a key to pause, measurement data persistent display, no need to worry about forgetting!
6.Widely used: 18650 lithium batteries, cell phone batteries, electric car batteries, car repair, etc.
2. Sorting and comparison function: preset eight groups of voltage and resistance values, whether batch screening of high-quality batteries or accurate positioning of problematic batteries, can be completed in an instant, which greatly improves work efficiency.
3. Automatic retention and data transfer function: equipped with automatic retention of test records, so that the test results at a glance, goodbye to fuzzy memory. It can also be connected to a computer to export and analyze the test data!
4. Can be used for many types of battery testing, a light test can be an insight into all the internal battery.
5. Data retention function: a key to pause, measurement data persistent display, no need to worry about forgetting!
6.Widely used: 18650 lithium batteries, cell phone batteries, electric car batteries, car repair, etc.
Specification
Range: Voltage: 0±100V (DC), Resistance: 0-200Ω
Accuracy: ±0.5%
Grades: Voltage: automatic, 1V, 10V, 100V, resistance: automatic, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω
Instrument test signal frequency: AC 1Khz
Charging: Type-C interface (5V/1A)
Built-in battery: 1000mAh lithium battery
User calibration: √
Sorting Mode: √
History Record: √
Recorded data export: √
Working environment：-10℃~+45℃,RH<80%
Storage environment: -20℃~+80℃, relative humidity <80
Range: Voltage: 0±100V (DC), Resistance: 0-200Ω
Accuracy: ±0.5%
Grades: Voltage: automatic, 1V, 10V, 100V, resistance: automatic, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω
Instrument test signal frequency: AC 1Khz
Charging: Type-C interface (5V/1A)
Built-in battery: 1000mAh lithium battery
User calibration: √
Sorting Mode: √
History Record: √
Recorded data export: √
Working environment：-10℃~+45℃,RH<80%
Storage environment: -20℃~+80℃, relative humidity <80
List
1 x Tester
1 x Instruction manual
1 x Test Cable
1 x Type-C charging cable
1 x Tester
1 x Instruction manual
1 x Test Cable
1 x Type-C charging cable
Am 13.01.2026 hat der Verkäufer die folgenden Angaben hinzugefügt:
