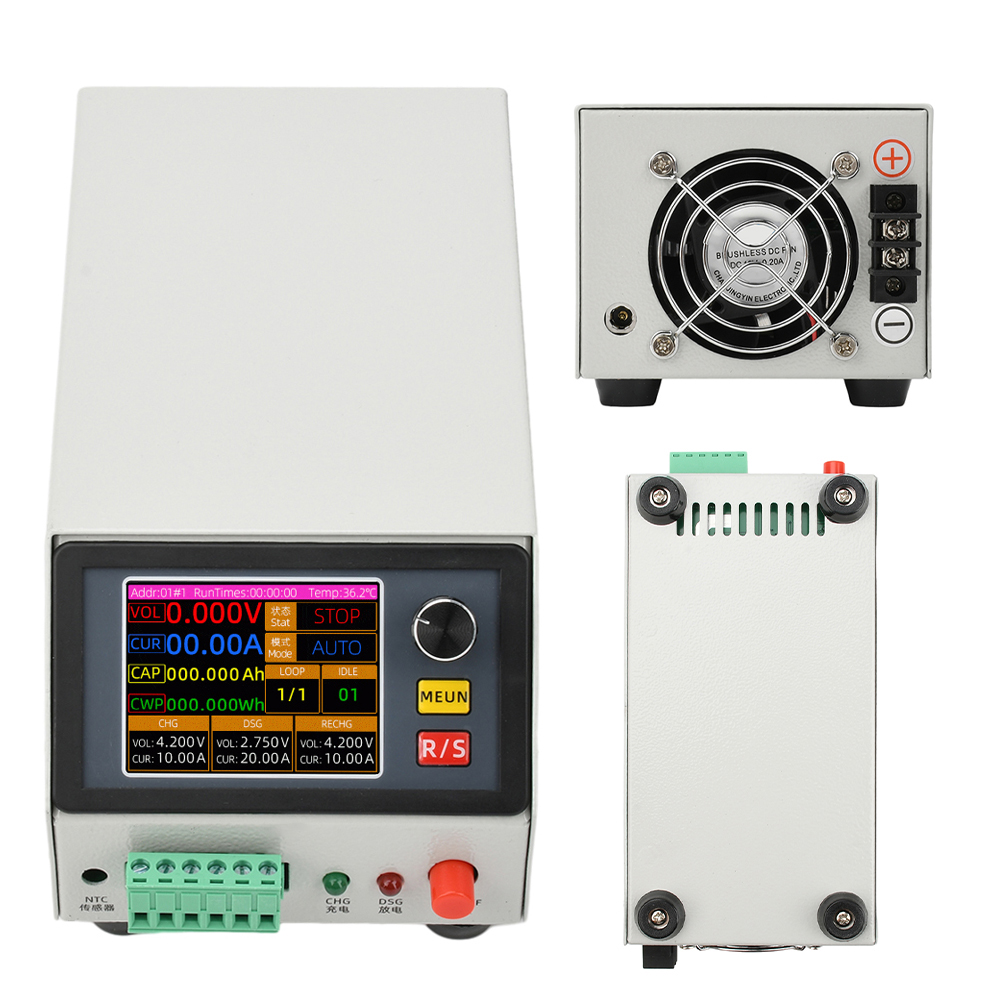

2.4inch Color Screen Electronic Load Tester 10A Charge 20A Discharge 0-150W Load
Features:
1, 2.4-inch TFT color screen, visual clarity: 2.4-inch high-definition TFT color screen, data display vivid and intuitive, clearly visible

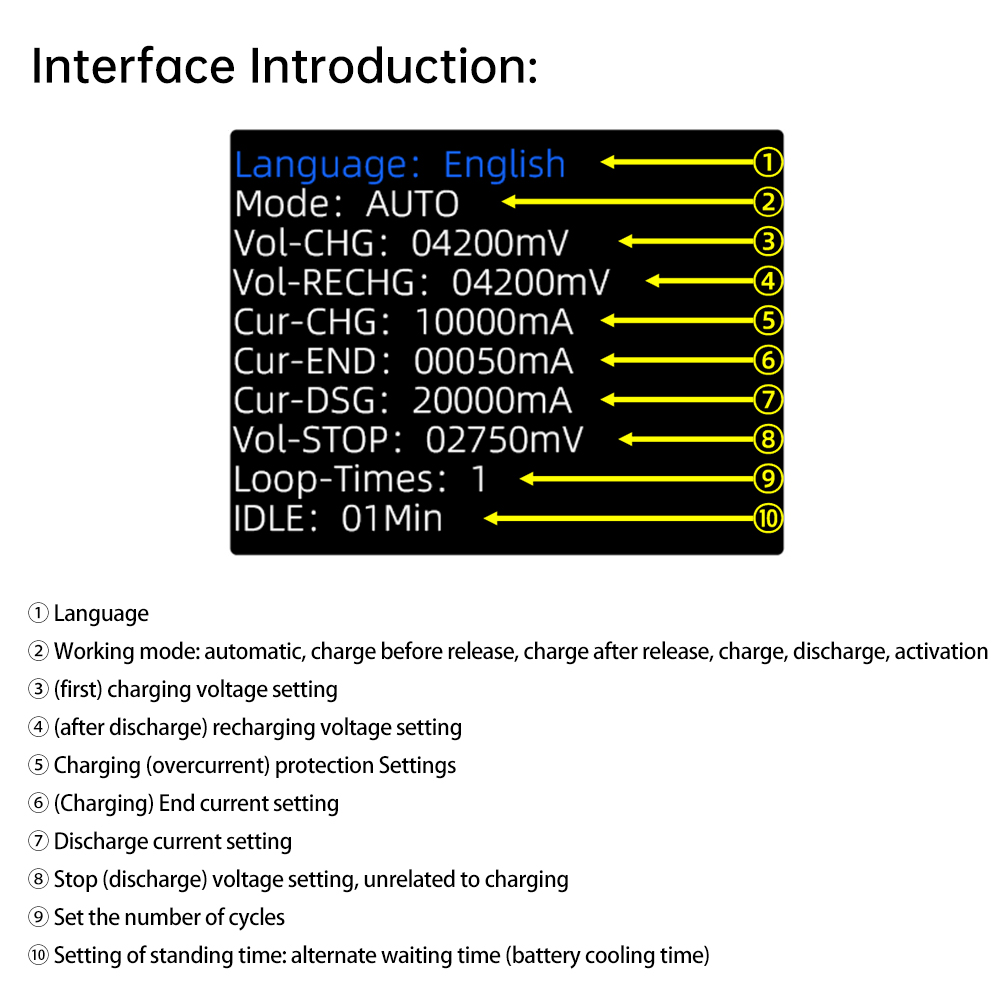

2, bilingual interface: in the “language” menu item, rotary encoder, Chinese and English switch freely, to meet the needs of users around the world, convenient and efficient operation

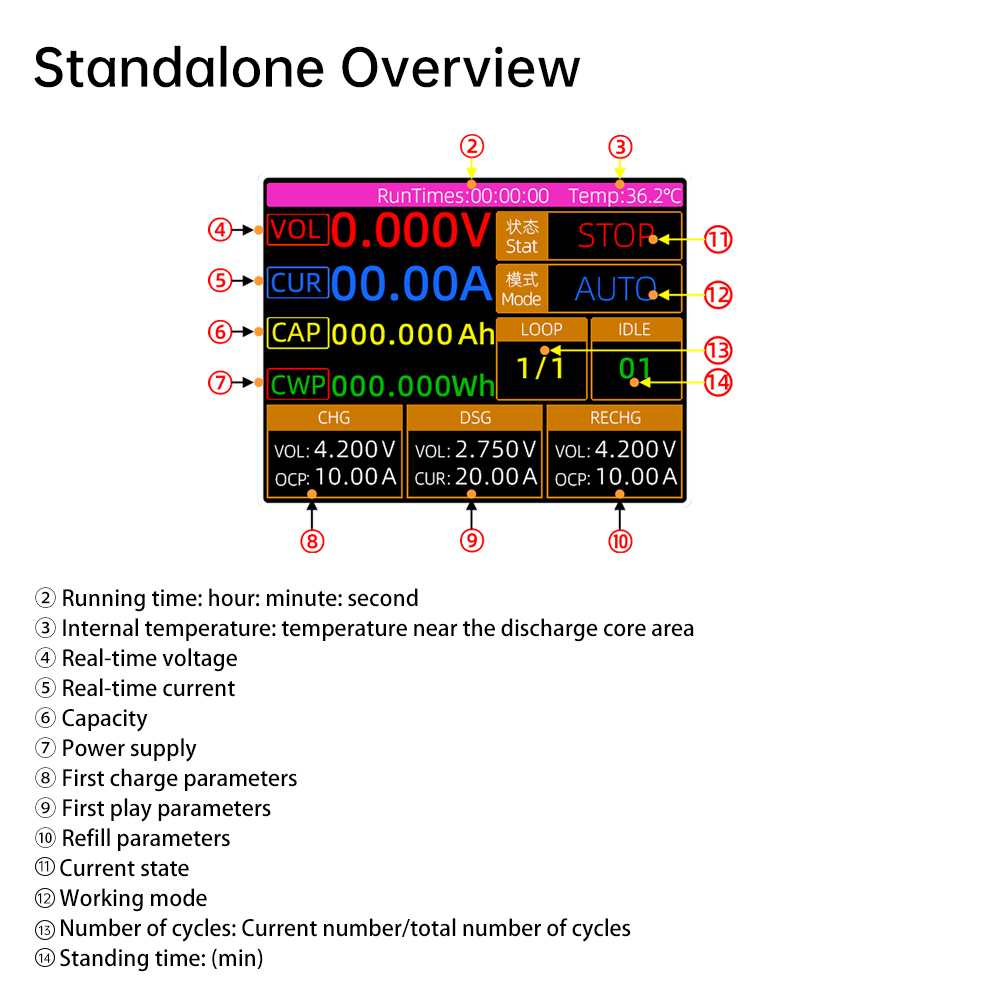

3、Parameter overview display, clear at a glance: the device supports a comprehensive parameter overview display function, real-time presentation of voltage, current, power and other key data to enhance operational efficiency.

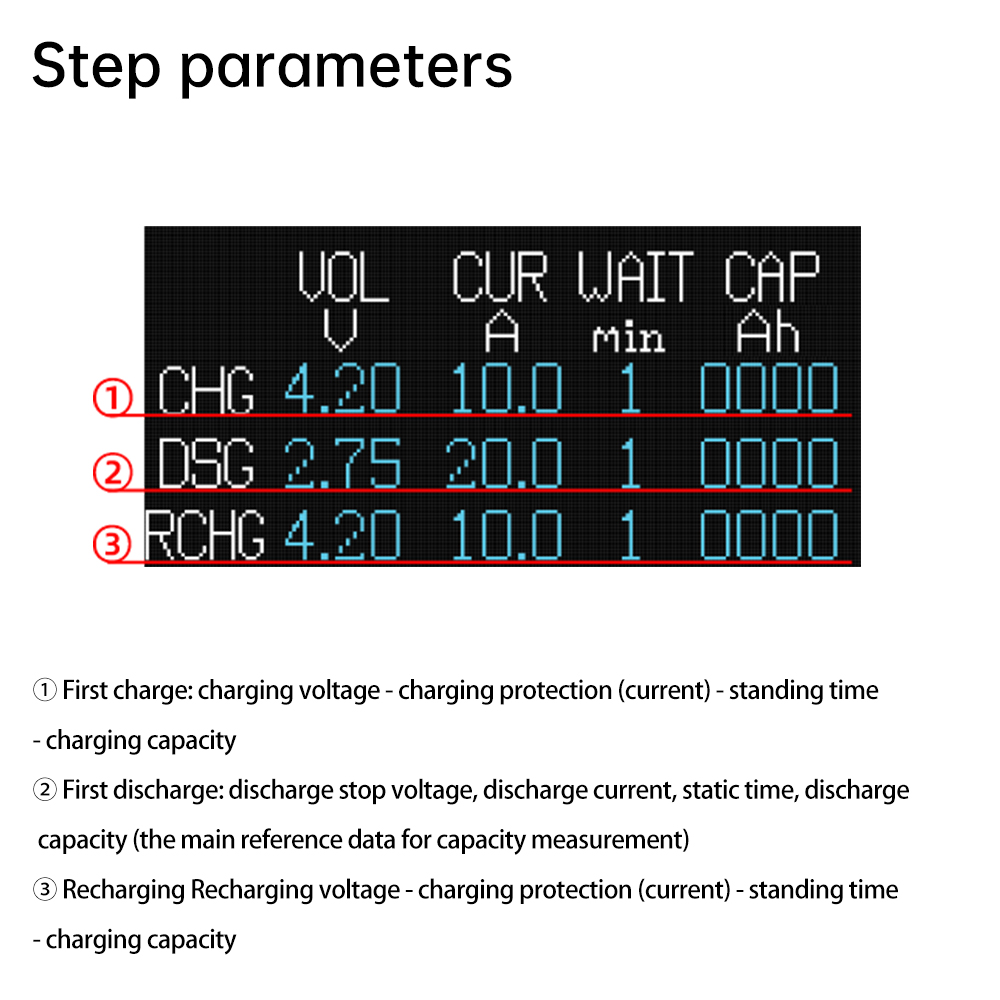

4, charging and discharging curve display, accurate analysis: with charging and discharging curve display function, intuitively presenting the trend of battery performance changes, to ensure that the test results are accurate and reliable.

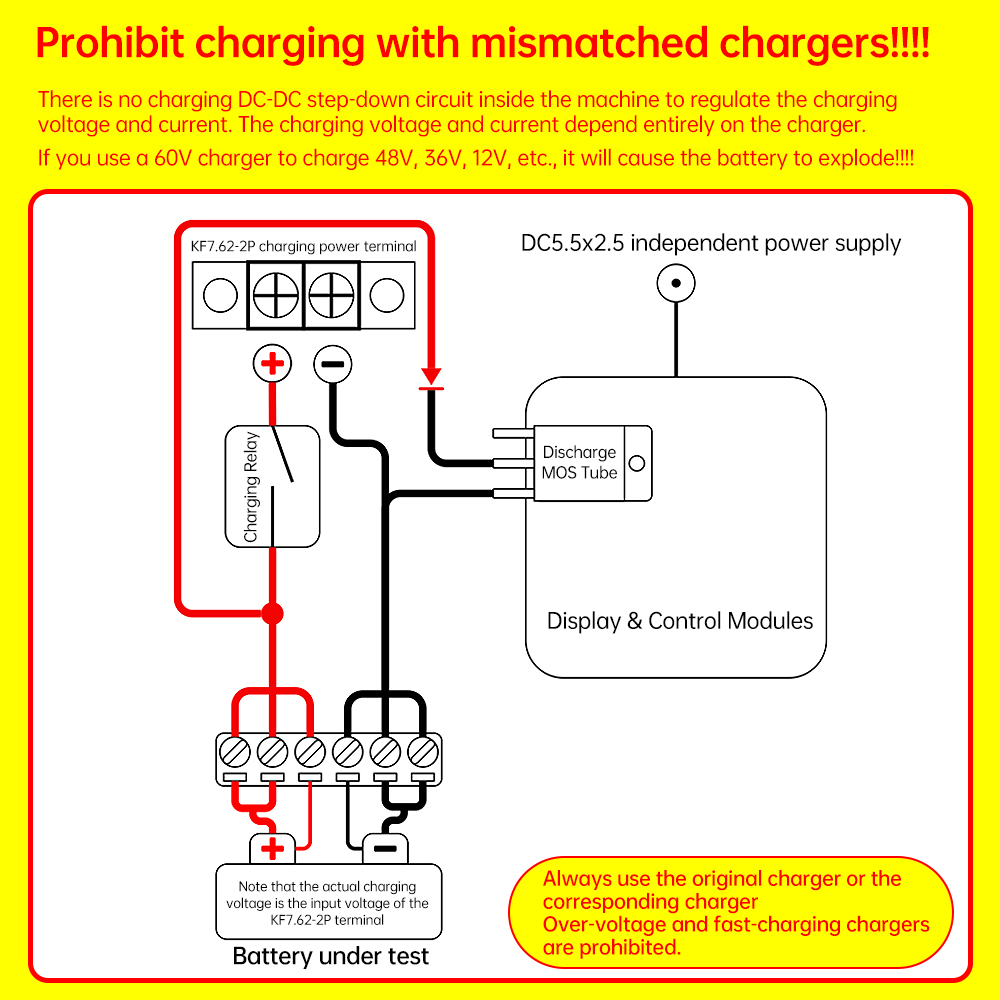

5、Reverse-connection protection, prohibit reverse connection of the battery: reverse connection protection, but reverse operation will still be bad, so prohibit reverse connection.
Parameter:

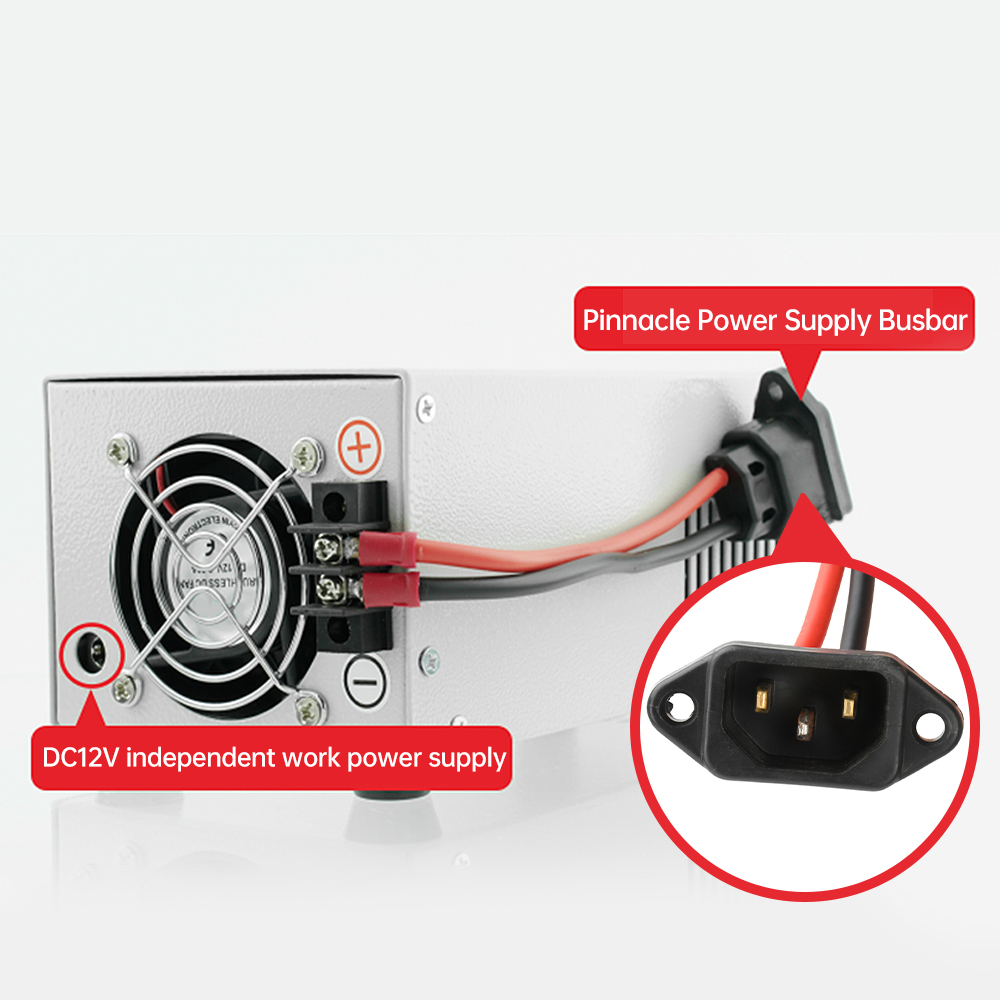

Supply voltage: DC 12V/1A
Load power: maximum load power 150W ≥ U (voltage) × I (current ≤ 20A)
Number of channels: 1 channel
Charging (stop) voltage: 3.00V~96.00V adjustable, 0.05V/stage
Recharge (stop) voltage: 3.00V~96.00 adjustable, 0.05V/speed
Charging (overcurrent) protection: 0.5A~10A adjustable, 0.5A/stage; maximum support 10A overcurrent protection
(Charging) end current: 50mA~1.0A adjustable, 50mA/file
Discharge current: 0.5A~20A adjustable, 0.05A/file (voltage×current＜150W)
(Discharge) stop voltage: 2.0V~94.5V adjustable, 0.05V/file
Cycle times: 1~9 times gear adjustable
Standing time: 1~30 minutes adjustable
Parameter overview display: support
Charging and discharging curve display: support
Internal resistance detection: Not supported
Battery activation: Not supported
Online Control: Not supported
Heat dissipation mode: 60×60 fan active heat dissipation
Overheating protection: Support

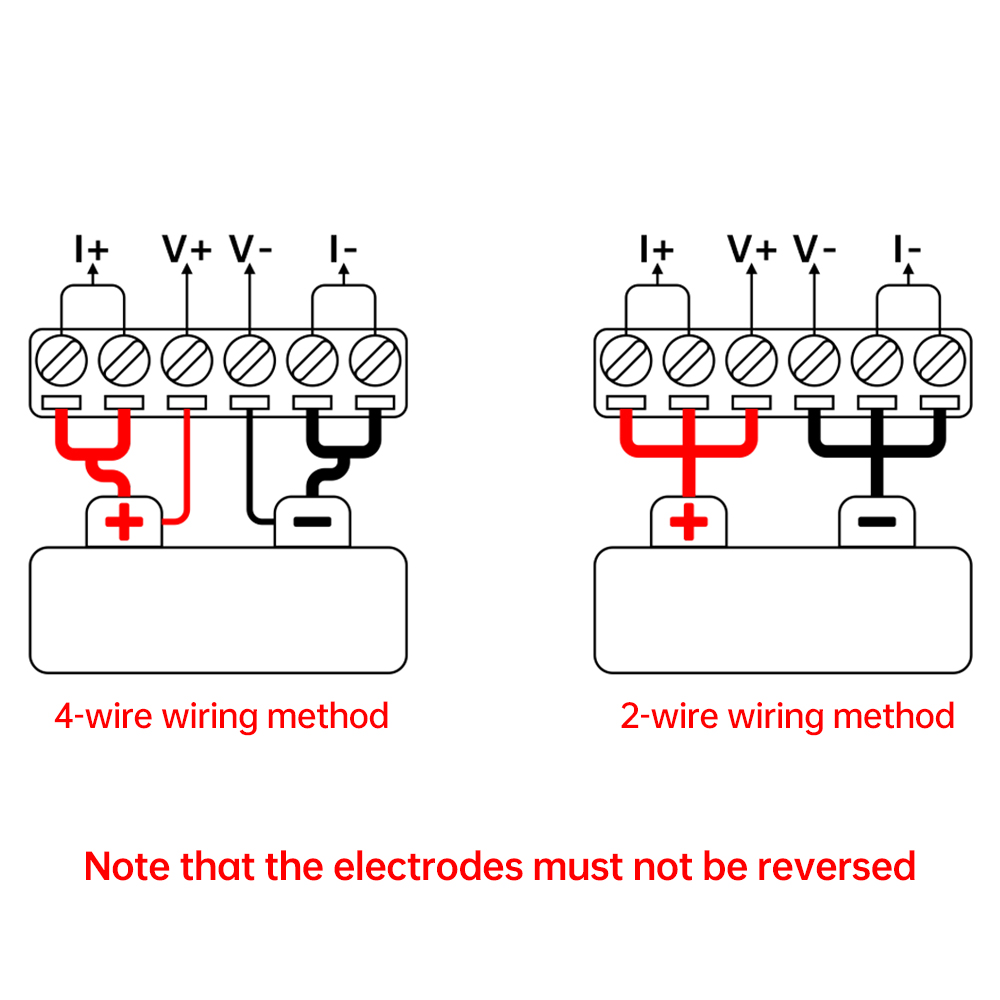

Battery reverse connection protection: reverse connection protection, prohibit reverse connection of the battery

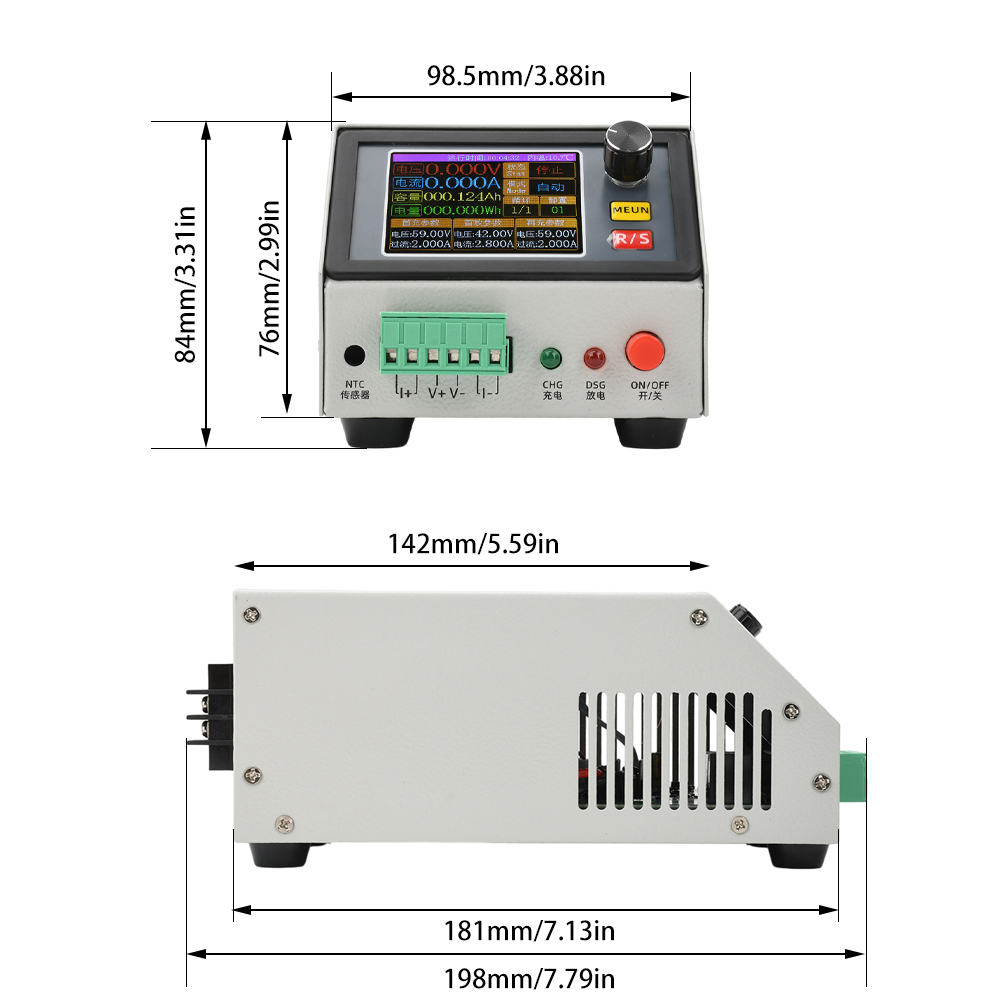

Product size: 192×98×83mm

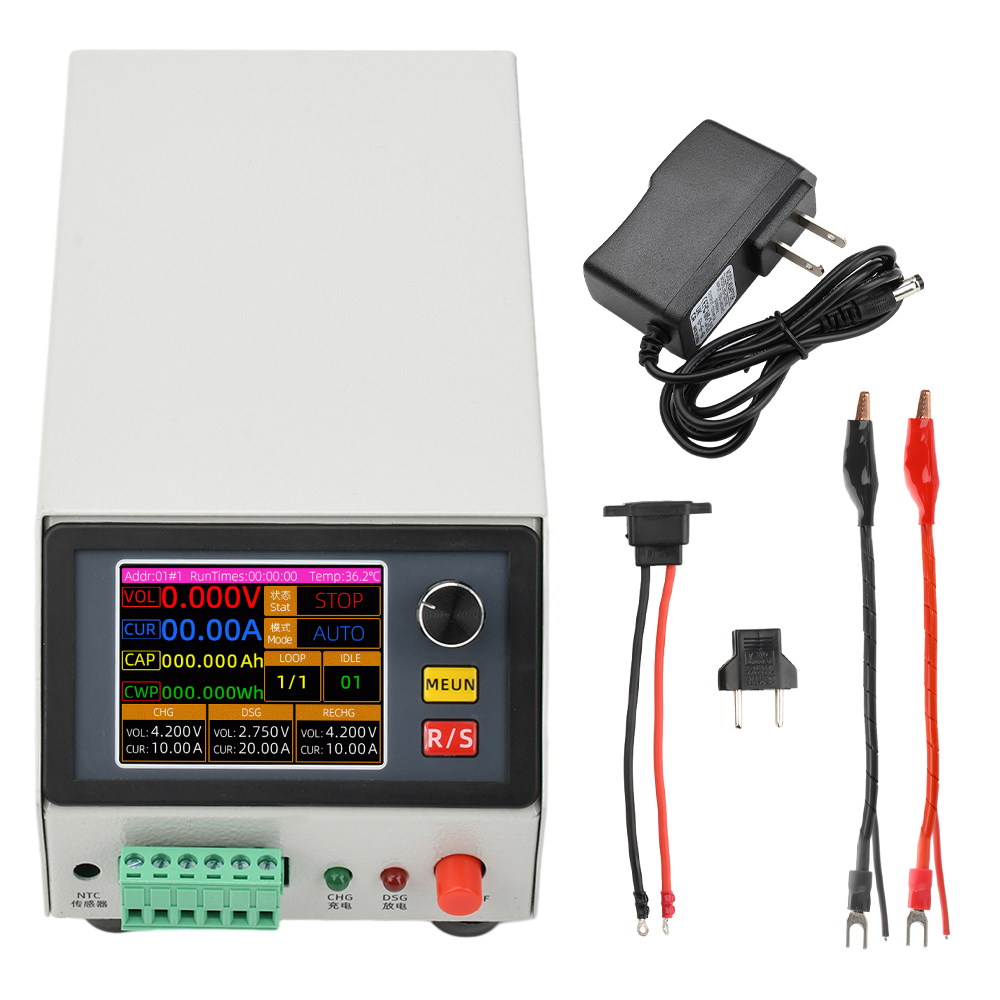

Package include:
Host *1
Red and black alligator clip wire *1
DC12V adapter (US Plug) (power supply only, not involved in charging)*1
