TDA7492P 2*50W Bluetooth 4.0 Audio-Receiver Verstärkermodul Board + Acrylic Case

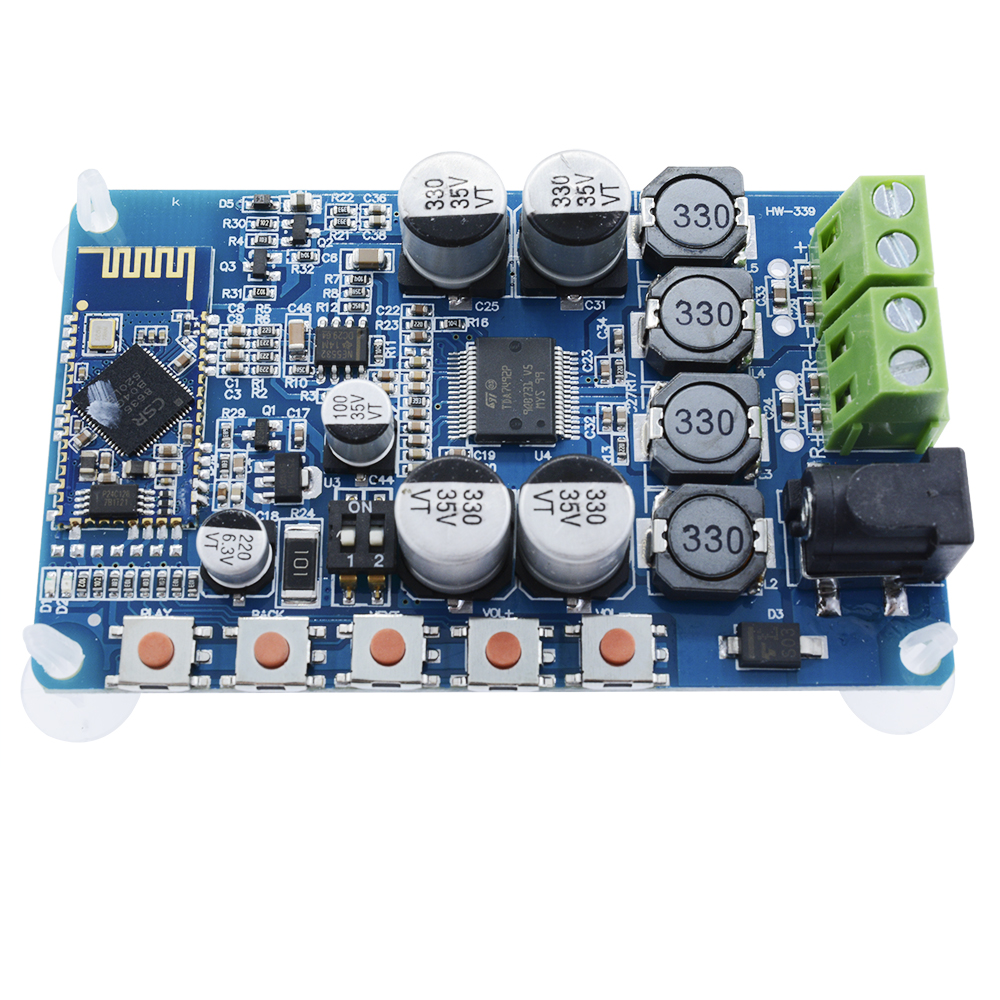

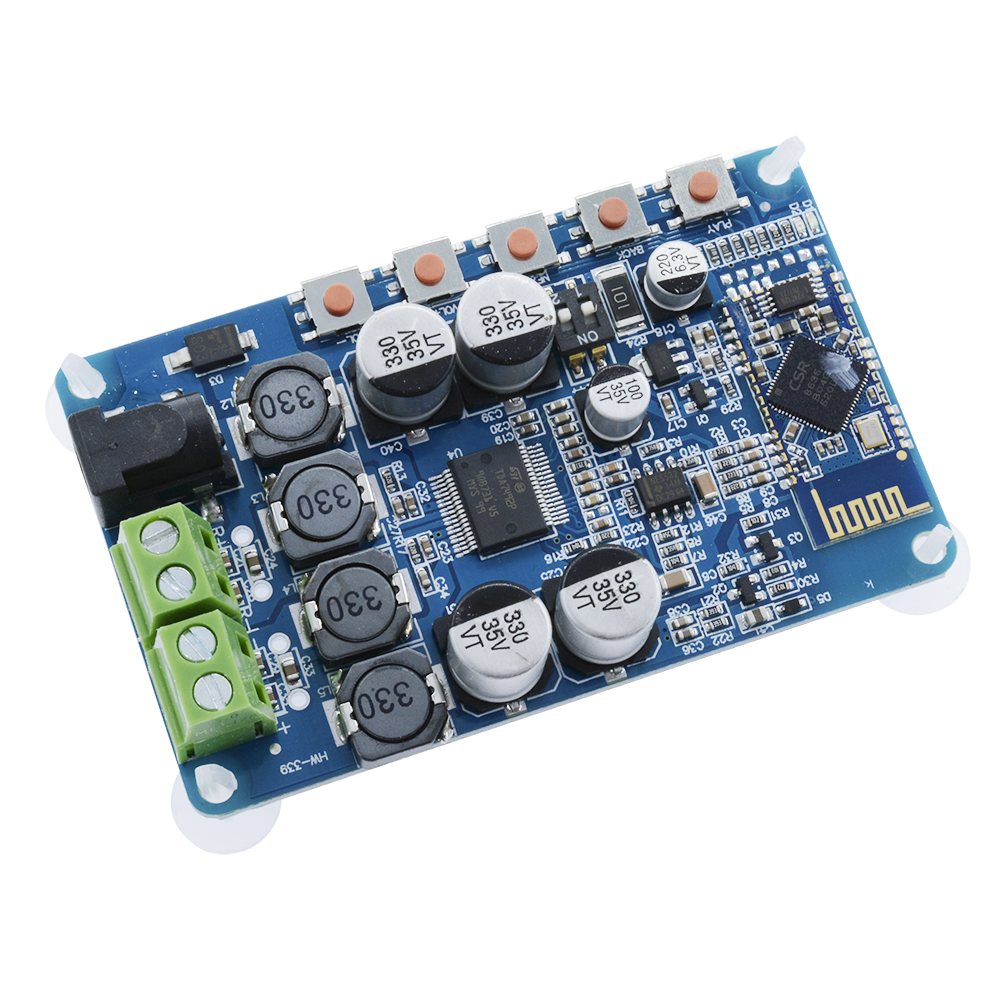

TDA7492P 2 * 50W Bluetooth 4.0 Amplifier Board

Power: 2.1 interface 8 ~ 24V DC power supply
Audio input: stereo input various versions of the Bluetooth connection,
using CSR8635 Bluetooth chip, Bluetooth V4.0, high software compatibility
Output Impedance: 8 ohms Best(4,6,8,16 ohm impedance can drive speakers)
Output Power: Add pre-5532 output foot (powered 25V ,6-ohm impedance output 2 X 50W,
8 ohm impedance output 2X40W dual-channel)
TDA7492 digital amplifier chip, designed to optimize the circuit layout,
the sound quality is very good, big power
DIP switches can be adjusted directly after the amp gain more respect
and better promote greater damping horn

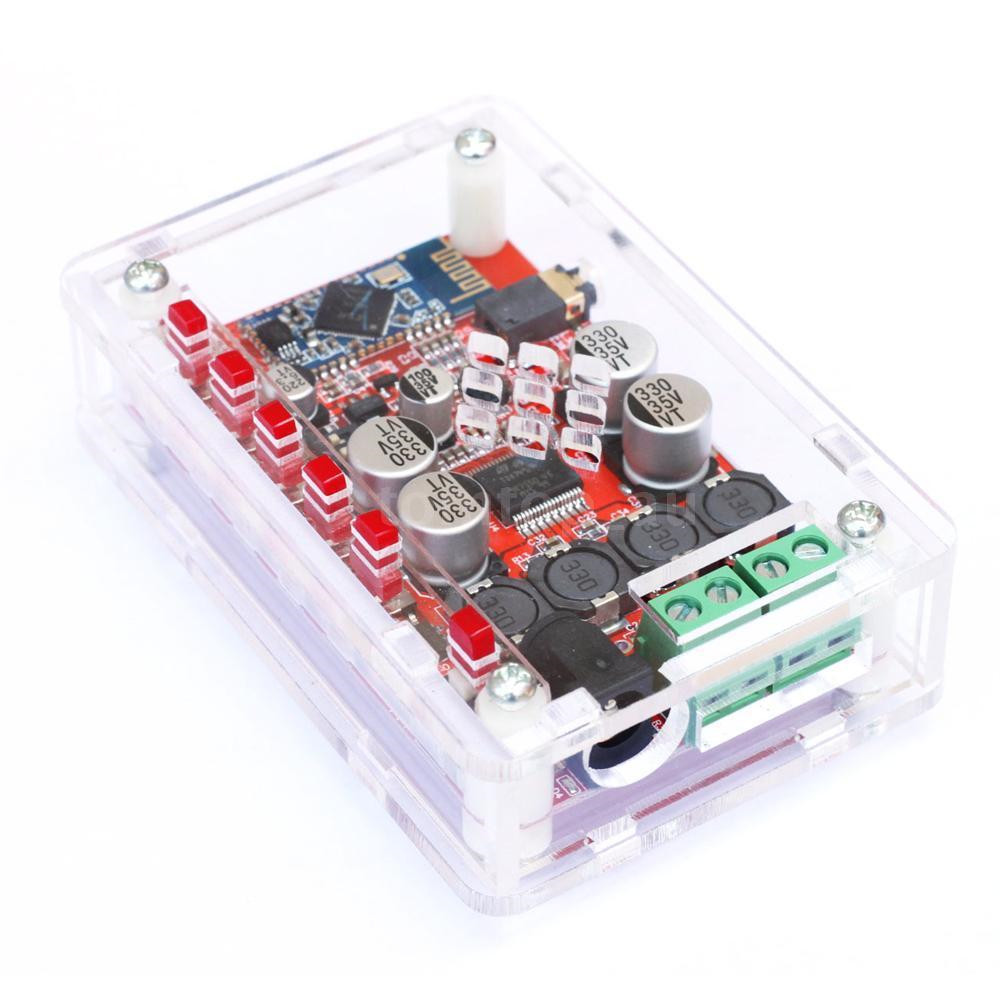

Acrylic Case
If your amplifier board button height is 3 mm, button function is not supported, friends please don't mind!
This item only support button height is 7.5 mm.
Kit contains five button (6 mm * 6 mm * 8 mm)
Screw Size：PM3*6 (8PCS)
Stud Size:    M3*12+6 (4PCS)
Stud Size:    M3*8 (4PCS)
Buttons cap Size: Φ7mm*H10mm (5PCS)
Buttons Size: L6mm*W6mm*H8mm (5PCS)

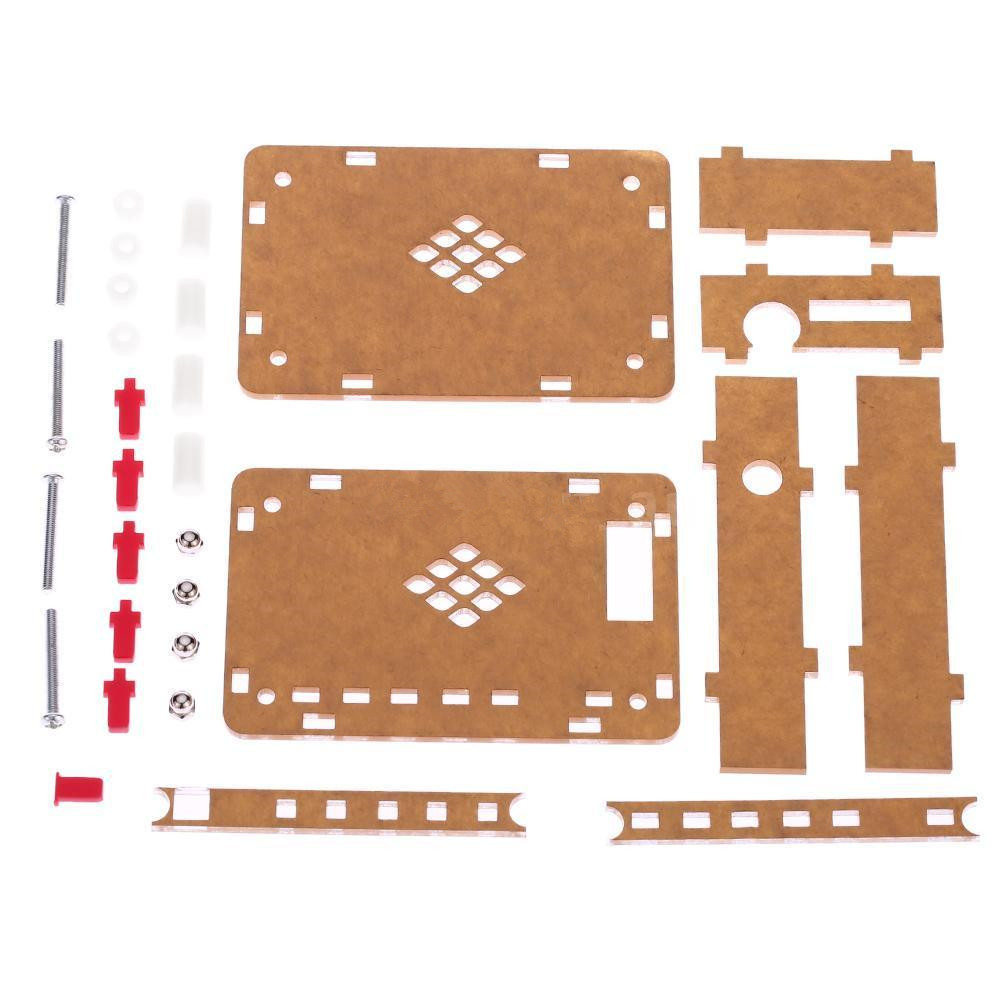

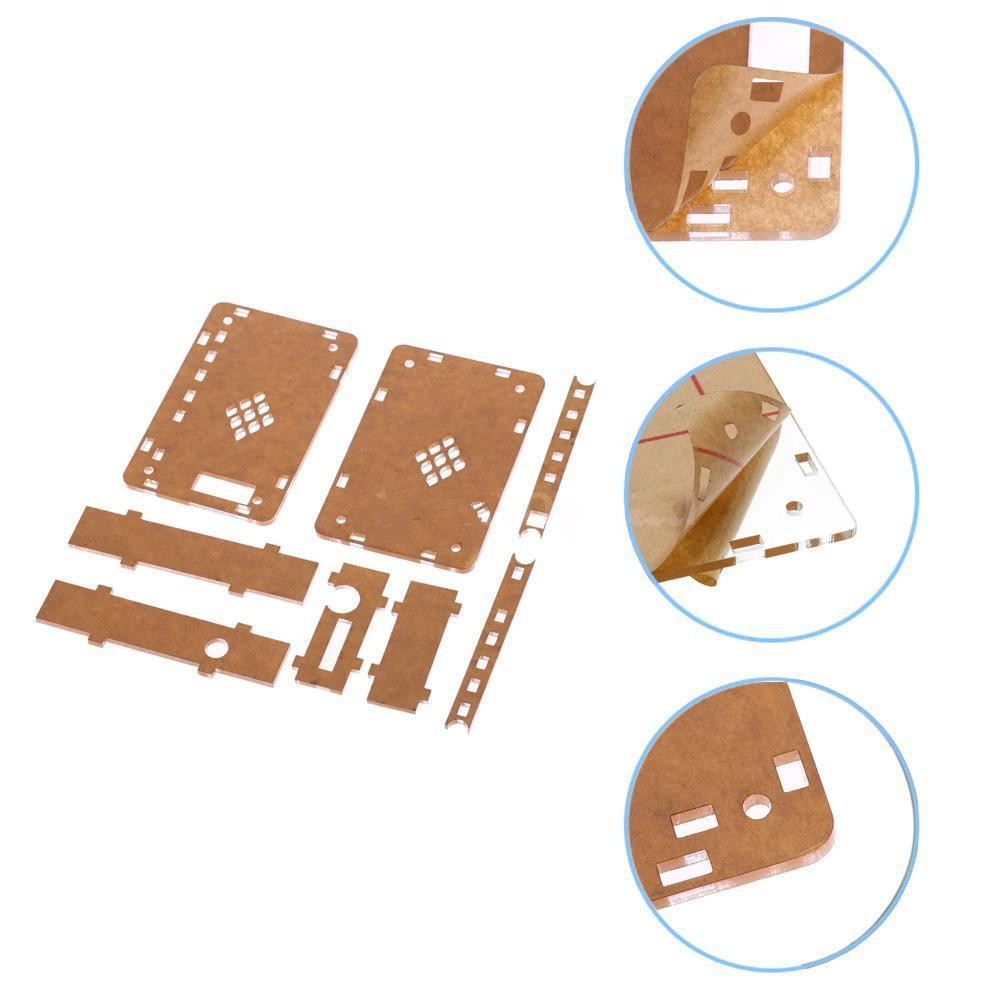

Acrylic case: 6PCS(Six surface)

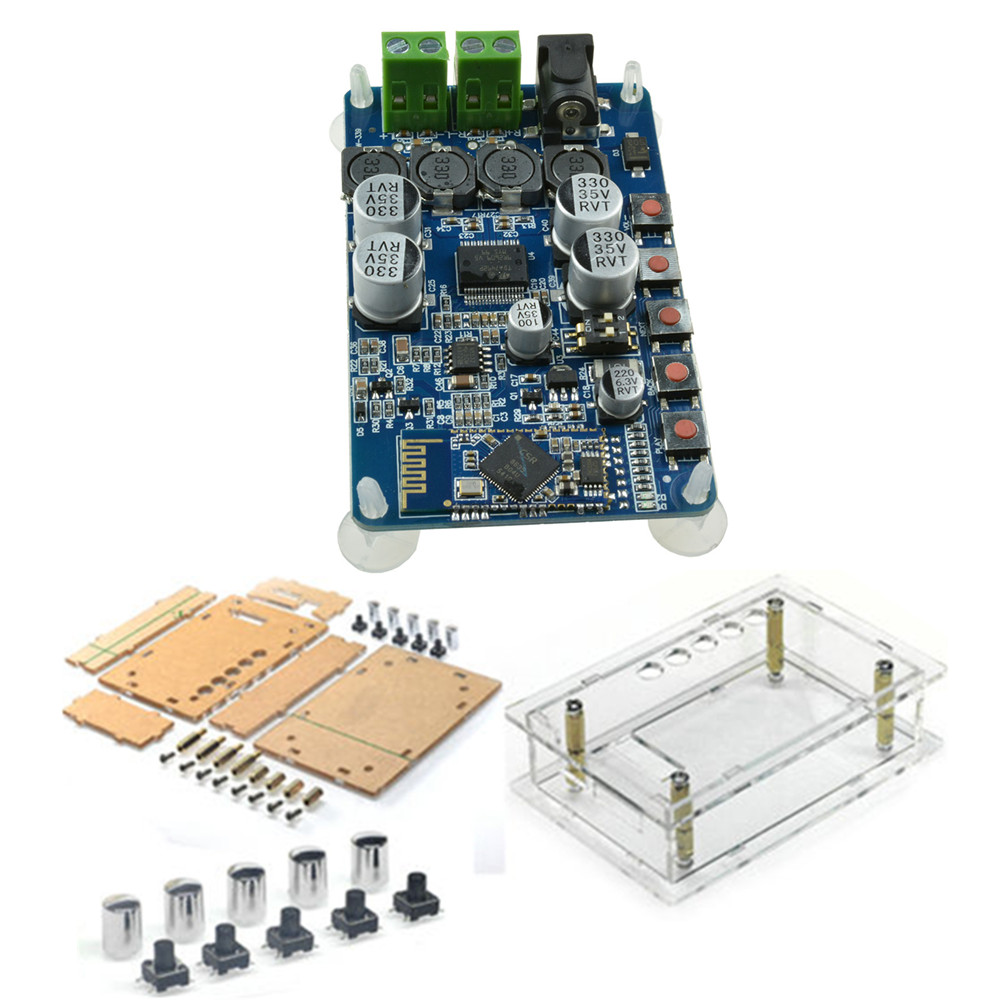

Amplifier Board+Case
Package included:

1PCS(Depends on your choice!)
