Ordering and Specifications Information

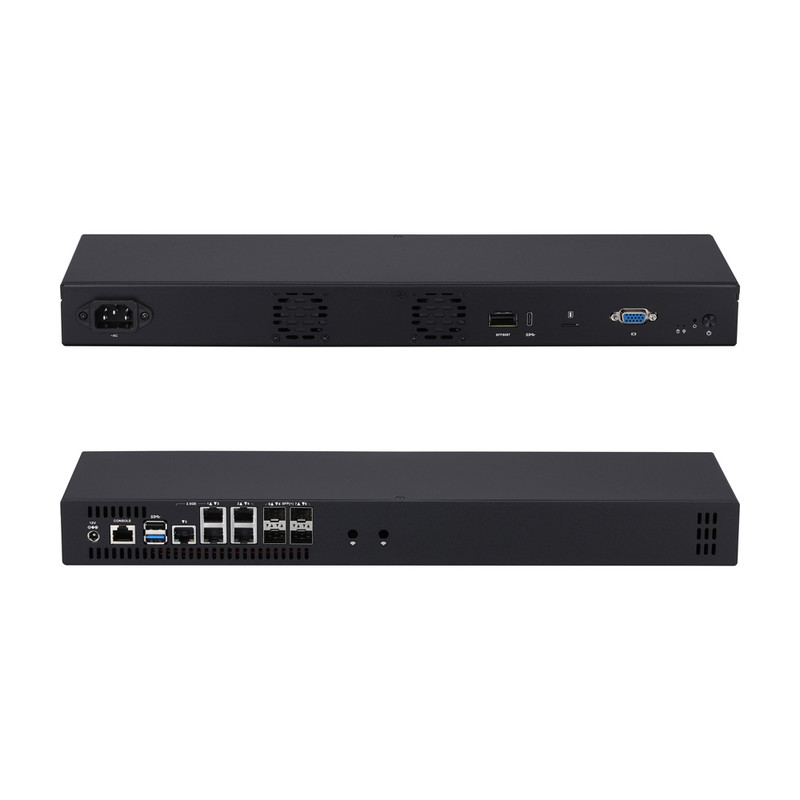

Quick Order Model: Q203XXG9-1U
| Ordering Code | Case | Code Name | Processor Type | Processor Number | 10G SFP+ | Core | Threads | Base Frequency | SFP+ | Cache |
Q20311G9 Q20311S9 | 1U | Denverton | Atom | C3338R | 0 | 2 | 2 | 10.5W | 1.80Ghz | 4M |
Q20321G9 Q20321S9 | 1U | Denverton | Atom | C3558R | 2 | 4 | 4 | 17W | 2.40Ghz | 8M |
Q20322G9 Q20322S9 | 1U | Denverton | Atom | C3558 | 2 | 4 | 4 | 16W | 2.20Ghz | 8M |
Q20331G9 Q20331S9 | 1U | Denverton | Atom | C3758R | 4 | 8 | 8 | 26W | 2.40Ghz | 16M |
Q20332G9 Q20332S9 | 1U | Denverton | Atom | C3758 | 4 | 8 | 8 | 26W | 2.2Ghz | 16M |
Q20342G9 Q20342S9 | 1U | Denverton | Atom | C3808 | 4 | 12 | 12 | 25W | 2.00Ghz | 12M |
Q20352G9 Q20352S9 | 1U | Denverton | Atom | C3908 | 4 | 16 | 16 | 31W | 2.00Ghz | 16M |
Specification
| Processor System | |
| CPU | Optional |
| CPU TDP | By CPU |
| Memory | 2 x DDR4 SO-DIMM Socket (Up to 64G, 2400MHz) |
| Chipset | By CPU |
| Graphics | ASPEED AST2400 |
| LAN Chipset | 5 x Intel I225-V/I226-V 2.5 Gigabit LAN |
| Audio | No |
| Watch Dog | Yes |
| Front I/O | |
| Power Button | 1 x Power Button, 1 x Reset Button |
| LED | 1 x Power LED, 1 x HDD LED |
| VGA | 1 x DB15 |
| SIM Slot | 1 x Nano SIM Slot |
| Type C | 1 x Type C (USB 3.0) |
| Mini SAS | 1 x Mini SAS (SFF8087) |
| Rear I/O | |
| Power | 1 x DC Jack |
| Serial Port | 1 x RS-232 (RJ-45) |
| USB | 1 x USB 3.0, 1 x USB 2.0 |
| LAN | 5 x Intel I225-V/I226-V 2.5 Gigabit LAN |
| SFP+ | Q20322G9 C3558 SFP+ 10G x 2 and SFP 1G x 2 Q20332G9 C3758 SFP+ 10G x 4 Q20331G9 C3758R SFP+ 10G x 4 Q20342G9 C3808 SFP+ 10G x 4 Q20352G9 C3908 SFP+ 10G x 4 |
| Storage | |
| Type | 2 x 2.5-inch HDD/SSD 2 x M.2 for SSD (M key, Type: 2280, PCIe 3.0 x 2) |
| Expansion | |
| M.2 | 1 x M.2 for 4G/5G (B key, Type: 3042/3052) |
| M.2 | 2 x M.2 for SSD (M key, Type: 2280, PCIe 3.0 x 2) |
| SIM Card Slot | 0 |
| AutoStart Jumper | No |
| CMOS Clear Jumper | No |
| GPIO | No |
| RS-485 | 0 |
| DC-in | No |
| Power Requirement | |
| Power Adapter | 12V5A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 440 x 127 x 44mm |
| Weight | 1.20kg |
| Mounting | No |
| Packaging Dimension | 545 x 180 x 90mm |
| Kensington Lock | No |
| Cooling Mode | 2 Fans inside |
| OS Support | |
| OS | Windows 10, Linux |
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Power Adapter | 1 | |
| 3 | AC Power Cord | 1 | US/EU/AU/CN/CH/UK Cord etc |
| 4 | Ear Bracket | 2 | |
| 5 | Screw for ears Bracket | 1 | |
| 6 | Screw for SATA SSD/HDD | 1 |
