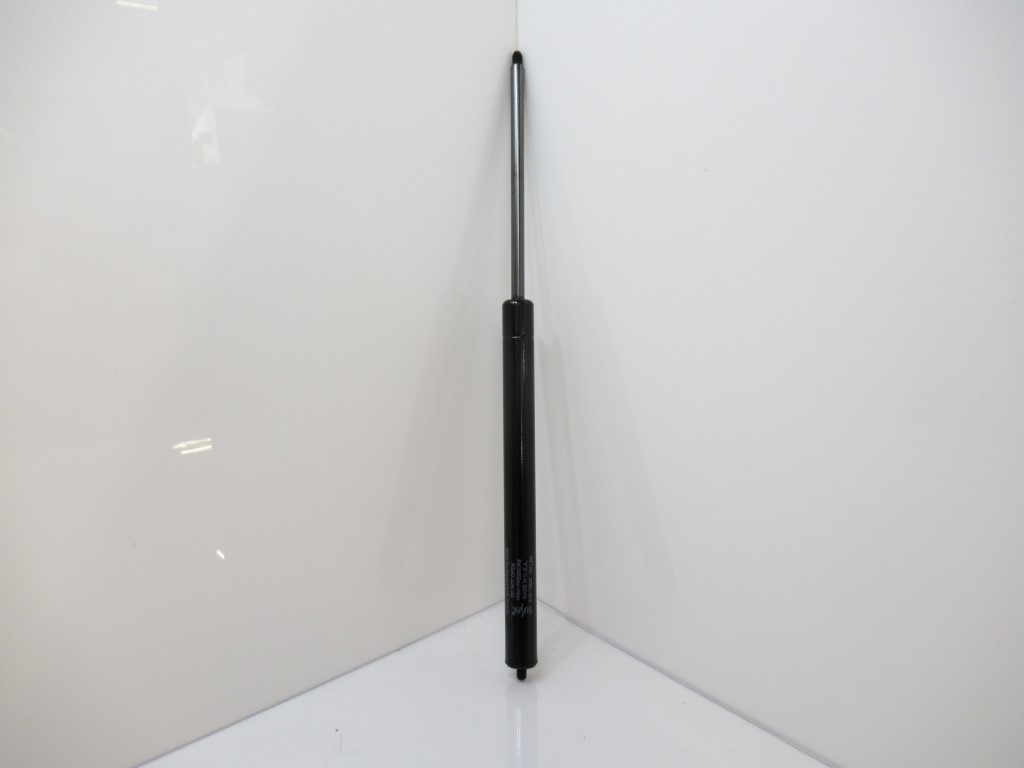

Suspa C16-18828 Gas Spring, 13.74" Extended Length, Extension Force 100 lbs

Product Information

Extended Length	13.74"
Compressed Length	8.27"
Stroke Length	5.47"
Compression Force	122 lbs.
Mounting Orientation	Horizontal, Vertical with Rod Down
Maximum Cycles per Minute	6
Maximum Cycles	25,000
Force Mechanism	Compressed Nitrogen Gas and Oil
Refillable	No
Lockable	No
Body Diameter	0.73"
Body Finish	Steel
Seal Material	Rubber
Rod
Diameter	0.31"
Thread Size	M6
Thread Pitch	1 mm
Material	Steel
End Thread Size	M6
End Thread Pitch	1 mm
Temperature Range	-22° to 176° F
Extension Force	100 lbs.
RoHS	RoHS 3 (2015/863/EU) compliant with exemptions 6(a)-I, 6(b)-II, and 6(c) - Lead as an alloying element in steel and aluminum and in copper alloy
REACH	Not Compliant
DFARS	Specialty Metals COTS-Exempt
Country of Origin	United States
USMCA Qualifying	No
Schedule B	848790.0080
