High torque (silent sweep) quartz clock movement with extended shaft for extra spacing when running long balanced hands, 9/16" threaded shaft, long shaft,  capable of running long hands to and including 17.75" balanced hands.

HANDS ARE NOT INCLUDED.

This is a continuous motion high torque motor, quiet, no advancing (stepping) of gears.  Those of you with keen hearing will greatly appreciate it's quietness

Case size: 2-1/8"sq x 5/8" case thickness American "I" shaft movement,  accepts standard hands  PLEASE BE ADVISED THAT NOT ALL MOTORS ACCEPT STANDARD HANDS.



Hour hand center hole .198” diameter

Minute hand center hole .158” x .112” (oblong shaped)

9/16" (14mm) threaded shaft, total 15/16" (23mm) including hand stem

Super quiet, continuous motion, no stepping of gears

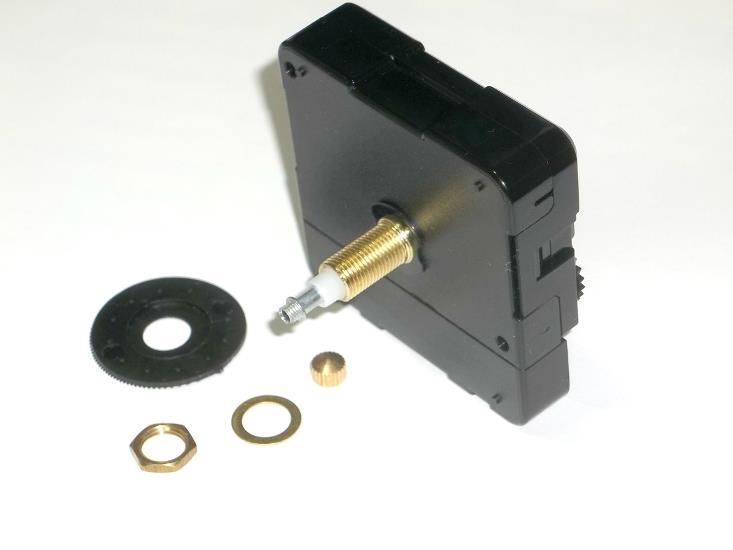

Supplied with mounting hardware: rubber & brass washers, hex nut and closed end nuts
3 yr factory warranty on defects
Requires one "AA" battery (not incl)

Please see my other listings for more high torque motors with long hands

Question, please email me

NOTE ON MEASURING::

Shaft length is threaded portion "B" (in picture), , not including hand stem "A".

"B" is the threaded portion that must pass thru your clock face, plus a couple of threads to attach retaining (hex) nut. .

Please verify your mailing address.

I will attached photo(s) of assembly to your purchased email, or you can email me.
