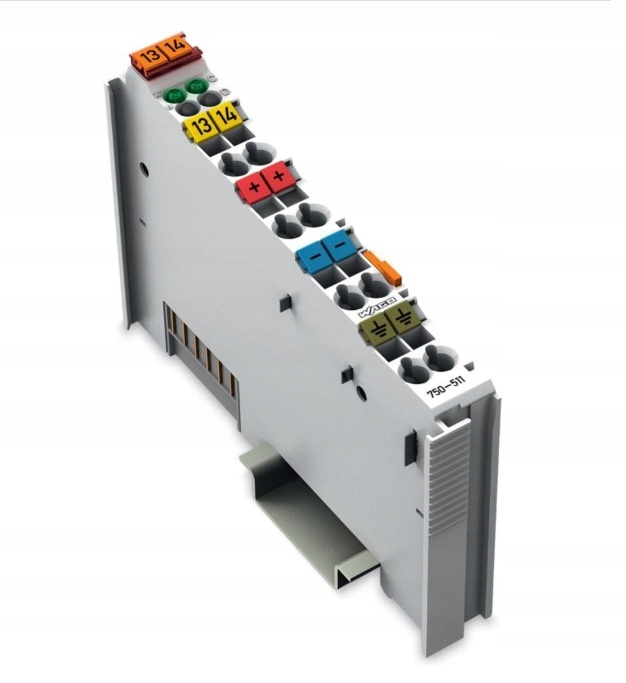

WAGO 750-511/000-001 2-Channel Pulse Width Output Module (PWM)

The WAGO 750-511/000-001 is a 2-channel digital output module from the WAGO-I/O-SYSTEM 750 series. This specialized module modulates a 16-bit value into a frequency signal, providing Pulse Width Modulation (PWM) outputs. It is specifically designed for applications requiring precise control of actuators via frequency modulation within the range of 2 Hz to 2 kHz.

Features:

• Brand: WAGO
• Series: 750 I/O System
• Function: 2-Channel Pulse Width Output (PWM).
• Variant: /000-001 (Optimized for 2 Hz ... 2 kHz frequency range).
• Isolation: Field side electrically isolated from the bus system.
• Connection: CAGE CLAMP® spring pressure connection technology.

Technical Specifications:

• Part Number: 750-511/000-001
• Voltage (Field): 24 V DC (-15% ... +20%)
• Output Current: 0.1 A per channel (Short-circuit protected)
• Pulse Frequency: 2 Hz ... 2 kHz
• Resolution: 10-bit (approx. 2 Hz/digit)
• Duty Cycle: Factory set to 50%
• Load Type: Resistive, inductive
• Mounting: DIN-35 Rail
• Width: 12 mm

Key Benefits:

• Precision Control: High-resolution frequency modulation for accurate process control.
• Compact Design: Slim 12mm housing saves valuable cabinet space.
• Reliability: Robust construction with integrated short-circuit protection for outputs.

Important Notes:
