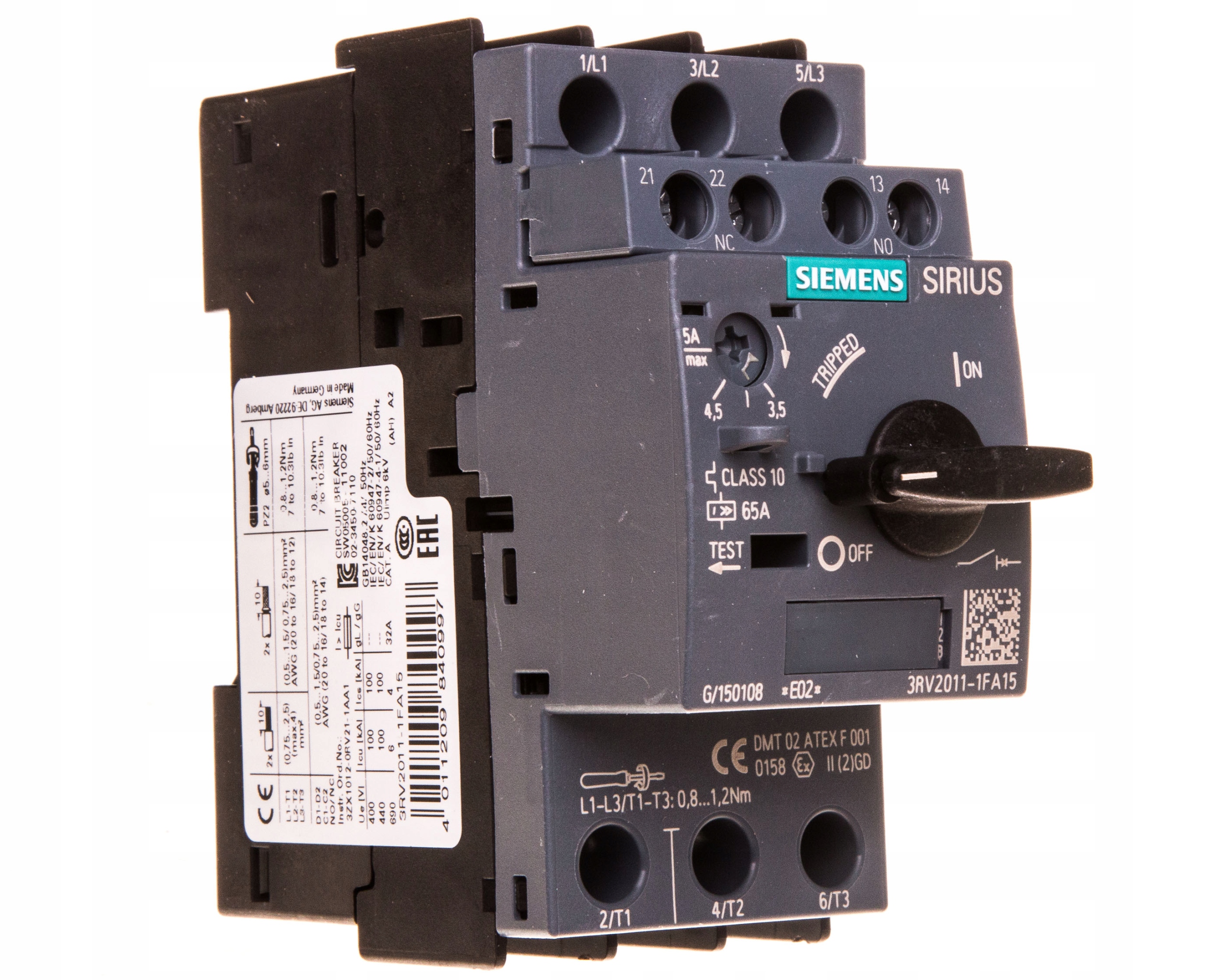

Siemens SIRIUS 3RV2011-1FA15 Motor Starter Protector / Circuit Breaker



This is a Siemens SIRIUS 3RV2 motor starter protector (MPCB), model 3RV2011-1FA15, in the compact S00 size. It is designed to provide robust thermal-magnetic protection for motors, safeguarding against both overload (thermal) and short-circuit (magnetic) conditions. This unit features an adjustable current range from 3.5A to 5A and includes integrated 1NO+1NC auxiliary contacts for status signaling.



Features:




• Brand: Siemens

• Series: SIRIUS

• Model (MPN): 3RV2011-1FA15

• Type: Motor Protection Circuit Breaker (MPCB)

• Size: S00

• Condition: New / New Old Stock (Please verify based on your item)




Technical Specifications:




• Adjustable Current Range: 3.5 A ... 5 A

• Protection Type: Thermal-Magnetic (Overload & Short-Circuit)

• Tripping Class: CLASS 10

• Connection Type: Screw Terminals

• Auxiliary Contacts: 1 NO (Normally Open) + 1 NC (Normally Closed)

• Rated Voltage: Up to 690V AC




Key Benefits:




• Reliable Protection: Offers comprehensive motor protection against common electrical faults.

• Precise Control: Easily adjustable current setting dial for precise matching to the motor's full-load current.

• Compact Design: S00 size saves valuable space in control panels and enclosures.

• Integrated Feedback: Built-in auxiliary contacts allow for remote signaling of the breaker's status (On/Off/Tripped) to a PLC or indicator lamp.




Important Notes:




• VAT invoices available upon request.

• Returns accepted within 30 days; buyer pays return shipping.
