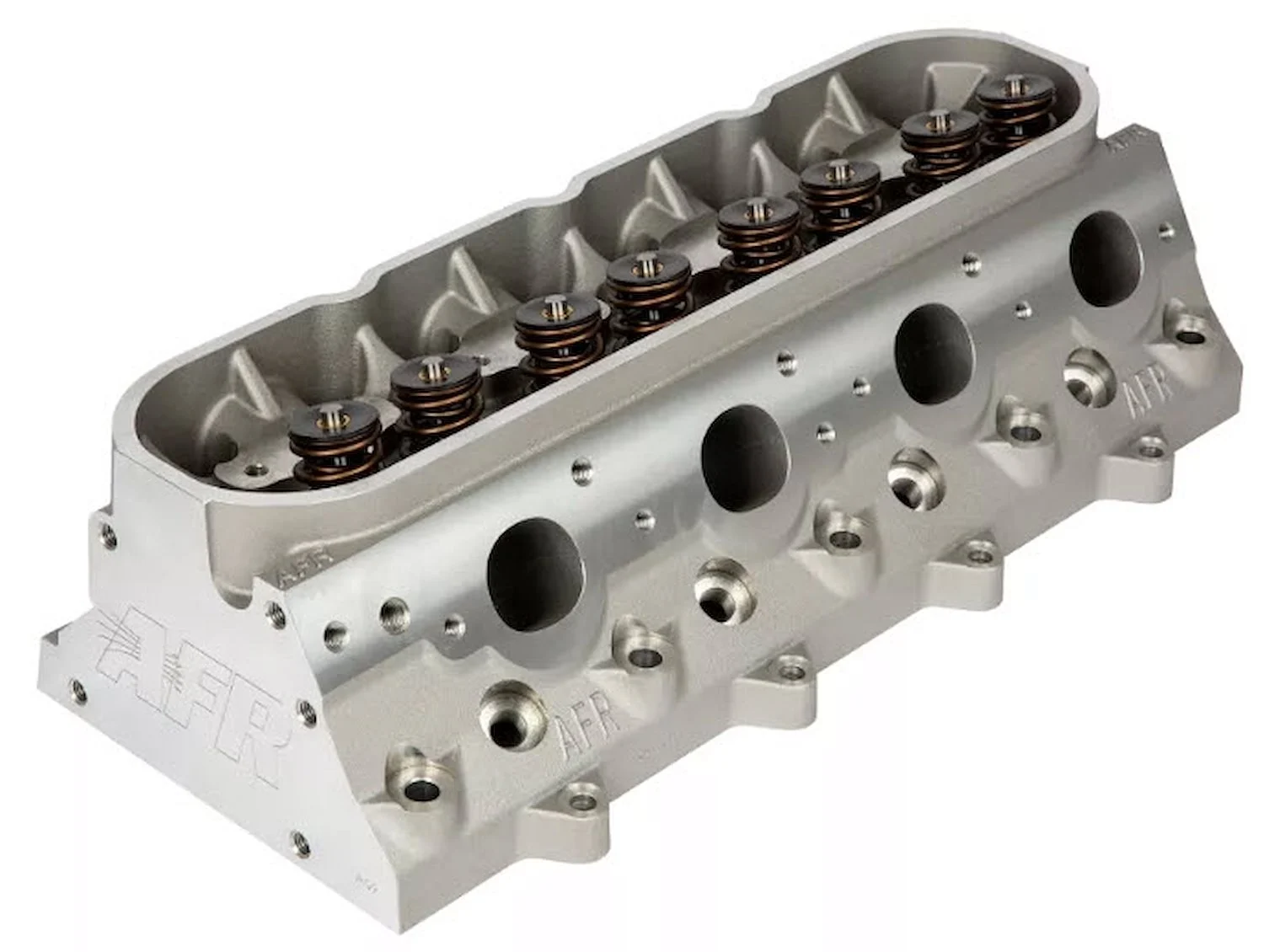

AFR Cylinder Head Assembly 1506; Enforcer 210cc Aluminum 64cc for 97-17 GM LS1

Specifications

  • Cylinder Head Assembly Series: Enforcer
  • Year: 1997-2017
  • Make: GM
  • Engine: LS1
  • Material: Aluminum
  • Combustion Chambers: 64cc
  • Intake Valve Diameter: 2.000 in.
  • Exhaust Valve Diameter: 1.570 in.
  • Spark Plug Angle: Angled
  • Intake Runners: 210cc
  • Exhaust Runners: 82cc
  • Port Style: Cathedral
  • Cam Type Recommended: Hydraulic Roller
  • Max Valve Lift: 0.600 in.
  • Valve Spring OD: 1.290 in.
  • Valve Material: Stainless Steel
  • Notes: Small Bore 5.3L
  • Quantity: Sold as Each

Features

Description

AFR's 210 LS1 Enforcer Cylinder heads feature our Permanent Mold “As-Cast” Technology surfaces on the intake runners, exhaust runners and combustion chambers that allows for extremely accurate and repeatable port location/performance. This budget friendly head is perfect for your OEM engine operating below 6300 RPM. They come fully assembled with the identical components found in our higher end CNC ported cylinder heads; such as PAC Racing springs, viton valve seals, machined bead valve locks (not stamped), hardened spring seats and our one piece 8mm 21 4N Stainless Steel valves. They are available without any parts for the DIY. Sold as a single piece, 2 are required per engine.

WARNING: This product can expose you to chemicals including chromium, known to the State of California to cause cancer and birth defects or other reproductive harm. More info
