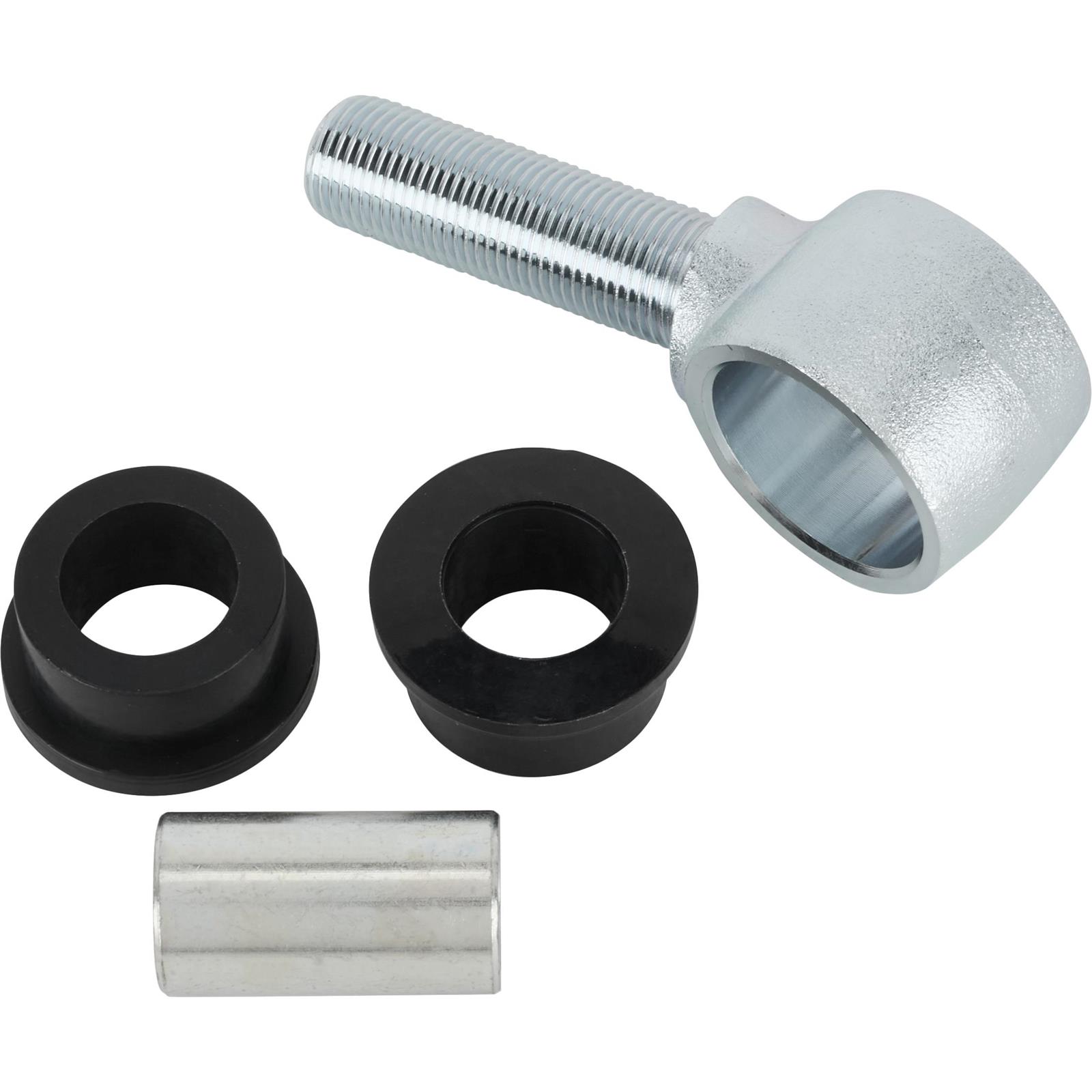

Don't settle for a weak 4-bar end made out of a piece of tubing welded to a bolt. These Speedway rod ends are made from forged steel for superior strength and durability. All rod ends feature a 5/8"-18 RH threaded shank and the polyurethane bushing has a steel sleeve that accepts a 1/2" bolt. Rod ends come in three different configurations:
Choose from straight, 7° or 11° angled shanks.
- Straight Shank
- Mounting eye is perpendicular to threaded shank
- 5/8"-18 RH threads
- Center of mounting eye to end of threads is 2-7/8"
- 7° Shank
- Mounting eye is offset 7° from perpendicular to threaded shank (with the bushing side down, the stud will be angled up at a 7° angle)
- 5/8"-18 RH threads
- Center of mounting eye to end of threads on short side is 2-13/16"
- Center of mounting eye to end of threads on long side is 2-15/16"
- 11° Shank
- Mounting eye is offset 11° from perpendicular to threaded shank (with the bushing side down, the stud will be angled up at a 11° angle)
- 5/8"-18 RH threads
Great product
Summary: Building a 1928 Ford
Yes, I recommend this product.
Fit the bill .
Summary: Just the right fit for the suspension change over I'm doing.
Yes, I recommend this product.
yes
Summary: 4 link
Yes, I recommend this product.
Great Part
Summary: I used this as a suspension part and it worked out great. It was just a little smaller than I thought it would be.
Yes, I recommend this product.
Yes I will buy again
Summary: Excellent product Excellent quality Speedway Motors you sell the best parts.
Yes, I recommend this product.
